Palmary OCA-3235H

Q: How much does the Palmary OCA-3235H cost?

The price estimate for the Palmary OCA-3235H is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/palmary-oca-3235h#price; the request is passed to Palmary or an authorised dealer.

Specs verified 2026-10-05 · palmary.com Updated 2026-10-05

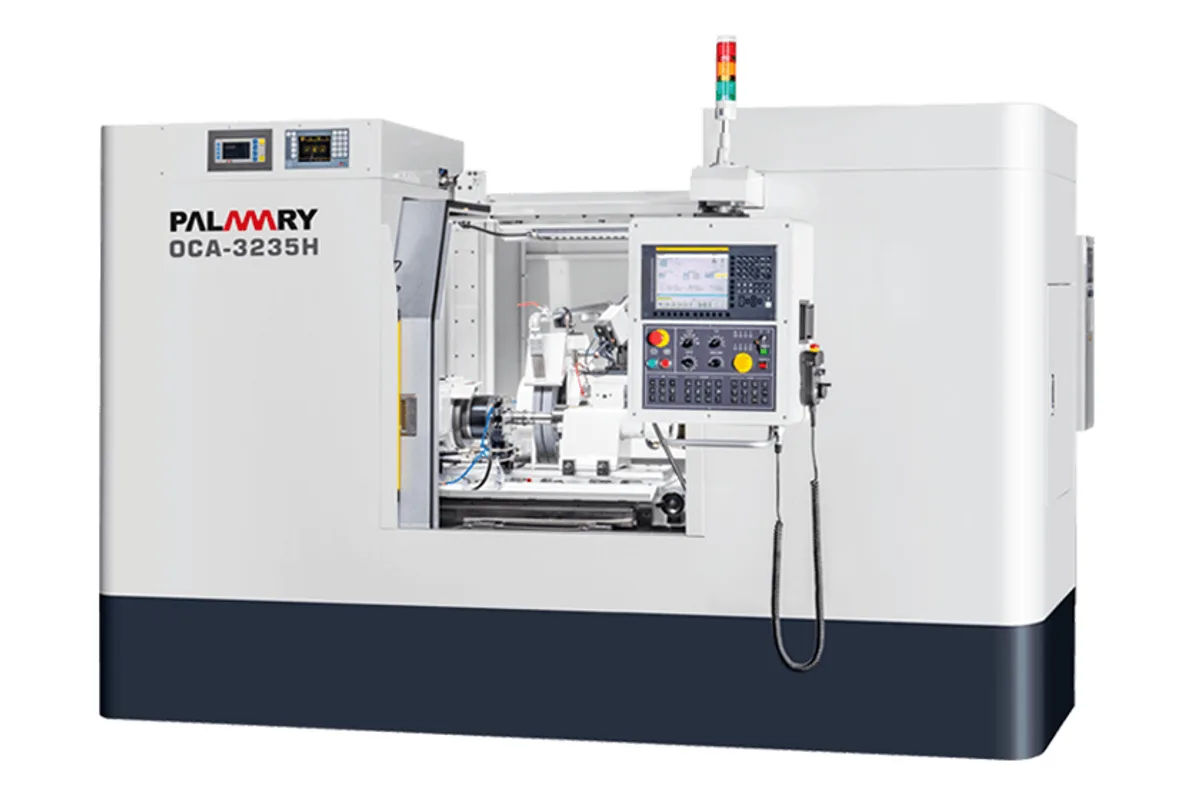

Palmary OCA-3235H / 3265H / 3295H series CNC plunge cylindrical grinder

Image: palmary.com, Palmary

Key Specifications

swing over table

Ø320 mm (12.6 in)

distance between centers

350 mm (13.8 in)

max grinding diameter

Ø300 mm (11.8 in)

max load between centers

150 kg (331 lb)

wheel size

Ø610 x 80 (opt:150) x Ø203.2 mm

wheel peripheral speed

33 m/s (6,496 ft/min)

How much does the Palmary OCA-3235H cost?

Price estimate

Uncertain

We do not have a price for the Palmary OCA-3235H that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Palmary OCA-3235H is a CNC plunge cylindrical grinder built on Palmary's heavy OCA frame. It has Ø320 mm (12.6 in) of swing, 350 mm (13.8 in) between centers and grinds to Ø300 mm (11.8 in), with an 11 kW (14.8 hp) wheel motor.

Palmary files it under plunge grinding with a special wider grinding wheel. The table lists the wheel as Ø610 mm in diameter and 80 mm wide, with 150 mm as an option. The descriptive text on the same page speaks of a maximum 125 mm wheel width, so the two do not quite agree; settle the width you need in writing. The text also says the variable frequency wheel drive can reach a cutting speed of up to 60 m/s, although the table's linear velocity row reads 33 m/s (6,496 ft/min).

In layout the H differs from the angular OCA-3235 in three ways that show in the tables. The workhead swivels through the full -30° to +90°. The wheelhead feed is a 2.5 kW (3.4 hp) AC servo. And an internal grinding spindle of 0.75 kW (1.0 hp) is listed as an option.

All slides are hydro-static according to Palmary, and the splash guard is enlarged so that an automatic loading and unloading device can sit inside it. Travels are 360 mm (14.2 in) on X and 750 mm (29.5 in) on Z. A FANUC CNC controller is standard. Weight is 5,600 kg (12,346 lb), power 24 kVA.

Full Specifications

Parameter	Value
Swing Over Table	Ø320 mm (12.6 in)
Distance Between Centers	350 mm (13.8 in)
Max Grinding Diameter	Ø300 mm (11.8 in)
Max Load Between Centers	150 kg (331 lb)
Wheel Size	Ø610 x 80 (opt:150) x Ø203.2 mm
Wheel Peripheral Speed	33 m/s (6,496 ft/min)
X Axis Rapid Traverse	10 m/min (394 ipm)
X Axis Travel	360 mm (14.2 in)
X Axis Min Setting Unit	0.001 mm
Z Axis Rapid Traverse	10 m/min (394 ipm)
Z Axis Travel	750 mm (29.5 in)
Z Axis Min Input Increment	0.001 mm
Table Swivel Angle	0°~10°
Workhead Swivel Angle	-30°~+90°
Workhead Center Taper	M.T. No. 4
Work Spindle Speed	0-300 rpm
Max Load of Work Spindle	35 kg (77 lb) (max. length: 150 mm)
Tailstock Center Taper	M.T. No. 4
Tailstock Stroke	25 mm (1.0 in)
Tailstock Fine Adjustment Range	±0.03 mm (±0.0012 in)
Wheel Spindle Motor	11 kW (14.8 hp)
Workhead Motor	0.8 kW (1.1 hp)
Wheelhead Feed Motor	2.5 kW (3.4 hp)
Table Feed Motor	1.4 kW (1.9 hp)
Hydrostatic Pump Motor	0.37 kW (0.5 hp) (4P)
Wheel Spindle Lubrication Pump Motor	0.37 kW (0.5 hp) (4P)
Coolant Pump Motor	0.18 kW (0.2 hp) (2P)
Ballscrew Lubrication	Auto lubricator (LUBE)
Internal Grinding Spindle Motor Optional	0.75 kW (1.0 hp) (2P)
Power Requirement	24 kVA
Wheel Spindle Lubrication Tank	31 L (8.2 gal)
Lubrication Tank	31 L (8.2 gal)
Hydraulic Tank	31 L (8.2 gal)
Ballscrew Lubrication Tank	0.7 L (0.2 gal)
Coolant Tank	230 L (60.8 gal)
Machine Weight	5,600 kg (12,346 lb)
CNC Control	FANUC CNC controller

Specifications sourced from palmary.com — verified 2026-10-05

Strengths & Limitations

Strengths

11 kW (14.8 hp) wheel motor on a Ø610 mm wheel, 80 mm wide with 150 mm optional
Enlarged splash guard with room inside for an automatic loading and unloading device
All slides hydro-static, as described by Palmary
Workhead swivel of -30° to +90° and an optional internal grinding spindle

Limitations

Wheel width is stated differently in the table (80 mm, 150 mm optional) and in the text (125 mm maximum)
150 kg (331 lb) between centers
Table swivel 0° to 10° in one direction only
Total power requirement of 24 kVA

Best For

High-volume plunge grinding of short shafts Automated cells with a loader inside the guarding Wide bearing seats ground in one plunge Parts up to Ø300 mm (11.8 in) by 350 mm (13.8 in)

Frequently Asked Questions

01 What is the Palmary OCA-3235H designed to do?

Plunge grinding with a wide wheel. Palmary describes a structure strengthened along the lines of its heavy duty cylindrical grinders and an enlarged hydrostatic wheel spindle. Capacity is Ø300 mm (11.8 in) by 350 mm (13.8 in) between centers and 150 kg (331 lb).

02 How wide a wheel can the OCA-3235H carry?

The specification table gives Ø610 mm by 80 mm, with 150 mm as an option, on a 203.2 mm bore. Palmary's text on the same page says the spindle can carry a wheel of up to 125 mm in width. Confirm the figure for the wheel you intend to run.

03 Can the OCA-3235H be loaded automatically?

Palmary says the enlarged splash guard allows an automatic loading and unloading device to be fitted inside, which shortens cycle time and saves space. The loader itself is not in the listed accessories for this page, so it is quoted separately.

04 How does the OCA-3235H differ from the OCA-3235H200?

Wheel width. The OCA-3235H200 is listed with a Ø610 mm wheel 200 mm wide and weighs 5,700 kg (12,566 lb). The OCA-3235H is listed with an 80 mm wheel, 150 mm optional, and weighs 5,600 kg (12,346 lb). Travels and motors are the same.
