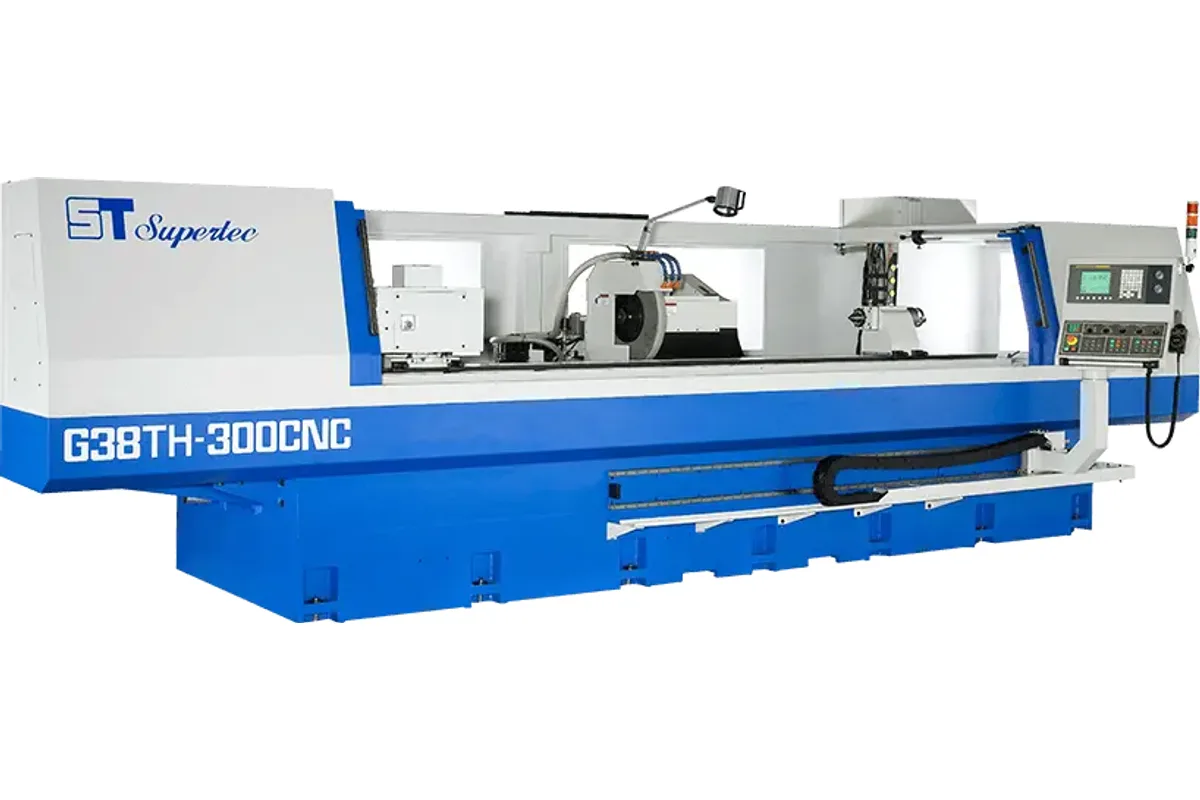

Supertec G38TH / G45TH CNC
Image: supertec-grinder.com, Supertec
Key Specifications
max grinding diameter
distance between centers
swing over table
max load between centers
wheel size
wheel speed
How much does the Supertec G38TH / G45TH CNC cost?
Price estimate
We do not have a price for the Supertec G38TH / G45TH CNC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
On the Supertec G38TH / G45TH CNC the wheelhead travels along the part instead of the table carrying the part past the wheel. Supertec files the series under traverse wheelhead cylindrical grinders, and the reason for the layout shows in the lengths on offer: six beds from 500 mm (20 in) to 4,000 mm (160 in) between centers. A moving table of that length would need twice the floor. A moving wheelhead does not.
There are two swings. The G38TH has a maximum grinding diameter of Ø380 mm (15 in) and the G45TH of Ø450 mm (18 in). Load between centers is 150 kg (330 lb) on the 50CNC and 100CNC and rises to 650 kg (1,430 lb) from the 200CNC upward. The long beds are also built differently at the centers: MT6 in the workhead and MT5 in the tailstock, where the two short beds use MT4 at both ends.
The wheel is Ø510 × 50 × Ø152.4 mm (20 × 2 × 6 in) at 1,250 rpm. Its motor is 5.6 kW as standard with 7.5 kW as the option. The infeed axis (X) rapids at 6 m/min over 225 mm (8.9 in) of travel, and the traverse axis, which the table labels Y, rapids at 8 m/min.
The table gives no machine weight for this series. It does give crate sizes, up to 6,980 × 2,280 × 2,360 mm (275 × 90 × 93 in) for the 400CNC, though none for the 250CNC.
Full Specifications
| Parameter | Value |
|---|---|
| Max Grinding Diameter | G38TH: Ø380 mm (15 in); G45TH: Ø450 mm (18 in) |
| Distance Between Centers | 50CNC: 500 mm (20 in); 100CNC: 1,000 mm (40 in); 200CNC: 2,000 mm (80 in); 250CNC: 2,500 mm (100 in); 300CNC: 3,000 mm (120 in); 400CNC: 4,000 mm (160 in) |
| Swing Over Table | G38TH: Ø360 mm (14 in); G45TH: Ø430 mm (17 in) |
| Max Load Between Centers | 50CNC, 100CNC: 150 kg (330 lb); 200CNC, 250CNC, 300CNC, 400CNC: 650 kg (1,430 lb) |
| Wheel Size | Ø510 × 50 × Ø152.4 mm (20 × 2 × 6 in) |
| Wheel Speed | 1,250 rpm |
| Wheel Linear Velocity | 2,000 m/min |
| X Axis Rapid Traverse | 6 m/min |
| X Axis Min Increment | Ø0.001 mm (0.0001 in) |
| X Axis Infeed Travel | 225 mm (8.9 in) |
| Y Axis Rapid Traverse | 8 m/min |
| Y Axis Min Increment | 0.001 mm (0.0001 in) |
| Workhead Speed | Max. 350 rpm |
| Workhead Center Taper | 50CNC, 100CNC: MT4; 200CNC, 250CNC, 300CNC, 400CNC: MT6 |
| Tailstock Quill Travel | 25 mm (1 in) |
| Tailstock Center Taper | 50CNC, 100CNC: MT4; 200CNC, 250CNC, 300CNC, 400CNC: MT5 |
| Wheel Spindle Motor | 5.6 kW (opt. 7.5 kW) |
| Workhead Motor | 50CNC, 100CNC: 1.5 kW (2.0 hp); 200CNC, 250CNC, 300CNC, 400CNC: 2 kW (2.7 hp) |
| Hydraulic Pump | 20 L/min 55kg/cm2 |
| Coolant Pump | 80 L/min 0.7kg/cm2 |
| X Axis Servo Motor | 1.2 kW (1.6 hp) |
| Y Axis Servo Motor | 50CNC, 100CNC: 1.2 kW (1.6 hp); 200CNC, 250CNC, 300CNC, 400CNC: 1.8 kW (2.4 hp) |
| Packing Dimensions | 50CNC: 3,930 × 2,250 × 2,450 mm (155 × 89 × 96 in); 100CNC: 5,280 × 2,280 × 2,250 mm (208 × 90 × 89 in); 200CNC: 6,360 × 2,280 × 2,250 mm (250 × 90 × 89 in); 300CNC: 6,640 × 2,280 × 2,250 mm (261 × 90 × 89 in); 400CNC: 6,980 × 2,280 × 2,360 mm (275 × 90 × 93 in) |
Specifications sourced from supertec-grinder.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Six center distances, from 500 mm (20 in) up to 4,000 mm (160 in)
- 650 kg (1,430 lb) between centers on the 200CNC and longer beds
- Wheel spindle motor of 5.6 kW, with 7.5 kW optional
- MT6 workhead and MT5 tailstock centers on the long beds for heavier shafts
- Traverse axis servo motor steps up to 1.8 kW (2.4 hp) from the 200CNC upward
Limitations
- The 50CNC and 100CNC are limited to 150 kg (330 lb) between centers
- Wheel width is fixed at 50 mm in the table, with no wider wheel listed
- Supertec's table states no net or gross weight for any length
- Workhead speed tops out at Max. 350 rpm
Best For
Frequently Asked Questions
01
Six: 500 mm (20 in), 1,000 mm (40 in), 2,000 mm (80 in), 2,500 mm (100 in), 3,000 mm (120 in) and 4,000 mm (160 in) between centers, sold as the 50CNC through 400CNC. Either swing, G38TH or G45TH, can be ordered in any of them.
02
It depends on the bed. The 50CNC and 100CNC are rated 150 kg (330 lb). The 200CNC, 250CNC, 300CNC and 400CNC are rated 650 kg (1,430 lb) and use an MT6 workhead center with an MT5 tailstock center, plus a 2 kW (2.7 hp) workhead motor in place of 1.5 kW (2.0 hp).
03
Diameter capacity only, as far as the table shows. The G38TH grinds up to Ø380 mm (15 in) and the G45TH up to Ø450 mm (18 in). Wheel, motors, travels and feed rates are listed once for both.
04
The feature list names a dynamic balance system, crash control, gap control, a touch probe, an auto sizing device, 3-jaw and 4-jaw chucks, fixed and adjustable back plates and 2-point and 3-point steady rests. The page does not say which are standard, so confirm the scope of supply in the quotation.
