Palmary PCB-4520

Q: How much does the Palmary PCB-4520 cost?

The price estimate for the Palmary PCB-4520 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/palmary-pcb-4520#price; the request is passed to Palmary or an authorised dealer.

Specs verified 2026-10-05 · palmary.com Updated 2026-10-05

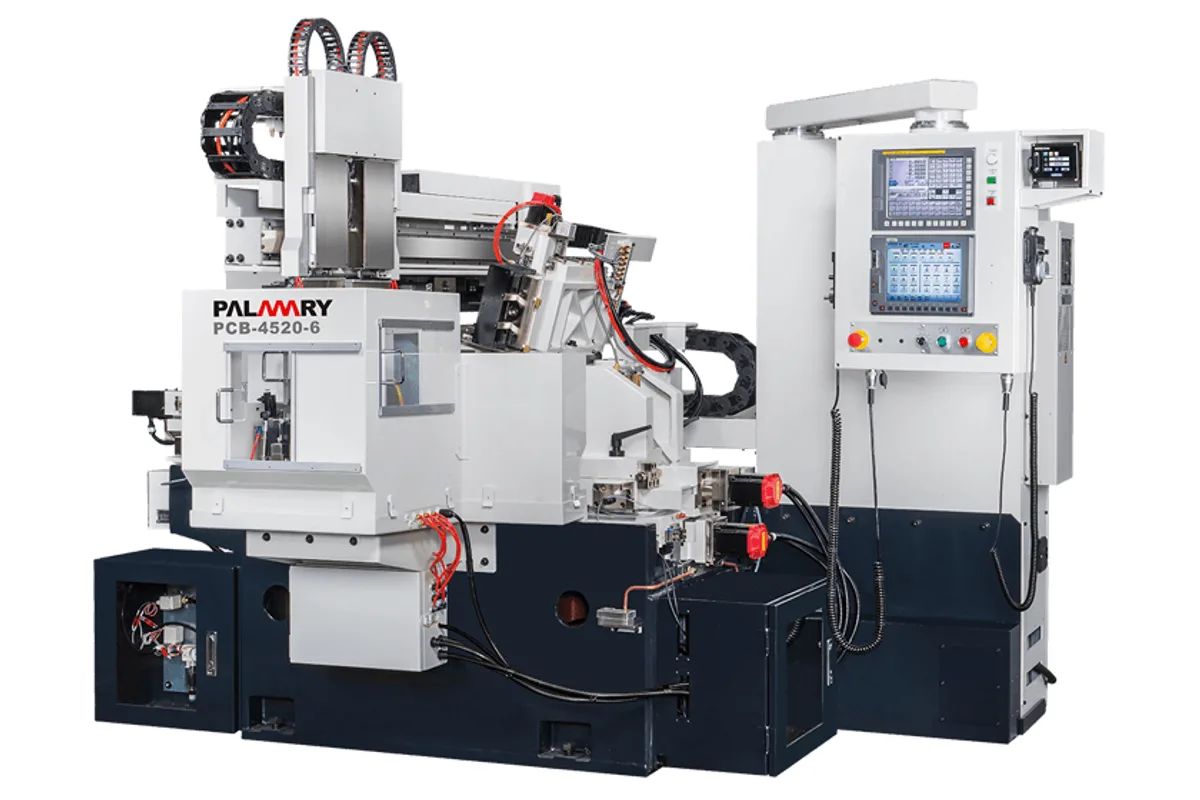

Palmary PCB-4520 / 4525 series CNC centerless grinder

Image: palmary.com, Palmary

Key Specifications

grinding diameter range

Ø1~Ø80 mm

wheel size

Ø455 x 205 x Ø228.6 mm (17.9 x 8.1 x 9.0 in)

wheel peripheral speed

45 m/s (8,858 ft/min)

grinding wheel dressing device

Single-point dressing device / (opt.)Diamond roller dressing device

grinding wheel spindle lubrication

Oil mist type

regulating wheel size

Ø260 x 205 x Ø101.6 mm (10.2 x 8.1 x 4.0 in)

How much does the Palmary PCB-4520 cost?

Price estimate

Uncertain

We do not have a price for the Palmary PCB-4520 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Palmary PCB-4520 is a CNC centerless grinder with a Ø455 mm grinding wheel on a bearing-type spindle, for work from Ø1 to Ø80 mm. It is the PCB-series counterpart of the FCL-18 and uses the same wheel diameter and 205 mm width.

Palmary draws the comparison itself. Against the FCL series it claims a 26% energy saving for this machine, and it attributes precision and rigidity to high-accuracy NN bearings in the grinding wheel spindle. The table adds a faster wheel: 45 m/s (8,858 ft/min), where the FCL-18 runs at 33 m/s.

The slides are different too. Upper and lower slides are listed as square slides driven by ball screw and reducer. Palmary describes the machine as designed for up to 6 axes of CNC control, with servo motors on the driven axes. The grinding wheel spindle is lubricated by oil mist and the regulating wheel spindle by grease.

Grinding power is 15 HP (11 kW), with 20 HP (15 kW) as an option. The regulating wheel is Ø260 mm by 205 mm on a 2 kW (2.7 hp) servo, 10 to 300 rpm. It tilts ±5° and swivels ±0.5°. Dressing is by single point, with a diamond roller dressing device optional. A FANUC CNC controller is standard, and the machine weighs 3,800 kg (8,377 lb), against 2,900 kg (6,393 lb) for the FCL-18.

Full Specifications

Parameter	Value
Grinding Diameter Range	Ø1~Ø80 mm
Wheel Size	Ø455 x 205 x Ø228.6 mm (17.9 x 8.1 x 9.0 in)
Wheel Peripheral Speed	45 m/s (8,858 ft/min)
Grinding Wheel Dressing Device	Single-point dressing device / (opt.)Diamond roller dressing device
Grinding Wheel Spindle Lubrication	Oil mist type
Regulating Wheel Size	Ø260 x 205 x Ø101.6 mm (10.2 x 8.1 x 4.0 in)
Regulating Wheel Speed	10-300 rpm (variable speed)
Regulating Wheel Tilt Angle	±5°
Regulating Wheel Swivel Angle	±0.5°
Regulating Wheel Dresser Swivel Angle	±5°
Regulating Wheel Dresser Offset	0~15 mm
Lower and Upper Slide	Square slider, Ball screw + reducer
Grinding Wheel Motor	15 HP x 4P (11 kW) / OPT. 20 HP x 4P (15 kW)
Regulating Wheel Motor	2 kW (2.7 hp) servo motor
Regulating Wheel Spindle Lubrication	Oil grease type
Slide Lubrication	Auto lubricator (LUBE)
CNC Control	FANUC
Coolant Tank	170 L (44.9 gal)
Wheel Spindle Lubrication Tank	1.0 L (0.3 gal)
Slide Lubrication Tank	4.0 L (1.1 gal)
Machine Weight	3,800 kg (8,377 lb)

Specifications sourced from palmary.com — verified 2026-10-05

Strengths & Limitations

Strengths

45 m/s (8,858 ft/min) wheel speed on a bearing-type spindle with NN bearings
Palmary claims a 26% energy saving compared with its FCL series
Square slides with ball screw and reducer on upper and lower slides
Standard range Ø1 to Ø80 mm, wider than the FCL-18

Limitations

Standard grinding wheel motor is 15 HP (11 kW); the 20 HP (15 kW) motor is an option
Regulating wheel swivel is ±0.5°
Fully enclosed splash guard is an optional accessory
Oil mist spindle lubrication calls for clean, dry air and mist handling

Best For

Precision shafts and pins from Ø1 to Ø80 mm Bearing and automotive components in volume Higher wheel speeds than a plain-bearing machine allows Lines with the optional automatic loading and unloading system

Frequently Asked Questions

01 What is the grinding range of the Palmary PCB-4520?

Ø1 to Ø80 mm as standard. The grinding wheel is Ø455 x 205 mm on a 228.6 mm bore and the regulating wheel Ø260 x 205 mm on a 101.6 mm bore. Wheel speed is 45 m/s (8,858 ft/min).

02 How does the PCB-4520 differ from the FCL-18?

The FCL-18 is an alloy bearing spindle machine running at 33 m/s (6,496 ft/min) and weighing 2,900 kg (6,393 lb). The PCB-4520 has a rolling bearing spindle at 45 m/s (8,858 ft/min), ball screw slides and weighs 3,800 kg (8,377 lb).

03 What motors does the PCB-4520 have?

The grinding wheel motor is 15 HP (11 kW), with a 20 HP (15 kW) motor as an option. The regulating wheel is driven by a 2 kW (2.7 hp) servo motor and runs from 10 to 300 rpm.

04 How are the spindles of the PCB-4520 lubricated?

The grinding wheel spindle uses oil mist lubrication and the regulating wheel spindle oil grease. The slides have an automatic lubricator. Tank capacities are 1.0 L for the grinding wheel spindle lubrication system and 4.0 L for the table slides.
