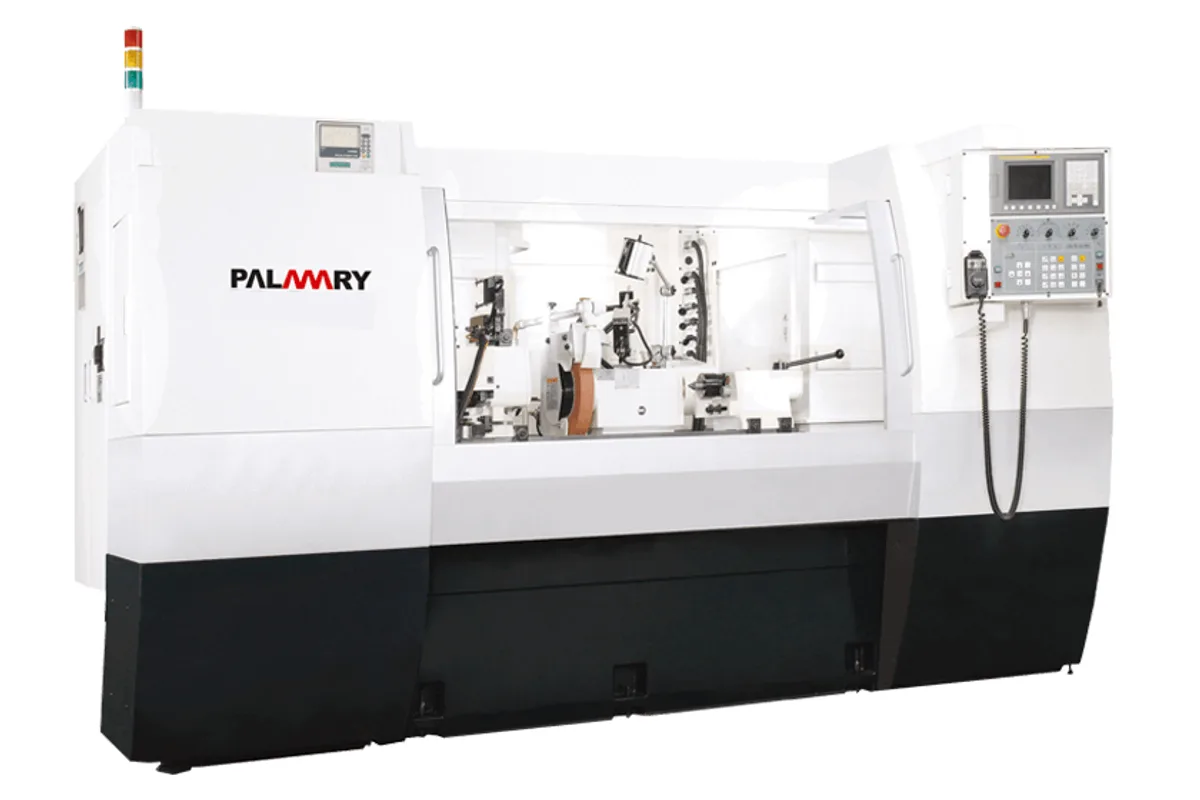

Palmary OCD-4260
Image: palmary.com, Palmary
Key Specifications
swing over table
distance between centers
max grinding diameter
max load between centers
wheel size
wheel peripheral speed
How much does the Palmary OCD-4260 cost?
Price estimate
We do not have a price for the Palmary OCD-4260 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Palmary OCD-4260 is a CNC cylindrical grinder with Ø420 mm (16.5 in) of swing and 600 mm (23.6 in) between centers, grinding up to Ø400 mm (15.7 in). Among the five OCD-42 lengths it is the second shortest, and the first where the workhead motor grows.
That motor is the detail to notice. The OCD-4240 turns the work with a 1 kW servo motor; from this model on the table lists 1.5 kW (2.0 hp). The speed range is unchanged at 10 to 300 rpm, so the extra power goes into turning larger and longer parts steadily, not into speed.
Elsewhere the numbers follow the 600 mm pattern of the range. Table stroke is 900 mm (35.4 in), wheelhead stroke 260 mm (10.2 in), rapid traverse 10 m/min (394 ipm) on both. The table swivels 0° to 10°. The centers are No. 4 Morse taper and carry 150 kg (331 lb), and a part on the work spindle alone may weigh 35 kg (77 lb).
Palmary's description of the series stresses the wheel end: a spindle of carburized, sub-zero treated alloy steel in hybrid hydro-static bearings. It carries a Ø405 mm wheel, 50 to 75 mm wide, on 5.5 kW (7.4 hp). Internal grinding is an optional attachment with a 0.75 kW (1.0 hp) spindle. With the standard FANUC controller, enclosure and linear scale the machine weighs 3,800 kg (8,377 lb) and needs 18 kVA.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Table | Ø420 mm (16.5 in) |
| Distance Between Centers | 600 mm (23.6 in) |
| Max Grinding Diameter | Ø400 mm (15.7 in) |
| Max Load Between Centers | 150 kg (331 lb) |
| Wheel Size | Ø405 x 50~75 x Ø127 (Ø152.4) mm |
| Wheel Peripheral Speed | 33 m/s (6,496 ft/min) |
| X Axis Rapid Traverse | 10 m/min (394 ipm) |
| X Axis Travel | 260 mm (10.2 in) |
| X Axis Min Setting Unit | 0.001 (0.0001) mm |
| Z Axis Rapid Traverse | 10 m/min (394 ipm) |
| Z Axis Travel | 900 mm (35.4 in) |
| Z Axis Min Input Increment | 0.001 (0.0001) mm |
| Table Swivel Angle | 0°~10° |
| Workhead Swivel Angle | -30°~+90° |
| Workhead Center Taper | M.T. No. 4 |
| Work Spindle Speed | 10-300 rpm |
| Max Load of Work Spindle | 35 kg (77 lb) (max. length: 150 mm) |
| Tailstock Center Taper | M.T. No. 4 |
| Tailstock Stroke | 25 mm (1.0 in) |
| Tailstock Fine Adjustment Range | ±0.03 mm (±0.0012 in) |
| Wheel Spindle Motor | 5.5 kW (7.4 hp) (6P) |
| Workhead Motor | 1.5 kW (2.0 hp) |
| Wheelhead Feed Motor | 1.2 kW (1.6 hp) |
| Table Feed Motor | 1.8 kW (2.4 hp) |
| Hydrostatic Pump Motor | 0.37 kW (0.5 hp) (4P) |
| Wheel Spindle Lubrication Pump Motor | 0.37 kW (0.5 hp) (4P) |
| Coolant Pump Motor | 0.18 kW (0.2 hp) (2P) |
| Ballscrew Lubrication | Auto lubricator (LUBE) |
| Internal Grinding Spindle Motor Optional | 0.75 kW (1.0 hp) (2P) |
| Power Requirement | 18 kVA |
| Wheel Spindle Lubrication Tank | 31 L (8.2 gal) |
| Lubrication Tank | 31 L (8.2 gal) |
| Hydraulic Tank | 31 L (8.2 gal) |
| Ballscrew Lubrication Tank | 0.7 L (0.2 gal) |
| Coolant Tank | 120 L (31.7 gal) |
| Machine Weight | 3,800 kg (8,377 lb) |
| CNC Control | FANUC CNC controller |
Specifications sourced from palmary.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Ø400 mm (15.7 in) grinding diameter with 600 mm (23.6 in) between centers
- 1.5 kW (2.0 hp) workhead servo motor, up from the motor of the OCD-4240
- 900 mm (35.4 in) table stroke at 10 m/min (394 ipm) rapid
- Standard micro adjustment tailstock with ±0.03 mm of fine adjustment
Limitations
- Load between centers stays at 150 kg (331 lb) despite the larger swing
- Table swivel limited to 0° to 10°
- The 5.5 kW (7.4 hp) wheel motor is the same as on the smaller-swing OCD-3260
- Hydraulic tailstock, steady rests and gauging are optional accessories
Best For
Frequently Asked Questions
01
Swing over table Ø420 mm (16.5 in), distance between centers 600 mm (23.6 in), maximum external grinding diameter Ø400 mm (15.7 in), load between centers 150 kg (331 lb). The wheel is Ø405 mm on a 5.5 kW (7.4 hp) motor, and the machine weighs 3,800 kg (8,377 lb).
02
A swivelling work spindle head, -30° to +90°, with a No. 4 Morse center taper and variable speed from 10 to 300 rpm. It is driven by a 1.5 kW (2.0 hp) AC servo motor. Without tailstock support it carries 35 kg (77 lb) including the holder, at up to 150 mm of length.
03
Palmary lists a touch probe gauge, an automatic in-process gauge and an automatic grinding wheel balancer as optional accessories for this model. A magnetic coolant separator, a magnetic and paper filter and an oil mist collector are options as well. No loader is listed on this page.
04
In length, the OCD-42100 with 1,000 mm (39.4 in) between centers and a 1,315 mm (51.8 in) table stroke, at 4,500 kg (9,921 lb). Swing, wheel and wheel motor do not change. The OCD-4260 has 600 mm (23.6 in) between centers and weighs 3,800 kg (8,377 lb).
