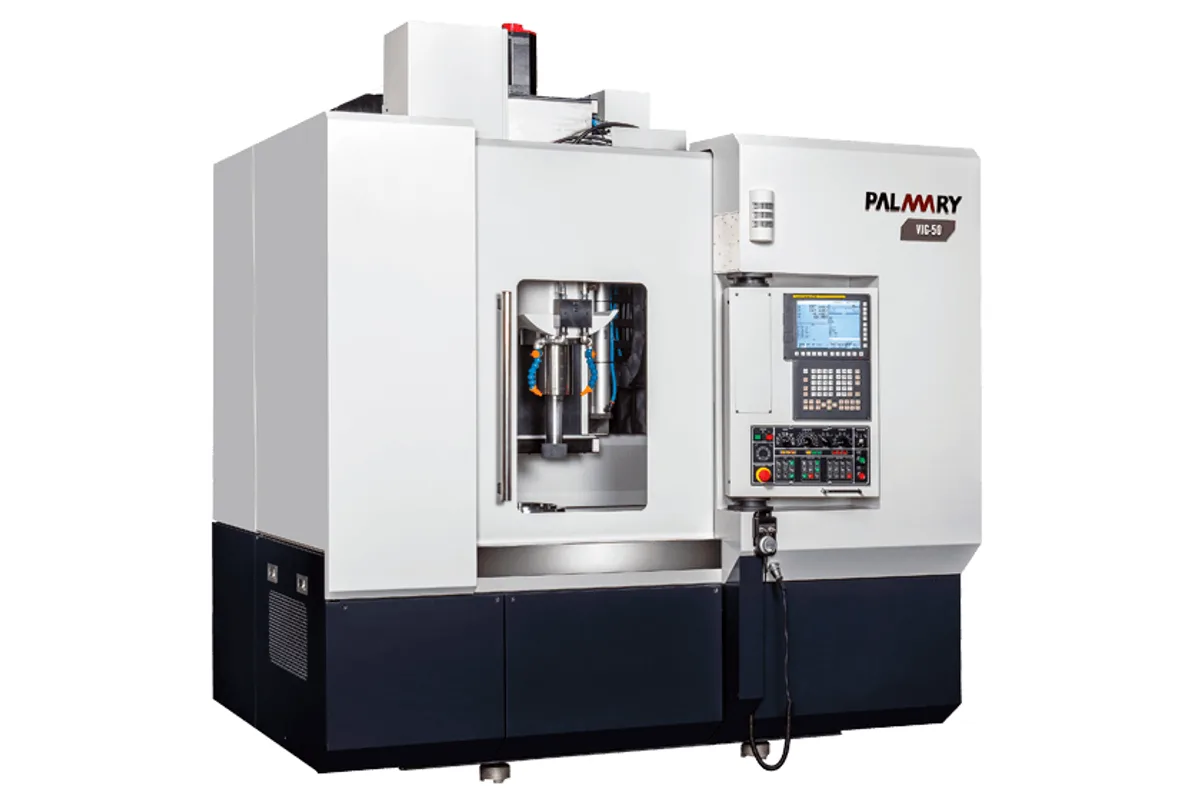

Palmary VIG-50
Image: palmary.com, Palmary
Key Specifications
Max Spindle
Spindle Taper
Table Size
o d grinding range
max i d grinding length
max o d grinding length
How much does the Palmary VIG-50 cost?
Price estimate
We do not have a price for the Palmary VIG-50 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Palmary VIG-50 is a CNC vertical grinder with a Ø550 mm (21.7 in) face plate and an automatic wheel changer. It grinds outside diameters from Ø38 to 500 mm, bores, and end faces on parts up to 410 mm (16.1 in) long and 500 kg (1,102 lb).
The wheel changer is what makes a vertical grinder productive. Palmary's ATC holds up to 6 grinding wheels on HSK-E63 holders, so one clamping can use a small wheel for a bore, a larger one for the outside and another for a face, each with the right diameter and grit. Four holders and four wheels are supplied as standard. For face grinding the wheel spindle can be swivelled to 22.5°.
The spindle is a built-in type of 15 kW (20.1 hp) running from 2,700 to 15,000 rpm, taking wheels of Ø40 to 205 mm at 45 m/s (8,858 ft/min). The table turns at 20 to 220 rpm on a 3.7 kW (5.0 hp) motor. Maximum outside grinding length is 350 mm (13.8 in); bore depth depends on diameter, 200 mm below Ø200 and 350 mm above.
X travels 970 mm (38.2 in) and Z 550 mm (21.7 in) at up to 10 m/min, with 0.0001 mm setting units and fully closed loop scales. The bed is a honeycomb tubular casting, and Palmary isolates the coolant flow from it to limit thermal deformation. Coolant capacity is 600 L (158.5 gal). The controller is FANUC with gap control. Weight is 7,000 kg (15,432 lb), power 30 kVA.
Full Specifications
| Parameter | Value |
|---|---|
| O D Grinding Range | Ø38~500 mm |
| Max I D Grinding Length | ~Ø199: 200 mm; Ø200~: 350 mm |
| Max O D Grinding Length | 350 mm (13.8 in) |
| Swing Diameter | Ø550 mm (21.7 in) |
| Max Workpiece Length | 410 mm (16.1 in) |
| Max Workpiece Load | 500 kg (1,102 lb) |
| Distance Spindle Upper Side to Wheel | 510 mm (20.1 in) |
| Max Spindle Speed | 2,700-15,000 rpm |
| Wheel Diameter | Ø40~205 mm |
| Wheel Peripheral Speed | 45 m/s (8,858 ft/min) |
| Spindle Taper | HSK-E63 |
| Table Size | Ø550 mm (21.7 in) |
| Work Spindle Speed | 20-220 rpm |
| X Axis Travel | 970 mm (38.2 in) |
| X Axis Feed Speed | 0-10 m/min (0-394 ipm) |
| X Axis Min Setting Unit | 0.0001 mm |
| X Axis Mpg Increments | 0.0001, 0.001, 0.05 mm |
| Z Axis Travel | 550 mm (21.7 in) |
| Z Axis Feed Speed | 0-10 m/min (0-394 ipm) |
| Z Axis Min Setting Unit | 0.0001 mm |
| Z Axis Mpg Increments | 0.0001, 0.001, 0.05 mm |
| Slide Ways | Linear guideway |
| Workhead Motor | 3.7 kW (5.0 hp) |
| Wheel Spindle Motor | 15 kW (20.1 hp) |
| X Axis Motor | 4 kW (5.4 hp) |
| Z Axis Motor | 4 kW (5.4 hp) |
| ATC Motor | 0.75 kW (1.0 hp) |
| High Pressure Coolant Pump Motor | 0.375 & 2.1 kW |
| Hydraulic Pump Motor | 0.75 kW (1.0 hp) |
| Power Requirement | 30 kVA |
| Air Supply | 0.7 MPa & 1,800 NL/min |
| Coolant Tank | 600 L (158.5 gal) |
| Oil Tanks Hydraulic Spindle Change Spindle Cooler | 30 L / 12 L / 45 L |
| Machine Weight | 7,000 kg (15,432 lb) |
| CNC Control | FANUC CNC controller (included current gap control function) |
Specifications sourced from palmary.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Automatic wheel changer for up to 6 grinding wheels on HSK-E63 holders
- 15 kW (20.1 hp) built-in wheel spindle, 2,700 to 15,000 rpm
- 0.0001 mm minimum setting unit on X and Z with fully closed loop scales
- Wheel spindle swivels to 22.5° for end face grinding
- 600 L (158.5 gal) coolant tank with coolant flow isolated from the bed
Limitations
- Bore depth is limited to 200 mm for bores under Ø200 mm
- Workpiece load of 500 kg (1,102 lb)
- Magnetic chuck with demagnetizer is an optional accessory
- Needs 1,800 NL/min of air at 0.7 MPa
Best For
Frequently Asked Questions
01
The face plate is Ø550 mm (21.7 in). Outside diameters from Ø38 to 500 mm can be ground, on workpieces up to 410 mm (16.1 in) long and 500 kg (1,102 lb). Maximum outside diameter grinding length is 350 mm (13.8 in).
02
Palmary describes the ATC system as equipped with a maximum of 6 grinding wheels for different diameter or accuracy requirements. The tool holder type is HSK-E63, and four standard HSK-E63 tools and four grinding wheels are in the standard accessories.
03
The wheel spindle is a built-in type with a 15 kW (20.1 hp) motor and a speed of 2,700 to 15,000 rpm, for wheels of Ø40 to 205 mm at 45 m/s (8,858 ft/min). The work spindle turns at 20 to 220 rpm on a 3.7 kW (5.0 hp) motor.
04
The VIG-80 has a Ø850 mm (33.5 in) face plate, carries 1,000 kg (2,205 lb), uses HSK-E100 holders and a 22 kW (29.5 hp) spindle, and weighs 13,000 kg (28,660 lb). The VIG-50 has a Ø550 mm (21.7 in) face plate, carries 500 kg (1,102 lb) and weighs 7,000 kg (15,432 lb).
