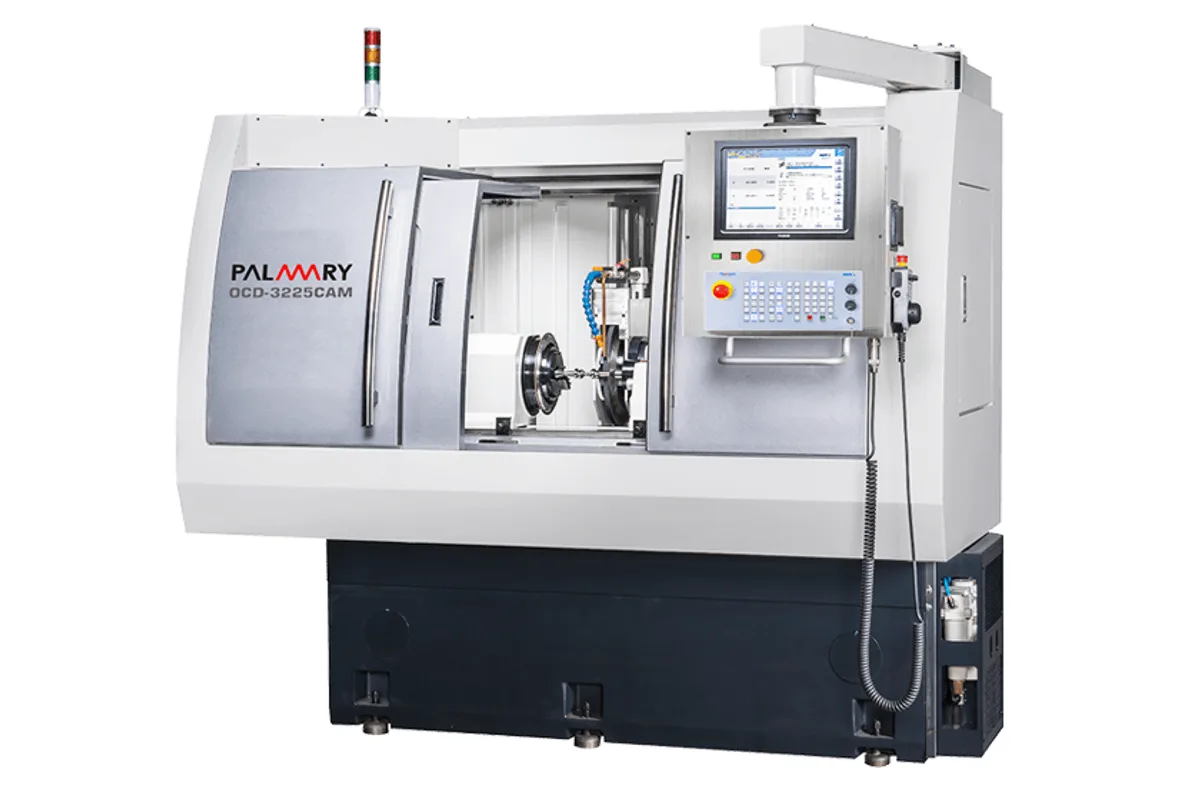

Palmary OCD-3225CAM
Image: palmary.com, Palmary
Key Specifications
swing over table
distance between centers
max grinding diameter
max load between centers
wheel size
wheel peripheral speed
How much does the Palmary OCD-3225CAM cost?
Price estimate
We do not have a price for the Palmary OCD-3225CAM that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Palmary OCD-3225CAM is a CNC cam grinder: a cylindrical grinder whose work spindle is a controlled C axis, so the wheel can follow a non-round shape as the part turns. It is the shortest of the CAM models, with 250 mm (9.8 in) between centers, Ø320 mm (12.6 in) of swing and Ø300 mm (11.8 in) of grinding diameter.
The hardware is unlike the ordinary OCD machines. Palmary says the infeed axis is driven by a linear motor on a linear guideway with a closed loop linear scale, to avoid backlash, and that the work spindle has a built-in motor and a precise angle encoder. The table backs that up: the workhead is rated 5.2 kW (7.0 hp), many times the motor of a plain cylindrical grinder of this size, and the feed axes 3.6 kW (4.8 hp) each. The control is by NUM.
Following a cam profile takes acceleration rather than speed. Rapid advance is only 4 m/min (157 ipm), and the work spindle runs from 10 to 500 rpm. The wheel is small and light, Ø355 mm by 50 mm on a 3.7 kW (5.0 hp) motor, and a CBN wheel is offered as an option.
Table stroke is 586 mm (23.1 in), the same as on the OCD-3240CAM. The machine keeps the swivelling workhead and 0° to 12° table swivel of a universal grinder, so round work can be done too. Weight is 3,400 kg (7,496 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Table | Ø320 mm (12.6 in) |
| Distance Between Centers | 250 mm (9.8 in) |
| Max Grinding Diameter | Ø300 mm (11.8 in) |
| Max Load Between Centers | 150 kg (331 lb) |
| Wheel Size | Ø355 x 50 x Ø127 mm (14.0 x 2.0 x 5.0 in) |
| Wheel Peripheral Speed | 33 m/s (6,496 ft/min) |
| X Axis Rapid Traverse | 4 m/min (157 ipm) |
| X Axis Travel | 257 mm (10.1 in) |
| X Axis Min Setting Unit | 0.001 (0.0001) mm |
| Z Axis Rapid Traverse | 4 m/min (157 ipm) |
| Z Axis Travel | 586 mm (23.1 in) |
| Z Axis Min Input Increment | 0.001 (0.0001) mm |
| Table Swivel Angle | 0°~12° |
| Workhead Swivel Angle | -30°~+90° |
| Workhead Center Taper | M.T. No. 4 |
| Work Spindle Speed | 10-500 rpm |
| Max Load of Work Spindle | 35 kg (77 lb) (max. length: 150 mm) |
| Tailstock Center Taper | M.T. No. 4 |
| Tailstock Stroke | 25 mm (1.0 in) |
| Tailstock Fine Adjustment Range | ±0.03 mm (±0.0012 in) |
| Wheel Spindle Motor | 3.7 kW (5.0 hp) (4P) |
| Workhead Motor | 5.2 kW (7.0 hp) (AC Servo Motor) |
| Wheelhead Feed Motor | 3.6 kW (4.8 hp) (AC Servo Motor) |
| Table Feed Motor | 3.6 kW (4.8 hp) (AC Servo Motor) |
| Hydrostatic Pump Motor | 0.75 kW (1.0 hp) (6P) |
| Wheel Spindle Lubrication Pump Motor | 0.18 kW (0.2 hp) (2P) |
| Coolant Pump Motor | 0.18 kW (0.2 hp) (4P) |
| Ballscrew Lubrication | Auto lubricator (LUBE) |
| Wheel Spindle Lubrication Tank | 12 L (3.2 gal) |
| Lubrication Tank | 60 L (15.9 gal) |
| Ballscrew Lubrication Tank | 0.7 L (0.2 gal) |
| Coolant Tank | 100 L (26.4 gal) |
| Machine Weight | 3,400 kg (7,496 lb) |
| CNC Control | NUM controller |
Specifications sourced from palmary.com — verified 2026-10-05
Strengths & Limitations
Strengths
- C-axis work spindle with built-in motor and angle encoder for non-round grinding
- Linear motor infeed with closed loop linear scale, as described by Palmary
- 5.2 kW (7.0 hp) workhead servo and 3.6 kW (4.8 hp) feed axes
- Linear scales for the X and C axes and a NUM controller are standard accessories
- CAD/CAM software and a CBN wheel are available as options
Limitations
- Rapid advance of 4 m/min (157 ipm), slower than Palmary's standard cylindrical grinders
- Wheel motor of 3.7 kW (5.0 hp) with a 50 mm wide wheel
- 250 mm (9.8 in) between centers
- CAD/CAM software is an optional accessory, not part of the base machine
Best For
Frequently Asked Questions
01
Eccentric circles and non-round shapes, as well as ordinary cylindrical work. Palmary says it developed the cam type for moving easily from the workpiece drawing to the grinding program, with precise angle control from a C axis that has an accurate encoder.
02
A NUM controller is listed in the standard accessories, along with linear scales for the X and C axes. CAD/CAM software appears in the optional accessories. Minimum setting unit on the wheelhead is 0.001 mm.
03
250 mm (9.8 in) between centers, Ø300 mm (11.8 in) maximum external grinding diameter and 150 kg (331 lb) between centers. The wheelhead strokes 257 mm (10.1 in) and the table 586 mm (23.1 in).
04
The standard wheel is Ø355 mm by 50 mm wide on a 127 mm bore, at 33 m/s (6,496 ft/min), with a grinding wheel inverter. Palmary lists a CBN wheel of Ø400 x 16 x 152.4 mm and an electroplated diamond roller dressing device as options.
