Palmary OCA-3235

Specs verified 2026-10-05 · palmary.com Updated 2026-10-05

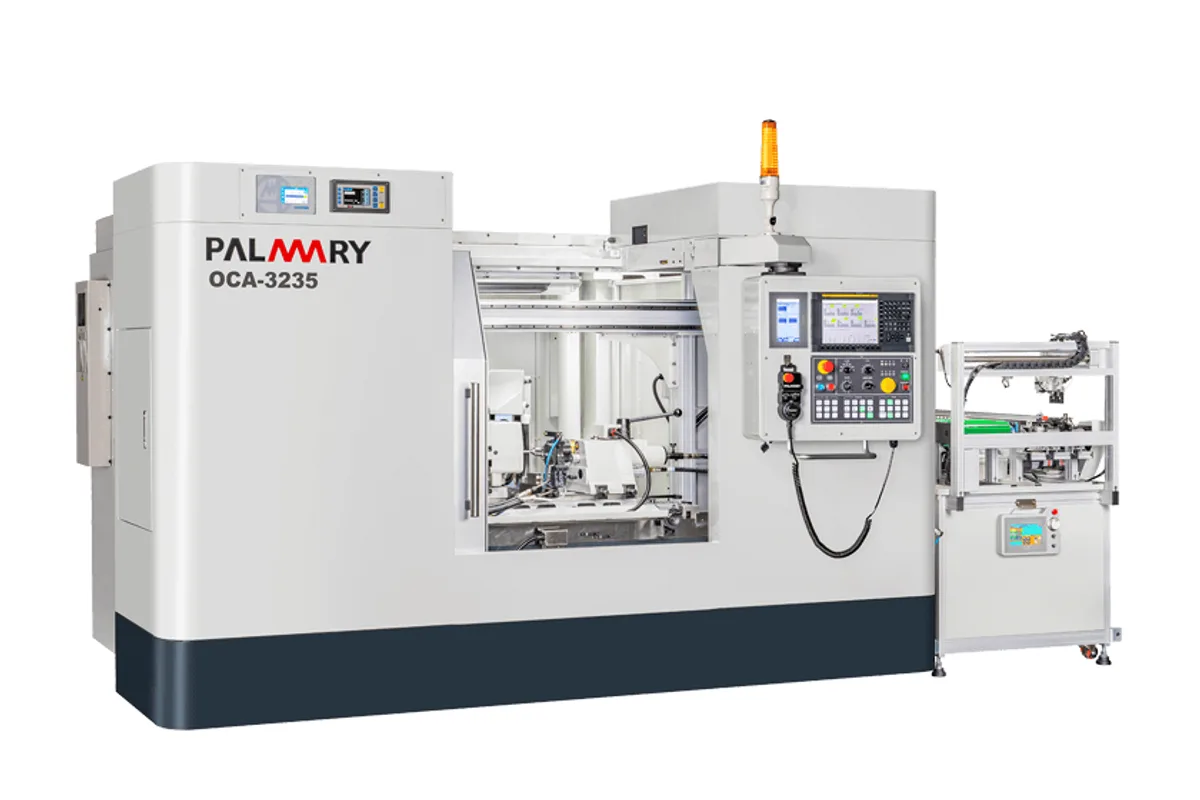

Image: palmary.com, Palmary

Key Specifications

swing over table

Ø320 mm (12.6 in)

distance between centers

350 mm (13.8 in)

max grinding diameter

Ø300 mm (11.8 in)

max load between centers

150 kg (331 lb)

wheel size

Ø610 x 150 x Ø203.2 mm (24.0 x 5.9 x 8.0 in)

wheel peripheral speed

33 m/s (6,496 ft/min)

How much does the Palmary OCA-3235 cost?

Price estimate

Uncertain

We do not have a price for the Palmary OCA-3235 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Palmary OCA-3235 is a CNC angular cylindrical grinder: the wheelhead approaches the work at an angle, so a single infeed grinds a diameter and the shoulder next to it. It has Ø320 mm (12.6 in) of swing, 350 mm (13.8 in) between centers and a maximum grinding diameter of Ø300 mm (11.8 in).

Palmary calls this a heavy duty type, and the wheel shows why. It is Ø610 mm in diameter and 150 mm wide on a 203.2 mm bore, driven by an 11 kW (14.8 hp) motor. That is twice the wheel motor power of the standard OCD-3240 and a wheel twice as wide. A cantilever crane for changing it and a grinding wheel inverter are in the standard accessories.

A wheel 150 mm wide is normally dressed to a stepped profile, and the control is set up for that. Palmary states that X and Z move simultaneously to dress the wheel to a specific shape for multiple-step grinding. The wheel slide runs on hydro-static ways with its own hydraulic and lubrication system.

The wheelhead strokes 360 mm (14.2 in) and the table 750 mm (29.5 in), both at 10 m/min (394 ipm). The table swivels -1° to 10°, the workhead 0° to +90°. Load between centers is 150 kg (331 lb). Standard equipment includes a FANUC CNC controller, a taper fine adjustment tailstock and a linear scale on X. The machine weighs 5,600 kg (12,346 lb).

Full Specifications

Parameter	Value
Swing Over Table	Ø320 mm (12.6 in)
Distance Between Centers	350 mm (13.8 in)
Max Grinding Diameter	Ø300 mm (11.8 in)
Max Load Between Centers	150 kg (331 lb)
Wheel Size	Ø610 x 150 x Ø203.2 mm (24.0 x 5.9 x 8.0 in)
Wheel Peripheral Speed	33 m/s (6,496 ft/min)
X Axis Rapid Traverse	10 m/min (394 ipm)
X Axis Travel	360 mm (14.2 in)
X Axis Min Setting Unit	0.001 (0.0001) mm
Z Axis Rapid Traverse	10 m/min (394 ipm)
Z Axis Travel	750 mm (29.5 in)
Z Axis Min Setting Unit	0.001 (0.0001) mm
Table Swivel Angle	-1°~10°
Workhead Swivel Angle	0°~+90°
Workhead Center Taper	M.T. No. 4
Work Spindle Speed	0-300 rpm
Max Load of Work Spindle	35 kg (77 lb)
Tailstock Center Taper	M.T. No. 4
Tailstock Stroke	25 mm (1.0 in)
Tailstock Fine Adjustment Range	±0.03 mm (±0.0012 in)
Wheel Spindle Motor	11 kW (14.8 hp)
Workhead Motor	0.37 kW (0.5 hp) (4P)
Wheelhead Feed Motor	0.37 kW (0.5 hp) (4P)
Table Feed Motor	1.8 kW (2.4 hp) (AC Servo Motor)
Hydrostatic Pump Motor	0.37 kW (0.5 hp) (4P)
Wheel Spindle Lubrication Pump Motor	0.18 kW (0.2 hp) (4P)
Coolant Pump Motor	0.37 kW (0.5 hp) (2P)
Ballscrew Lubrication	Auto lubricator (LUBE)
Wheel Spindle Lubrication Tank	31 L (8.2 gal)
Lubrication Tank	31 L (8.2 gal)
Hydraulic Tank	31 L (8.2 gal)
Ballscrew Lubrication Tank	0.7 L (0.2 gal)
Coolant Tank	230 L (60.8 gal)
Machine Weight	5,600 kg (12,346 lb)
CNC Control	FANUC CNC controller

Specifications sourced from palmary.com — verified 2026-10-05

Strengths & Limitations

Strengths

Ø610 mm wheel, 150 mm wide, on an 11 kW (14.8 hp) motor
Simultaneous X and Z movement dresses the wheel to a stepped shape for multiple-step grinding, as Palmary states
Hydro-static slide ways on the angular wheel seat with an independent hydraulic and lubrication system
Cantilever crane for wheel changes and a grinding wheel inverter are standard accessories
Table swivel of -1° to 10°, the widest of the three OCA lengths

Limitations

150 kg (331 lb) between centers despite a 5,600 kg (12,346 lb) machine
350 mm (13.8 in) between centers
Workhead swivels only from 0° to +90°, and the 0.37 kW (0.5 hp) workhead motor is small
The page does not state the wheelhead angle

Best For

Short shafts with several diameters and shoulders ground in one plunge High-volume automotive-type shafts up to 350 mm (13.8 in) Multi-step grinding with a profiled wheel up to 150 mm wide Parts up to Ø300 mm (11.8 in) and 150 kg (331 lb)

Frequently Asked Questions

01 What is an angular cylindrical grinder like the Palmary OCA-3235 used for?

Grinding diameters and adjoining faces together. Palmary lists the OCA-3235 in its angular grinding series with angular wheelhead and says the work spindle head is built for external and face grinding. Capacity is Ø300 mm (11.8 in) by 350 mm (13.8 in) between centers.

02 How big is the grinding wheel on the OCA-3235?

Ø610 mm outside diameter, 150 mm wide, with a 203.2 mm bore. It runs at 33 m/s (6,496 ft/min) on an 11 kW (14.8 hp) motor in hydro-static bearings. A flange extractor and a cantilever crane for wheel changes come as standard.

03 How is the wheel dressed on the OCA-3235?

With a fixed-type diamond tool holder, supplied as standard. Palmary states that simultaneous movement of the X and Z axes can dress the wheel to a specific shape for multiple-step grinding. A gap control and an automatic wheel balancer are optional.

04 What longer versions of the OCA-3235 exist?

The OCA-3265 has 650 mm (25.6 in) between centers and the OCA-3295 has 950 mm (37.4 in); both have a 1,200 mm (47.2 in) table stroke. The OCA-3235 has 350 mm (13.8 in) between centers and a 750 mm (29.5 in) table stroke.
