Palmary PCB-6020-3

Q: How much does the Palmary PCB-6020-3 cost?

The price estimate for the Palmary PCB-6020-3 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/palmary-pcb-6020-3#price; the request is passed to Palmary or an authorised dealer.

Specs verified 2026-10-05 · palmary.com Updated 2026-10-05

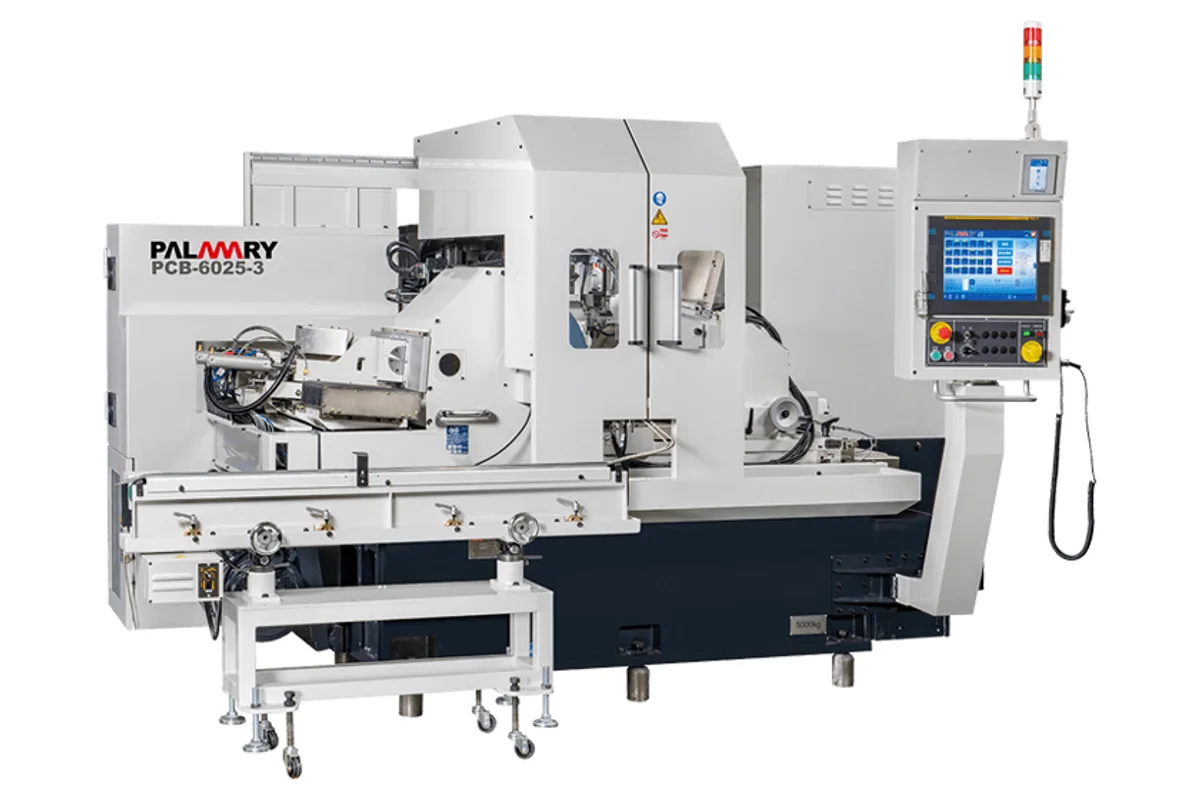

Palmary PCB-6020-3 / 6025-3 series CNC centerless grinder

Image: palmary.com, Palmary

Key Specifications

grinding diameter range

Ø2~Ø80 mm (OPT. Ø70~Ø150 mm)

wheel size

Ø610 x 205 x Ø304.8 mm (24.0 x 8.1 x 12.0 in)

wheel peripheral speed

45 m/s (8,858 ft/min)

grinding wheel dressing device

Single-point dressing device / (opt.) Diamond roller dressing device

regulating wheel size

Ø330 x 205 x Ø152.4 mm (13.0 x 8.1 x 6.0 in)

regulating wheel speed

10-200 rpm (variable speed)

How much does the Palmary PCB-6020-3 cost?

Price estimate

Uncertain

We do not have a price for the Palmary PCB-6020-3 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Palmary PCB-6020-3 is a 3-axis CNC centerless grinder with a Ø610 mm grinding wheel, 205 mm wide, on a bearing-type spindle. Its standard range is Ø2 to Ø80 mm, with Ø70 to Ø150 mm as an option.

The suffix is the axis count. Palmary describes the design as 3 axes of CNC control, extendable up to 6, built for high grinding accuracy and rigidity. Lower and upper slides are square slides moved by ball screw and reducer.

A Ø610 mm wheel is a third larger than the wheel of the PCB-4520, and the weight shows how much more machine stands behind it: 5,800 kg (12,787 lb). The regulating wheel is Ø330 mm by 205 mm, runs at 10 to 200 rpm, tilts ±5° and swivels ±0.5°. Wheel speed is 45 m/s (8,858 ft/min).

On one point the published table is no help. The rows that should give the grinding and regulating wheel motors are printed under lubrication labels, so this page leaves the motor ratings out; get them from the quotation. What the table does state clearly is the lubrication itself, oil mist for the grinding wheel spindle and grease for the regulating wheel spindle, and a 125 L (33.0 gal) coolant tank.

A FANUC CNC controller is standard. Palmary offers a high-speed loading and unloading attachment, custom loading devices and an outer diameter measuring device as options.

Full Specifications

Parameter	Value
Grinding Diameter Range	Ø2~Ø80 mm (OPT. Ø70~Ø150 mm)
Wheel Size	Ø610 x 205 x Ø304.8 mm (24.0 x 8.1 x 12.0 in)
Wheel Peripheral Speed	45 m/s (8,858 ft/min)
Grinding Wheel Dressing Device	Single-point dressing device / (opt.) Diamond roller dressing device
Regulating Wheel Size	Ø330 x 205 x Ø152.4 mm (13.0 x 8.1 x 6.0 in)
Regulating Wheel Speed	10-200 rpm (variable speed)
Regulating Wheel Tilt Angle	±5°
Regulating Wheel Swivel Angle	±0.5°
Regulating Wheel Dresser Swivel Angle	±5°
Regulating Wheel Dresser Offset	0~15 mm
Lower and Upper Slide	Square slider, Ball screw + reducer
Grinding Wheel Spindle Lubrication	Oil mist type
Regulating Wheel Spindle Lubrication	Oil grease type
Slide Lubrication	Auto lubricator (LUBE)
CNC Control	FANUC
Coolant Tank	125 L (33.0 gal)
Wheel Spindle Lubrication Tank	1.0 L (0.3 gal)
Slide Lubrication Tank	4 L (1.1 gal)
Machine Weight	5,800 kg (12,787 lb)

Specifications sourced from palmary.com — verified 2026-10-05

Strengths & Limitations

Strengths

Ø610 mm grinding wheel at 45 m/s (8,858 ft/min)
3-axis CNC control as standard, extendable up to 6 axes according to Palmary
5,800 kg (12,787 lb) machine with square ball screw slides
Optional range of Ø70 to Ø150 mm

Limitations

Motor ratings are not clearly printed in Palmary's table for this model
205 mm wheel width on a machine of this size
Regulating wheel speed tops out at 200 rpm
Enclosure, linear scale and gauge are optional accessories

Best For

Shafts and rollers from Ø2 to Ø80 mm with long wheel life Larger diameters to Ø150 mm with the optional range Infeed grinding under 3-axis CNC control Production lines with custom loading devices

Frequently Asked Questions

01 What does the "-3" mean in Palmary PCB-6020-3?

Palmary describes the machine as designed for 3 axes of CNC control, with up to 6 axes possible. The related PCB-6020GF-4 is described as a 4-axis machine. The page does not list which three axes are fitted.

02 What is the grinding range of the PCB-6020-3?

Ø2 to Ø80 mm as standard, with Ø70 to Ø150 mm listed as an option. The grinding wheel is Ø610 x 205 mm on a 304.8 mm bore and the regulating wheel Ø330 x 205 mm on a 152.4 mm bore.

03 What motor does the PCB-6020-3 have?

The specification table on Palmary's page prints the motor rows under lubrication labels, so the ratings are not reproduced here. Ask Palmary to confirm the grinding wheel and regulating wheel motors for your configuration.

04 How does the PCB-6020-3 differ from the PCB-6025-3?

The PCB-6025-3 has 255 mm wide wheels and a 140 L (37.0 gal) coolant tank. The PCB-6020-3 has 205 mm wide wheels and a 125 L (33.0 gal) coolant tank. Both are listed at 5,800 kg (12,787 lb).
