Chevalier SMART-H24160IV

Q: How much does the Chevalier SMART-H24160IV cost?

The price estimate for the Chevalier SMART-H24160IV is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/chevalier-smart-h24160iv#price; the request is passed to Chevalier Machinery or an authorised dealer.

Specs verified 2026-10-05 · chevalierusa.com Updated 2026-10-05

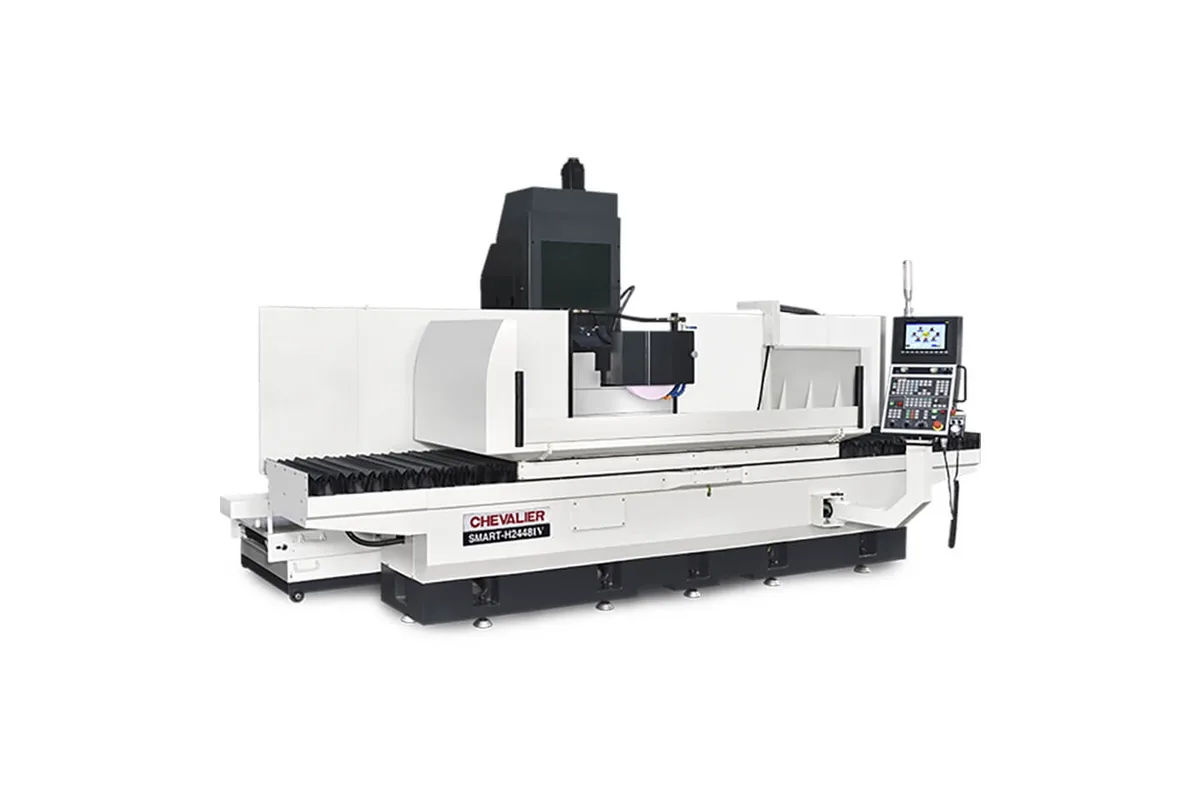

Image: chevalierusa.com, Chevalier Machinery

Key Specifications

Table Size

23.6 in x 157.5 in (600 x 4,000 mm)

Spindle Power

15 hp (11 kW)

control

SMART iControl

grinding length

157.5 in (4,000 mm)

grinding width

23.6 in (600 mm)

distance table to wheel centerline

33.5 in (850 mm)

How much does the Chevalier SMART-H24160IV cost?

Price estimate

Uncertain

We do not have a price for the Chevalier SMART-H24160IV that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Chevalier SMART-H24160IV is the largest machine in the SMART-IV range, a four-metre grinder with a 23.6 in x 157.5 in (600 x 4,000 mm) table and 165.4 in (4,200 mm) of travel. Nothing else in the series comes close in length, and few toolroom grinders anywhere are built this long with a conversational profile control.

The numbers that matter at this size are logistical. The machine weighs 38,550 lb (17,500 kg). It occupies 440.9 in x 130.7 in x 112.2 in (11,200 x 3,320 x 2,850 mm), which is nearly 37 feet from end to end. The table accepts 6,160 lb (2,800 kg). A part that fills the table has to be lifted on evenly, so overhead crane coverage along the whole stroke is as much a part of the purchase as the grinder.

The grinding end is shared with the rest of the 24 in frame, and that is the trade-off. One 15 hp (11 kW) spindle, variable from 500 to 2,200 rpm, with a wheel 16 in in diameter and 2 in wide, has to cover a surface of 157.5 in by 23.6 in. Full-width surface grinding of a four-metre plate is a long cycle. Cross travel is 27.0 in (685 mm) at 0 to 16.4 fpm, and table speed is 16 to 98.4 fpm.

Like the SMART-H24120IV, this model is listed as an H machine only. Height from table to wheel centerline is 33.5 in (850 mm). Chevalier lists automatic dressing with compensation and USB or Ethernet data transfer for the series.

Full Specifications

Parameter	Value
CNC Control	SMART iControl
Grinding Length	157.5 in (4,000 mm)
Grinding Width	23.6 in (600 mm)
Distance Table to Wheel Centerline	33.5 in (850 mm)
Max Table Load	6,160 lb (2,800 kg)
Table Size	23.6 in x 157.5 in (600 x 4,000 mm)
Table Speed	H: 16 to 98.4 fpm (H: 5 to 30 m/min)
Longitudinal Travel X	165.4 in (4,200 mm)
Cross Travel Z	27.0 in (685 mm)
Cross Feed Speed	0 to 16.4 fpm (0 to 5,000 mm/min)
Spindle Speed	500 to 2,200 rpm
Spindle Motor Power	15 hp (11 kW)
Wheel Size	Ø16 in x 2 in x Ø5 in (Ø405 x 50 x Ø127 mm)
Machine Dimensions	H: 440.9 in x 130.7 in x 112.2 in (H: 11,200 x 3,320 x 2,850 mm)
Machine Weight	38,550 lb (17,500 kg)

Specifications sourced from chevalierusa.com — verified 2026-10-05

Strengths & Limitations

Strengths

157.5 in (4,000 mm) grinding length, the longest in the SMART-IV range
165.4 in (4,200 mm) of table travel
Table accepts 6,160 lb (2,800 kg)
33.5 in (850 mm) from table to wheel centerline
Hand-scraped, Turcite-B coated double V ways with support for full table travel

Limitations

Occupies 440.9 in x 130.7 in x 112.2 in and weighs 38,550 lb (17,500 kg)
A single 15 hp (11 kW) spindle with a 2 in (50 mm) wide wheel makes full-surface cycles long
Listed as an H machine only; table speed starts at 16 fpm
Grinding width is limited to 23.6 in (600 mm) however long the part

Best For

Machine-tool beds, columns and guideways up to 157.5 in (4,000 mm) Long shear and slitter knives Linear rail and track sections ground in one setup Builders of large machinery who grind their own ways

Frequently Asked Questions

01 What is the capacity of the SMART-H24160IV?

The table is 23.6 in x 157.5 in (600 x 4,000 mm), which is also the grinding area. Table travel is 165.4 in (4,200 mm), cross travel 27.0 in (685 mm), and the table load limit is 6,160 lb (2,800 kg). There is 33.5 in (850 mm) from the table to the wheel centerline.

02 How does it differ from the SMART-H24120IV?

One metre of length. The SMART-H24160IV grinds 157.5 in (4,000 mm) and the SMART-H24120IV 118.1 in (3,000 mm). Against the SMART-H24120IV, table load is 6,160 lb (2,800 kg) instead of 5,280 lb (2,400 kg) and net weight 38,550 lb (17,500 kg) instead of 33,400 lb (15,000 kg). Spindle, wheel, cross travel and clearance are identical.

03 What does the installation involve?

A footprint of 440.9 in x 130.7 in x 112.2 in (11,200 x 3,320 x 2,850 mm) and a net weight of 38,550 lb (17,500 kg). The maker's table gives no foundation or power figures, so request the foundation drawing and electrical data with the quotation.

04 What are the table and cross feed speeds?

Table speed is listed for the H version only, at 16 to 98.4 fpm (5 to 30 m/min). Cross feed speed is 0 to 16.4 fpm (0 to 5,000 mm/min). Spindle speed is variable from 500 to 2,200 rpm.
