Palmary PCB-6025-3

Q: How much does the Palmary PCB-6025-3 cost?

The price estimate for the Palmary PCB-6025-3 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/palmary-pcb-6025-3#price; the request is passed to Palmary or an authorised dealer.

Specs verified 2026-10-05 · palmary.com Updated 2026-10-05

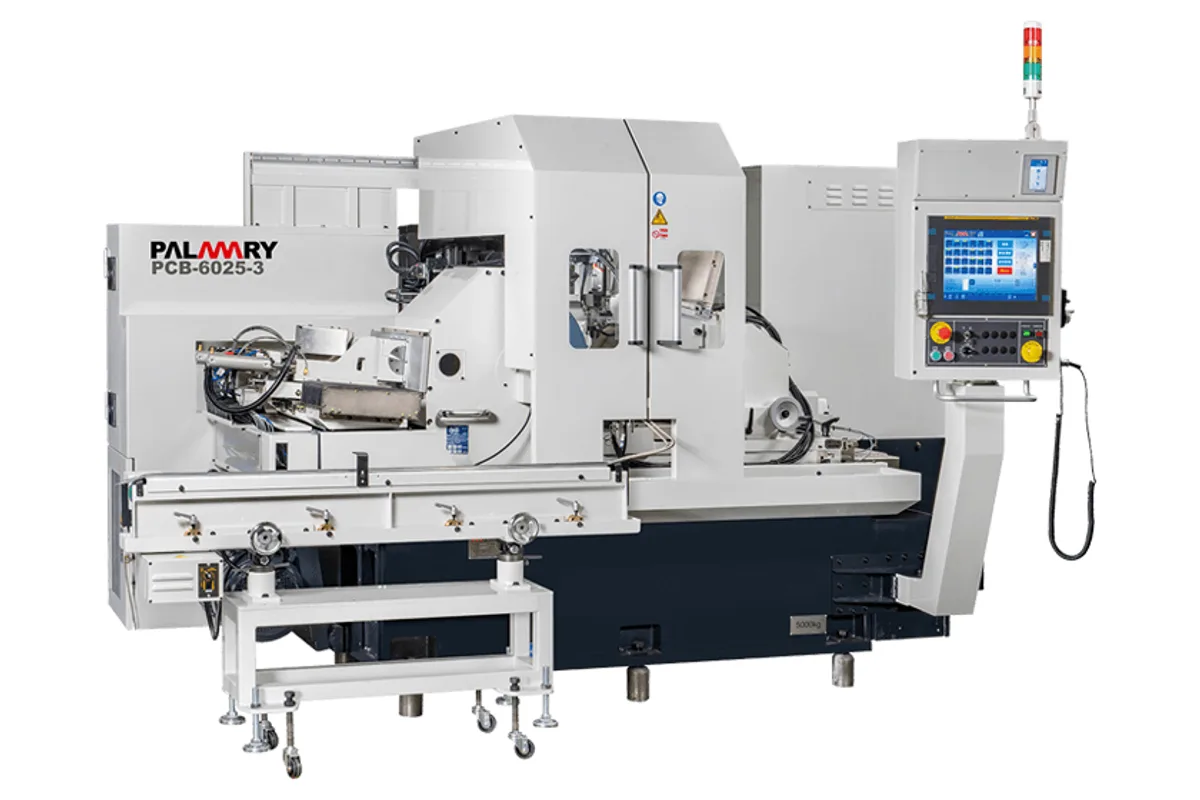

Palmary PCB-6020-3 / 6025-3 series CNC centerless grinder

Image: palmary.com, Palmary

Key Specifications

grinding diameter range

Ø2~Ø80 mm (OPT. Ø70~Ø150 mm)

wheel size

Ø610 x 255 x Ø304.8 mm (24.0 x 10.0 x 12.0 in)

wheel peripheral speed

45 m/s (8,858 ft/min)

grinding wheel dressing device

Single-point dressing device / (opt.) Diamond roller dressing device

regulating wheel size

Ø330 x 255 x Ø152.4 mm (13.0 x 10.0 x 6.0 in)

regulating wheel speed

10-200 rpm (variable speed)

How much does the Palmary PCB-6025-3 cost?

Price estimate

Uncertain

We do not have a price for the Palmary PCB-6025-3 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Palmary PCB-6025-3 is a 3-axis CNC centerless grinder using a Ø610 mm by 255 mm grinding wheel. It is the wider of two models on Palmary's page and the one shown in the product photograph. The standard range is Ø2 to Ø80 mm; Ø70 to Ø150 mm is optional.

Wider wheels need more coolant, and the table reflects that: the coolant tank is 140 L (37.0 gal) here against 125 L on the PCB-6020-3. Weight is printed as 5,800 kg (12,787 lb) for both.

The regulating wheel is Ø330 mm by 255 mm. At that diameter it supports large work steadily, and its speed range of 10 to 200 rpm is lower than the 300 rpm of the PCB-4525, in keeping with bigger parts. It tilts ±5°. Fine swivel of ±0.5° is provided on the wheel and a ±5° swivel on its dressing device, with a dresser offset of 0 to 15 mm.

Palmary's design notes for the model are brief. The bed and its support ribs are arranged for stable accuracy; the grinding wheel spindle is held on one side in super precision cylindrical roller bearings for rigidity; a high-speed automatic loading and unloading attachment can be designed for the application. Grinding speed is 45 m/s (8,858 ft/min) and the controller is FANUC. The motor rows of the published table are mislabelled, so motor ratings should be taken from Palmary's offer.

Full Specifications

Parameter	Value
Grinding Diameter Range	Ø2~Ø80 mm (OPT. Ø70~Ø150 mm)
Wheel Size	Ø610 x 255 x Ø304.8 mm (24.0 x 10.0 x 12.0 in)
Wheel Peripheral Speed	45 m/s (8,858 ft/min)
Grinding Wheel Dressing Device	Single-point dressing device / (opt.) Diamond roller dressing device
Regulating Wheel Size	Ø330 x 255 x Ø152.4 mm (13.0 x 10.0 x 6.0 in)
Regulating Wheel Speed	10-200 rpm (variable speed)
Regulating Wheel Tilt Angle	±5°
Regulating Wheel Swivel Angle	±0.5°
Regulating Wheel Dresser Swivel Angle	±5°
Regulating Wheel Dresser Offset	0~15 mm
Lower and Upper Slide	Square slider, Ball screw + reducer
Grinding Wheel Spindle Lubrication	Oil mist type
Regulating Wheel Spindle Lubrication	Oil grease type
Slide Lubrication	Auto lubricator (LUBE)
CNC Control	FANUC
Coolant Tank	140 L (37.0 gal)
Wheel Spindle Lubrication Tank	1.0 L (0.3 gal)
Slide Lubrication Tank	4 L (1.1 gal)
Machine Weight	5,800 kg (12,787 lb)

Specifications sourced from palmary.com — verified 2026-10-05

Strengths & Limitations

Strengths

Ø610 x 255 mm grinding wheel at 45 m/s (8,858 ft/min)
140 L (37.0 gal) coolant tank
Ø330 mm regulating wheel with ±5° tilt and a 0 to 15 mm dresser offset
Up to 6 CNC axes possible, according to Palmary

Limitations

Published table does not state the motor ratings clearly
Listed weight equals that of the narrower PCB-6020-3
Single-point dressing over 255 mm; the diamond roller device is optional
Standard range ends at Ø80 mm

Best For

Through-feed grinding of bar and rollers up to Ø80 mm Longer infeed parts on a 255 mm wheel Heavy-duty production with long wheel life Applications with an optional outer diameter measuring device

Frequently Asked Questions

01 What are the wheel dimensions of the Palmary PCB-6025-3?

Grinding wheel Ø610 x 255 mm with a 304.8 mm bore; regulating wheel Ø330 x 255 mm with a 152.4 mm bore. Linear velocity of the grinding wheel is 45 m/s (8,858 ft/min).

02 Can the PCB-6025-3 grind above Ø80 mm?

As an option. The table gives the standard grinding range as Ø2 to Ø80 mm and an optional range of Ø70 to Ø150 mm. For Ø150 mm as a standard capacity Palmary lists the PCB-6030 with a 305 mm wheel.

03 What lubrication does the PCB-6025-3 use?

Oil mist for the grinding wheel spindle, oil grease for the regulating wheel spindle and an automatic lubricator for the slides. The grinding wheel spindle lubrication system holds 1.0 L and the table slide lubrication 4 L.

04 What accessories are standard on the PCB-6025-3?

A FANUC CNC controller, regulating and grinding wheels with flanges, thrufeed and infeed work rests with carbide blades, a set of four diamond tools, the electric system, a spindle lubrication system, a coolant tank with pump, a work lamp and tools.
