Palmary OIG-200DL35

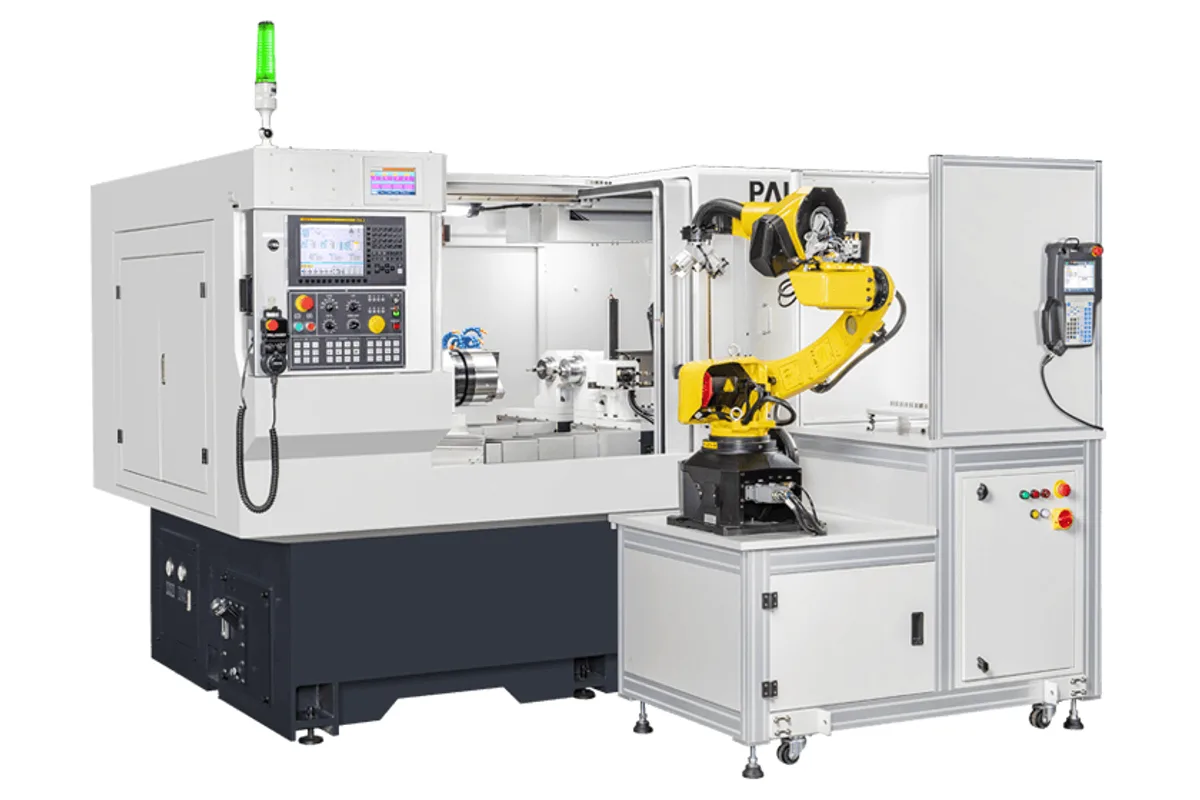

Image: palmary.com, Palmary
Key Specifications
Max Spindle
max chuck diameter
max internal grinding diameter
max workpiece length
wheel spindle diameter
x axis rapid traverse
How much does the Palmary OIG-200DL35 cost?
Price estimate
We do not have a price for the Palmary OIG-200DL35 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Palmary OIG-200DL35 is the long version of Palmary's two-spindle CNC internal grinder. It holds workpieces up to 350 mm (13.8 in) long and grinds bores up to Ø150 mm (5.9 in) with either of two internal wheel spindles.
Relative to the OIG-200D the changes follow the pattern of the single-spindle family. The workhead motor becomes 2.25 kW (3.0 hp), the work spindle load rises to 50 kg (110 lb), and the workhead swivel narrows to +1° to -1°. Z and Y travel are each 450 mm (17.7 in); X remains 480 mm (18.9 in).
A long part with operations at both spindles is the case this model is built for. Think of a spindle housing with a bearing bore at each diameter step, or a sleeve whose bore and counterbore need different wheels. With both spindles on the machine the second operation starts without rechucking, so the two bores share one axis.
The grinding wheel motor row reads 1.5 kW with 2.25 kW optional. Wheel spindle speed is 10,000 to 50,000 rpm. All three axes rapid at 10 m/min (394 ipm) and resolve 0.001 mm, and Palmary describes roller type linear guideways and an optical scale on the feed axis. The controller is FANUC. Net weight is 6,000 kg (13,228 lb), and the coolant tank holds 70 L (18.5 gal).
Full Specifications
| Parameter | Value |
|---|---|
| Max Chuck Diameter | Ø200 mm (7.9 in) |
| Max Internal Grinding Diameter | Ø150 mm (5.9 in) |
| Max Workpiece Length | 350 mm (13.8 in) |
| Wheel Spindle Diameter | Ø90 mm (3.5 in) |
| Max Spindle Speed | 10,000-50,000 rpm |
| X Axis Rapid Traverse | 10 m/min (394 ipm) |
| X Axis Travel | 480 mm (18.9 in) |
| X Axis Min Setting Unit | 0.001 mm |
| Z Axis Rapid Traverse | 10 m/min (394 ipm) |
| Z Axis Travel | 450 mm (17.7 in) |
| Z Axis Min Setting Unit | 0.001 mm |
| Y Axis Rapid Traverse | 10 m/min (394 ipm) |
| Y Axis Travel | 450 mm (17.7 in) |
| Y Axis Min Setting Unit | 0.001 mm |
| Workhead Swivel Angle | +1°~-1° |
| Work Spindle Center Taper | MT 6 |
| Work Spindle Speed | 0-500 / 0-800 rpm |
| Max Load of Work Spindle | 50 kg (110 lb) |
| Wheel Spindle Motor | 1.5/opt. 2.25 kW |
| Workhead Motor | 2.25 kW (3.0 hp) |
| X Axis Motor | 1.8 kW (2.4 hp) |
| Z Axis Motor | 1.8 kW (2.4 hp) |
| Y Axis Motor | 1.8 kW (2.4 hp) |
| Hydraulic Pump Motor | 0.75 kW (1.0 hp) |
| Coolant Pump Motor | 0.09 kW |
| Coolant Tank | 70 L (18.5 gal) |
| Machine Weight | 6,000 kg (13,228 lb) |
| CNC Control | FANUC CNC controller |
Specifications sourced from palmary.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Two wheel spindles on a machine taking 350 mm (13.8 in) parts
- Work spindle load of 50 kg (110 lb), higher than on the OIG-200D
- 2.25 kW (3.0 hp) workhead motor and optional 2.25 kW wheel motor
- Second bore ground without rechucking, keeping bores on one axis
Limitations
- Workhead swivel of +1° to -1° only
- Z and Y travel reduced to 450 mm (17.7 in)
- 70 L (18.5 gal) coolant tank for two grinding spindles
- 6,000 kg (13,228 lb) installation weight
Best For
Frequently Asked Questions
01
Workpiece length up to 350 mm (13.8 in), internal grinding diameter up to Ø150 mm (5.9 in) and chuck outer diameter up to Ø200 mm (7.9 in). The work spindle carries 50 kg (110 lb) with the tool holder.
02
X axis 480 mm (18.9 in); Z axis 450 mm (17.7 in); Y axis 450 mm (17.7 in). Rapid feedrate is 10 m/min (394 ipm) on each, and each has a 1.8 kW (2.4 hp) motor.
03
The OIG-200D takes 200 mm (7.9 in) parts, swivels its workhead +7° to -8° and carries 35 kg (77 lb). The OIG-200DL35 takes 350 mm (13.8 in) parts, swivels +1° to -1°, carries 50 kg (110 lb) and has a 2.25 kW (3.0 hp) workhead motor.
04
A spare wheel spindle, rotary dresser for CBN wheels, 3-jaw scroll chuck, hydraulic 3-jaw chuck, quick fixtures for gears, soft jaw machining device, gap control, wheelhead oil lubricator, magnetic coolant separator, paper filter and oil mist collector.
