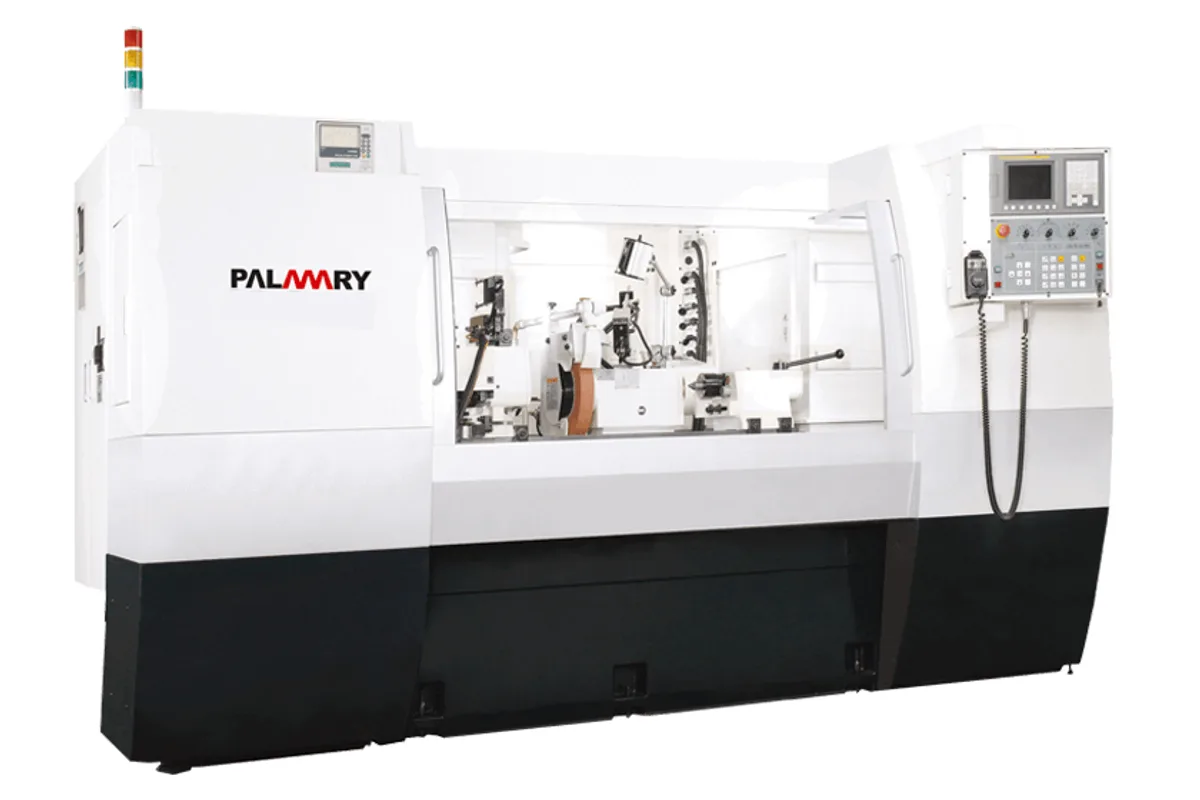

Palmary OCD-42150
Image: palmary.com, Palmary
Key Specifications
swing over table
distance between centers
max grinding diameter
max load between centers
wheel size
wheel peripheral speed
How much does the Palmary OCD-42150 cost?
Price estimate
We do not have a price for the Palmary OCD-42150 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Palmary OCD-42150 takes the OCD-42 CNC cylindrical grinder to 1,500 mm (59.1 in) between centers. It keeps the Ø420 mm (16.5 in) swing and Ø400 mm (15.7 in) grinding diameter of the family and adds a larger workhead motor for the longer parts it will see.
That motor is 2 kW (2.7 hp), against 1.5 kW on the OCD-42100. Spindle speed is still 10 to 300 rpm. On a part a metre and a half long, steady rotation under a driving dog matters more than top speed, and Palmary offers cam locked driving dogs as an option.
The table strokes 1,805 mm (71.1 in) at 10 m/min (394 ipm). At that rate repositioning is quick, so traverse grinding time on this bed is governed by feed. The table swivels -3° to +8°, like the OCD-42100. The wheelhead stroke is 260 mm (10.2 in) with a linear scale as standard.
One figure does not grow with the bed: the 150 kg (331 lb) load between centers. Long parts for this machine therefore need to be slender or hollow, and slender parts need support, which is what the optional 2-point and 3-point steady rests are for. The wheel is Ø405 mm on 5.5 kW (7.4 hp), in hybrid hydro-static bearings. With FANUC control and enclosure the machine weighs 5,000 kg (11,023 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Table | Ø420 mm (16.5 in) |
| Distance Between Centers | 1,500 mm (59.1 in) |
| Max Grinding Diameter | Ø400 mm (15.7 in) |
| Max Load Between Centers | 150 kg (331 lb) |
| Wheel Size | Ø405 x 50~75 x Ø127 (Ø152.4) mm |
| Wheel Peripheral Speed | 33 m/s (6,496 ft/min) |
| X Axis Rapid Traverse | 10 m/min (394 ipm) |
| X Axis Travel | 260 mm (10.2 in) |
| X Axis Min Setting Unit | 0.001 (0.0001) mm |
| Z Axis Rapid Traverse | 10 m/min (394 ipm) |
| Z Axis Travel | 1,805 mm (71.1 in) |
| Z Axis Min Input Increment | 0.001 (0.0001) mm |
| Table Swivel Angle | -3°, +8° |
| Workhead Swivel Angle | -30°~+90° |
| Workhead Center Taper | M.T. No. 4 |
| Work Spindle Speed | 10-300 rpm |
| Max Load of Work Spindle | 35 kg (77 lb) (max. length: 150 mm) |
| Tailstock Center Taper | M.T. No. 4 |
| Tailstock Stroke | 25 mm (1.0 in) |
| Tailstock Fine Adjustment Range | ±0.03 mm (±0.0012 in) |
| Wheel Spindle Motor | 5.5 kW (7.4 hp) (6P) |
| Workhead Motor | 2 kW (2.7 hp) |
| Wheelhead Feed Motor | 1.2 kW (1.6 hp) |
| Table Feed Motor | 1.8 kW (2.4 hp) |
| Hydrostatic Pump Motor | 0.37 kW (0.5 hp) (4P) |
| Wheel Spindle Lubrication Pump Motor | 0.37 kW (0.5 hp) (4P) |
| Coolant Pump Motor | 0.18 kW (0.2 hp) (2P) |
| Ballscrew Lubrication | Auto lubricator (LUBE) |
| Internal Grinding Spindle Motor Optional | 0.75 kW (1.0 hp) (2P) |
| Power Requirement | 18 kVA |
| Wheel Spindle Lubrication Tank | 31 L (8.2 gal) |
| Lubrication Tank | 31 L (8.2 gal) |
| Hydraulic Tank | 31 L (8.2 gal) |
| Ballscrew Lubrication Tank | 0.7 L (0.2 gal) |
| Coolant Tank | 120 L (31.7 gal) |
| Machine Weight | 5,000 kg (11,023 lb) |
| CNC Control | FANUC CNC controller |
Specifications sourced from palmary.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,500 mm (59.1 in) between centers and 1,805 mm (71.1 in) of table stroke
- 2 kW (2.7 hp) workhead servo motor for long workpieces
- Keeps the -3° to +8° table swivel at this length
- Total power is still 18 kVA, as on the shorter beds
Limitations
- Load between centers is 150 kg (331 lb), unchanged from the shortest bed
- Steady rests, needed for slender shafts of this length, are optional accessories
- A 5.5 kW (7.4 hp) wheel motor and 75 mm maximum wheel width mean long diameters are traverse ground
- At 5,000 kg (11,023 lb) it needs a foundation check that the short beds may not
Best For
Frequently Asked Questions
01
1,500 mm (59.1 in). The table stroke is 1,805 mm (71.1 in). Swing over the table is Ø420 mm (16.5 in) and the maximum external grinding diameter Ø400 mm (15.7 in). Centers are No. 4 Morse taper at both the work spindle head and the tailstock.
02
150 kg (331 lb) between centers, and 35 kg (77 lb) on the work spindle including the tool holder at a maximum length of 150 mm. The capacity is the same on every OCD-42 length, so the longer bed is for longer parts, not heavier ones.
03
Palmary's table steps the workhead AC servo motor up with bed length: 1.5 kW (2.0 hp) on the OCD-42100 and 2 kW (2.7 hp) on the OCD-42150. The page does not give a reason; the usual one is the greater inertia and drag of longer workpieces.
