Palmary OCD-42200

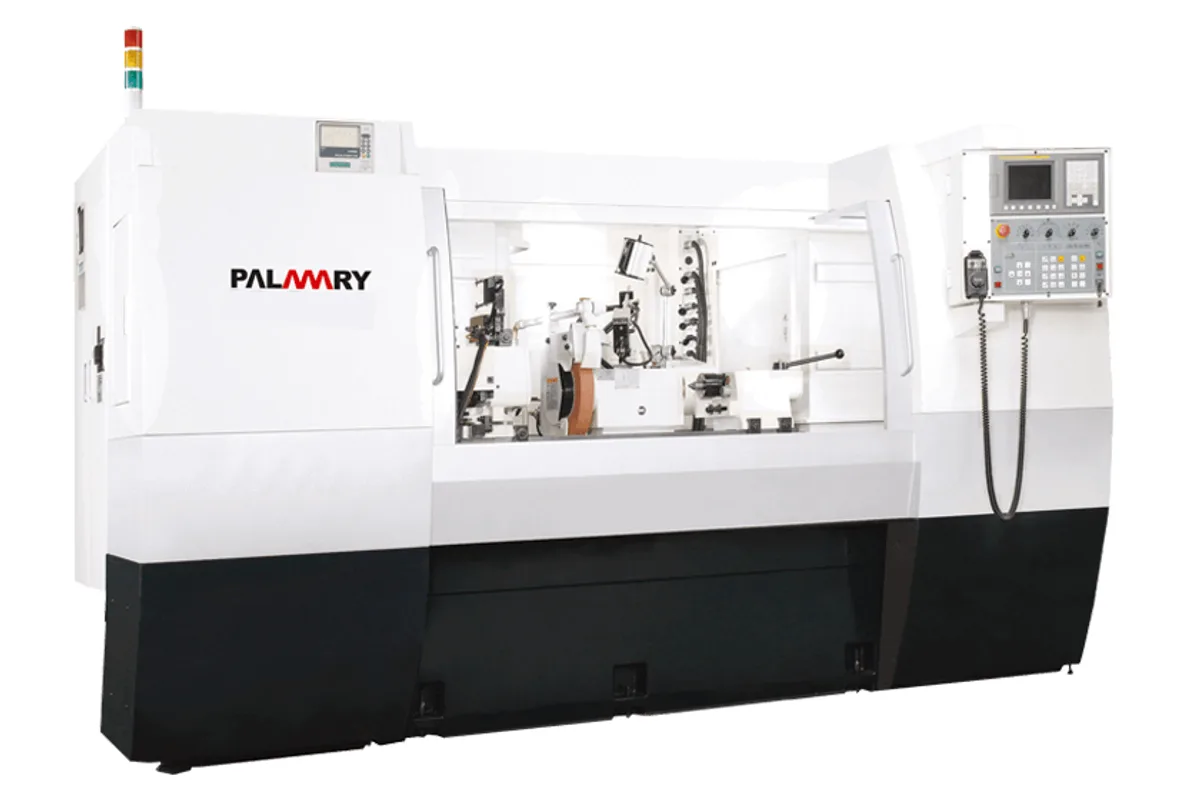

Image: palmary.com, Palmary
Key Specifications
swing over table
distance between centers
max grinding diameter
max load between centers
wheel size
wheel peripheral speed
How much does the Palmary OCD-42200 cost?
Price estimate
We do not have a price for the Palmary OCD-42200 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
At 2,000 mm (78.7 in) between centers the Palmary OCD-42200 is the longest standard OCD CNC cylindrical grinder before Palmary's heavy duty series takes over. Swing is Ø420 mm (16.5 in) and the maximum grinding diameter Ø400 mm (15.7 in).
The table stroke is 2,540 mm (100.0 in). To make room for it the machine grows to 6,200 kg (13,668 lb), against 5,000 kg (11,023 lb) for the OCD-42150, and total power rises to 19 kVA.
Two things shrink as the bed gets longer. The table swivel is -1° to +7°, the narrowest of the five lengths, so steep tapers on a two-metre part are not this machine's job. And the load between centers remains 150 kg (331 lb). Put those together and the picture is clear: long, light, nearly parallel work such as printing and laminating rolls with hollow bodies, linear shafts and long rods. A solid shaft of this length that uses the full diameter needs the OCD-45220 with its 800 kg (1,764 lb) capacity.
The work spindle is driven by a 2 kW (2.7 hp) servo motor at 10 to 300 rpm. The wheel end is the family standard: Ø405 mm wheel, 5.5 kW (7.4 hp), hybrid hydro-static spindle bearings, 260 mm (10.2 in) of wheelhead stroke read by a linear scale. A FANUC CNC controller and fully enclosed splash guard are included.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Table | Ø420 mm (16.5 in) |
| Distance Between Centers | 2,000 mm (78.7 in) |
| Max Grinding Diameter | Ø400 mm (15.7 in) |
| Max Load Between Centers | 150 kg (331 lb) |
| Wheel Size | Ø405 x 50~75 x Ø127 (Ø152.4) mm |
| Wheel Peripheral Speed | 33 m/s (6,496 ft/min) |
| X Axis Rapid Traverse | 10 m/min (394 ipm) |
| X Axis Travel | 260 mm (10.2 in) |
| X Axis Min Setting Unit | 0.001 (0.0001) mm |
| Z Axis Rapid Traverse | 10 m/min (394 ipm) |
| Z Axis Travel | 2,540 mm (100.0 in) |
| Z Axis Min Input Increment | 0.001 (0.0001) mm |
| Table Swivel Angle | -1°, +7° |
| Workhead Swivel Angle | -30°~+90° |
| Workhead Center Taper | M.T. No. 4 |
| Work Spindle Speed | 10-300 rpm |
| Max Load of Work Spindle | 35 kg (77 lb) (max. length: 150 mm) |
| Tailstock Center Taper | M.T. No. 4 |
| Tailstock Stroke | 25 mm (1.0 in) |
| Tailstock Fine Adjustment Range | ±0.03 mm (±0.0012 in) |
| Wheel Spindle Motor | 5.5 kW (7.4 hp) (6P) |
| Workhead Motor | 2 kW (2.7 hp) |
| Wheelhead Feed Motor | 1.2 kW (1.6 hp) |
| Table Feed Motor | 1.8 kW (2.4 hp) |
| Hydrostatic Pump Motor | 0.37 kW (0.5 hp) (4P) |
| Wheel Spindle Lubrication Pump Motor | 0.37 kW (0.5 hp) (4P) |
| Coolant Pump Motor | 0.18 kW (0.2 hp) (2P) |
| Ballscrew Lubrication | Auto lubricator (LUBE) |
| Internal Grinding Spindle Motor Optional | 0.75 kW (1.0 hp) (2P) |
| Power Requirement | 19 kVA |
| Wheel Spindle Lubrication Tank | 31 L (8.2 gal) |
| Lubrication Tank | 31 L (8.2 gal) |
| Hydraulic Tank | 31 L (8.2 gal) |
| Ballscrew Lubrication Tank | 0.7 L (0.2 gal) |
| Coolant Tank | 120 L (31.7 gal) |
| Machine Weight | 6,200 kg (13,668 lb) |
| CNC Control | FANUC CNC controller |
Specifications sourced from palmary.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 2,000 mm (78.7 in) between centers with a 2,540 mm (100.0 in) table stroke
- Much lighter than the heavy duty alternative: 6,200 kg (13,668 lb)
- 2 kW (2.7 hp) workhead servo motor
- Fully enclosed splash guard is standard even at this length
Limitations
- Table swivel is only -1° to +7°
- 150 kg (331 lb) between centers on a 2,000 mm (78.7 in) bed restricts it to light or hollow parts
- Wheel motor remains 5.5 kW (7.4 hp)
- Total power of 19 kVA, the highest in the OCD-42 family
Best For
Frequently Asked Questions
01
2,000 mm (78.7 in) between centers, Ø420 mm (16.5 in) swing over the table and Ø400 mm (15.7 in) maximum external grinding diameter. The load between centers is 150 kg (331 lb). The table (Z axis) stroke is 2,540 mm (100.0 in).
02
Shallow ones. The table swivels from -1° to +7°, the smallest range in the OCD-42 family, and the tailstock has ±0.03 mm of fine adjustment. The work spindle head swivels from -30° to +90°, which serves chucked parts and faces rather than long tapers.
03
When the part is heavy. The OCD-45220 has 2,200 mm (86.6 in) between centers, carries 800 kg (1,764 lb) and has an 11 kW (14.8 hp) wheel motor, at 14,000 kg (30,864 lb). The OCD-42200 carries 150 kg (331 lb) and weighs 6,200 kg (13,668 lb).
04
Optional accessories include a 2-point steady rest, an adjustable 3-point steady rest, work holders, cam locked driving dogs and a hydraulic tailstock. The standard tailstock is a micro adjustment type with a 25 mm (1.0 in) stroke on a No. 4 Morse taper center.
