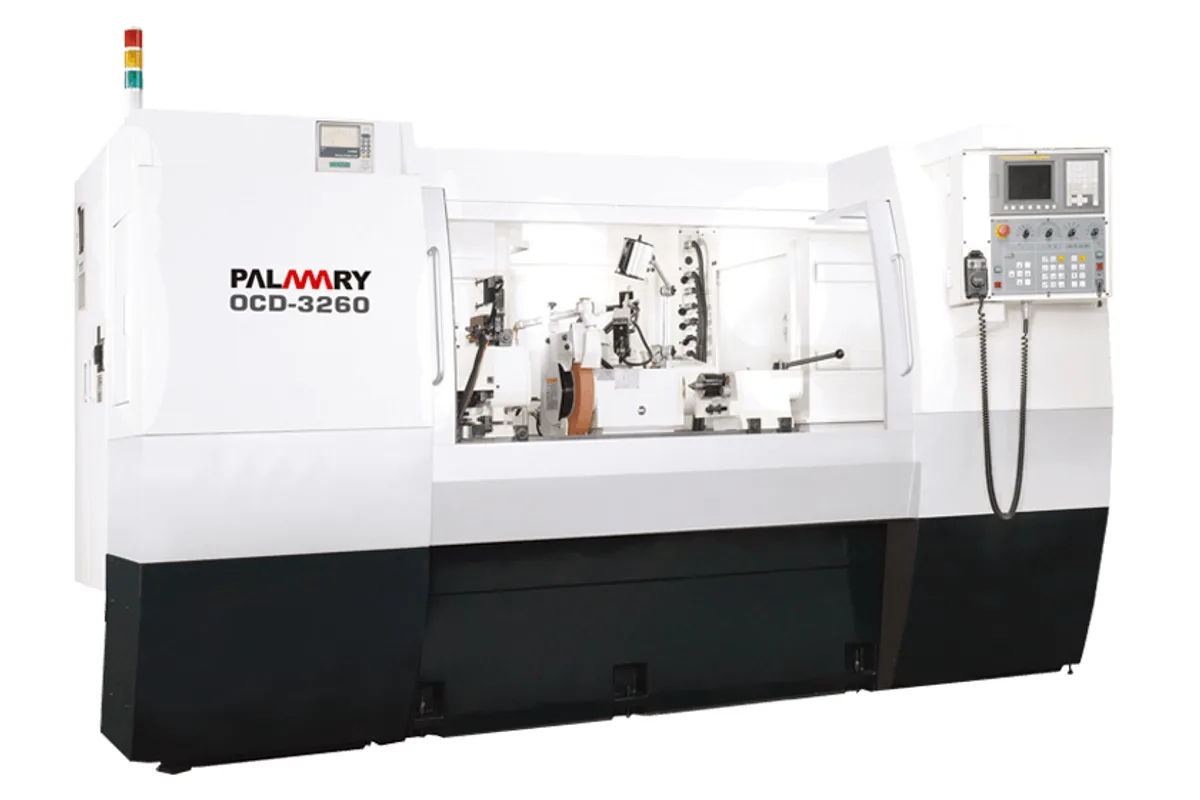

Palmary OCD-3260
Image: palmary.com, Palmary
Key Specifications
swing over table
distance between centers
max grinding diameter
max load between centers
wheel size
wheel peripheral speed
How much does the Palmary OCD-3260 cost?
Price estimate
We do not have a price for the Palmary OCD-3260 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 600 mm (23.6 in) between centers, the Palmary OCD-3260 is the middle length of the OCD-32 CNC cylindrical grinders and the one Palmary pictures on the series page. Swing over the table is Ø320 mm (12.6 in), maximum grinding diameter Ø300 mm (11.8 in), and the centers carry 150 kg (331 lb).
What separates it from its siblings is bed length and little else. The table stroke grows to 900 mm (35.4 in), compared with 665 mm (26.2 in) on the OCD-3240, while the wheelhead stroke stays at 260 mm (10.2 in). The workhead servo motor is still 1 kW (1.3 hp); it is the OCD-32100 that steps up to 1.5 kW (2.0 hp). Weight rises to 3,600 kg (7,937 lb).
A general-purpose grinder lives or dies by its wheel spindle. Here it is alloy steel, carburized and sub-zero treated according to Palmary, and it runs in hybrid hydro-static bearings. The wheel is Ø405 mm in diameter and 50 to 75 mm wide on a 5.5 kW (7.4 hp), 6-pole motor at 33 m/s (6,496 ft/min). Three 31 L (8.2 gal) tanks serve spindle lubrication, slide lubrication and hydraulics, with 120 L (31.7 gal) of coolant.
The table swivels 0° to 10°, enough for most tapers at this length. Internal grinding is optional with a 0.75 kW (1.0 hp) spindle. A FANUC CNC controller, fully enclosed splash guard and X-axis linear scale are in the standard accessories.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Table | Ø320 mm (12.6 in) |
| Distance Between Centers | 600 mm (23.6 in) |
| Max Grinding Diameter | Ø300 mm (11.8 in) |
| Max Load Between Centers | 150 kg (331 lb) |
| Wheel Size | Ø405 x 50~75 x Ø127 (Ø152.4) mm |
| Wheel Peripheral Speed | 33 m/s (6,496 ft/min) |
| X Axis Rapid Traverse | 10 m/min (394 ipm) |
| X Axis Travel | 260 mm (10.2 in) |
| X Axis Min Setting Unit | 0.001 (0.0001) mm |
| Z Axis Rapid Traverse | 10 m/min (394 ipm) |
| Z Axis Travel | 900 mm (35.4 in) |
| Z Axis Min Input Increment | 0.001 (0.0001) mm |
| Table Swivel Angle | 0°~10° |
| Workhead Swivel Angle | -30°~+90° |
| Workhead Center Taper | M.T. No. 4 |
| Work Spindle Speed | 10-300 rpm |
| Max Load of Work Spindle | 35 kg (77 lb) (max. length: 150 mm) |
| Tailstock Center Taper | M.T. No. 4 |
| Tailstock Stroke | 25 mm (1.0 in) |
| Tailstock Fine Adjustment Range | ±0.03 mm (±0.0012 in) |
| Wheel Spindle Motor | 5.5 kW (7.4 hp) (6P) |
| Workhead Motor | 1 kW (1.3 hp) |
| Wheelhead Feed Motor | 1.2 kW (1.6 hp) |
| Table Feed Motor | 1.8 kW (2.4 hp) |
| Hydrostatic Pump Motor | 0.37 kW (0.5 hp) (4P) |
| Wheel Spindle Lubrication Pump Motor | 0.37 kW (0.5 hp) (4P) |
| Coolant Pump Motor | 0.18 kW (0.2 hp) (2P) |
| Ballscrew Lubrication | Auto lubricator (LUBE) |
| Internal Grinding Spindle Motor Optional | 0.75 kW (1.0 hp) (2P) |
| Power Requirement | 18 kVA |
| Wheel Spindle Lubrication Tank | 31 L (8.2 gal) |
| Lubrication Tank | 31 L (8.2 gal) |
| Hydraulic Tank | 31 L (8.2 gal) |
| Ballscrew Lubrication Tank | 0.7 L (0.2 gal) |
| Coolant Tank | 120 L (31.7 gal) |
| Machine Weight | 3,600 kg (7,937 lb) |
| CNC Control | FANUC CNC controller |
Specifications sourced from palmary.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 600 mm (23.6 in) between centers with a 900 mm (35.4 in) table stroke
- Same Ø405 mm wheel and 5.5 kW (7.4 hp) motor as the longer OCD-32100 in a 3,600 kg (7,937 lb) machine
- Wheel spindle in hybrid hydro-static bearings; tailstock has automatic oil bath lubrication with a level gauge
- 0.001 mm minimum setting unit on X and minimum input increment on Z
- Total power demand of 18 kVA
Limitations
- Table swivel is 0° to 10°, less than the 12° of the OCD-3240
- 150 kg (331 lb) limit between centers regardless of bed length
- Internal grinding needs the optional attachment and its 0.75 kW (1.0 hp) spindle
- Steady rests for slender work are optional accessories, not part of the base machine
Best For
Frequently Asked Questions
01
The distance between centers is 600 mm (23.6 in) and the table stroke is 900 mm (35.4 in). Maximum external grinding diameter is Ø300 mm (11.8 in) under a swing of Ø320 mm (12.6 in). The part and its fixtures may weigh up to 150 kg (331 lb) between centers.
02
The grinding wheel is Ø405 mm, 50 to 75 mm wide, with a 127 mm bore; the table also shows Ø152.4 in brackets for the bore. It runs at 33 m/s (6,496 ft/min) on a 5.5 kW (7.4 hp) 6-pole motor. The work spindle turns at 10 to 300 rpm on a 1 kW (1.3 hp) AC servo motor.
03
Palmary lists a FANUC CNC controller, fully enclosed splash guard, grinding wheel and flange, tailstock-mounted diamond tool holder, micro adjustment tailstock, linear scale for the X axis, carbide tipped work centers, hydraulic and coolant tanks with pumps, work lamp and tools.
04
The OCD-4260 has the same 600 mm (23.6 in) between centers and the same 900 mm (35.4 in) table stroke with Ø420 mm (16.5 in) of swing and a Ø400 mm (15.7 in) grinding diameter. The OCD-4260 has a 1.5 kW (2.0 hp) work spindle motor and weighs 3,800 kg (8,377 lb).
