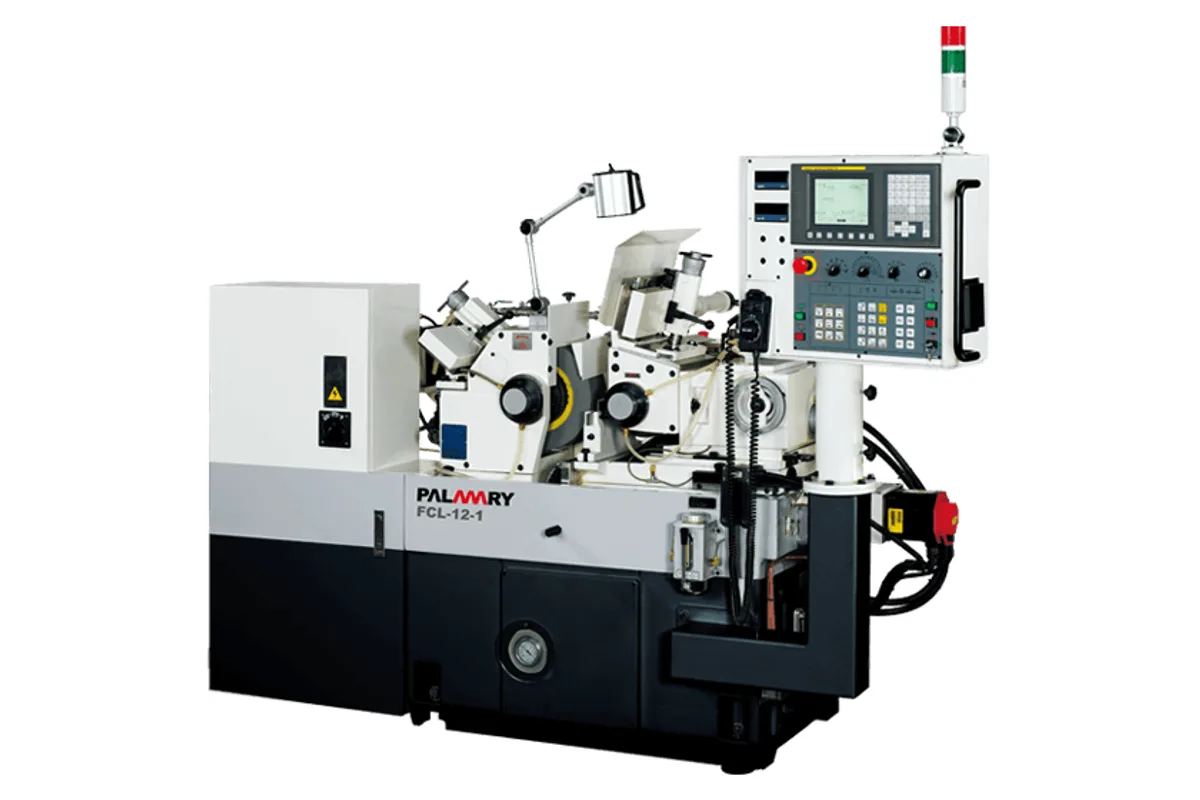

Palmary FCL-12

Specs verified 2026-10-05 · palmary.com Updated 2026-10-05

Image: palmary.com, Palmary

Key Specifications

grinding diameter range

Ø1~Ø40 mm

grinding diameter range special arrangement

Ø30~Ø60 mm

wheel size

Ø305 x 150 x Ø120 mm (12.0 x 5.9 x 4.7 in)

wheel peripheral speed

33 m/s (6,496 ft/min)

grinding wheel motor

7.5 HP x 4P (5 kW)

regulating wheel size

Ø205 x 150 x Ø90 mm (8.1 x 5.9 x 3.5 in)

How much does the Palmary FCL-12 cost?

Price estimate

Uncertain

We do not have a price for the Palmary FCL-12 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Palmary FCL-12 is the small machine of the FCL line of CNC centerless grinders, the series Palmary builds with alloy bearing spindles. Its standard grinding range is Ø1 to Ø40 mm, and a special arrangement extends it to Ø30 to Ø60 mm.

The wheels set the scale. The grinding wheel is Ø305 mm by 150 mm wide on a 120 mm bore, driven by a 7.5 HP (5 kW) motor at 33 m/s (6,496 ft/min). The regulating wheel is Ø205 mm by 150 mm and is turned by a 1.5 kW (2.0 hp) servo motor at 10 to 300 rpm. A servo on the regulating wheel means the work speed is set from the control and repeats from batch to batch.

With 150 mm of wheel width, through-feed stock removal per pass is modest and infeed parts must be shorter than that. The regulating wheel tilts from +5° to -3° for through-feed and swivels ±5°. Palmary supplies both a thrufeed and an infeed work rest with carbide blades, so either method can be run from delivery.

A FANUC CNC controller is standard. The structure is Meehanite cast iron with hardened and ground slideways, and a pressure switch lets the spindles start only once oil has reached the bearings. Loading attachments, a hopper feeder for Ø2 to 8 mm parts and a profile grinding attachment are options. At 1,700 kg (3,748 lb) it is by far the lightest CNC centerless grinder Palmary lists.

Full Specifications

Parameter	Value
Grinding Diameter Range	Ø1~Ø40 mm
Grinding Diameter Range Special Arrangement	Ø30~Ø60 mm
Wheel Size	Ø305 x 150 x Ø120 mm (12.0 x 5.9 x 4.7 in)
Wheel Peripheral Speed	33 m/s (6,496 ft/min)
Grinding Wheel Motor	7.5 HP x 4P (5 kW)
Regulating Wheel Size	Ø205 x 150 x Ø90 mm (8.1 x 5.9 x 3.5 in)
Regulating Wheel Speed	10-300 rpm (variable speed)
Regulating Wheel Motor	1.5 kW (2.0 hp) servo motor
Regulating Wheel Tilt Angle	+5°~-3°
Regulating Wheel Swivel Angle	±5°
Hydraulic Pump Motor	1 HP x 4P
Coolant Pump Motor	1/8 HP x 2P
Lubrication	Auto. electric lubricator
CNC Control	FANUC
Coolant Tank	100 L (26.4 gal)
Hydraulic Tank	53 L (14.0 gal)
Lubrication Tank	4 L (1.1 gal)
Machine Weight	1,700 kg (3,748 lb)

Specifications sourced from palmary.com — verified 2026-10-05

Strengths & Limitations

Strengths

Servo-driven regulating wheel, 1.5 kW (2.0 hp), variable from 10 to 300 rpm
FANUC CNC controller with both infeed and thrufeed work rests as standard accessories
Compact: 1,700 kg (3,748 lb) with a 100 L (26.4 gal) coolant tank
Pressure switch prevents the wheel spindles starting before oil reaches the bearings

Limitations

Standard grinding range ends at Ø40 mm
Grinding wheel motor is 7.5 HP (5 kW)
Wheels are only 150 mm wide, which limits infeed part length and through-feed rate
Loaders, feeders and coolant separators are all optional accessories

Best For

Small pins, needles and shafts from Ø1 to Ø40 mm Infeed grinding of short stepped parts Through-feed of small bar and rollers in moderate volume Shops adding a first CNC centerless grinder

Frequently Asked Questions

01 What diameters can the Palmary FCL-12 grind?

The standard grinding range is Ø1 to Ø40 mm. Palmary's table adds that capacity increases to Ø30 to Ø60 mm with a special arrangement. For larger work the FCL-18 has a standard range of Ø1 to Ø60 mm.

02 What are the wheel sizes on the FCL-12?

Grinding wheel Ø305 x 150 mm with a 120 mm bore, at a linear velocity of 33 m/s (6,496 ft/min). Regulating wheel Ø205 x 150 mm with a 90 mm bore, variable from 10 to 300 rpm. Each comes with its flange as a standard accessory.

03 Can the FCL-12 do both through-feed and infeed grinding?

Yes. A thrufeed work rest and an infeed work rest, each with a carbide blade, are standard accessories. The regulating wheel tilts +5° to -3°. Options include an automatic infeed attachment, a hydraulic work ejector and loading attachments for both methods.

04 What automation is offered for the FCL-12?

Optional accessories include an automatic loading attachment for thrufeed grinding of Ø5 to 20 mm parts, a hopper type automatic feeder for Ø2 to 8 mm parts, a vibratory feeder, an automatic unloading attachment and a V type supporter for long bars of Ø2 to 14 mm.
