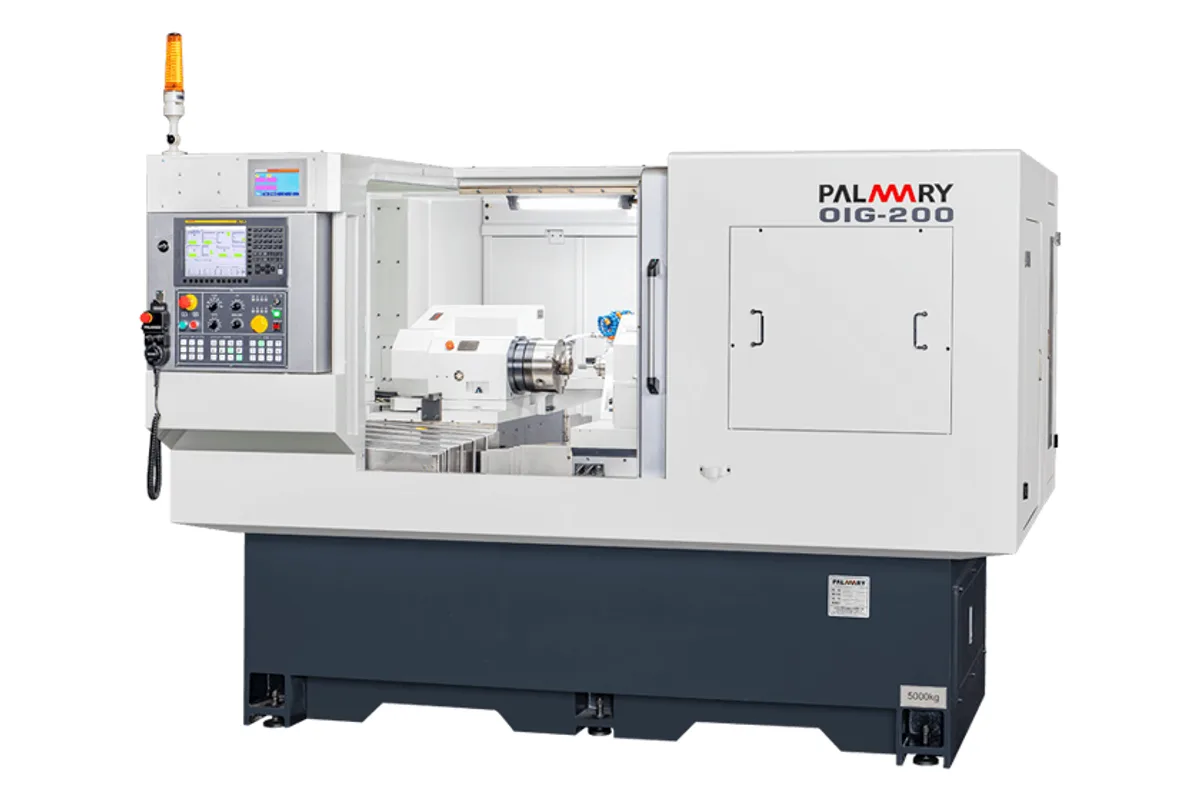

Palmary OIG-200L35
Image: palmary.com, Palmary
Key Specifications
Max Spindle
max chuck diameter
max internal grinding diameter
max workpiece length
wheel spindle diameter
x axis travel
How much does the Palmary OIG-200L35 cost?
Price estimate
We do not have a price for the Palmary OIG-200L35 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Palmary OIG-200L35 is the 350 mm (13.8 in) workpiece-length version of the OIG-200 CNC internal grinder. Bore capacity stays at Ø150 mm (5.9 in) and the chuck at Ø200 mm (7.9 in); what changes is how long a part the machine will hold and turn.
A longer part overhangs the chuck further, and the table shows the workhead rebuilt for it. Its motor is 2.25 kW (3.0 hp), three times that of the short model. Its swivel, on the other hand, is cut to +1° to -1°: enough to correct taper in a long bore, not enough to set a taper angle. Shops that grind tapered bores by swivelling the workhead should stay with the OIG-200.
The Z axis travels 450 mm (17.7 in) and the X axis 480 mm (18.9 in), with 1.8 kW (2.4 hp) servos on both and a 0.001 mm minimum setting unit. Slides run on roller type linear guideways, and Palmary notes an optical scale on the feed axis.
The wheel spindle is the family's Ø90 mm (3.5 in) unit at 10,000 to 50,000 rpm. For this model the table adds an optional 2.25 kW wheel motor beside the standard 1.5 kW, a sensible upgrade when deep bores call for long quills and steadier power. FANUC control, a fully enclosed splash guard and a diamond dresser are standard. The machine weighs 5,000 kg (11,023 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Max Chuck Diameter | Ø200 mm (7.9 in) |
| Max Internal Grinding Diameter | Ø150 mm (5.9 in) |
| Max Workpiece Length | 350 mm (13.8 in) |
| Wheel Spindle Diameter | Ø90 mm (3.5 in) |
| Max Spindle Speed | 10,000-50,000 rpm |
| X Axis Travel | 480 mm (18.9 in) |
| X Axis Min Setting Unit | 0.001 mm |
| Z Axis Rapid Traverse | 10 m/min (394 ipm) |
| Z Axis Travel | 450 mm (17.7 in) |
| Z Axis Min Setting Unit | 0.001 mm |
| Workhead Swivel Angle | +1°~-1° |
| Work Spindle Center Taper | MT 6 |
| Work Spindle Speed | 0-500 / 0-800 rpm |
| Max Load of Work Spindle | 50 kg (110 lb) |
| Wheel Spindle Motor | 1.5 kW/opt. 2.25 kW |
| Workhead Motor | 2.25 kW (3.0 hp) |
| X Axis Motor | 1.8 kW (2.4 hp) |
| Z Axis Motor | 1.8 kW (2.4 hp) |
| Hydraulic Pump Motor | 0.75 kW (1.0 hp) |
| Coolant Pump Motor | 0.09 kW |
| Coolant Tank | 70 L (18.5 gal) |
| Machine Weight | 5,000 kg (11,023 lb) |
| CNC Control | FANUC CNC controller |
Specifications sourced from palmary.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Workpiece length up to 350 mm (13.8 in)
- 2.25 kW (3.0 hp) workhead motor
- Optional 2.25 kW wheel motor in place of the standard 1.5 kW
- 450 mm (17.7 in) of Z travel for deep bores
Limitations
- Workhead swivel limited to +1° to -1°
- Same Ø150 mm (5.9 in) bore capacity as the short model
- Deep-bore quills and CBN dressing equipment are extra
- Work spindle load of 50 kg (110 lb)
Best For
Frequently Asked Questions
01
350 mm (13.8 in). The maximum internal grinding diameter is Ø150 mm (5.9 in) and the maximum chuck outer diameter Ø200 mm (7.9 in). Z axis travel is 450 mm (17.7 in).
02
Only slight ones by workhead swivel, which is +1° to -1° on this model. Steeper tapers would have to be generated by the CNC moving X and Z together. The shorter OIG-200 swivels +7° to -8°.
03
Grinding wheel 1.5 kW with 2.25 kW as an option; workhead 2.25 kW (3.0 hp); X and Z axis infeed tables 1.8 kW (2.4 hp) each; hydraulic pump 0.75 kW (1.0 hp); coolant pump 0.09 kW.
04
Yes. The OIG-200L50 takes workpieces up to 500 mm (19.7 in) long, with 710 mm (28.0 in) of Z travel and a 4.4 kW (5.9 hp) Z axis motor, and weighs 5,700 kg (12,566 lb).
