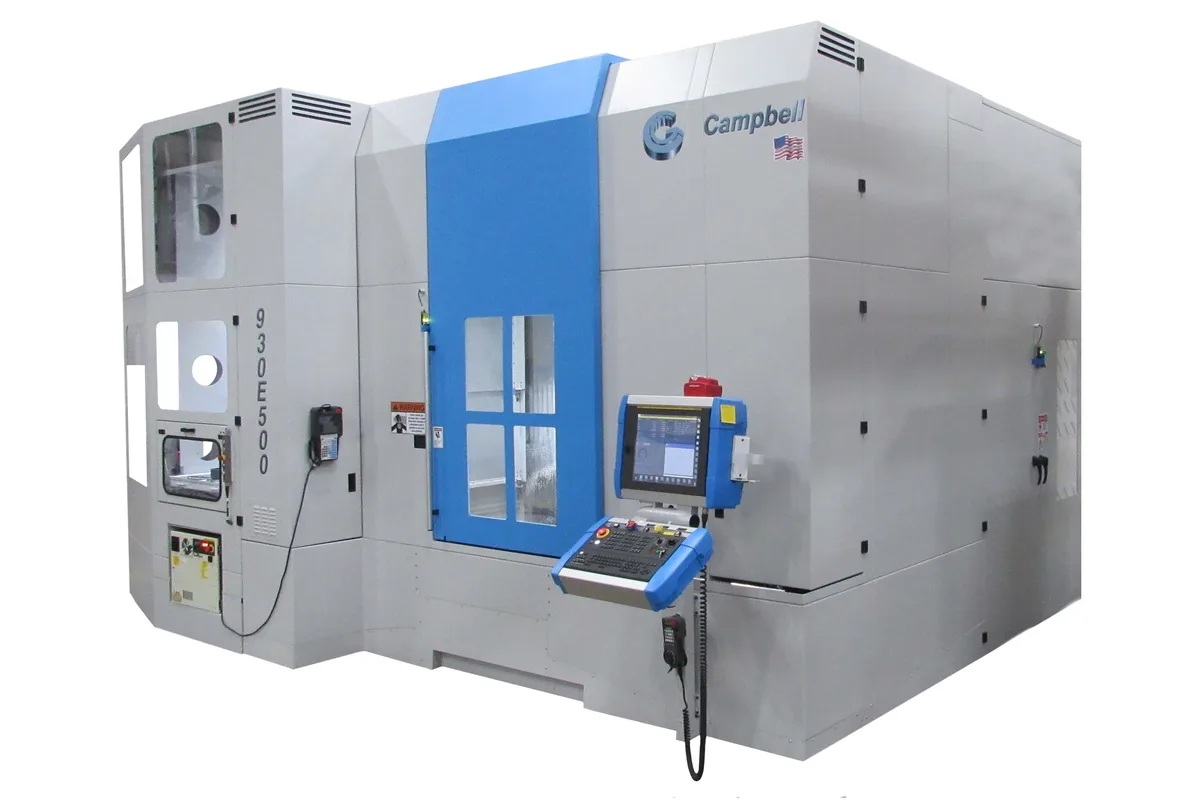

Campbell Grinder 930E500
Image: campbellgrinder.com, Campbell Grinder
Key Specifications
Table Size
Spindle Power
max part height
axes
control
x axis accuracy
How much does the Campbell Grinder 930E500 cost?
Price estimate
We do not have a price for the Campbell Grinder 930E500 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Campbell Grinder 930E500 is a 5-axis CNC vertical creep feed grinder with a 500 mm (19.7 in) table and 500 mm (19.7 in) of part height. Campbell describes the 930 as well suited to turbine engine vanes, buckets, shrouds, hangers and panels.
Those parts explain the machine. A vane segment has ground surfaces on its inner and outer platforms, at angles to each other and to any fixture face. With the part on the rotary C axis and the wheel on the swivelling B axis, both can be reached from one clamping, and Campbell lists grinding the ID and OD of turbine vane segments in one setup as a standard capability. Grinding, drilling and milling in one setup is listed as well.
The work is clamped hydraulically through the table. The spindle is listed at up to 60 HP (44.7 kW), and the machine accepts any abrasive, plated or vitrified CBN included, so the wheel can be chosen for the alloy and the form.
Accuracy is 5 microns (0.0002 in) on X, Y and Z and 10 arc seconds on B and C, under a Fanuc 31i control with up to 5 axis simultaneous contouring. In the series the 930E500 sits between the 930E250, with a 250 mm (9.8 in) table, and the 930E750, with 750 mm (29.5 in).
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 500 mm (19.7 in) |
| Max Part Height | 500 mm (19.7 in) |
| Spindle Motor Power | up to 60 HP (44.7 kW) |
| Axes | X, Y, Z, B, C |
| CNC Control | Fanuc 31i; up to 5 axis simultaneous contouring |
| X Axis Accuracy | 5 microns (0.0002 in) |
| Y Axis Accuracy | 5 microns (0.0002 in) |
| Z Axis Accuracy | 5 microns (0.0002 in) |
| C Axis Accuracy | 10 arc seconds (table spindle) |
| B Axis Accuracy | 10 arc seconds (spindle swivel) |
Specifications sourced from campbellgrinder.com — verified 2026-10-05
Strengths & Limitations
Strengths
- ID and OD of turbine vane segments can be ground in one setup
- Grind, drill and mill in one setup
- 500 mm (19.7 in) table with 500 mm (19.7 in) of part height
- Through-the-table hydraulics for fixture clamping
Limitations
- Parts taller than 500 mm (19.7 in) need the 930E750, which takes 750 mm (29.5 in)
- Spindle power is listed at up to 60 HP (44.7 kW)
- Milling and drilling equipment, probing and the dressers are options
Best For
Frequently Asked Questions
01
Campbell names turbine engine vanes, buckets, shrouds, hangers and panels. The standard feature list includes grinding the ID and OD of turbine vane segments in one setup, and grinding, drilling and milling in one setup.
02
A 500 mm (19.7 in) table and a part height of 500 mm (19.7 in). The neighbouring models are the 930E250 at 250 mm (9.8 in) and the 930E750 at 750 mm (29.5 in).
03
Campbell states that its 4 and 5 axes vertical grinders are engineered to grind with any abrasive or superabrasive, including plated or vitrified CBN and aluminum oxide and ceramic blend wheels. Disk and roll form dressers are options, as is a spindle mounted dresser with a dress roll changer.
04
A Fanuc 31i with up to 5 axis simultaneous contouring. The axes are X, Y, Z, B and C, with 5 microns (0.0002 in) accuracy on the linear axes and 10 arc seconds on the rotary ones. Tool center point control is a standard feature.
