Nexturn SA38PYII

Q: How much does the Nexturn SA38PYII cost?

The price estimate for the Nexturn SA38PYII is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/nexturn-sa38pyii#price; the request is passed to Nexturn or an authorised dealer.

Specs verified 2026-10-05 · nexturn.co.kr Updated 2026-10-05

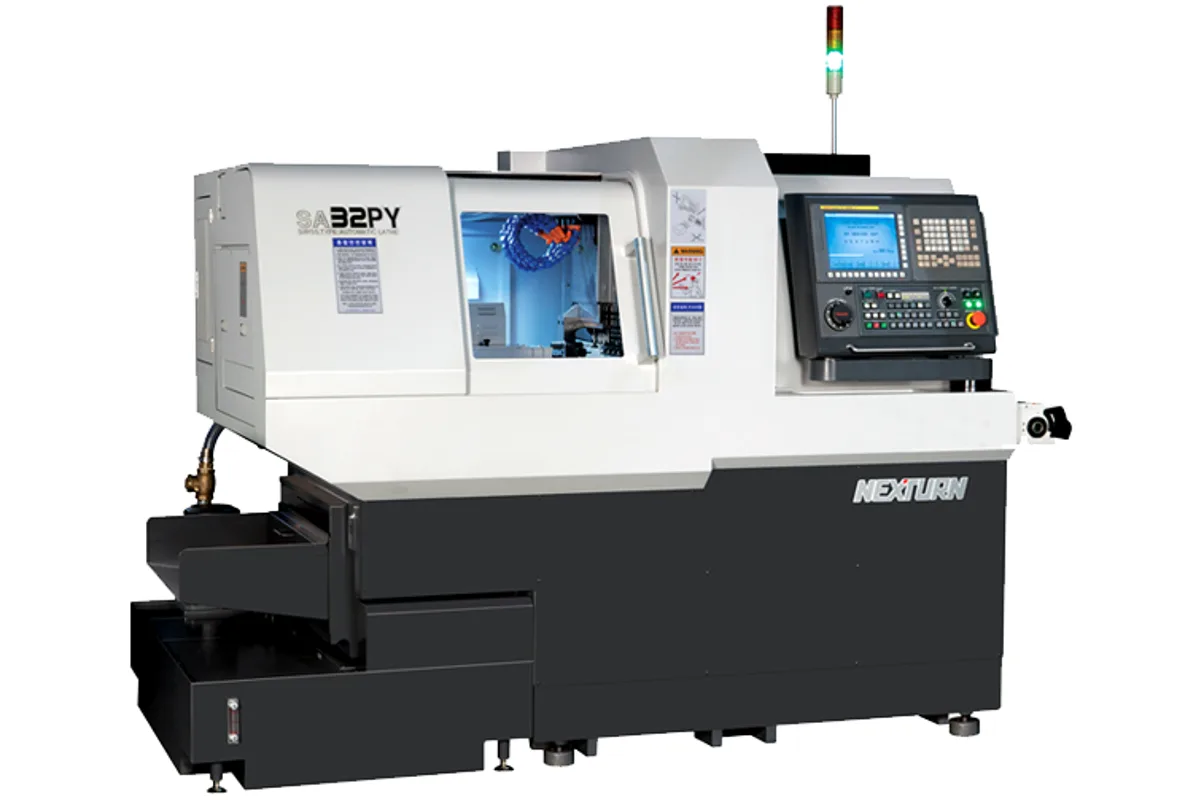

Nexturn SA20/26/32/38P(Y)II series Swiss-type CNC automatic lathe (SA32PYII pictured)

Image: nexturn.co.kr, Nexturn

Key Specifications

Max Spindle

8,000 rpm

Tool Capacity

Rapid Traverse

32 m/min

Spindle Power

5.5 / 7.5 kW (7.4 / 10.1 hp)

Max Turn Length

210 mm (8.3 in); N: 80 mm (3.1 in)

bar capacity

38 mm (1.5 in)

How much does the Nexturn SA38PYII cost?

Price estimate

Uncertain

We do not have a price for the Nexturn SA38PYII that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Nexturn SA38PYII is the top of the PY type: 38 mm (1.5 in) bar, eight axes with Y2, 24 tools and a headstock that works with or without a guide bush. Main and sub spindle both run to 8,000 rpm.

For a bar this thick, the non guide bush mode may be the one used most. The table gives 210 mm (8.3 in) of turning length with N: 80 mm (3.1 in) noted beside it, the same pair as the SA32PYII. Stock of 38 mm is stiff enough over a short overhang to be turned straight from the collet, and doing so shortens the remnant left at the end of each bar. Guide-bush mode stays available for the long shafts.

Five tools separate this machine from the SA38PII, which lists 19. One comes from the fifth cross spindle of the PYII cross station. The other four come from the back end, where the table shows eight tools, Live 4 and Fixed 4, against four on the PII type. As elsewhere in the PY type, the bigger back station runs on a 1.0 kW (1.3 hp) motor with a 10 mm (0.4 in) and M8 limit. Only one front-end face tool is listed for the sub spindle, and it is fixed.

The main spindle motor is 5.5 / 7.5 kW (7.4 / 10.1 hp), the sub spindle 2.2 / 3.7 kW (3.0 / 5.0 hp). For a three-path layout at this bar size Nexturn has the SA38XIII, which runs eleven axes under a FANUC 31i-B; the SA38PYII keeps to the simpler FANUC 0iTF and weighs 3,600 kg (7,937 lb).

Full Specifications

Parameter	Value
Bar Capacity	38 mm (1.5 in)
Max Turning Length	210 mm (8.3 in); N: 80 mm (3.1 in)
Main Spindle Drilling Tapping	12 mm (0.5 in) / M10
Sub Spindle Chucking Diameter	38 mm (1.5 in)
Back End Face Drilling Tapping	10 mm (0.4 in) / M8
Cross Drilling Tapping	12 mm (0.5 in) / M10
Cross Disc Mill Diameter	40 mm (1.6 in)
Max Spindle Speed	8,000 rpm
Sub Spindle Speed	8,000 rpm
Cross Spindle Speed	6,000 rpm
Tool Capacity	24
OD Cross Live Y Axis ID Tools	5 / 5 / 5
Front End Face Tools Sub	1 (Fixed 1)
Back End Face Tools	8 (Live 4, Fixed 4)
Turning Tool Shank	□16 × 120 mm (0.6 × 4.7 in)
Rapid Traverse Rate	32 m/min
Controlled Axes	8
Main Spindle Positioning	Cs + 1/1,000°
Sub Spindle Positioning	Cs + 1/1,000°
Spindle Motor Power	5.5 / 7.5 kW (7.4 / 10.1 hp)
Sub Spindle Power	2.2 / 3.7 kW (3.0 / 5.0 hp)
Cross Drill Mill Motor	2.2 kW (3.0 hp)
Back End Face Tool Motor	1.0 kW (1.3 hp)
Coolant Pump Motor	0.9 kW (1.2 hp)
Lubrication Pump Motor	0.04 kW (0.05 hp)
Coolant Tank	280 L
Center Height	1,000 mm (39.4 in)
Machine Dimensions	2,100 × 1,165 × 1,660 mm (82.7 × 45.9 × 65.4 in)
Machine Weight	3,600 kg (7,937 lb)
CNC Control	FANUC 0iTF
Axis Designation	X1, Z1, Y1, X2, Z2, Y2, C1, C2
Min Input Increment	0.001 mm
Cutting Feed Rate	1~6,000 mm/min
Tool Offsets	64 sets
Program Memory	1 Mbyte
Registerable Programs	800 sets

Specifications sourced from nexturn.co.kr — verified 2026-10-05

Strengths & Limitations

Strengths

38 mm (1.5 in) capacity with both guide bush and non guide bush operation
Y2 axis and up to eight back-end tools for work on the cut-off side
24 tools, five more than the SA38PII
2.2 kW (3.0 hp) cross unit with cross drilling to 12 mm (0.5 in) and M10
Same compact envelope as the smaller PY machines

Limitations

Back-end drilling stops at 10 mm (0.4 in) and M8 on a 1.0 kW (1.3 hp) drive
A single fixed front-end face tool for the sub spindle
5.5 / 7.5 kW (7.4 / 10.1 hp) on the main spindle is modest for 38 mm stock
210 mm (8.3 in) of guide-bush stroke, where the SA38PII has 250 mm (9.8 in)

Best For

Fittings, bushings and short bodies from 38 mm (1.5 in) bar Parts needing Y-axis milling at both spindles Mixed lots of long and short parts on one machine Back-end work made of many small features

Frequently Asked Questions

01 When would the SA38PYII be run without its guide bush?

For short parts. The brochure says the non guide bush type reduces the bar remnant and suits drawn bar, while the guide bush type is for precision on long parts. The table lists 210 mm (8.3 in) of turning length and N: 80 mm (3.1 in), the latter being the figure to check for non guide bush work.

02 What is the difference between the SA38PYII and the SA38XIII?

The SA38PYII is an eight-axis, two-path machine with a FANUC 0iTF and 24 tools. The SA38XIII is an eleven-axis machine with three tool channels, a FANUC 31i-B and 270 mm (10.6 in) of turning length. Both take 38 mm (1.5 in) bar and use a 5.5 / 7.5 kW (7.4 / 10.1 hp) main spindle.

03 How many tools can work on the back of the part on the SA38PYII?

The table lists eight back-end face tools, Live 4 and Fixed 4, plus one fixed front-end face tool on the sub spindle side. Eight is the optional back tool unit. The standard PYII unit has two live and two fixed tools, and an optional back-end face cross unit is also offered.

04 What spindle speeds does the SA38PYII reach?

8,000 rpm on the main spindle and 8,000 rpm on the sub spindle, 6,000 rpm on the cross spindles and 5,000 rpm at the back-end tool station. Rapid traverse is 32 m/min and the programmable feedrate range is 1~6,000 mm/min.
