Nexturn SA32XII
Image: nexturn.co.kr, Nexturn
Key Specifications
Max Spindle
Tool Capacity
Rapid Traverse
Spindle Power
Max Turn Length
bar capacity
How much does the Nexturn SA32XII cost?
Price estimate
We do not have a price for the Nexturn SA32XII that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Nexturn SA32XII is a 32 mm (1.3 in) Swiss-type automatic lathe built for parts with a long list of operations: 29 tools, eight axes including Y2, and 270 mm (10.6 in) of turning length. It is the largest X machine that Nexturn lists with its rotary guide bushing unit and the full eight-position cross station.
At 32 mm Nexturn offers four different machines, so where does this one fit? The SA32B and SA32PII are seven-axis machines with 20 tools. The SA32PYII adds Y2 and reaches 25 tools. The SA32XII goes to 29 with the same two tool paths, and the SA32XIII moves to three paths and eleven axes under a different control. In other words this is the most heavily tooled 32 mm machine that still runs on the FANUC 0iTF.
Its motors are sized for many light cuts and not for a few heavy ones. The main spindle is 3.7 / 7.5 kW (5.0 / 10.1 hp), below the 5.5 / 7.5 kW (7.4 / 10.1 hp) of the SA32PYII, and the sub spindle is 1.5 / 2.2 kW (2.0 / 3.0 hp). Cross tools and back-end tools each have 1.0 kW (1.3 hp) and stop at 10 mm (0.4 in) drills and M8 taps. Both spindles turn at up to 8,000 rpm and have pneumatic brakes.
The tool list reads seven OD tools on □16 × 120 mm (0.6 × 4.7 in) shanks, eight cross positions with four modular, four ID tools, two front-end face tools for the sub spindle and eight back-end tools. Front-end live tools and the eight-position back unit are options. Net weight is 3,700 kg (8,157 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Bar Capacity | 32 mm (1.3 in) |
| Max Turning Length | 270 mm (10.6 in) |
| Main Spindle Drilling Tapping | 12 mm (0.5 in) / M10 |
| Sub Spindle Chucking Diameter | 32 mm (1.3 in) |
| Back End Face Drilling Tapping | 10 mm (0.4 in) / M8 |
| Cross Drilling Tapping | 10 mm (0.4 in) / M8 |
| Cross Disc Mill Diameter | 40 mm (1.6 in) |
| Max Spindle Speed | 8,000 rpm |
| Sub Spindle Speed | 8,000 rpm |
| Cross Spindle Speed | 6,000 rpm |
| Tool Capacity | 29 |
| OD Cross ID Tools | 7 / 8 (Modular 4) / 4 |
| Front End Face Tools Sub | 2 (Fixed, Live opt) |
| Back End Face Tools | 8 (Live 4, Fixed 4) |
| Turning Tool Shank | □16 × 120 mm (0.6 × 4.7 in) |
| Rapid Traverse Rate | 32 m/min |
| Controlled Axes | 8 |
| Main Spindle Positioning | Cs + 1/1,000° |
| Sub Spindle Positioning | Cs + 1/1,000° |
| Spindle Motor Power | 3.7 / 7.5 kW (5.0 / 10.1 hp) |
| Sub Spindle Power | 1.5 / 2.2 kW (2.0 / 3.0 hp) |
| Cross Drill Mill Motor | 1.0 kW (1.3 hp) |
| Back End Face Tool Motor | 1.0 kW (1.3 hp) |
| Coolant Pump Motor | 0.9 kW (1.2 hp) |
| Lubrication Pump Motor | 0.04 kW (0.05 hp) |
| Coolant Tank | 250 L |
| Center Height | 1,000 mm (39.4 in) |
| Machine Dimensions | 2,330 × 1,350 × 1,800 mm (91.7 × 53.1 × 70.9 in) |
| Machine Weight | 3,700 kg (8,157 lb) |
| CNC Control | FANUC 0iTF |
| Axis Designation | X1, Z1, Y1, X2, Z2, Y2, C1, C2 |
| Min Input Increment | 0.001 mm |
| Cutting Feed Rate | 1~6,000 mm/min |
| Tool Offsets | 64 sets |
| Program Memory | 1 Mbyte |
| Registerable Programs | 800 sets |
Specifications sourced from nexturn.co.kr — verified 2026-10-05
Strengths & Limitations
Strengths
- 29 tools, the most of any 32 mm machine in Nexturn's FANUC 0iTF range
- 270 mm (10.6 in) of turning length, against 210 mm (8.3 in) on the SA32PYII
- Y2 axis for the back-end tool station and Cs control on both spindles
- 4 spindle cross drill unit and 4 spindle modular cross drill unit are both standard
- One-piece slant bed casting with LM guides
Limitations
- 3.7 / 7.5 kW (5.0 / 10.1 hp) main spindle, lighter than the SA32PYII's 5.5 / 7.5 kW (7.4 / 10.1 hp)
- 1.0 kW (1.3 hp) on the cross unit and on the back-end station
- Cross drilling limited to 10 mm (0.4 in) and M8, where the SA32PYII lists 12 mm (0.5 in)
- Standard back tool unit is Live 2, Fixed 2; eight tools require the optional unit
Best For
Frequently Asked Questions
01
The SA32XII has two tool paths, eight axes and a FANUC 0iTF, with a 3.7 / 7.5 kW (5.0 / 10.1 hp) main spindle. The SA32XIII has three paths, eleven axes and a FANUC 31i-B, with 5.5 / 7.5 kW (7.4 / 10.1 hp). Both take 32 mm (1.3 in) bar, turn 270 mm (10.6 in) and weigh 3,700 kg (8,157 lb).
02
The table lists 3.7 / 7.5 kW (5.0 / 10.1 hp) for the main spindle and 1.5 / 2.2 kW (2.0 / 3.0 hp) for the sub spindle. Nexturn mentions an oil cooling system for the main spindle. Maximum speed is 8,000 rpm on both.
03
Yes. The back-end tool station moves on the Y2 axis and is listed with up to eight tools, four live and four fixed, at up to 5,000 rpm on a 1.0 kW (1.3 hp) motor. Back-end drilling goes to 10 mm (0.4 in) and tapping to M8. Two front-end face tools are fixed, with live ones optional.
04
The standard list names the synchronous rotary guide bush holder unit, the 4 spindle cross drill unit, the 4 spindle modular cross drill unit, a back tool unit with two live and two fixed tools and a pneumatic brake unit. The Live 4, Fixed 4 back unit, front-end face revolving unit, Y-axis tool unit and thread whirling device are options.
More from Nexturn
Other Swiss-Type Lathes
Star SV-12

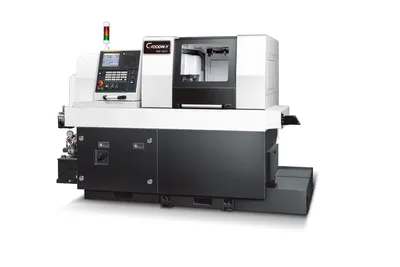

Goodway SW-32II
