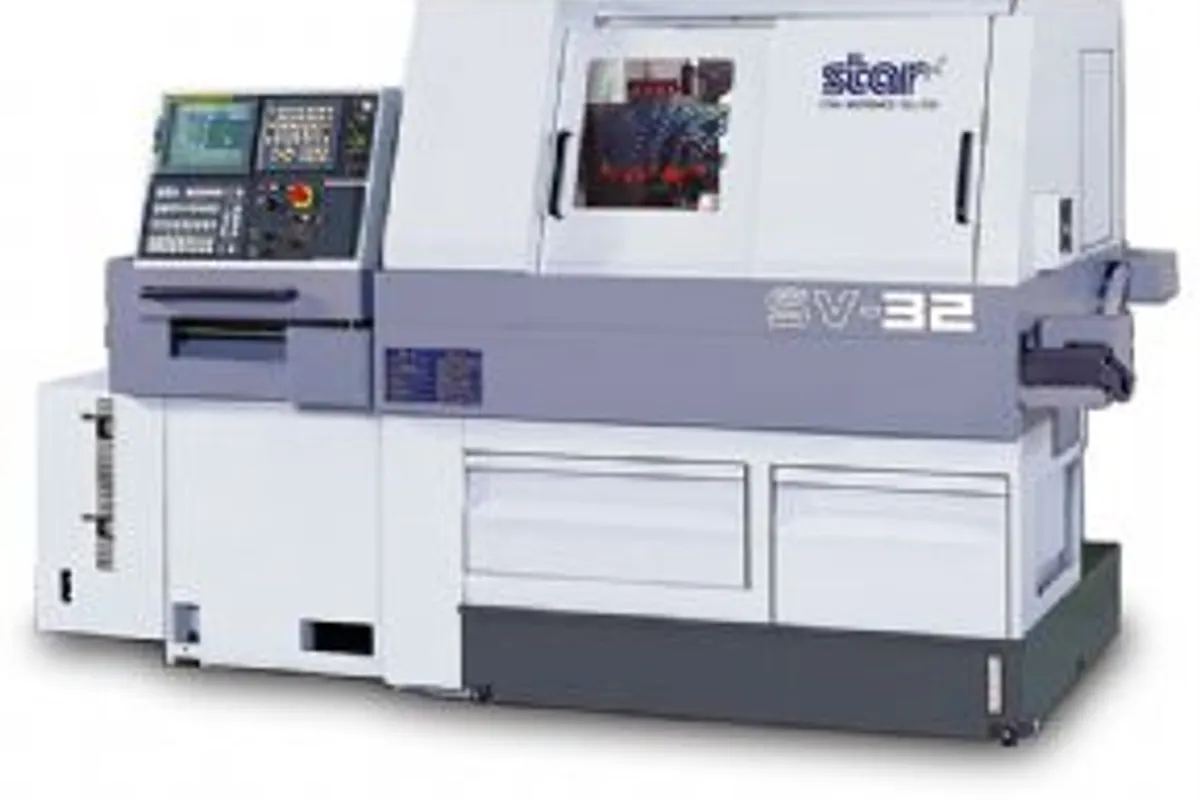

Star SV-32

Est. $350,000 - $520,000 Specs verified 2026-10-03 · starcnc.com Updated 2026-10-03

Image: starcnc.com, Star Micronics

Key Specifications

Rapid Traverse

32 m/min

max bar capacity

32 mm (1.26 in)

max machining diameter

32 mm (1.26 in)

number of axes

Up to 10 (including Y1, Y2, B-axis, C1, C2)

How much does the Star SV-32 cost?

Estimated price range

Est.$350,000 - $520,000

Our best estimate for a swiss-type lathe in this class — not a quote from Star Micronics. Configuration moves it a long way.

Overview

The Star SV-32 is a Swiss-type lathe with a 32 mm (1.26 in) bar capacity and up to 10 axes. Star's axis row names five of them: Y1, Y2, a B-axis, C1 and C2. Rapid traverse is 32 m/min.

The named axes describe the machine's purpose better than the bar size does. C1 and C2 put contouring control on two spindles. Y1 and Y2 give off-centre movement to two tool groups, and the B-axis lets a driven tool be set at an angle to the part. Taken together they point to parts that would otherwise go to a milling machine for a second operation: angled cross holes, inclined flats, and features on either end that sit away from the centreline.

What the table leaves out matters as much to a buyer. No spindle speed, spindle power, tool count, stroke or weight is given for this model, and 'up to 10' is a ceiling, not a count for every configuration. For reference among Star's machines of this bar size, the eCA-S32T is listed with 10 stations on each of two turrets.

Full Specifications

Parameter	Value
Max Bar Capacity	32 mm (1.26 in)
Max Machining Diameter	32 mm (1.26 in)
Number of Axes	Up to 10 (including Y1, Y2, B-axis, C1, C2)
Rapid Traverse Rate	32 m/min

Specifications sourced from starcnc.com — verified 2026-10-03

Strengths & Limitations

Strengths

Up to 10 axes, with Y1, Y2, B-axis, C1 and C2 named in the table
B-axis for angled drilling and milling without fixed-angle holders
Rapid traverse listed at 32 m/min

Limitations

No spindle speed, power, tool count, stroke or weight in the published table
Axis count is an upper limit ('up to 10'), so the axes on a specific machine need confirming

Best For

Bar parts up to 32 mm (1.26 in) with angled features Off-centre work on both ends using Y1 and Y2 Milled profiles that need C1 and C2 contouring

Frequently Asked Questions

01 How many axes does the SV-32 have?

Up to 10. The table names Y1, Y2, a B-axis, C1 and C2 among them. The wording is an upper limit, so ask which axes are fitted to the machine being quoted.

02 What bar diameter can the SV-32 machine?

Maximum bar capacity and maximum machining diameter are both 32 mm (1.26 in). The table does not list an oversize option or a maximum machining length for this model.

03 How fast are the rapids on the SV-32?

Rapid traverse is listed at 32 m/min. The table gives a single figure and does not break it down by axis, so check whether Y2 and the B-axis move at the same rate if cycle time on short parts matters.
