Nexturn SA45XII

Q: How much does the Nexturn SA45XII cost?

The price estimate for the Nexturn SA45XII is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/nexturn-sa45xii#price; the request is passed to Nexturn or an authorised dealer.

Specs verified 2026-10-05 · nexturn.co.kr Updated 2026-10-05

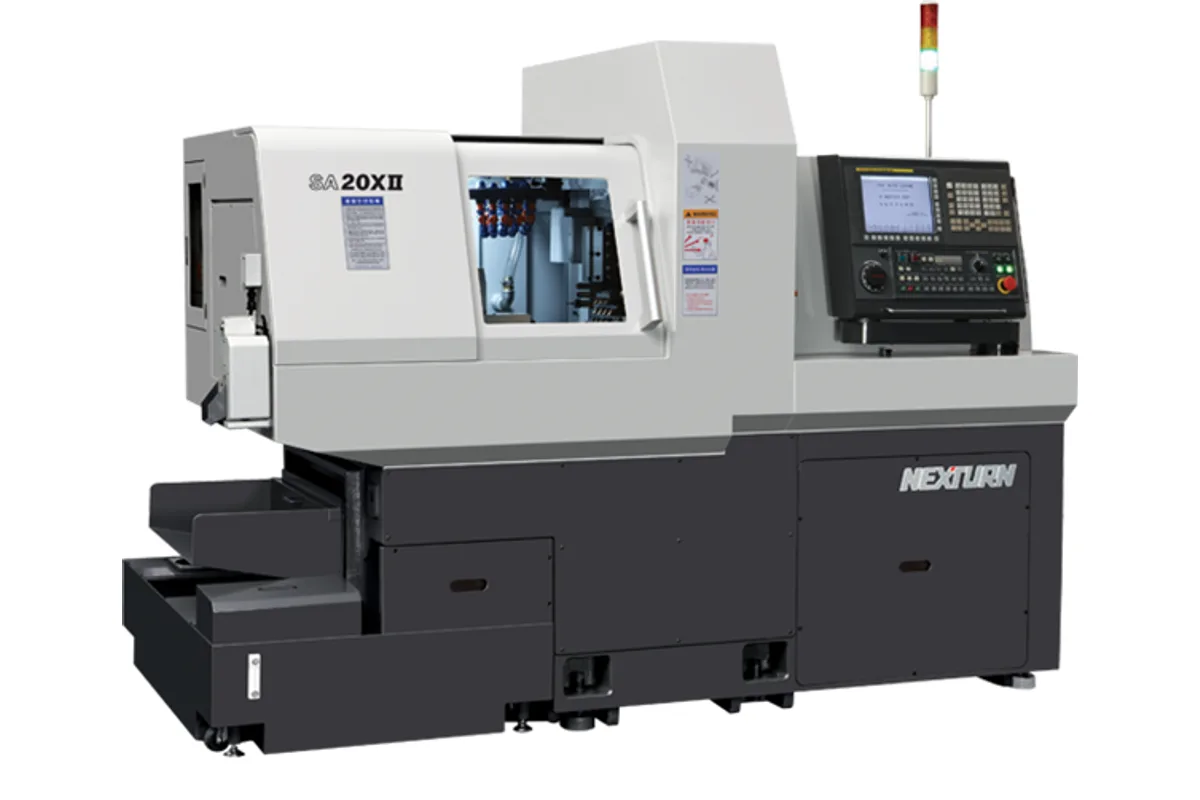

Nexturn SA20/26/32/45/51XII series Swiss-type CNC automatic lathe (SA20XII pictured)

Image: nexturn.co.kr, Nexturn

Key Specifications

Max Spindle

6,000 rpm

Tool Capacity

Rapid Traverse

24 m/min

Spindle Power

11 / 15 kW (14.8 / 20.1 hp)

Max Turn Length

120 mm (4.7 in)

bar capacity

45 mm (1.8 in)

How much does the Nexturn SA45XII cost?

Price estimate

Uncertain

We do not have a price for the Nexturn SA45XII that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Nexturn SA45XII shares a brochure with the small X machines but is a different kind of lathe: 45 mm (1.8 in) bar, only 120 mm (4.7 in) of turning length, and an 11 / 15 kW (14.8 / 20.1 hp) main spindle limited to 6,000 rpm. It has eight axes, 24 tools and a FANUC 0iTF control.

The short stroke defines the work. A 45 mm bar turned over 120 mm is a stout part, a fitting, a valve body or a hub, and the machine is equipped for that. Nexturn lists built-in motors for main and sub spindle on this model, a hydraulic disc brake in place of the pneumatic brake of the SA32XII, and a hydraulic cylinder chucking system that it says is there for stable cutting at maximum diameter. The bar remnant is given as less than 70 mm.

Power rises steeply from the smaller sizes. The SA32XII has 3.7 / 7.5 kW (5.0 / 10.1 hp); this machine has 11 / 15 kW, with 2.2 / 5.5 kW (3.0 / 7.4 hp) on the sub spindle. Tool shanks grow to □20 × 125 mm (0.8 × 4.9 in), on-centre drilling to 16 mm (0.6 in) with M12 tapping, and the coolant pump to 1.5 kW (2.0 hp). Rapid traverse drops to 24 m/min.

Fewer tools fit around the larger bar. The table lists five OD tools, four cross tools and seven ID tools, three of them live, with eight back-end tools as Live 4 and Fixed 4 and no front-end face tools for the sub spindle. The cross unit keeps its 1.0 kW (1.3 hp) motor, so cross drilling is held to 13 mm (0.5 in) and M10. The machine weighs 4,000 kg (8,818 lb).

Full Specifications

Parameter	Value
Bar Capacity	45 mm (1.8 in)
Max Turning Length	120 mm (4.7 in)
Main Spindle Drilling Tapping	16 mm (0.6 in) / M12
Sub Spindle Chucking Diameter	45 mm (1.8 in)
Back End Face Drilling Tapping	13 mm (0.5 in) / M10
Cross Drilling Tapping	13 mm (0.5 in) / M10
Cross Disc Mill Diameter	45 mm (1.8 in)
Max Spindle Speed	6,000 rpm
Sub Spindle Speed	6,000 rpm
Cross Spindle Speed	6,000 rpm
Tool Capacity	24
OD Cross ID Tools	5 / 4 / 7 (Live 3)
Back End Face Tools	8 (Live 4, Fixed 4)
Turning Tool Shank	□20 × 125 mm (0.8 × 4.9 in)
Rapid Traverse Rate	24 m/min
Controlled Axes	8
Main Spindle Positioning	Cs + 1/1,000°
Sub Spindle Positioning	Cs + 1/1,000°
Spindle Motor Power	11 / 15 kW (14.8 / 20.1 hp)
Sub Spindle Power	2.2 / 5.5 kW (3.0 / 7.4 hp)
Cross Drill Mill Motor	1.0 kW (1.3 hp)
Back End Face Tool Motor	1.0 kW (1.3 hp)
Coolant Pump Motor	1.5 kW (2.0 hp)
Lubrication Pump Motor	0.04 kW (0.05 hp)
Coolant Tank	300 L
Center Height	1,100 mm (43.3 in)
Machine Dimensions	2,400 × 1,350 × 1,900 mm (94.5 × 53.1 × 74.8 in)
Machine Weight	4,000 kg (8,818 lb)
CNC Control	FANUC 0iTF
Axis Designation	X1, Z1, Y1, X2, Z2, Y2, C1, C2
Min Input Increment	0.001 mm
Cutting Feed Rate	1~6,000 mm/min
Tool Offsets	64 sets
Program Memory	1 Mbyte
Registerable Programs	800 sets

Specifications sourced from nexturn.co.kr — verified 2026-10-05

Strengths & Limitations

Strengths

11 / 15 kW (14.8 / 20.1 hp) main spindle, twice the upper rating of the SA32XII
Built-in motors on main and sub spindle with a hydraulic disc brake
Hydraulic cylinder chucking system for cutting at full bar diameter
Bar remnant stated as less than 70 mm
Seven ID tool positions, three of them live, and up to eight back-end tools

Limitations

Turning length is 120 mm (4.7 in), far short of the 270 mm (10.6 in) of the SA32XII
Spindle speed is limited to 6,000 rpm
Cross unit is 1.0 kW (1.3 hp) with four tools; the SA51XII has 2.2 kW (3.0 hp)
No front-end face tools are listed for the sub spindle
Rapid traverse is 24 m/min, slower than the SA32XII's 32 m/min

Best For

Short, large-diameter parts from bar up to 45 mm (1.8 in) Fittings, hubs and valve parts within 120 mm (4.7 in) of length Heavier turning cuts that need a 15 kW class spindle Parts with several on-centre bores, drilled up to 16 mm (0.6 in)

Frequently Asked Questions

01 Why is the SA45XII's turning length so much shorter than the SA32XII's?

The table simply lists 120 mm (4.7 in) for the SA45XII against 270 mm (10.6 in) for the SA32XII, without giving a reason. The SA45XII is laid out for short, heavy parts, with hydraulic chucking and a bar remnant under 70 mm.

02 What is different about the SA45XII's spindles?

They are built-in motors, 11 / 15 kW (14.8 / 20.1 hp) on the main spindle and 2.2 / 5.5 kW (3.0 / 7.4 hp) on the sub spindle, both limited to 6,000 rpm. Nexturn fits a hydraulic disc brake and a hydraulic cylinder chucking system on this model, and an oil cooling system for the main spindle.

03 How many tools does the SA45XII carry?

24. Five are OD tools on □20 × 125 mm (0.8 × 4.9 in) shanks, four are cross tools, seven are ID tools including three live, and eight are back-end face tools (Live 4, Fixed 4). The eight-position back unit is the optional one; the standard back tool unit is Live 2, Fixed 2.

04 What are the SA45XII's size and weight?

2,400 × 1,350 × 1,900 mm (94.5 × 53.1 × 74.8 in) and 4,000 kg (8,818 lb) net. The spindle centre height is 1,100 mm (43.3 in), higher than on the smaller X machines, and the coolant tank holds 300 L.
