Nexturn SA26PYII

Q: How much does the Nexturn SA26PYII cost?

The price estimate for the Nexturn SA26PYII is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/nexturn-sa26pyii#price; the request is passed to Nexturn or an authorised dealer.

Specs verified 2026-10-05 · nexturn.co.kr Updated 2026-10-05

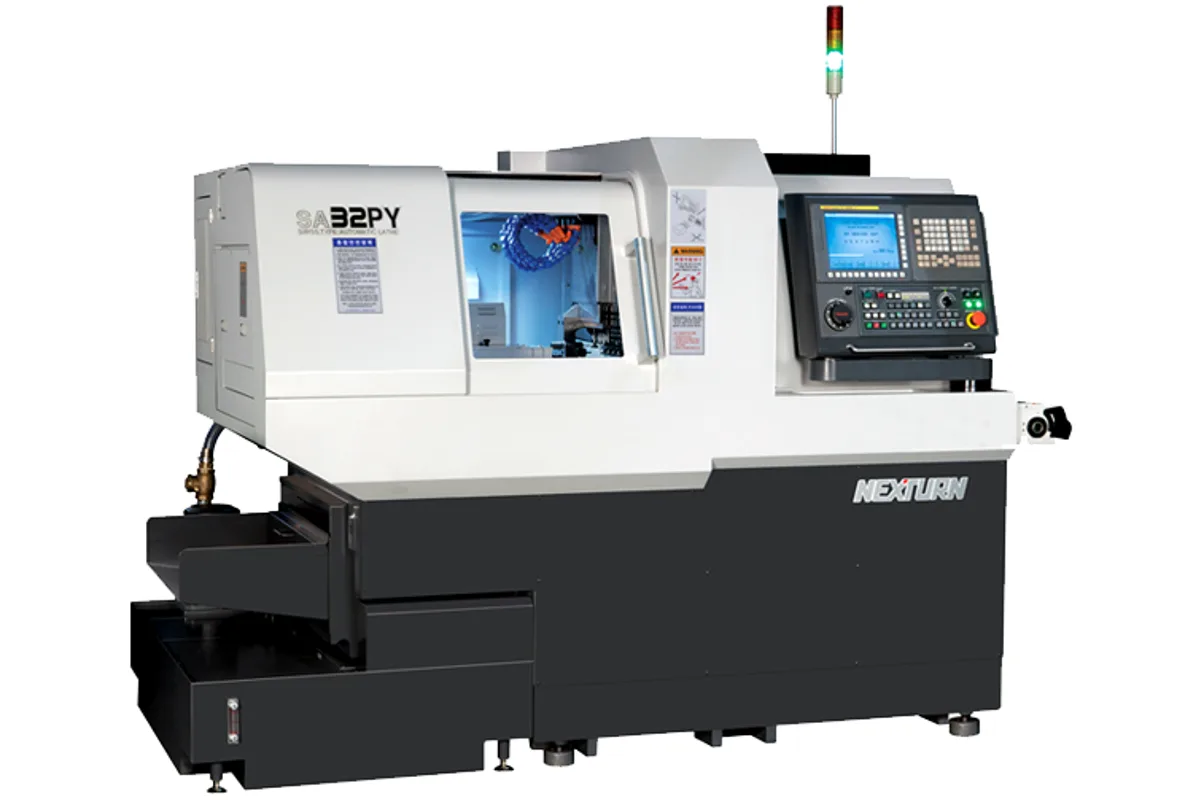

Nexturn SA20/26/32/38P(Y)II series Swiss-type CNC automatic lathe (SA32PYII pictured)

Image: nexturn.co.kr, Nexturn

Key Specifications

Max Spindle

8,000 rpm

Tool Capacity

Rapid Traverse

32 m/min

Spindle Power

5.5 / 7.5 kW (7.4 / 10.1 hp)

Max Turn Length

210 mm (8.3 in); N: 60 mm (2.4 in)

bar capacity

26 mm (1.0 in)

How much does the Nexturn SA26PYII cost?

Price estimate

Uncertain

We do not have a price for the Nexturn SA26PYII that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Nexturn's SA26PYII is the eight-axis, convertible version of its 26 mm (1.0 in) Swiss-type automatic lathe. It lists 25 tools, runs main and sub spindle to 8,000 rpm, and can be set up with a guide bush or without one.

Three things are added over the SA26PII. First is the Y2 axis, which appears in the axis designation between Z2 and C1 and lets tools move off centre at the sub spindle. Second is a fifth cross spindle: the PYII cross station is five positions, Modular 3 and Live 2. Third is a larger back-end station, listed as eight tools with four of them live. Together they take the count from the SA26PII's 20 tools to 25.

More back-end tools do not mean stronger ones. The PYII's back-end face tools have a 1.0 kW (1.3 hp) motor and are limited to 10 mm (0.4 in) drills and M8 taps. The SA26PII, with fewer back tools, drives them with 2.2 kW (3.0 hp) and drills to 12 mm (0.5 in). Main-side figures are the same on both: 5.5 / 7.5 kW (7.4 / 10.1 hp) on the spindle and 2.2 kW (3.0 hp) on the cross unit, with cross drilling to 12 mm (0.5 in) and M10.

Turning length is given as 210 mm (8.3 in); N: 60 mm (2.4 in). The first figure is shorter than the PII type gives. The second, going by the brochure's description of the two headstock modes, is the length available without the guide bush, and is worth confirming. Machine size does not change with any of this: 2,100 × 1,165 × 1,660 mm (82.7 × 45.9 × 65.4 in) and 3,400 kg (7,496 lb).

Full Specifications

Parameter	Value
Bar Capacity	26 mm (1.0 in)
Max Turning Length	210 mm (8.3 in); N: 60 mm (2.4 in)
Main Spindle Drilling Tapping	12 mm (0.5 in) / M10
Sub Spindle Chucking Diameter	26 mm (1.0 in)
Back End Face Drilling Tapping	10 mm (0.4 in) / M8
Cross Drilling Tapping	12 mm (0.5 in) / M10
Cross Disc Mill Diameter	40 mm (1.6 in)
Max Spindle Speed	8,000 rpm
Sub Spindle Speed	8,000 rpm
Cross Spindle Speed	6,000 rpm
Tool Capacity	25
OD Cross Live Y Axis ID Tools	5 / 5 / 5
Front End Face Tools Sub	2 (Fixed 2)
Back End Face Tools	8 (Live 4, Fixed 4)
Turning Tool Shank	□16 × 120 mm (0.6 × 4.7 in)
Rapid Traverse Rate	32 m/min
Controlled Axes	8
Main Spindle Positioning	Cs + 1/1,000°
Sub Spindle Positioning	Cs + 1/1,000°
Spindle Motor Power	5.5 / 7.5 kW (7.4 / 10.1 hp)
Sub Spindle Power	2.2 / 3.7 kW (3.0 / 5.0 hp)
Cross Drill Mill Motor	2.2 kW (3.0 hp)
Back End Face Tool Motor	1.0 kW (1.3 hp)
Coolant Pump Motor	0.9 kW (1.2 hp)
Lubrication Pump Motor	0.04 kW (0.05 hp)
Coolant Tank	280 L
Center Height	1,000 mm (39.4 in)
Machine Dimensions	2,100 × 1,165 × 1,660 mm (82.7 × 45.9 × 65.4 in)
Machine Weight	3,400 kg (7,496 lb)
CNC Control	FANUC 0iTF
Axis Designation	X1, Z1, Y1, X2, Z2, Y2, C1, C2
Min Input Increment	0.001 mm
Cutting Feed Rate	1~6,000 mm/min
Tool Offsets	64 sets
Program Memory	1 Mbyte
Registerable Programs	800 sets

Specifications sourced from nexturn.co.kr — verified 2026-10-05

Strengths & Limitations

Strengths

Y2 axis for off-centre drilling and milling on the sub spindle side
25 tools, including a five-position cross station and up to eight back-end tools
Guide bush and non guide bush operation on the same machine
5.5 / 7.5 kW (7.4 / 10.1 hp) main spindle and a 2.2 / 3.7 kW (3.0 / 5.0 hp) built-in sub spindle motor
Same footprint and 3,400 kg (7,496 lb) weight as the seven-axis SA26PII

Limitations

Back-end tool motor is 1.0 kW (1.3 hp), less than half the 2.2 kW (3.0 hp) of the SA26PII
Back-end face drilling is limited to 10 mm (0.4 in) and M8
210 mm (8.3 in) of guide-bush turning length, where the SA26PII has 250 mm (9.8 in)
The Live 4, Fixed 4 back unit is an option over the standard Live 2, Fixed 2 unit

Best For

26 mm (1.0 in) parts with milled flats or off-centre holes on the back end Shops that switch between long guide-bush work and short chucker-style parts Parts that need many light back-end operations more than one heavy one Jobs needing a fifth cross tool position

Frequently Asked Questions

01 What does the SA26PYII add over the SA26PII?

A Y2 axis, one more cross spindle and a bigger back-end tool station. The SA26PYII is an eight-axis machine with 25 tools; the SA26PII has seven axes and 20 tools. The PYII is also the type with the exchangeable guide bush and non guide bush system.

02 What is the turning length of the SA26PYII?

The table prints 210 mm (8.3 in) with N: 60 mm (2.4 in) in brackets after it. The brochure describes a guide bush mode for long parts and a non guide bush mode for a shorter bar remnant, so the two figures correspond to those modes. Ask the supplier to confirm the non guide bush stroke for your part.

03 How fast are the spindles on the SA26PYII?

Main and sub spindle are both listed at 8,000 rpm. Cross spindles turn at up to 6,000 rpm and the back-end tool station at up to 5,000 rpm. Both spindles have Cs control and pneumatic brakes, and rapid traverse is 32 m/min.

04 Is the sub spindle on the SA26PYII a built-in motor?

Yes. Nexturn states that the sub spindle is a built-in motor on every P and PY size apart from the SA20PII and SA20PYII, with an inverter oil cooling system and a motor output of 2.2 / 3.7 kW (3.0 / 5.0 hp). That matches the sub spindle row of this model's table.
