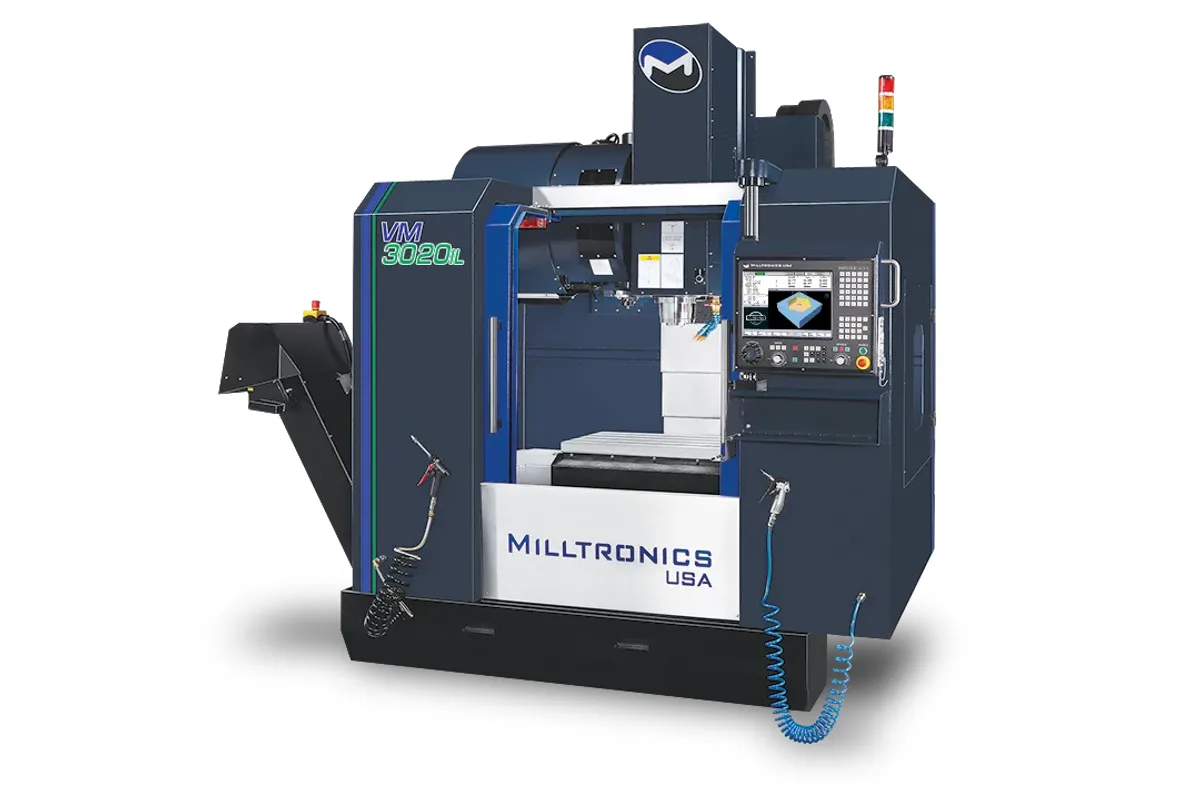

Milltronics VM3020IL
Image: milltronics.com, Milltronics
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Milltronics VM3020IL cost?
Price estimate
We do not have a price for the Milltronics VM3020IL that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Milltronics VM3020IL is a 12,000 rpm vertical machining center with 30 x 20 x 22 in (762 x 508 x 559 mm) travels, a 30-tool double-arm changer and a 34 x 20 in (864 x 508 mm) table. Its BIG-PLUS ISO No. 40 spindle is listed at 24/15 hp (17.9/11.2 kW) and 89 lb-ft (121 Nm).
The Z axis deserves a close look. Travel is 22 in (559 mm), and the spindle nose moves between 6 and 28 in (152 and 711 mm) above the table. The upper figure leaves room for tall parts, a rotary fixture or the 11.8 in (300 mm) maximum tool length. The lower one means the nose never comes closer than 6 in (152 mm) to the table, so thin work held low needs a riser, a vise or longer tools to be reached.
Against the VM3018 the gains are speed, torque and pockets: the VM3018 is listed at 10,000 rpm, 75 lb-ft (102 Nm) and 24 tools. The trade is table load. The VM3020IL carries 3,140 lb (1,424 kg) where the VM3018 carries 3,770 lb (1,710 kg), even though the VM3020IL is the heavier machine at 10,700 lb (4,854 kg).
Rapids are listed as 1,200/1,000 ipm (30.5/25.4 m/min), two figures the table does not assign to particular axes. Tools are CT40 on MAS 60 retention knobs, up to 3.15 in (80 mm) in diameter and 15.4 lb (7.0 kg). T-slots are 0.71 in (18 mm).
It is a tall machine at 118.5 in (3,010 mm). The nominal operating footprint is 85.8 x 124.1 in (2,179 x 3,152 mm), and Milltronics adds a 123.3 in figure with conveyor. Power is 26 kVA / 31 A at 480 V, 3-phase. No control is named in the table for this model.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 30 in (762 mm) |
| Y Axis Travel | 20 in (508 mm) |
| Z Axis Travel | 22 in (559 mm) |
| Table Size | 34 x 20 in (864 x 508 mm) |
| Max Table Load | 3,140 lb (1,424 kg) |
| Table T Slot Width | 0.71 in (18 mm) |
| Spindle Taper | BIG-PLUS® ISO No. 40 |
| Max Spindle Speed | 12,000 rpm |
| Spindle Motor Power | 24/15 hp (17.9/11.2 kW) |
| Spindle Torque | 89 lb-ft (121 Nm) |
| Distance Spindle Nose to Table | 6-28 in (152-711 mm) |
| Tool Shank | CT40 |
| Retention Knob | MAS 60 |
| Tool Capacity | 30 / Double Arm |
| Max Tool Diameter (full magazine) | 3.15 in (80 mm) |
| Max Tool Length | 11.8 in (300 mm) |
| Max Tool Weight | 15.4 lb (7.0 kg) |
| Rapid Traverse Xyz | 1,200/1,000 ipm (30.5/25.4 m/min) |
| Machine Weight | 10,700 lb (4,854 kg) |
| Machine Height | 118.5 in (3,010 mm) |
| Machine Footprint | 85.8 x 124.1 in (2,179 x 3,152 mm) (123.3 in with conveyor) nominal operating (W x D) |
| Power Requirement | 26 kVA / 31 A |
| Voltage Requirement | 480 V, 3-phase |
Specifications sourced from milltronics.com — verified 2026-09-24
Strengths & Limitations
Strengths
- 12,000 rpm spindle with 24/15 hp (17.9/11.2 kW) and 89 lb-ft (121 Nm)
- 30-tool double-arm changer, six more pockets than the 24 tools of the VM3018
- 22 in (559 mm) of Z travel with up to 28 in (711 mm) from spindle nose to table
- Tools up to 11.8 in (300 mm) long for deep features
- Rapids listed at 1,200/1,000 ipm (30.5/25.4 m/min)
Limitations
- Table load of 3,140 lb (1,424 kg) is below the 3,770 lb (1,710 kg) of the VM3018
- The spindle nose stops 6 in (152 mm) above the table, so low work needs raising or long tools
- 118.5 in (3,010 mm) of height has to clear doors and ceilings
- Maximum tool diameter stays at 3.15 in (80 mm) despite the stronger spindle
Best For
Frequently Asked Questions
01
Z travel is 22 in (559 mm) and the spindle nose to table distance is 6-28 in (152-711 mm). Maximum tool length is 11.8 in (300 mm). Because the nose does not come closer than 6 in (152 mm) to the table, plan workholding height for thin parts.
02
A faster and stronger spindle, more tools and more Y and Z. The VM3018 is listed with a 34 x 18 in (864 x 457 mm) table, 10,000 rpm, 20/15 hp (14.9/11.2 kW), 75 lb-ft (102 Nm) and 24 tools. The VM3020IL has a 34 x 20 in (864 x 508 mm) table, 12,000 rpm, 24/15 hp (17.9/11.2 kW), 89 lb-ft (121 Nm) and 30 tools, but a lower table load of 3,140 lb (1,424 kg).
03
Milltronics lists 1,200/1,000 ipm (30.5/25.4 m/min) for X, Y and Z together. The table gives two figures without stating which axes each applies to, so ask for the per-axis rates if cycle time estimates depend on them.
04
The nominal operating footprint is 85.8 x 124.1 in (2,179 x 3,152 mm), width by depth, with a 123.3 in figure listed with conveyor. Height is 118.5 in (3,010 mm) and weight is 10,700 lb (4,854 kg).
05
26 kVA / 31 A at 480 V, 3-phase, according to the Milltronics table. The same table does not name the control for this model, so confirm the control specification along with the electrical details.
