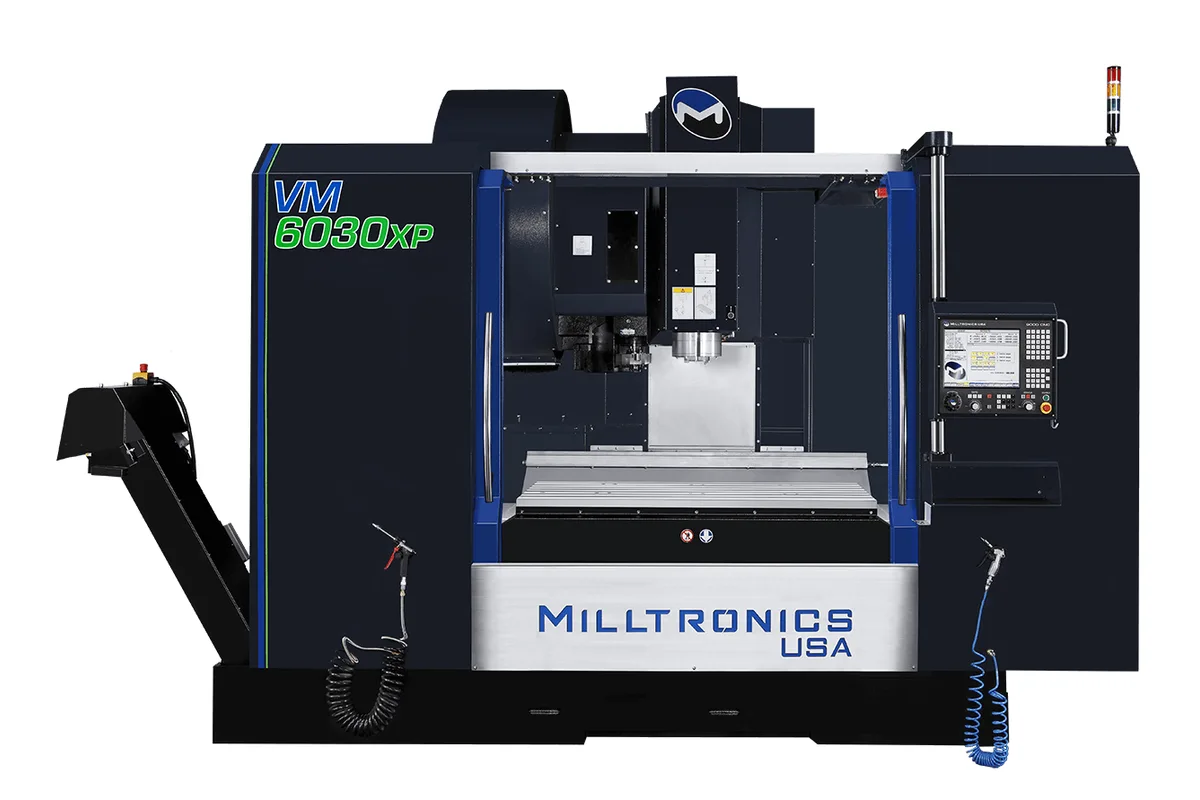

Milltronics VM6030XP
Image: milltronics.com, Milltronics
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Milltronics VM6030XP cost?
Price estimate
We do not have a price for the Milltronics VM6030XP that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Milltronics VM6030XP is a 50-taper vertical machining center with 60 x 30 x 24 in (1,524 x 762 x 610 mm) travels and a 66 x 30 in (1,676 x 762 mm) table. Its BIG-PLUS ISO No. 50 spindle is listed at 30/15 hp (22.4/11.2 kW) and 208.5 lb-ft (283 Nm), with a top speed of 8,000 rpm.
The taper is the dividing line. The VM5025IL below it is a 40-taper machine with 124 lb-ft (168 Nm) at 12,000 rpm; the VM6030XP gives up a third of that speed for about 68% more torque and a larger tool interface. CT50 holders can be up to 4.88 in (124 mm) in diameter, 11.8 in (300 mm) long and 33 lb (15 kg), against 3.15 in (80 mm) and 15.4 lb (7.0 kg) on the VM5025IL. That opens the door to large face mills, long boring bars and big drills in steel and iron.
Table load deserves attention. It is 4,190 lb (1,901 kg), the same as the VM5025IL despite the larger table, so a heavy die block or weldment has to be weighed together with its fixturing before it goes on.
Spindle nose to table distance is 4-28 in (102-711 mm) and T-slots are 0.71 in (18 mm). The 30-tool double-arm changer uses MAS 60 retention knobs. Rapids are listed as 1,000/787 ipm (25.4/20.0 m/min).
This is a 22,267 lb (10,100 kg) machine, 128 in (3,251 mm) high, on a nominal operating footprint of 149.7 x 149.4 in (3,802 x 3,795 mm); Milltronics gives 184.4 in with conveyor. Electrical supply is 37 kVA / 45 A at 480 V, 3-phase. For longer work the VM8434XP has the same spindle figures over an 86 x 34 in (2,184 x 864 mm) table.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 60 in (1,524 mm) |
| Y Axis Travel | 30 in (762 mm) |
| Z Axis Travel | 24 in (610 mm) |
| Table Size | 66 x 30 in (1,676 x 762 mm) |
| Max Table Load | 4,190 lb (1,901 kg) |
| Table T Slot Width | 0.71 in (18 mm) |
| Spindle Taper | BIG-PLUS® ISO No. 50 |
| Max Spindle Speed | 8,000 rpm |
| Spindle Motor Power | 30/15 hp (22.4/11.2 kW) |
| Spindle Torque | 208.5 lb-ft (283 Nm) |
| Distance Spindle Nose to Table | 4-28 in (102-711 mm) |
| Tool Shank | CT50 |
| Retention Knob | MAS 60 |
| Tool Capacity | 30 / Double Arm |
| Max Tool Diameter (full magazine) | 4.88 in (124 mm) |
| Max Tool Length | 11.8 in (300 mm) |
| Max Tool Weight | 33 lb (15 kg) |
| Rapid Traverse Xyz | 1,000/787 ipm (25.4/20.0 m/min) |
| Machine Weight | 22,267 lb (10,100 kg) |
| Machine Height | 128 in (3,251 mm) |
| Machine Footprint | 149.7 x 149.4 in (3,802 x 3,795 mm) (184.4 in with conveyor) nominal operating (W x D) |
| Power Requirement | 37 kVA / 45 A |
| Voltage Requirement | 480 V, 3-phase |
Specifications sourced from milltronics.com — verified 2026-09-24
Strengths & Limitations
Strengths
- BIG-PLUS ISO No. 50 spindle with 208.5 lb-ft (283 Nm), about 68% more than the 124 lb-ft (168 Nm) VM5025IL
- CT50 tools up to 4.88 in (124 mm) in diameter and 33 lb (15 kg)
- 60 x 30 in (1,524 x 762 mm) of X and Y travel over a 66 x 30 in (1,676 x 762 mm) table
- 30-tool double-arm changer with 11.8 in (300 mm) tool length
- 22,267 lb (10,100 kg) of machine weight behind the cut
Limitations
- Spindle speed tops out at 8,000 rpm, against 12,000 rpm on the VM5025IL
- Table load is 4,190 lb (1,901 kg), no higher than the smaller VM5025IL
- The lower of the two listed power figures is 15 hp (11.2 kW), below the 35/25 hp (26.1/18.6 kW) of the VM5025IL
- Needs 37 kVA / 45 A at 480 V, 3-phase and 128 in (3,251 mm) of headroom
- The control is not named in the table for this model
Best For
Frequently Asked Questions
01
BIG-PLUS ISO No. 50 with CT50 tool shanks and MAS 60 retention knobs. The double-arm changer holds 30 tools, each up to 4.88 in (124 mm) in diameter, 11.8 in (300 mm) long and 33 lb (15 kg).
02
Spindle torque is 208.5 lb-ft (283 Nm) and power is listed as 30/15 hp (22.4/11.2 kW), with a maximum of 8,000 rpm. The table does not label the two power ratings, so ask which is continuous.
03
The spindle figures match: BIG-PLUS ISO No. 50, 8,000 rpm, 30/15 hp (22.4/11.2 kW) and 208.5 lb-ft (283 Nm). The VM8434XP has an 86 x 34 in (2,184 x 864 mm) table, 4,750 lb (2,155 kg) of table load, 32 tools and a weight of 37,260 lb (16,901 kg). The VM6030XP has a 66 x 30 in (1,676 x 762 mm) table, 4,190 lb (1,901 kg) of load, 30 tools and weighs 22,267 lb (10,100 kg).
04
4,190 lb (1,901 kg) on a 66 x 30 in (1,676 x 762 mm) table with 0.71 in (18 mm) T-slots. Travels are 60 in (1,524 mm) in X, 30 in (762 mm) in Y and 24 in (610 mm) in Z, with 4-28 in (102-711 mm) from spindle nose to table.
05
The nominal operating footprint is 149.7 x 149.4 in (3,802 x 3,795 mm) and the table lists 184.4 in with conveyor. Height is 128 in (3,251 mm) and weight is 22,267 lb (10,100 kg). Power is 37 kVA / 45 A at 480 V, 3-phase.
