Milltronics Vertical Machining Centers (VMC)

Milltronics TRM3016

Q: How much does the Milltronics TRM3016 cost?

The price estimate for the Milltronics TRM3016 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/milltronics-trm3016#price; the request is passed to Milltronics or an authorised dealer.

Specs verified 2026-09-24 · milltronics.com Updated 2026-10-03

Image: milltronics.com, Milltronics

Key Specifications

Max Spindle

8,000 rpm

Spindle Taper

BIG-PLUS® ISO No. 40

Tool Capacity

16 / Carousel

Table Size

35.4 x 16 in (899 x 406 mm)

Spindle Power

15/10 hp (11.2/7.5 kW)

x axis travel

30 in (762 mm)

How much does the Milltronics TRM3016 cost?

Price estimate

Uncertain

We do not have a price for the Milltronics TRM3016 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

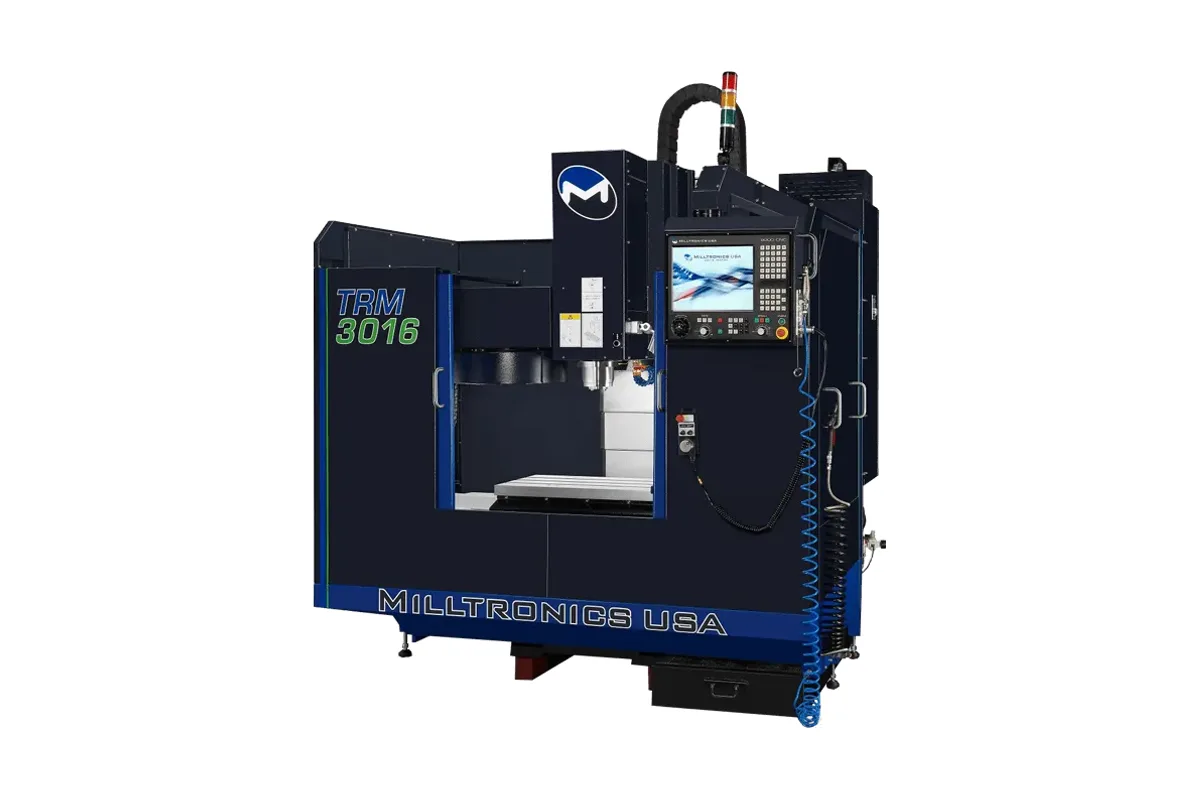

The Milltronics TRM3016 is a small 40-taper vertical machining center with 30 x 16 x 20 in (762 x 406 x 508 mm) travels, a 16-tool carousel changer and an 8,000 rpm BIG-PLUS ISO No. 40 spindle. At 6,835 lb (3,100 kg) on a nominal operating footprint of 87.9 x 89.2 in (2,233 x 2,266 mm), it is a lighter machine than the VM3018, which weighs 9,000 lb (4,082 kg).

The table measures 35.4 x 16 in (899 x 406 mm) with 0.71 in (18 mm) T-slots and carries 992 lb (450 kg). That load figure is the main thing separating it from the VM3018, whose 34 x 18 in (864 x 457 mm) table is rated for 3,770 lb (1,710 kg). Add up vises, fixture plates and stock before assuming a job fits.

Spindle power is listed as 15/10 hp (11.2/7.5 kW) with 67 lb-ft (91 Nm) of torque. Speed, power and torque all sit below the VM3018 at 10,000 rpm, 20/15 hp (14.9/11.2 kW) and 75 lb-ft (102 Nm). Rapids are 700 ipm (17.8 m/min). These are figures for one-off parts, fixtures and short runs, where setup time counts for more than seconds per part.

The carousel holds 16 CT40 tools on MAS 60 retention knobs. Individual tools can be up to 4 in (102 mm) in diameter and 11 in (279 mm) long, both larger than the 3.15 in (80 mm) and 9.45 in (240 mm) limits of the VM3018, but only 10 lb (5 kg) in weight. Spindle nose to table distance is 4-24 in (102-610 mm).

The control is the Milltronics 9000-DGI CNC. The machine stands 111.3 in (2,827 mm) high and needs 18 kVA / 21 A at 480 V, 3-phase.

Full Specifications

Parameter	Value
X Axis Travel	30 in (762 mm)
Y Axis Travel	16 in (406 mm)
Z Axis Travel	20 in (508 mm)
Table Size	35.4 x 16 in (899 x 406 mm)
Max Table Load	992 lb (450 kg)
Table T Slot Width	0.71 in (18 mm)
Spindle Taper	BIG-PLUS® ISO No. 40
Max Spindle Speed	8,000 rpm
Spindle Motor Power	15/10 hp (11.2/7.5 kW)
Spindle Torque	67 lb-ft (91 Nm)
Distance Spindle Nose to Table	4-24 in (102-610 mm)
Tool Shank	CT40
Retention Knob	MAS 60
Tool Capacity	16 / Carousel
Max Tool Diameter (full magazine)	4 in (102 mm)
Max Tool Length	11 in (279 mm)
Max Tool Weight	10 lb (5 kg)
Rapid Traverse Xyz	700 ipm (17.8 m/min)
Machine Weight	6,835 lb (3,100 kg)
Machine Height	111.3 in (2,827 mm)
Machine Footprint	87.9 x 89.2 in (2,233 x 2,266 mm) nominal operating (W x D)
Power Requirement	18 kVA / 21 A
Voltage Requirement	480 V, 3-phase
CNC Control	Milltronics 9000-DGI CNC

Specifications sourced from milltronics.com — verified 2026-09-24

Strengths & Limitations

Strengths

Compact and light: 6,835 lb (3,100 kg) on an 87.9 x 89.2 in (2,233 x 2,266 mm) nominal operating footprint
30 x 16 x 20 in (762 x 406 x 508 mm) travels with a 35.4 x 16 in (899 x 406 mm) table
Carousel accepts tools up to 4 in (102 mm) in diameter and 11 in (279 mm) long
Modest electrical demand of 18 kVA / 21 A at 480 V, 3-phase
BIG-PLUS ISO No. 40 spindle with the Milltronics 9000-DGI CNC

Limitations

Table load is 992 lb (450 kg), roughly a quarter of the 3,770 lb (1,710 kg) VM3018 rating
16 tools in a carousel, where the VM3018 has a 24-tool double-arm changer
8,000 rpm and 67 lb-ft (91 Nm) limit both small-tool speed and heavy roughing
Tool weight is capped at 10 lb (5 kg) and rapids at 700 ipm (17.8 m/min)

Best For

Prototype, fixture and short-run milling within 30 x 16 x 20 in (762 x 406 x 508 mm) Shops with limited floor space or floor loading, at 6,835 lb (3,100 kg) Jobs that run on 16 tools or fewer Light workpieces and fixtures under the 992 lb (450 kg) table limit

Frequently Asked Questions

01 What are the travels and table size of the TRM3016?

Travels are 30 in (762 mm) in X, 16 in (406 mm) in Y and 20 in (508 mm) in Z. The table is 35.4 x 16 in (899 x 406 mm) with 0.71 in (18 mm) T-slots and a load limit of 992 lb (450 kg). Spindle nose to table distance is 4-24 in (102-610 mm).

02 What tool changer does the TRM3016 have?

A 16-tool carousel for CT40 holders with MAS 60 retention knobs. Tools can be up to 4 in (102 mm) in diameter, 11 in (279 mm) long and 10 lb (5 kg). The weight limit is the one to watch with large-diameter cutters.

03 How does the TRM3016 compare with the VM3018?

Both have 30 in (762 mm) of X travel and the BIG-PLUS ISO No. 40 taper. The VM3018 is the heavier machine: 10,000 rpm, 20/15 hp (14.9/11.2 kW), 75 lb-ft (102 Nm), a 24-tool double-arm changer, 3,770 lb (1,710 kg) of table load and a weight of 9,000 lb (4,082 kg). The TRM3016 runs 8,000 rpm, 15/10 hp (11.2/7.5 kW) and 67 lb-ft (91 Nm) with 16 tools and a 992 lb (450 kg) table load.

04 What power does the TRM3016 need?

Milltronics lists 18 kVA / 21 A at 480 V, 3-phase. The machine is 111.3 in (2,827 mm) high, so check door and ceiling clearance as well as the electrical service.

05 Is the TRM3016 suited to steel?

Within limits. The spindle is listed at 15/10 hp (11.2/7.5 kW) and 67 lb-ft (91 Nm) at up to 8,000 rpm, which supports moderate cuts with 40-taper tooling. The 992 lb (450 kg) table load and 10 lb (5 kg) tool weight limit rule out large steel blocks and heavy cutters.
