Milltronics Vertical Machining Centers (VMC)

Milltronics VM3018

Q: How much does the Milltronics VM3018 cost?

The price estimate for the Milltronics VM3018 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/milltronics-vm3018#price; the request is passed to Milltronics or an authorised dealer.

Specs verified 2026-09-24 · milltronics.com Updated 2026-10-03

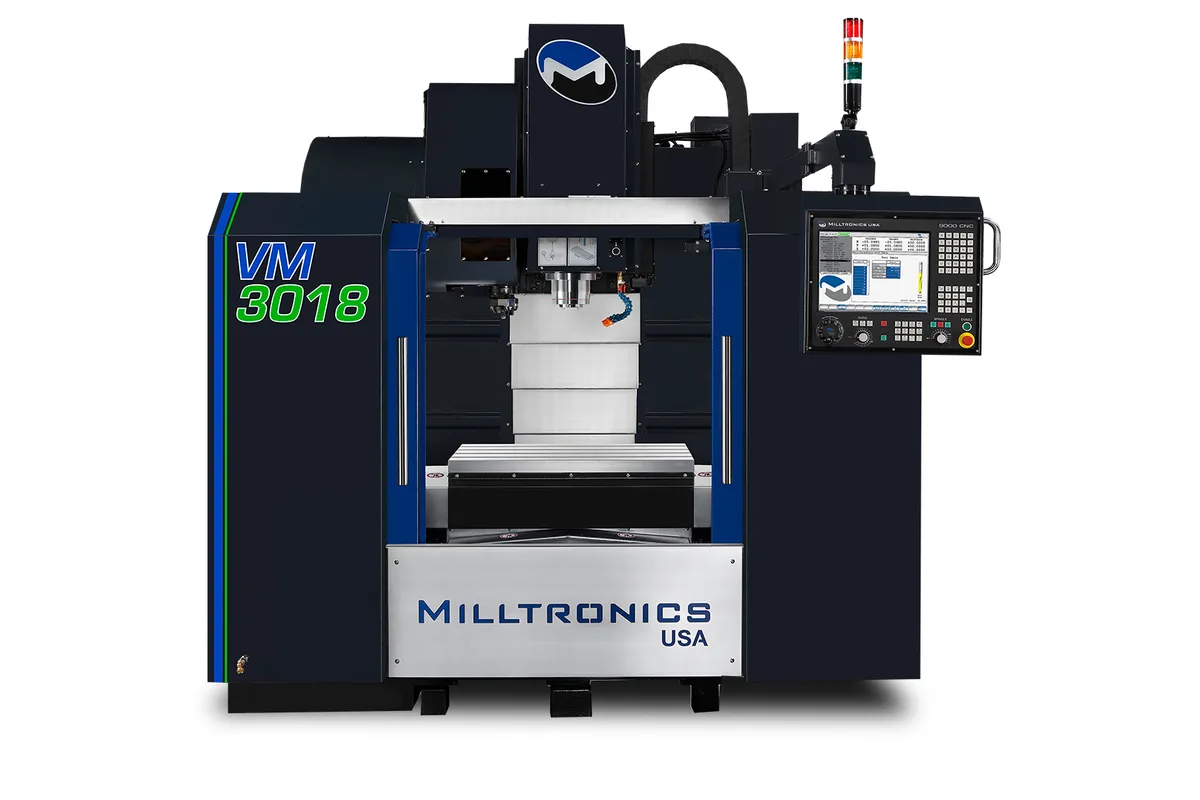

Milltronics VM3018 3-axis vertical machining center

Image: milltronics.com, Milltronics

Key Specifications

Max Spindle

10,000 rpm

Spindle Taper

BIG-PLUS® ISO No. 40

Tool Capacity

24 Double Arm

Table Size

34 x 18 in (864 x 457 mm)

Spindle Power

20/15 hp (14.9/11.2 kW)

x axis travel

30 in (762 mm)

How much does the Milltronics VM3018 cost?

Price estimate

Uncertain

We do not have a price for the Milltronics VM3018 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Milltronics VM3018 is a 40-taper vertical machining center with 30 x 18 x 20 in (762 x 457 x 508 mm) travels and a 34 x 18 in (864 x 457 mm) table rated for 3,770 lb (1,710 kg). The spindle is a 10,000 rpm BIG-PLUS ISO No. 40 unit listed at 20/15 hp (14.9/11.2 kW) and 75 lb-ft (102 Nm), served by a 24-tool double-arm changer.

Its closest relative is the VM3020IL, and the choice between them is a real one. The VM3020IL has a 34 x 20 in (864 x 508 mm) table, 12,000 rpm, 24/15 hp (17.9/11.2 kW), 89 lb-ft (121 Nm) and 30 tools, and weighs 10,700 lb (4,854 kg). The VM3018 answers with the higher table load, 3,770 lb (1,710 kg) against the 3,140 lb (1,424 kg) of the VM3020IL, and at 9,000 lb (4,082 kg) it is the lighter machine to site.

Y travel of 18 in (457 mm) equals the depth of the table, so the spindle covers the table from front to back. X travel of 30 in (762 mm) sits inside the 34 in (864 mm) table length. Spindle nose to table distance is 4-24 in (102-610 mm), and the T-slots are 0.71 in (18 mm) wide.

Holders are CT40 with MAS 60 retention knobs. The changer accepts tools up to 3.15 in (80 mm) in diameter, 9.45 in (240 mm) long and 15.4 lb (7.0 kg). Rapid traverse is 945 ipm (24.0 m/min).

The machine is 101.5 in (2,578 mm) high with a nominal operating footprint of 92.7 x 111.7 in (2,355 x 2,837 mm). It requires 25 kVA / 30 A at 480 V, 3-phase. Milltronics's table for this model does not name the control, so confirm which one is fitted when requesting a quotation.

Full Specifications

Parameter	Value
X Axis Travel	30 in (762 mm)
Y Axis Travel	18 in (457 mm)
Z Axis Travel	20 in (508 mm)
Table Size	34 x 18 in (864 x 457 mm)
Max Table Load	3,770 lb (1,710 kg)
Table T Slot Width	0.71 in (18 mm)
Spindle Taper	BIG-PLUS® ISO No. 40
Max Spindle Speed	10,000 rpm
Spindle Motor Power	20/15 hp (14.9/11.2 kW)
Spindle Torque	75 lb-ft (102 Nm)
Distance Spindle Nose to Table	4-24 in (102-610 mm)
Tool Shank	CT40
Retention Knob	MAS 60
Tool Capacity	24 Double Arm
Max Tool Diameter (full magazine)	3.15 in (80 mm)
Max Tool Length	9.45 in (240 mm)
Max Tool Weight	15.4 lb (7.0 kg)
Rapid Traverse Xyz	945 ipm (24.0 m/min)
Machine Weight	9,000 lb (4,082 kg)
Machine Height	101.5 in (2,578 mm)
Machine Footprint	92.7 x 111.7 in (2,355 x 2,837 mm) nominal operating (W x D)
Power Requirement	25 kVA / 30 A
Voltage Requirement	480 V, 3-phase

Specifications sourced from milltronics.com — verified 2026-09-24

Strengths & Limitations

Strengths

Table load of 3,770 lb (1,710 kg) on a 34 x 18 in (864 x 457 mm) table, more than the 3,140 lb (1,424 kg) of the VM3020IL
10,000 rpm BIG-PLUS ISO No. 40 spindle at 20/15 hp (14.9/11.2 kW) and 75 lb-ft (102 Nm)
24-tool double-arm changer for CT40 holders
Y travel of 18 in (457 mm) matches the full depth of the table
9,000 lb (4,082 kg) and 101.5 in (2,578 mm) high, which eases siting

Limitations

Tool length is limited to 9.45 in (240 mm); the VM3020IL takes 11.8 in (300 mm)
10,000 rpm and 75 lb-ft (102 Nm), below the 12,000 rpm and 89 lb-ft (121 Nm) of the VM3020IL
Maximum tool diameter is 3.15 in (80 mm), which restricts large face mills
The control is not named in the table for this model

Best For

General 40-taper milling of parts within 30 x 18 x 20 in (762 x 457 x 508 mm) Heavy fixtures and vises, with 3,770 lb (1,710 kg) of table load Jobs that fit 24 tools and a 10,000 rpm spindle Shops that want a 9,000 lb (4,082 kg) machine on a 92.7 x 111.7 in (2,355 x 2,837 mm) footprint

Frequently Asked Questions

01 What is the difference between the VM3018 and the VM3020IL?

The VM3020IL is listed with a 34 x 20 in (864 x 508 mm) table, 12,000 rpm, 24/15 hp (17.9/11.2 kW), 89 lb-ft (121 Nm), 30 tools and a 3,140 lb (1,424 kg) table load. The VM3018 has a 34 x 18 in (864 x 457 mm) table, 10,000 rpm, 20/15 hp (14.9/11.2 kW), 75 lb-ft (102 Nm), 24 tools and a 3,770 lb (1,710 kg) table load.

02 How much can the VM3018 table hold?

3,770 lb (1,710 kg) on a 34 x 18 in (864 x 457 mm) table with 0.71 in (18 mm) T-slots. Spindle nose to table distance is 4-24 in (102-610 mm), which sets the stack height available for fixture, part and tool.

03 What spindle and tooling does the VM3018 use?

A BIG-PLUS ISO No. 40 spindle at 10,000 rpm, 20/15 hp (14.9/11.2 kW) and 75 lb-ft (102 Nm). It takes CT40 holders with MAS 60 retention knobs from a 24-tool double-arm changer, with tools up to 3.15 in (80 mm) in diameter, 9.45 in (240 mm) long and 15.4 lb (7.0 kg).

04 What are the installation requirements for the VM3018?

A nominal operating footprint of 92.7 x 111.7 in (2,355 x 2,837 mm), 101.5 in (2,578 mm) of height, a floor that takes 9,000 lb (4,082 kg) and an electrical supply of 25 kVA / 30 A at 480 V, 3-phase.

05 Is there a longer version of the VM3018?

The VM4020 keeps the same spindle figures, 10,000 rpm, 20/15 hp (14.9/11.2 kW) and 75 lb-ft (102 Nm), and the same 3,770 lb (1,710 kg) table load, on a 46 x 20 in (1,168 x 508 mm) table. It weighs 9,100 lb (4,128 kg).
