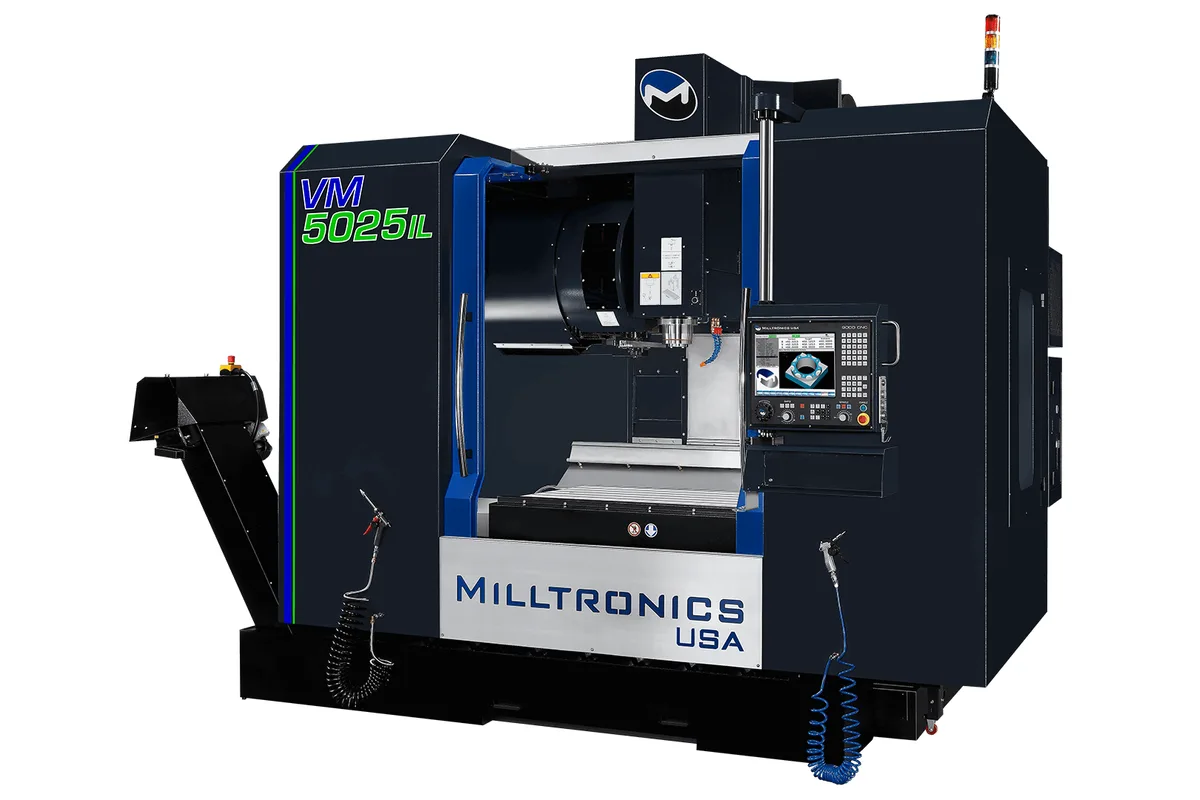

Milltronics VM5025IL
Image: milltronics.com, Milltronics
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Milltronics VM5025IL cost?
Price estimate
We do not have a price for the Milltronics VM5025IL that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Milltronics VM5025IL has the strongest 40-taper spindle among the Milltronics verticals it is listed with: 35/25 hp (26.1/18.6 kW) and 124 lb-ft (168 Nm) at up to 12,000 rpm, on a machine with 50 x 25 x 24 in (1,270 x 635 x 610 mm) travels and a 54 x 25 in (1,372 x 635 mm) table.
Torque is the headline. At 124 lb-ft (168 Nm) it is about 39% above the 89 lb-ft (121 Nm) of the VM4224IL, which runs at the same 12,000 rpm, and well clear of the 75 lb-ft (102 Nm) VM5020. Above it sits the VM6030XP, which moves to a BIG-PLUS ISO No. 50 taper with 208.5 lb-ft (283 Nm) but stops at 8,000 rpm. For a shop that wants more cutting torque without giving up high spindle speed and BIG-PLUS ISO No. 40 tooling, this is the model in between.
The frame matches the spindle. The machine weighs 17,900 lb (8,119 kg) and the table carries 4,190 lb (1,901 kg), the same rating as the VM6030XP. Spindle nose to table distance is 6-30 in (152-762 mm) over the 24 in (610 mm) of Z, which leaves generous daylight for tall work but keeps the nose 6 in (152 mm) off the bare table.
The 30-tool double-arm changer handles CT40 holders with MAS60 retention knobs, up to 3.15 in (80 mm) in diameter, 11.8 in (300 mm) long and 15.4 lb (7.0 kg). That diameter limit is small next to the spindle's torque, so check large face mills against it. Rapids are listed as 1,000/787 ipm (25.4/20.0 m/min).
Plan the installation around 126.6 in (3,216 mm) of height, a 128 x 143 in (3,251 x 3,632 mm) nominal operating footprint with 173.3 in listed with conveyor, and 36 kVA / 44 A at 480 V, 3-phase. The table for this model does not name the control.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 50 in (1,270 mm) |
| Y Axis Travel | 25 in (635 mm) |
| Z Axis Travel | 24 in (610 mm) |
| Table Size | 54 x 25 in (1,372 x 635 mm) |
| Max Table Load | 4,190 lb (1,901 kg) |
| Table T Slot Width | 0.71 in (18 mm) |
| Spindle Taper | BIG-PLUS® ISO No. 40 |
| Max Spindle Speed | 12,000 rpm |
| Spindle Motor Power | 35/25 hp (26.1/18.6 kW) |
| Spindle Torque | 124 lb-ft (168 Nm) |
| Distance Spindle Nose to Table | 6-30 in (152-762 mm) |
| Tool Shank | CT40 |
| Retention Knob | MAS60 |
| Tool Capacity | 30 / Double Arm |
| Max Tool Diameter (full magazine) | 3.15 in (80 mm) |
| Max Tool Length | 11.8 in (300 mm) |
| Max Tool Weight | 15.4 lb (7.0 kg) |
| Rapid Traverse Xyz | 1,000/787 ipm (25.4/20.0 m/min) |
| Machine Weight | 17,900 lb (8,119 kg) |
| Machine Height | 126.6 in (3,216 mm) |
| Machine Footprint | 128 x 143 in (3,251 x 3,632 mm) (173.3 in with conveyor) nominal operating (W x D) |
| Power Requirement | 36 kVA / 44 A |
| Voltage Requirement | 480 V, 3-phase |
Specifications sourced from milltronics.com — verified 2026-09-24
Strengths & Limitations
Strengths
- 35/25 hp (26.1/18.6 kW) and 124 lb-ft (168 Nm), about 39% more torque than the 89 lb-ft (121 Nm) VM4224IL
- Keeps 12,000 rpm alongside the higher torque
- 50 x 25 x 24 in (1,270 x 635 x 610 mm) travels on a 54 x 25 in (1,372 x 635 mm) table
- Table load of 4,190 lb (1,901 kg), equal to the VM6030XP
- 30 tools up to 11.8 in (300 mm) long
Limitations
- Tool diameter is limited to 3.15 in (80 mm) and tool weight to 15.4 lb (7.0 kg); the VM6030XP takes 4.88 in (124 mm) and 33 lb (15 kg)
- Rapids of 1,000/787 ipm (25.4/20.0 m/min) are slower than the 1,200/1,000 ipm (30.5/25.4 m/min) of the VM4224IL
- Draws 36 kVA / 44 A at 480 V, 3-phase
- 17,900 lb (8,119 kg) and 126.6 in (3,216 mm) tall, so rigging and headroom need planning
- No control is named in the table for this model
Best For
Frequently Asked Questions
01
124 lb-ft (168 Nm), with power listed as 35/25 hp (26.1/18.6 kW) and a top speed of 12,000 rpm. The taper is BIG-PLUS ISO No. 40 with CT40 holders and MAS60 retention knobs.
02
Both have 50 in (1,270 mm) of X travel. The VM5020 is the light version: a 52 x 20 in (1,321 x 508 mm) table, 3,770 lb (1,710 kg) of load, 10,000 rpm, 20/15 hp (14.9/11.2 kW), 75 lb-ft (102 Nm), 24 tools and 9,400 lb (4,264 kg). The VM5025IL has a 54 x 25 in (1,372 x 635 mm) table, 4,190 lb (1,901 kg) of load, 12,000 rpm, 124 lb-ft (168 Nm), 30 tools and weighs 17,900 lb (8,119 kg).
03
When the work needs big tools and low-speed torque. The VM6030XP has a BIG-PLUS ISO No. 50 spindle with 208.5 lb-ft (283 Nm) and 8,000 rpm on a 66 x 30 in (1,676 x 762 mm) table. The VM5025IL stays with the smaller taper, makes 124 lb-ft (168 Nm) and runs to 12,000 rpm, which favours smaller cutters and finishing.
04
The table is 54 x 25 in (1,372 x 635 mm) with 0.71 in (18 mm) T-slots and a 4,190 lb (1,901 kg) load limit. Z travel is 24 in (610 mm) and spindle nose to table distance is 6-30 in (152-762 mm).
05
Weight is 17,900 lb (8,119 kg), height 126.6 in (3,216 mm) and nominal operating footprint 128 x 143 in (3,251 x 3,632 mm), with 173.3 in listed with conveyor. Electrical supply is 36 kVA / 44 A at 480 V, 3-phase.
