Milltronics BR6150IL

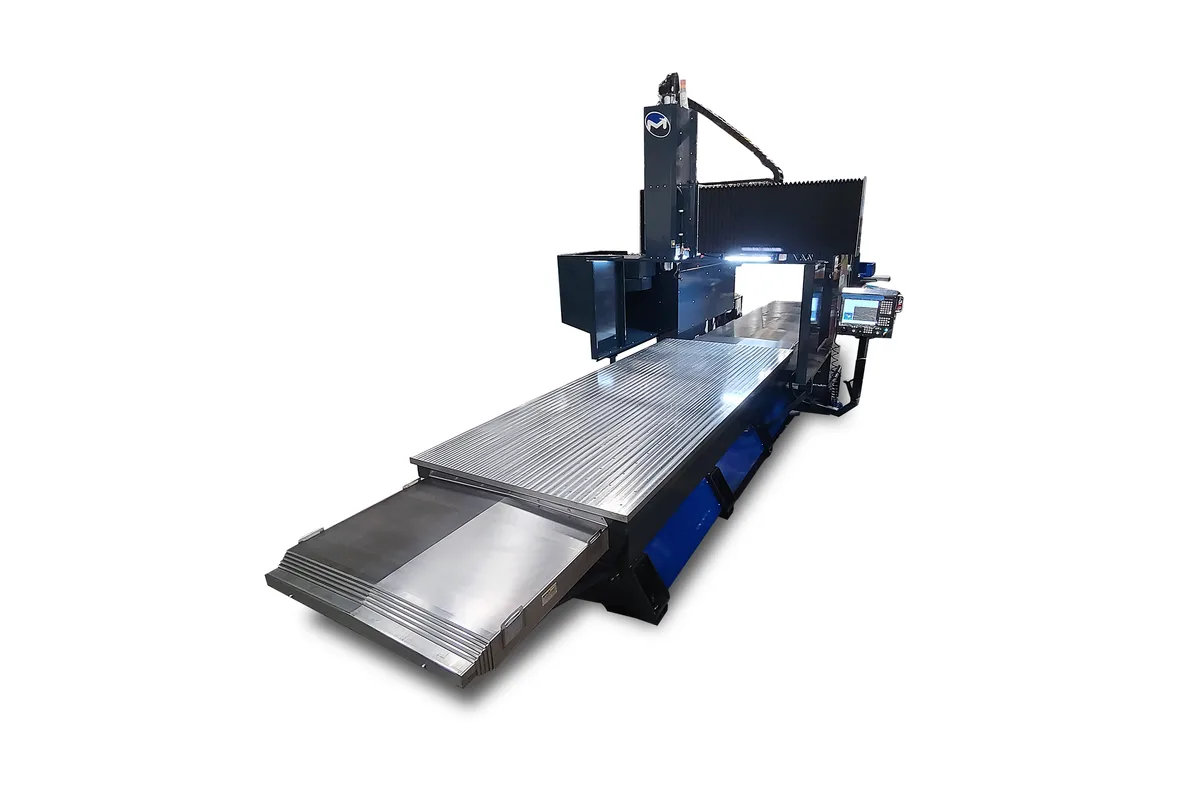

Image: milltronics.com, Milltronics
Key Specifications
Max Spindle
Spindle Taper
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Milltronics BR6150IL cost?
Price estimate
We do not have a price for the Milltronics BR6150IL that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Milltronics BR6150IL is a large-format vertical machining center whose 60 x 150 in (1,524 x 3,810 mm) table is matched by its travels: 150 in (3,810 mm) in X, 60 in (1,524 mm) in Y and 28 in (711 mm) in Z. It uses a BIG-PLUS ISO No. 40 spindle at 10,000 rpm and runs on 1.73 in (45 mm) linear roller ways.
The proportions say what it is for. The table is rated for 5,000 lb (2,268 kg) spread over that whole area, and the base spindle is listed at 24/15 hp (17.9/11.2 kW) (Delta/Wye) with 85 lb-ft (115 Nm). That is a recipe for large flat work cut with 40-taper tooling, such as plate, long extrusions and panels, and not for dense blocks or deep roughing in steel. For contrast, the VM6030XP carries 4,190 lb (1,901 kg) on a 66 x 30 in (1,676 x 762 mm) table and has a BIG-PLUS ISO No. 50 spindle with 208.5 lb-ft (283 Nm).
Milltronics lists three optional spindle figures: 15,000 rpm, 35/25 hp (26.1/18.6 kW) (Delta/Wye) and 122 lb-ft (165 Nm). The table does not say whether they belong to one spindle package, so get the pairing in writing before specifying the machine.
Spindle nose to table distance is 4-32 in (102-813 mm) across the 28 in (711 mm) of Z. Rapids are listed as 750/1,000 ipm (19.1/25.4 m/min) without naming the axes. The control is given as the Milltronics 9000 Series.
Installation needs planning. The machine is 151 in (3,835 mm) tall, weighs 22,000 lb (9,979 kg) and requires 48 kVA / 125 A at 208-240 V, 3-phase. No footprint and no tool changer rows appear in the table, so floor layout and tool capacity have to be confirmed with Milltronics.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 150 in (3,810 mm) |
| Y Axis Travel | 60 in (1,524 mm) |
| Z Axis Travel | 28 in (711 mm) |
| Table Size | 60 x 150 in (1,524 x 3,810 mm) |
| Max Table Load | 5,000 lb (2,268 kg) |
| Distance Spindle Nose to Table | 4-32 in (102-813 mm) |
| Spindle Taper | BIG-PLUS® ISO No. 40 |
| Max Spindle Speed | 10,000 rpm |
| Spindle Speed Optional | 15,000 rpm |
| Spindle Motor Power | 24/15 hp (17.9/11.2 kW) (Delta/Wye) |
| Spindle Power Optional | 35/25 hp (26.1/18.6 kW) (Delta/Wye) |
| Spindle Torque | 85 lb-ft (115 Nm) |
| Spindle Torque Optional | 122 lb-ft (165 Nm) |
| Rapid Traverse Xyz | 750/1,000 ipm (19.1/25.4 m/min) |
| Machine Height | 151 in (3,835 mm) |
| Machine Weight | 22,000 lb (9,979 kg) |
| Power Requirement | 48 kVA / 125 A |
| Voltage Requirement | 208-240 V, 3-phase |
| CNC Control | Milltronics 9000 Series |
| Guideways | 1.73 in (45 mm) linear roller way |
Specifications sourced from milltronics.com — verified 2026-09-24
Strengths & Limitations
Strengths
- 150 x 60 in (3,810 x 1,524 mm) of X and Y travel covering the full 60 x 150 in table
- 10,000 rpm BIG-PLUS ISO No. 40 spindle, with 15,000 rpm listed as an option
- Optional spindle figures of 35/25 hp (26.1/18.6 kW) (Delta/Wye) and 122 lb-ft (165 Nm)
- 1.73 in (45 mm) linear roller ways
- Spindle nose to table distance of 4-32 in (102-813 mm) with 28 in (711 mm) of Z travel
Limitations
- The 5,000 lb (2,268 kg) table load is spread over 60 x 150 in (1,524 x 3,810 mm), so dense workpieces reach the limit long before they fill the table
- The base spindle makes 85 lb-ft (115 Nm); the VM6030XP is listed at 208.5 lb-ft (283 Nm) for heavy cutting
- Requires 48 kVA / 125 A at 208-240 V, 3-phase and 151 in (3,835 mm) of headroom
- The table gives no tool changer capacity, tool size limits or footprint for this model
Best For
Frequently Asked Questions
01
The table is 60 x 150 in (1,524 x 3,810 mm) and the travels are 150 in (3,810 mm) in X, 60 in (1,524 mm) in Y and 28 in (711 mm) in Z. Spindle nose to table distance ranges over 4-32 in (102-813 mm).
02
5,000 lb (2,268 kg). On a 60 x 150 in (1,524 x 3,810 mm) table that is a light loading per unit of area, so total up the stock, fixtures and clamping before quoting a heavy job.
03
The base figures are 10,000 rpm, 24/15 hp (17.9/11.2 kW) (Delta/Wye) and 85 lb-ft (115 Nm) on a BIG-PLUS ISO No. 40 taper. Optional figures are 15,000 rpm, 35/25 hp (26.1/18.6 kW) (Delta/Wye) and 122 lb-ft (165 Nm). The table does not state which optional figures go together.
04
The VM6030XP is a 50-taper machine with a 66 x 30 in (1,676 x 762 mm) table, 4,190 lb (1,901 kg) of table load, 8,000 rpm and 208.5 lb-ft (283 Nm), at 22,267 lb (10,100 kg). The BR6150IL weighs a similar 22,000 lb (9,979 kg) but spreads it over a 60 x 150 in (1,524 x 3,810 mm) table with a 40-taper, 10,000 rpm spindle. One is for heavy cuts in a block, the other for reach.
05
Milltronics lists a height of 151 in (3,835 mm), a weight of 22,000 lb (9,979 kg) and a power requirement of 48 kVA / 125 A at 208-240 V, 3-phase. The table carries no footprint figure, so request a foundation and layout drawing.
