Milltronics Vertical Machining Centers (VMC)

Milltronics VM4224IL

Q: How much does the Milltronics VM4224IL cost?

The price estimate for the Milltronics VM4224IL is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/milltronics-vm4224il#price; the request is passed to Milltronics or an authorised dealer.

Specs verified 2026-09-24 · milltronics.com Updated 2026-10-03

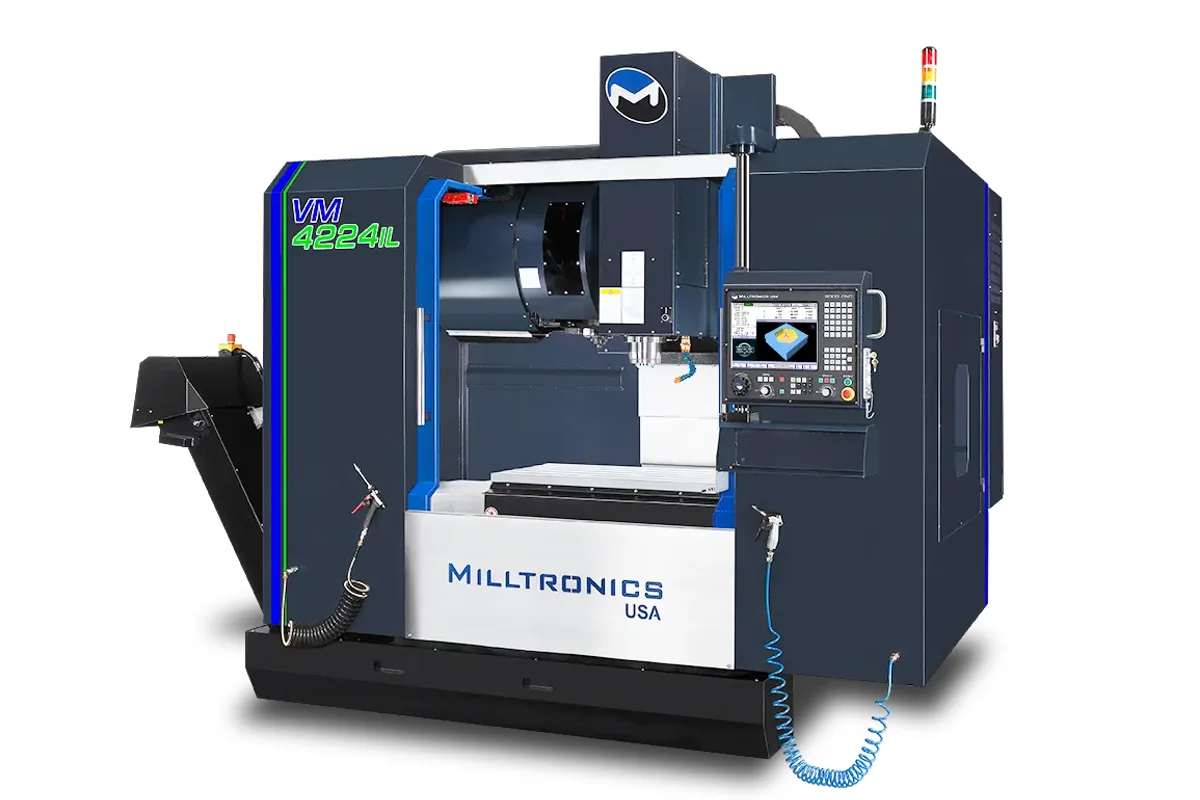

Milltronics VM4224IL 3-axis performance vertical machining center with inline spindle

Image: milltronics.com, Milltronics

Key Specifications

Max Spindle

12,000 rpm

Spindle Taper

BIG-PLUS® ISO No. 40

Tool Capacity

30 / Double Arm

Table Size

50 x 24 in (1,270 x 610 mm)

Spindle Power

32/10 hp (23.9/7.5 kW)

x axis travel

42 in (1,067 mm)

How much does the Milltronics VM4224IL cost?

Price estimate

Uncertain

We do not have a price for the Milltronics VM4224IL that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Milltronics VM4224IL is a vertical machining center with 24 in (610 mm) of travel in both Y and Z, 42 in (1,067 mm) in X, and a 50 x 24 in (1,270 x 610 mm) table. It runs a 12,000 rpm BIG-PLUS ISO No. 40 spindle and a 30-tool double-arm changer under the Milltronics 9000-INSPIRE control.

The equal Y and Z are the reason to pick it. Parts that are deep front to back, or tall, fit here where a 20 in (508 mm) Y machine such as the VM4020 runs out. Spindle nose to table distance runs 5-29 in (127-737 mm), so a tall fixture and the 11.8 in (300 mm) maximum tool length can share the opening.

It is a far heavier build than the VM4020: 14,775 lb (6,702 kg) against 9,100 lb (4,128 kg), about 62% more. Table load does not follow the weight. The VM4224IL is rated for 3,660 lb (1,660 kg), slightly under the 3,770 lb (1,710 kg) of the VM4020.

Spindle power is listed as 32/10 hp (23.9/7.5 kW) with 89 lb-ft (121 Nm) of torque. The two power figures are far apart and the table does not label them, so ask Milltronics which rating applies to continuous cutting before sizing roughing work. The VM5025IL is the stronger 12,000 rpm option at 35/25 hp (26.1/18.6 kW) and 124 lb-ft (168 Nm).

Rapids are listed as 1,200/1,000 ipm (30.5/25.4 m/min). Tooling is CT40 with MAS 60 retention knobs, to 3.15 in (80 mm) in diameter and 15.4 lb (7.0 kg). The machine is 121 in (3,073 mm) high on a 110.2 x 133.8 in (2,799 x 3,399 mm) nominal operating footprint, with a 138.1 in figure given with conveyor, and needs 26 kVA / 31 A at 480 V, 3-phase.

Full Specifications

Parameter	Value
X Axis Travel	42 in (1,067 mm)
Y Axis Travel	24 in (610 mm)
Z Axis Travel	24 in (610 mm)
Table Size	50 x 24 in (1,270 x 610 mm)
Max Table Load	3,660 lb (1,660 kg)
Table T Slot Width	0.71 in (18 mm)
Spindle Taper	BIG-PLUS® ISO No. 40
Max Spindle Speed	12,000 rpm
Spindle Motor Power	32/10 hp (23.9/7.5 kW)
Spindle Torque	89 lb-ft (121 Nm)
Distance Spindle Nose to Table	5-29 in (127-737 mm)
Tool Shank	CT40
Retention Knob	MAS 60
Tool Capacity	30 / Double Arm
Max Tool Diameter (full magazine)	3.15 in (80 mm)
Max Tool Length	11.8 in (300 mm)
Max Tool Weight	15.4 lb (7.0 kg)
Rapid Traverse Xyz	1,200/1,000 ipm (30.5/25.4 m/min)
Machine Weight	14,775 lb (6,702 kg)
Machine Height	121 in (3,073 mm)
Machine Footprint	110.2 x 133.8 in (2,799 x 3,399 mm) (138.1 in with conveyor) nominal operating (W x D)
Power Requirement	26 kVA / 31 A
Voltage Requirement	480 V, 3-phase
CNC Control	Milltronics 9000-INSPIRE

Specifications sourced from milltronics.com — verified 2026-09-24

Strengths & Limitations

Strengths

24 in (610 mm) of travel in both Y and Z, with 42 in (1,067 mm) in X
12,000 rpm BIG-PLUS ISO No. 40 spindle with 89 lb-ft (121 Nm)
30-tool double-arm changer taking tools up to 11.8 in (300 mm) long
Spindle nose to table distance of 5-29 in (127-737 mm) for tall setups
14,775 lb (6,702 kg) of machine weight, about 62% more than the VM4020
Milltronics 9000-INSPIRE control

Limitations

Table load is 3,660 lb (1,660 kg), less than the 3,770 lb (1,710 kg) of the lighter VM4020
Spindle power is listed as 32/10 hp (23.9/7.5 kW), and the lower figure is well under the 35/25 hp (26.1/18.6 kW) of the VM5025IL
Maximum tool diameter is 3.15 in (80 mm)
Needs 121 in (3,073 mm) of height and a 110.2 x 133.8 in (2,799 x 3,399 mm) footprint

Best For

Deep or tall parts that need 24 in (610 mm) in both Y and Z High-speed 40-taper work at 12,000 rpm with up to 30 tools Plates and fixtures up to the 50 x 24 in (1,270 x 610 mm) table Setups with tall fixtures inside the 5-29 in (127-737 mm) nose-to-table range

Frequently Asked Questions

01 What is the work envelope of the VM4224IL?

Travels are 42 in (1,067 mm) in X and 24 in (610 mm) in each of Y and Z. The table is 50 x 24 in (1,270 x 610 mm) with 0.71 in (18 mm) T-slots and a 3,660 lb (1,660 kg) load limit. Spindle nose to table distance is 5-29 in (127-737 mm).

02 How powerful is the VM4224IL spindle?

Milltronics lists 32/10 hp (23.9/7.5 kW) and 89 lb-ft (121 Nm) at up to 12,000 rpm. The table does not say what each of the two power figures represents. If sustained roughing matters, get the duty ratings and the torque curve from Milltronics.

03 Why choose the VM4224IL over the VM4020?

For Y, Z, speed and tools. The VM4020 has a 46 x 20 in (1,168 x 508 mm) table, 10,000 rpm, 75 lb-ft (102 Nm) and 24 tools, and uses the 9000-DGI CNC. The VM4224IL has a 50 x 24 in (1,270 x 610 mm) table, 12,000 rpm, 89 lb-ft (121 Nm), 30 tools and the 9000-INSPIRE control.

04 Which control does the VM4224IL have?

The table names the Milltronics 9000-INSPIRE. No screen size or feature list is given for it in the figures for this model, so request the control specification from Milltronics.

05 What does the VM4224IL weigh and how large is it?

It weighs 14,775 lb (6,702 kg) and is 121 in (3,073 mm) high. The nominal operating footprint is 110.2 x 133.8 in (2,799 x 3,399 mm), and the table adds a 138.1 in dimension with conveyor. Power is 26 kVA / 31 A at 480 V, 3-phase.
