Machitech Automation CNC Laser Cutting Machines

Machitech Fiber Prime S 8x24

Q: How much does the Machitech Fiber Prime S 8x24 cost?

The price estimate for the Machitech Fiber Prime S 8x24 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/machitech-fiber-prime-s-8x24#price; the request is passed to Machitech Automation or an authorised dealer.

Specs verified 2026-10-05 · machitech.com Updated 2026-10-05

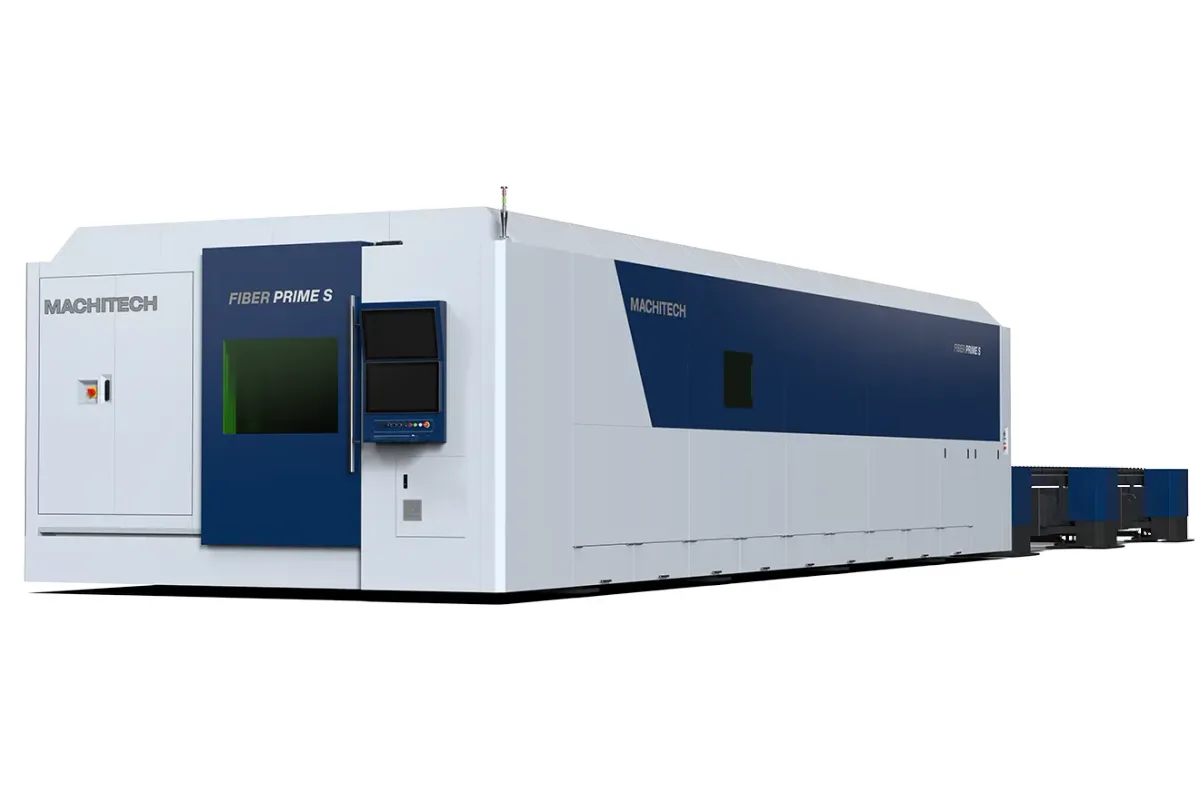

Machitech Fiber Prime S series fiber laser cutting machine

Image: machitech.com, Machitech Automation

Key Specifications

laser power

12 to 60 kW

sheet length

315 in (8,000 mm)

sheet width

98 in (2,500 mm)

acceleration

2.8 G

rapid speed

7,875 ipm (200 m/min)

workpiece weight

31,300 lbs (14,100 kg)

How much does the Machitech Fiber Prime S 8x24 cost?

Price estimate

Uncertain

We do not have a price for the Machitech Fiber Prime S 8x24 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

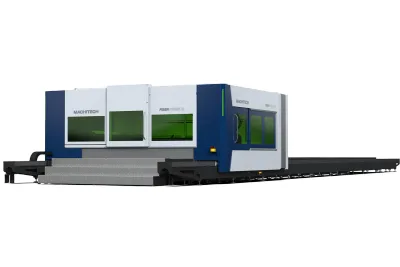

The Machitech Fiber Prime S 8x24 is the longest shuttle-table laser Machitech lists, with a sheet length of 315 in (8,000 mm) at 98 in (2,500 mm) of width. Beyond it the range changes concept, to the Fiber Prime XL, whose laser travels over a fixed bed.

So this size answers a specific question: how long can plate be and still be exchanged on shuttle tables? Machitech's answer carries a workpiece of 31,300 lbs (14,100 kg), the highest of the Fiber Prime S line. The benefit of staying with shuttle tables is that loading and unloading happen outside the enclosure while the other table is being cut.

The cost is in the building. Total length is 777 in (19,750 mm), width 158 in (4,020 mm), and the machine weighs 56,000 lbs (25,400 kg) without laser source, chiller and dust collector. Compared with the Fiber Prime S 8x20 that is roughly ten more feet of length for the extra sheet capacity.

Power and process are the same as on the smaller sizes: 12 to 60 kW sources, a Precitec head with gas mixing and focus compensation, and a bevel head for V, X, Y, K and custom angles. The thickness table peaks at 4 in (100 mm) for mild steel, stainless steel and aluminum at 60 kW, and gives 2.35 in (60 mm) for mild steel at 20 kW. Acceleration is 2.8 G and rapid speed 7,875 ipm (200 m/min). Nesting runs in Lantek Expert Cut, and the controller holds tested parameters for every process including bevel.

Full Specifications

Parameter	Value
Laser Power	12 to 60 kW
Sheet Length	315 in (8,000 mm)
Sheet Width	98 in (2,500 mm)
Acceleration	2.8 G
Rapid Speed	7,875 ipm (200 m/min)
Workpiece Weight	31,300 lbs (14,100 kg)
Cutting Head	Precitec head made for the Fiber PRIME S
Shuttle Tables	Automated, hydraulic lifting
Nesting Software	Lantek Expert Cut
Max Thickness 12kw	At 12 kW: mild steel 1.5 in (40 mm); stainless steel 1.5 in (40 mm); aluminum 1.5 in (40 mm); copper 0.4 in (10 mm); brass 0.5 in (14 mm)
Max Thickness 20kw	At 20 kW: mild steel 2.35 in (60 mm); stainless steel 2.35 in (60 mm); aluminum 2 in (50 mm); copper 0.5 in (12 mm); brass 0.6 in (16 mm)
Max Thickness 30kw	At 30 kW: mild steel 2.75 in (70 mm); stainless steel 2.75 in (70 mm); aluminum 2.75 in (70 mm); copper 0.6 in (16 mm); brass 0.8 in (20 mm)
Max Thickness 40kw	At 40 kW: mild steel 3 in (80 mm); stainless steel 3 in (80 mm); aluminum 3 in (80 mm); copper 0.7 in (18 mm); brass 1 in (25 mm)
Max Thickness 60kw	At 60 kW: mild steel 4 in (100 mm); stainless steel 4 in (100 mm); aluminum 4 in (100 mm); copper 0.8 in (20 mm); brass 1.2 in (30 mm)
Machine Length	777 in (19,750 mm)
Machine Width	158 in (4,020 mm)
Machine Height	105 in (2,680 mm)
Machine Weight	56,000 lbs (25,400 kg), without laser source, chiller and dust collector
Install and Training	Included, on-site
Remote Support	Included, unlimited

Specifications sourced from machitech.com — verified 2026-10-05

Strengths & Limitations

Strengths

Longest Fiber Prime S: 315 in (8,000 mm) sheet length
Highest workpiece weight of the line, 31,300 lbs (14,100 kg)
Shuttle-table exchange even at this length
12 to 60 kW with cutting to 4 in (100 mm)
Tested parameters for all processes including bevel

Limitations

Total length of 777 in (19,750 mm)
Machine weight of 56,000 lbs (25,400 kg) without source and peripherals
Width is the same 98 in (2,500 mm) as the 8x20; wider plate needs the Fiber Prime XL
Acceleration of 2.8 G, not the 4 G of the smallest size

Best For

Long plate up to 315 in (8,000 mm) with table exchange Shipbuilding, trailer and structural plate parts Two shorter plates loaded on one table Heavy plate with 40 kW or 60 kW sources

Frequently Asked Questions

01 How long a plate can the Fiber Prime S 8x24 cut?

Sheet length is 315 in (8,000 mm) and sheet width 98 in (2,500 mm). The workpiece weight is 31,300 lbs (14,100 kg), given for a 3 in steel plate.

02 How does it compare with the Fiber Prime S 8x20?

The width is the same. The Fiber Prime S 8x20 takes a sheet length of 244 in (6,200 mm) and a workpiece of 26,100 lbs (12,000 kg). The 8x24 adds length and load, and the machine grows to 777 in (19,750 mm) and 56,000 lbs (25,400 kg).

03 Which laser powers are available?

Sources from 12kW to 60kW. The thickness table lists 12, 20, 30, 40 and 60 kW, with mild steel maxima from 1.5 in (40 mm) at 12 kW to 4 in (100 mm) at 60 kW.

04 Can the Fiber Prime S 8x24 cut bevels?

Machitech describes a bevel head that creates V, X, Y, K and custom-angle bevel cuts in a single operation, and lists cutting, marking and beveling as one multi-process operation for the Fiber Prime S.
