Machitech Fiber Tube XL 60' L - 19" Ø
Key Specifications
model designation
processing range
max profile length
laser power
linear load capacity
workpiece weight
How much does the Machitech Fiber Tube XL 60' L - 19" Ø cost?
Price estimate
We do not have a price for the Machitech Fiber Tube XL 60' L - 19" Ø that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Twice the load of the smallest model: the Machitech Fiber Tube XL 60' L - 19" Ø carries 135 lb/ft (200 kg/m) and a workpiece of 5,300 lbs (2,400 kg), and processes profiles in a range of 2.2 - 19.7 in (60 - 500 mm). It is the middle of the three Fiber Tube XL machines.
This is the size where structural sections come into play. Five profile types run on the same machine, and Machitech names them: round pipe and tube, square and rectangular HSS, angle, channel and H-beam. With this load capacity the heavier HSS and medium beams used in building frames fall within reach, cut to length with their holes, copes and slots in one pass.
Heavier material turns more slowly. Chuck rotation speed is 45 rpm. Positioning speed stays at 148 ft/min (45 m/min) and maximum profile length at 40 ft (12 m). The machine uses three chucks.
For the source, 6 kW, 12 kW or 20 kW can be ordered. Thicker walls call for the larger sources, and the choice is best made from the sections cut most often. Weld preparation needs the optional 3D bevel head, which works up to ±45° on round, square and rectangular profiles. Focus height is compensated automatically.
The cell is 105 ft (32 m), based on 40 ft unloading length, 29 ft (9 m) wide and 12.5 ft (3.8 m) high. It weighs 75,000 lbs (34,000 kg) without laser source, chiller and dust collector. A short-part unloader takes cut-offs and small parts out as they separate.
Full Specifications
| Parameter | Value |
|---|---|
| Model Designation | 60' L - 19" Ø |
| Processing Range | 2.2 - 19.7 in (60 - 500 mm) |
| Max Profile Length | 40 ft (12 m) |
| Laser Power | 6 kW, 12 kW or 20 kW |
| Linear Load Capacity | 135 lb/ft (200 kg/m) |
| Workpiece Weight | 5,300 lbs (2,400 kg) |
| Max Positioning Speed | 148 ft/min (45 m/min) |
| Chuck Rotation Speed | 45 rpm |
| Number of Chucks | 3 |
| Bevel 3d | Optional |
| Nesting Software | Lantek Flex3D |
| Machine Length | 105 ft (32 m), based on 40 ft unloading length |
| Machine Width | 29 ft (9 m) |
| Machine Height | 12.5 ft (3.8 m) |
| Machine Weight | 75,000 lbs (34,000 kg), without laser source, chiller and dust collector |
| Install and Training | Included, on-site |
| Remote Support | Included, unlimited |
Specifications sourced from machitech.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Processing range of 2.2 - 19.7 in (60 - 500 mm)
- Linear load capacity of 135 lb/ft (200 kg/m) and 5,300 lbs (2,400 kg) workpiece weight
- Round, HSS, angle, channel and H-beam on the same machine
- Sources of 6 kW, 12 kW or 20 kW
- Automated short-part unloading
Limitations
- Does not take profiles below 2.2 in (60 mm)
- Chuck rotation speed of 45 rpm
- Bevel cutting requires the optional 3D head
- Cell width of 29 ft (9 m) on a 105 ft (32 m) line
Best For
Frequently Asked Questions
01
Profiles from 2.2 - 19.7 in (60 - 500 mm), up to a maximum profile length of 40 ft (12 m). Linear load capacity is 135 lb/ft (200 kg/m) and workpiece weight 5,300 lbs (2,400 kg).
02
Machitech lists five profiles on the same machine: round pipe and tube, square and rectangular HSS, angle, channel, and H-beam. Clamping adjusts automatically for different profiles.
03
With the optional 3D bevel head. According to Machitech it handles up to ±45° on round, square and rectangular profiles. The spec table lists 3D bevel capabilities as optional.
04
Total length 105 ft (32 m), based on 40 ft unloading length; total width 29 ft (9 m); total height 12.5 ft (3.8 m). The machine weighs 75,000 lbs (34,000 kg) without laser source, chiller and dust collector.
More from Machitech Automation
Other CNC Laser Cutting Machines
Han's Laser MPS-6025D
Durma HD-F 3015 VI
Amada REGIUS 3015 Fiber Laser
HSG TX5R

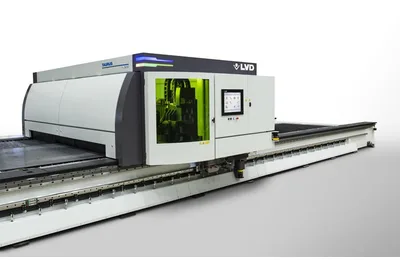

LVD Taurus
