Machitech Automation CNC Laser Cutting Machines

Machitech Fiber Prime S 8x20

Q: How much does the Machitech Fiber Prime S 8x20 cost?

The price estimate for the Machitech Fiber Prime S 8x20 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/machitech-fiber-prime-s-8x20#price; the request is passed to Machitech Automation or an authorised dealer.

Specs verified 2026-10-05 · machitech.com Updated 2026-10-05

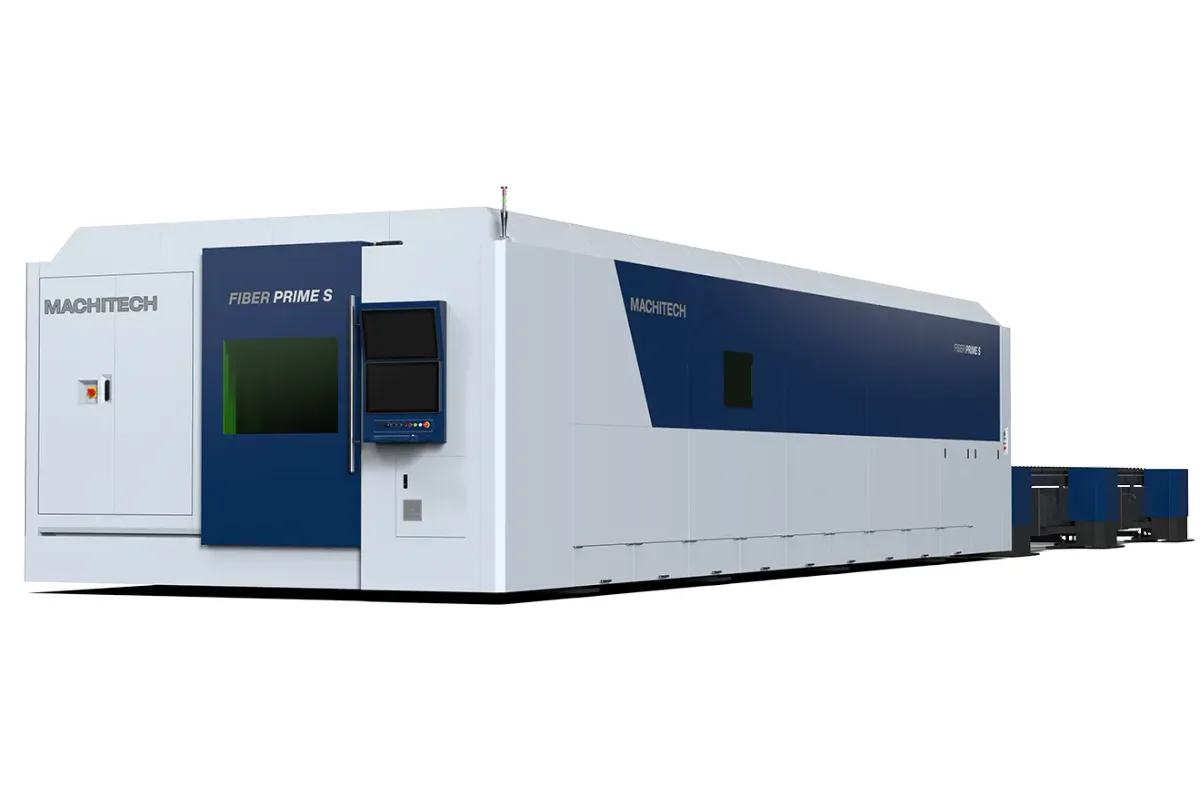

Machitech Fiber Prime S series fiber laser cutting machine

Image: machitech.com, Machitech Automation

Key Specifications

laser power

12 to 60 kW

sheet length

244 in (6,200 mm)

sheet width

98 in (2,500 mm)

acceleration

2.8 G

rapid speed

7,875 ipm (200 m/min)

workpiece weight

26,100 lbs (12,000 kg)

How much does the Machitech Fiber Prime S 8x20 cost?

Price estimate

Uncertain

We do not have a price for the Machitech Fiber Prime S 8x20 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Plate 98 in (2,500 mm) wide goes onto the Machitech Fiber Prime S 8x20, the first Fiber Prime S size in the wide format. Sheet length is 244 in (6,200 mm). The step from the 6x12 is large in one figure above all: workpiece weight jumps to 26,100 lbs (12,000 kg).

That rating, stated for a 3 in steel plate, shows what the size is for. This is a plate machine for heavy fabrication, where a single piece of material weighs many tons and the shuttle table has to lift and exchange it. The hydraulic lifting mechanism and the bed isolated from the motion platform are the two design points Machitech names for that duty.

Sources run from 12 to 60 kW. With 40 kW the table lists 3 in (80 mm) for mild steel, stainless steel and aluminum; with 60 kW, 4 in (100 mm). In that thickness range the laser competes with plasma and oxyfuel, and Machitech positions its bevel head as a replacement for 5-axis plasma tables, cutting V, X, Y and K preparations.

Despite the mass on the table, acceleration is 2.8 G and rapid speed 7,875 ipm (200 m/min), unchanged from the 6x12. The machine is 655 in (16,640 mm) long, a length that includes the exchange position, 157 in (4,000 mm) wide and 105 in (2,680 mm) high. It weighs 45,200 lbs (20,500 kg) without source, chiller and dust collector, so foundation and access for delivery need planning early.

Full Specifications

Parameter	Value
Laser Power	12 to 60 kW
Sheet Length	244 in (6,200 mm)
Sheet Width	98 in (2,500 mm)
Acceleration	2.8 G
Rapid Speed	7,875 ipm (200 m/min)
Workpiece Weight	26,100 lbs (12,000 kg)
Cutting Head	Precitec head made for the Fiber PRIME S
Shuttle Tables	Automated, hydraulic lifting
Nesting Software	Lantek Expert Cut
Max Thickness 12kw	At 12 kW: mild steel 1.5 in (40 mm); stainless steel 1.5 in (40 mm); aluminum 1.5 in (40 mm); copper 0.4 in (10 mm); brass 0.5 in (14 mm)
Max Thickness 20kw	At 20 kW: mild steel 2.35 in (60 mm); stainless steel 2.35 in (60 mm); aluminum 2 in (50 mm); copper 0.5 in (12 mm); brass 0.6 in (16 mm)
Max Thickness 30kw	At 30 kW: mild steel 2.75 in (70 mm); stainless steel 2.75 in (70 mm); aluminum 2.75 in (70 mm); copper 0.6 in (16 mm); brass 0.8 in (20 mm)
Max Thickness 40kw	At 40 kW: mild steel 3 in (80 mm); stainless steel 3 in (80 mm); aluminum 3 in (80 mm); copper 0.7 in (18 mm); brass 1 in (25 mm)
Max Thickness 60kw	At 60 kW: mild steel 4 in (100 mm); stainless steel 4 in (100 mm); aluminum 4 in (100 mm); copper 0.8 in (20 mm); brass 1.2 in (30 mm)
Machine Length	655 in (16,640 mm)
Machine Width	157 in (4,000 mm)
Machine Height	105 in (2,680 mm)
Machine Weight	45,200 lbs (20,500 kg), without laser source, chiller and dust collector
Install and Training	Included, on-site
Remote Support	Included, unlimited

Specifications sourced from machitech.com — verified 2026-10-05

Strengths & Limitations

Strengths

Takes plate 98 in (2,500 mm) wide and 244 in (6,200 mm) long
Workpiece weight of 26,100 lbs (12,000 kg)
Up to 60 kW for 4 in (100 mm) mild steel, stainless steel and aluminum
Hydraulic shuttle tables built for heavy loads
2.8 G and 7,875 ipm (200 m/min) on a wide-format bed

Limitations

Machine length of 655 in (16,640 mm)
Weighs 45,200 lbs (20,500 kg) before source, chiller and dust collector
Longer plate needs the Fiber Prime S 8x24 or the Fiber Prime XL
Copper and brass remain thin-section materials: 0.8 in (20 mm) and 1.2 in (30 mm) at 60 kW

Best For

Heavy plate fabrication in the wide format Steel service centres cutting heavy plate Replacing 5-axis plasma for bevelled plate parts Thick stainless steel and aluminum plate

Frequently Asked Questions

01 What plate size does the Fiber Prime S 8x20 take?

Sheet length is 244 in (6,200 mm) and sheet width 98 in (2,500 mm). Workpiece weight is 26,100 lbs (12,000 kg), stated for a 3 in steel plate.

02 How thick can it cut with 40 kW and 60 kW?

With 40 kW: mild steel, stainless steel and aluminum 3 in (80 mm), copper 0.7 in (18 mm), brass 1 in (25 mm). With 60 kW: mild steel, stainless steel and aluminum 4 in (100 mm), copper 0.8 in (20 mm), brass 1.2 in (30 mm).

03 Does the larger bed reduce speed?

Not in the table. The 8x20 is listed at 2.8 G and 7,875 ipm (200 m/min), the same as the Fiber Prime S 6x12. Only the Fiber Prime S 5x10 is faster, at 4 G.

04 How much floor space and weight should be planned?

Total length 655 in (16,640 mm), total width 157 in (4,000 mm), total height 105 in (2,680 mm). The machine weighs 45,200 lbs (20,500 kg) without the laser source, chiller and dust collector.
