Machitech Automation CNC Laser Cutting Machines

Machitech Fiber Prime S 5x10

Q: How much does the Machitech Fiber Prime S 5x10 cost?

The price estimate for the Machitech Fiber Prime S 5x10 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/machitech-fiber-prime-s-5x10#price; the request is passed to Machitech Automation or an authorised dealer.

Specs verified 2026-10-05 · machitech.com Updated 2026-10-05

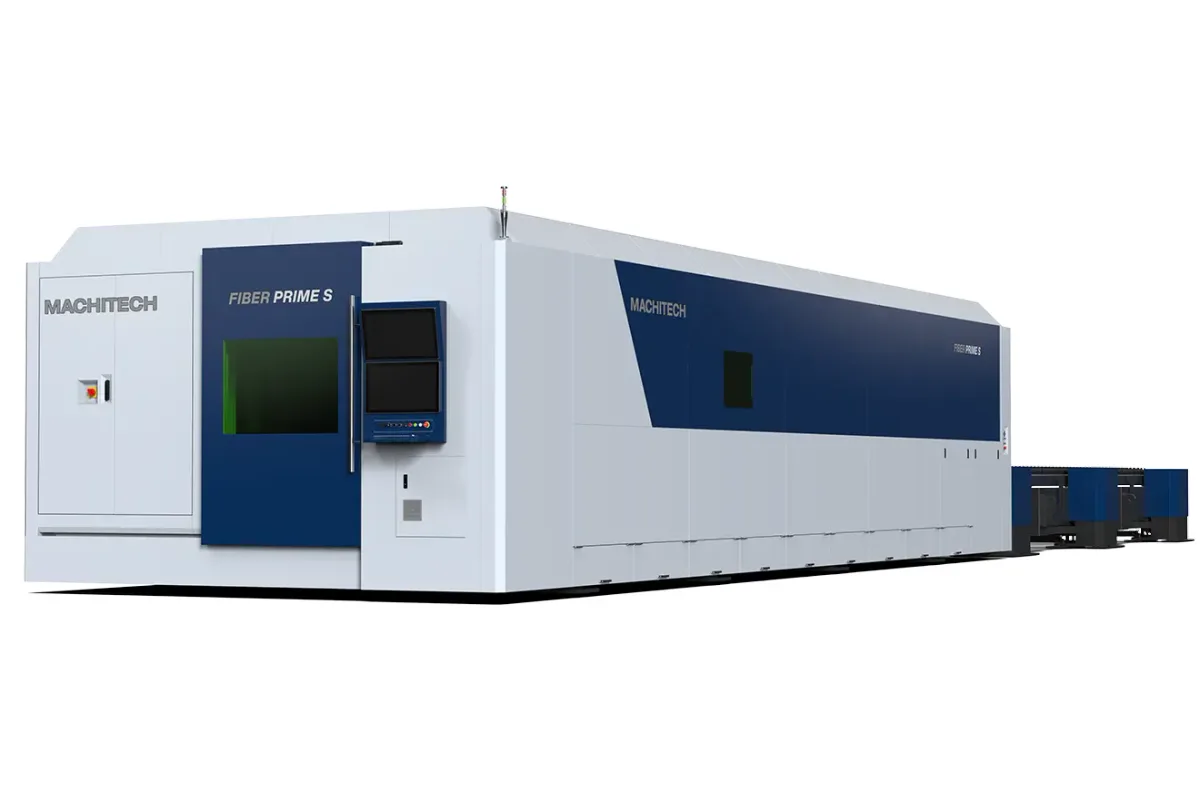

Machitech Fiber Prime S series fiber laser cutting machine

Image: machitech.com, Machitech Automation

Key Specifications

laser power

12 to 60 kW

sheet length

122 in (3,100 mm)

sheet width

63 in (1,600 mm)

acceleration

4 G

rapid speed

9,500 ipm (240 m/min)

workpiece weight

5,950 lbs (2,700 kg)

How much does the Machitech Fiber Prime S 5x10 cost?

Price estimate

Uncertain

We do not have a price for the Machitech Fiber Prime S 5x10 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Machitech Fiber Prime S 5x10 is the fastest machine in Machitech's laser range. It accelerates at 4 G and reaches a rapid speed of 9,500 ipm (240 m/min), figures the three larger Fiber Prime S sizes do not match, and it takes sources from 12 to 60 kW.

Small bed, high dynamics, high power: the combination is aimed at thin and medium sheet cut in volume. On parts with many short contours a head spends most of its time changing direction, and there acceleration matters more than top speed. The Fiber Prime S 6x12 and the two sizes above it are listed at 2.8 G and 7,875 ipm (200 m/min).

Sheet capacity is 122 in (3,100 mm) by 63 in (1,600 mm). Thickness depends on the source. The table runs from 1.5 in (40 mm) of mild steel at 12 kW to 4 in (100 mm) at 60 kW, with stainless steel and aluminum reaching the same 4 in (100 mm) at full power. The workpiece weight of 5,950 lbs (2,700 kg) is given for a 3 in steel plate.

Machitech isolates the bed from the motion platform, so a heavy plate does not load the frame the gantry runs on. Shuttle tables lift hydraulically. The Precitec head was made for this model, with gas mixing at the head and automatic focus compensation, and a Machitech bevel head cuts V, X, Y and K preparations. The machine is 389 in (9,880 mm) long, 126 in (3,198 mm) wide and weighs 25,350 lbs (11,500 kg) without source, chiller and dust collector.

Full Specifications

Parameter	Value
Laser Power	12 to 60 kW
Sheet Length	122 in (3,100 mm)
Sheet Width	63 in (1,600 mm)
Acceleration	4 G
Rapid Speed	9,500 ipm (240 m/min)
Workpiece Weight	5,950 lbs (2,700 kg)
Cutting Head	Precitec head made for the Fiber PRIME S
Shuttle Tables	Automated, hydraulic lifting
Nesting Software	Lantek Expert Cut
Max Thickness 12kw	At 12 kW: mild steel 1.5 in (40 mm); stainless steel 1.5 in (40 mm); aluminum 1.5 in (40 mm); copper 0.4 in (10 mm); brass 0.5 in (14 mm)
Max Thickness 20kw	At 20 kW: mild steel 2.35 in (60 mm); stainless steel 2.35 in (60 mm); aluminum 2 in (50 mm); copper 0.5 in (12 mm); brass 0.6 in (16 mm)
Max Thickness 30kw	At 30 kW: mild steel 2.75 in (70 mm); stainless steel 2.75 in (70 mm); aluminum 2.75 in (70 mm); copper 0.6 in (16 mm); brass 0.8 in (20 mm)
Max Thickness 40kw	At 40 kW: mild steel 3 in (80 mm); stainless steel 3 in (80 mm); aluminum 3 in (80 mm); copper 0.7 in (18 mm); brass 1 in (25 mm)
Max Thickness 60kw	At 60 kW: mild steel 4 in (100 mm); stainless steel 4 in (100 mm); aluminum 4 in (100 mm); copper 0.8 in (20 mm); brass 1.2 in (30 mm)
Machine Length	389 in (9,880 mm)
Machine Width	126 in (3,198 mm)
Machine Height	105 in (2,680 mm)
Machine Weight	25,350 lbs (11,500 kg), without laser source, chiller and dust collector
Install and Training	Included, on-site
Remote Support	Included, unlimited

Specifications sourced from machitech.com — verified 2026-10-05

Strengths & Limitations

Strengths

4 G of acceleration and 9,500 ipm (240 m/min) rapid speed, the highest in the range
Laser sources from 12 to 60 kW
Bed isolated from the motion platform
Hydraulic shuttle tables built for heavy loads
Bevel head for V, X, Y and K cuts

Limitations

Sheet limited to 122 in (3,100 mm) by 63 in (1,600 mm)
Workpiece weight of 5,950 lbs (2,700 kg) is the lowest of the Fiber Prime S sizes
At 25,350 lbs (11,500 kg) it weighs far more than the Fiber Prime 5x10
No source below 12 kW is offered

Best For

High-volume thin and medium sheet Parts with many short contours and holes High-power cutting of standard sheet Bevelled weld preparations cut by laser

Frequently Asked Questions

01 How fast is the Fiber Prime S 5x10?

Acceleration is 4 G and rapid speed 9,500 ipm (240 m/min). The other Fiber Prime S sizes, such as the Fiber Prime S 6x12, are listed at 2.8 G and 7,875 ipm (200 m/min).

02 What thickness does it cut?

It depends on the source. At 12 kW the table gives 1.5 in (40 mm) for mild steel, stainless steel and aluminum. At 60 kW it gives 4 in (100 mm) for all three, 0.8 in (20 mm) for copper and 1.2 in (30 mm) for brass.

03 What does the shuttle table carry?

Workpiece weight is 5,950 lbs (2,700 kg), which Machitech states for a 3 in steel plate. The shuttle tables use a hydraulic lifting mechanism.

04 What are the machine dimensions?

Total length 389 in (9,880 mm), total width 126 in (3,198 mm), total height 105 in (2,680 mm). Weight is 25,350 lbs (11,500 kg) with standard equipment, without the laser source, chiller and dust collector.
