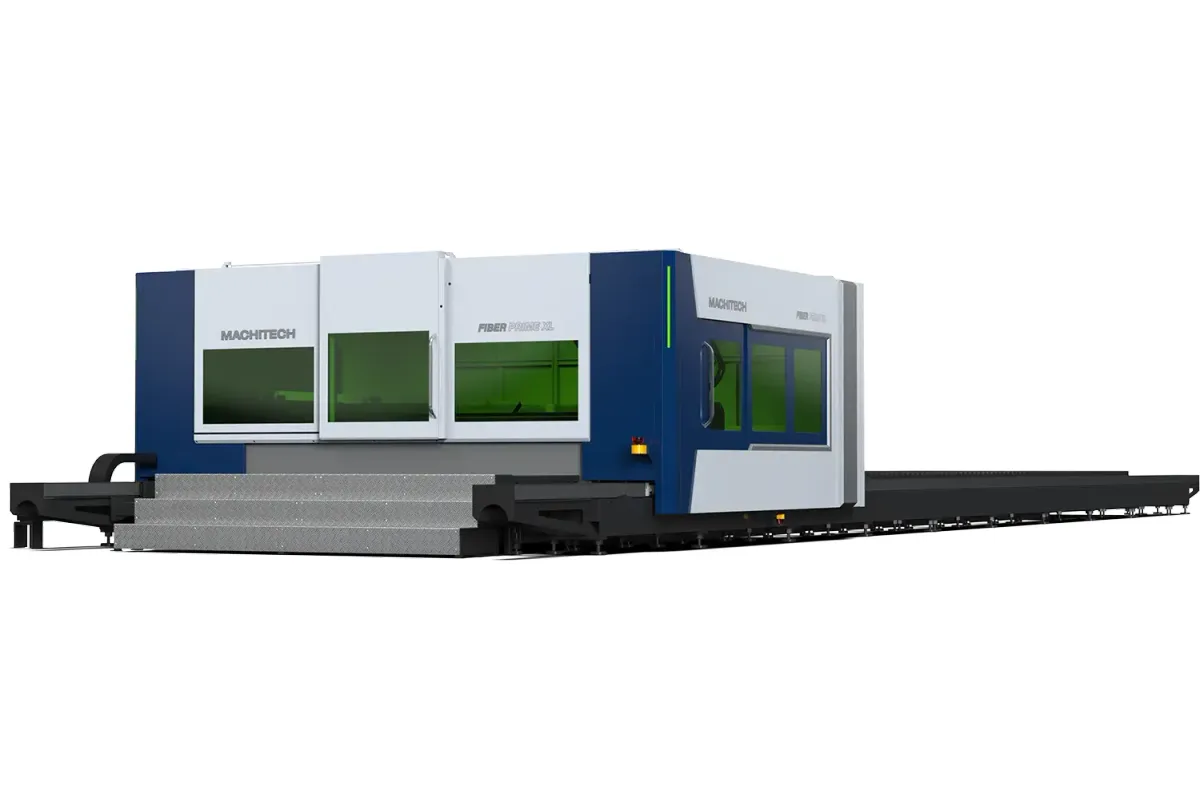

Machitech Fiber Prime XL 10x80
Image: machitech.com, Machitech Automation
Key Specifications
laser power
sheet length
sheet width
acceleration
rapid speed
workpiece weight
How much does the Machitech Fiber Prime XL 10x80 cost?
Price estimate
We do not have a price for the Machitech Fiber Prime XL 10x80 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Machitech Fiber Prime XL 10x80 is the longest of the four XL sizes built on the 120 in (3,050 mm) width. Its sheet length is 960 in (24,400 mm), and it carries a workpiece weight of 130,680 lbs (59,275 kg).
Who needs a bed like this? Mostly plants where plate arrives and leaves continuously: service centres, shipyards, makers of wind towers and bridge girders. Two full-length plates lie end to end with room to spare, or a larger number of shorter ones. The laser works along the row while cranes clear finished nests behind it.
The cutting table is independent of the bridge and rails. Rails are segmented, which is how Machitech reaches these lengths, and the structure that moves, weighing 92,600 lbs (41,660 kg) in total, does not bear the plate. Width and height are 220 in (5,580 mm) and 100 in (2,550 mm). The maker's table prints a total length whose inch and millimetre figures do not agree, so that row is left out here and should be requested with a layout drawing.
In performance nothing separates this size from the shorter 10 ft models: 1 G of acceleration, 4,450 ipm (110 m/min) of rapid speed, sources from 12 to 60 kW. The head mixes gas at the nozzle and corrects focus height automatically. The Machitech bevel head covers V, X, Y and K preparations. Above this size only the 12x120 is larger, and it is wider as well as longer.
Full Specifications
| Parameter | Value |
|---|---|
| Laser Power | 12 to 60 kW |
| Sheet Length | 960 in (24,400 mm) |
| Sheet Width | 120 in (3,050 mm) |
| Acceleration | 1 G |
| Rapid Speed | 4,450 ipm (110 m/min) |
| Workpiece Weight | 130,680 lbs (59,275 kg) |
| Cutting Head | Precitec head made for the Fiber PRIME series |
| Bed Design | Segmented bridge and rail design with independent cutting table |
| Nesting Software | Lantek Expert Cut |
| Max Thickness 12kw | At 12 kW: mild steel 1.5 in (40 mm); stainless steel 1.5 in (40 mm); aluminum 1.5 in (40 mm); copper 0.4 in (10 mm); brass 0.5 in (12 mm) |
| Max Thickness 20kw | At 20 kW: mild steel 2.35 in (60 mm); stainless steel 2.35 in (60 mm); aluminum 2 in (50 mm); copper 0.5 in (12 mm); brass 0.6 in (16 mm) |
| Max Thickness 30kw | At 30 kW: mild steel 2.75 in (70 mm); stainless steel 2.75 in (70 mm); aluminum 2.75 in (70 mm); copper 0.6 in (16 mm); brass 0.8 in (20 mm) |
| Max Thickness 40kw | At 40 kW: mild steel 3 in (80 mm); stainless steel 3 in (80 mm); aluminum 3 in (80 mm); copper 0.7 in (18 mm); brass 1 in (25 mm) |
| Max Thickness 60kw | At 60 kW: mild steel 4 in (100 mm); stainless steel 4 in (100 mm); aluminum 4 in (100 mm); copper 0.8 in (20 mm); brass 1.2 in (30 mm) |
| Machine Width | 220 in (5,580 mm) |
| Machine Height | 100 in (2,550 mm) |
| Machine Weight | 92,600 lbs (41,660 kg), without laser source, chiller and dust collector |
| Install and Training | Included, on-site |
| Remote Support | Included, unlimited |
Specifications sourced from machitech.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Sheet length of 960 in (24,400 mm)
- Workpiece weight of 130,680 lbs (59,275 kg)
- Independent cutting table: the bridge does not carry the plate
- Same 1 G and 4,450 ipm (110 m/min) as the shorter XL sizes
- Sources from 12 to 60 kW with a bevel head for weld preparations
Limitations
- The published total length is inconsistent between inch and millimetre figures
- Machine weight of 92,600 lbs (41,660 kg) without source and peripherals
- Sheet width limited to 120 in (3,050 mm)
- A single head covers a very long bed
Best For
Frequently Asked Questions
01
Sheet length is 960 in (24,400 mm) and sheet width 120 in (3,050 mm). The total machine length printed by Machitech is inconsistent between its inch and millimetre figures, so it is not listed here. Width is 220 in (5,580 mm) and height 100 in (2,550 mm).
02
Workpiece weight is 130,680 lbs (59,275 kg), stated for a 4 in steel plate with a 60 kW source. The machine weighs 92,600 lbs (41,660 kg), not counting sheet weight, laser source, chiller and dust collector.
03
No. The table lists 1 G and 4,450 ipm (110 m/min) for all four XL sizes of this width. Only the Fiber Prime XL 12x120 differs, at 0.85 G.
04
The Precitec head was created for the Fiber PRIME series for high power, with integrated gas mixing and focus compensation. A Machitech bevel head makes V, X, Y, K and custom-angle cuts in a single operation.
More from Machitech Automation
Other CNC Laser Cutting Machines
Ermak Fibermak Momentum Gen-5 SM 9x2.6

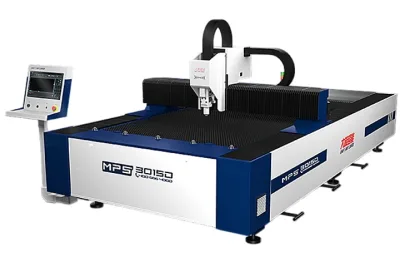

Han's Laser MPS-3015D
