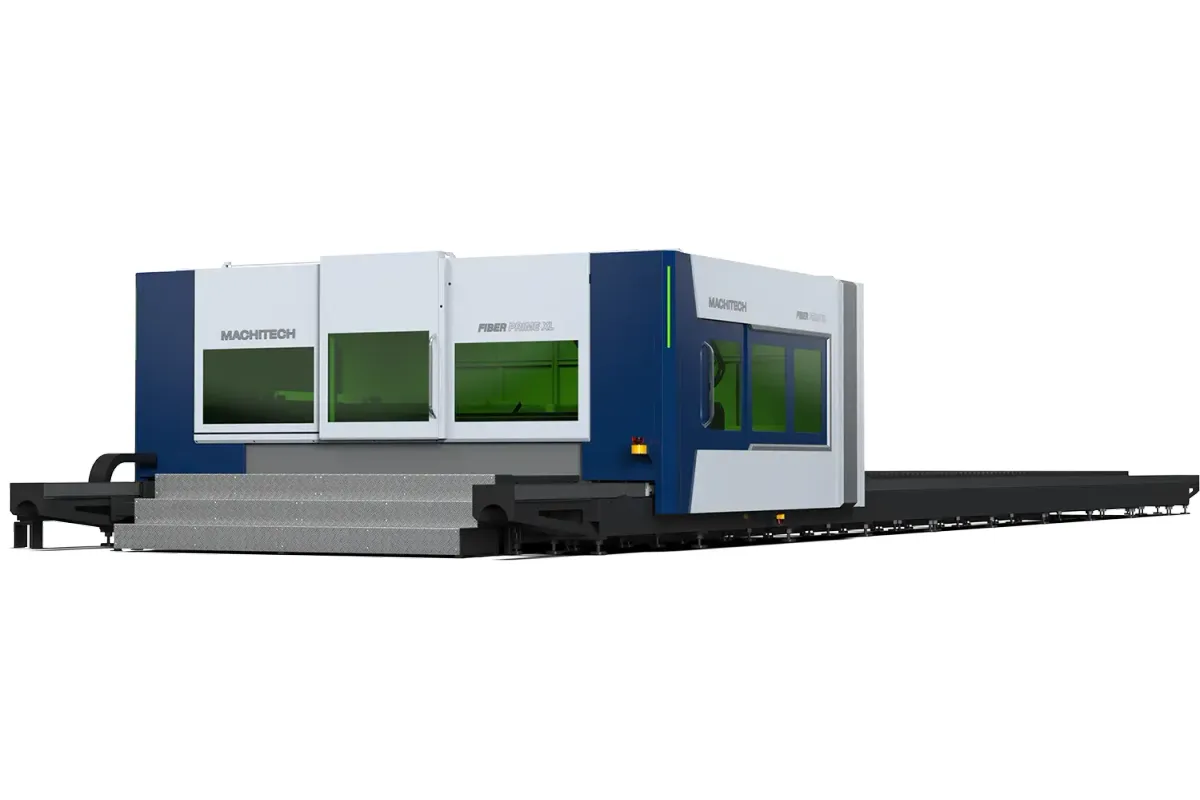

Machitech Fiber Prime XL 12x120
Image: machitech.com, Machitech Automation
Key Specifications
laser power
sheet length
sheet width
acceleration
rapid speed
workpiece weight
How much does the Machitech Fiber Prime XL 12x120 cost?
Price estimate
We do not have a price for the Machitech Fiber Prime XL 12x120 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Everything about the Machitech Fiber Prime XL 12x120 is the largest figure in Machitech's laser tables. Sheet length is 1,512 in (38,400 mm), sheet width 159 in (4,050 mm), and the workpiece weight is 235,230 lbs (106,700 kg).
It is the only XL that is wider than the others, and the wider bridge shows in two numbers. Acceleration drops to 0.85 G, where the four narrower sizes are listed at 1 G. Machine weight rises to 195,770 lbs (88,100 kg), more than twice that of the Fiber Prime XL 10x80 at 92,600 lbs (41,660 kg). Rapid speed is unchanged at 4,450 ipm (110 m/min).
Plate of this width is specialist material: hull and deck plate, tank shells, large pressure parts. Such work is thick, and it is bevelled. The source range of 12 to 60 kW and the bevel head are therefore the relevant features, and the thickness table is the same as on the smaller machines, up to 4 in (100 mm) in mild steel, stainless steel and aluminum at 60 kW.
An installation on this scale is a building project. The machine is 259 in (6,580 mm) wide and 100 in (2,550 mm) high. For total length the maker's table prints inch and millimetre figures that contradict each other, so the row is omitted here. Fume is moved across the bed by a blower and an exhaust fan to the dust collector, and three laser radars guard the travelling bridge. Multiple sheets can be laid on a continuous or separated bed, with a lights out mode as an option.
Full Specifications
| Parameter | Value |
|---|---|
| Laser Power | 12 to 60 kW |
| Sheet Length | 1,512 in (38,400 mm) |
| Sheet Width | 159 in (4,050 mm) |
| Acceleration | 0.85 G |
| Rapid Speed | 4,450 ipm (110 m/min) |
| Workpiece Weight | 235,230 lbs (106,700 kg) |
| Cutting Head | Precitec head made for the Fiber PRIME series |
| Bed Design | Segmented bridge and rail design with independent cutting table |
| Nesting Software | Lantek Expert Cut |
| Max Thickness 12kw | At 12 kW: mild steel 1.5 in (40 mm); stainless steel 1.5 in (40 mm); aluminum 1.5 in (40 mm); copper 0.4 in (10 mm); brass 0.5 in (12 mm) |
| Max Thickness 20kw | At 20 kW: mild steel 2.35 in (60 mm); stainless steel 2.35 in (60 mm); aluminum 2 in (50 mm); copper 0.5 in (12 mm); brass 0.6 in (16 mm) |
| Max Thickness 30kw | At 30 kW: mild steel 2.75 in (70 mm); stainless steel 2.75 in (70 mm); aluminum 2.75 in (70 mm); copper 0.6 in (16 mm); brass 0.8 in (20 mm) |
| Max Thickness 40kw | At 40 kW: mild steel 3 in (80 mm); stainless steel 3 in (80 mm); aluminum 3 in (80 mm); copper 0.7 in (18 mm); brass 1 in (25 mm) |
| Max Thickness 60kw | At 60 kW: mild steel 4 in (100 mm); stainless steel 4 in (100 mm); aluminum 4 in (100 mm); copper 0.8 in (20 mm); brass 1.2 in (30 mm) |
| Machine Width | 259 in (6,580 mm) |
| Machine Height | 100 in (2,550 mm) |
| Machine Weight | 195,770 lbs (88,100 kg), without laser source, chiller and dust collector |
| Install and Training | Included, on-site |
| Remote Support | Included, unlimited |
Specifications sourced from machitech.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Largest capacity: 1,512 in (38,400 mm) by 159 in (4,050 mm)
- Workpiece weight of 235,230 lbs (106,700 kg)
- Only XL with 159 in (4,050 mm) of sheet width
- Rapid speed of 4,450 ipm (110 m/min) maintained
- 12 to 60 kW, cutting to 4 in (100 mm)
Limitations
- Acceleration of 0.85 G, the lowest of the range
- Machine weight of 195,770 lbs (88,100 kg)
- Published total length is inconsistent and must be confirmed
- Machine width of 259 in (6,580 mm)
Best For
Frequently Asked Questions
01
Sheet length is 1,512 in (38,400 mm) and sheet width 159 in (4,050 mm). The machine is 259 in (6,580 mm) wide and 100 in (2,550 mm) high. The printed total length is inconsistent between units and is left out.
02
Workpiece weight is 235,230 lbs (106,700 kg), given for a 4 in steel plate. The machine weighs 195,770 lbs (88,100 kg) without sheet weight, laser source, chiller and dust collector.
03
Its rapid speed is the same, 4,450 ipm (110 m/min). Acceleration is 0.85 G, where the Fiber Prime XL 10x80 and the other narrower sizes are listed at 1 G.
04
Sources from 12kW to 60kW. The table lists mild steel, stainless steel and aluminum at 1.5 in (40 mm) with 12 kW and 4 in (100 mm) with 60 kW, copper to 0.8 in (20 mm) and brass to 1.2 in (30 mm).
