LVD LaserTWO 3015

Specs verified 2026-10-05 · lvdgroup.com Updated 2026-10-05

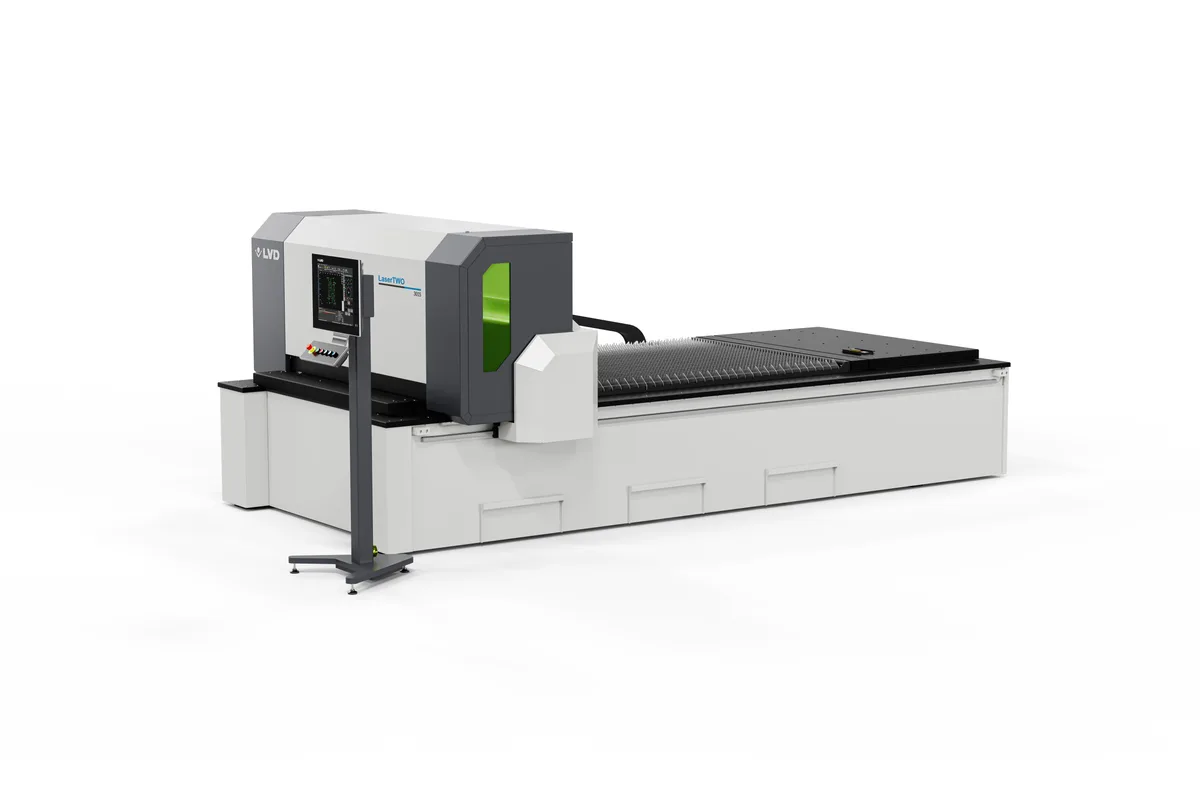

LVD LaserTWO series fiber laser, local-cover version

Image: lvdgroup.com, LVD

Key Specifications

Accuracy

+/- 0.10 mm

Repeatability

+/- 0.05 mm

max sheet size

3,050 x 1,525 mm (120.1 x 60.0 in)

x axis travel

3,100 mm (122.0 in)

y axis travel

1,560 mm (61.4 in)

z axis travel

80 mm (3.1 in)

How much does the LVD LaserTWO 3015 cost?

Price estimate

Uncertain

We do not have a price for the LVD LaserTWO 3015 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The LVD LaserTWO 3015 is the smaller of two sizes in LVD's entry flatbed fiber laser line, built around a 3,050 x 1,525 mm (120.1 x 60.0 in) sheet and offered with a 3 kW, 6 kW or 12 kW source. LVD sells it in two forms: a single-table machine with local covers, and a shuttle-table machine with full covers. That choice matters more than the wattage for most buyers, because it decides how the machine is loaded.

Axis travels are 3,100 mm (122.0 in) in X, 1,560 mm (61.4 in) in Y and 80 mm (3.1 in) in Z. The Z stroke is short, which suits flat sheet and little else. Positioning speed is 110 m/min in X-Y and 30 m/min in Z, and LVD states +/- 0.10 mm positioning accuracy with +/- 0.05 mm repeatability. The table carries 900 kg (1,984 lb), and a table change takes 35 sec.

Cutting capacity follows the source. At 3 kW the table lists 15 mm (0.59 in) of mild steel and 12 mm (0.47 in) of stainless steel or aluminium. The 6 kW source takes all three to 25 mm (1.0 in), and 12 kW reaches 30 mm (1.2 in). Copper and brass stay thinner: 6 mm and 5 mm at 3 kW, 15 mm for both at 12 kW. The cutting head is an NC auto-focus unit with a 200 mm focusing lens, capacitive height sensing and crash protection.

In local-cover form the machine is compact for a laser of this sheet size: 5,000 mm long, 2,900 mm wide and 1,780 mm high, at roughly 6,000 kg (13,228 lb). Those dimensions exclude light guards, filter and chiller, so the real floor plan is larger. The LaserTWO 4020 is the step up when sheets exceed this bed, with a 4,050 x 2,035 mm format and a 1,600 kg table load.

Full Specifications

Parameter	Value
Max Sheet Size	3,050 x 1,525 mm (120.1 x 60.0 in)
X Axis Travel	3,100 mm (122.0 in)
Y Axis Travel	1,560 mm (61.4 in)
Z Axis Travel	80 mm (3.1 in)
Max Sheet Weight	900 kg (1,984 lb)
Table Changeover Time	35 sec.
Positioning Speed Xy	110 m/min
Positioning Speed Z	30 m/min
Repeatability	+/- 0.05 mm
Positioning Accuracy	+/- 0.10 mm
Machine Length	5,000 mm (196.9 in)
Machine Width	2,900 mm (114.2 in)
Machine Height	1,780 mm (70.1 in)
Machine Weight	6,000 kg (13,228 lb)
Laser Power	3 kW, 6 kW or 12 kW
Max Cutting Thickness Mild Steel	15 mm (0.59 in) at 3 kW; 25 mm (1.0 in) at 6 kW; 30 mm (1.2 in) at 12 kW
Max Cutting Thickness Stainless Steel	12 mm (0.47 in) at 3 kW; 25 mm (1.0 in) at 6 kW; 30 mm (1.2 in) at 12 kW
Max Cutting Thickness Aluminium	12 mm (0.47 in) at 3 kW; 25 mm (1.0 in) at 6 kW; 30 mm (1.2 in) at 12 kW
Max Cutting Thickness Copper	6 mm (0.24 in) at 3 kW; 8 mm (0.31 in) at 6 kW; 15 mm (0.59 in) at 12 kW
Max Cutting Thickness Brass	5 mm (0.20 in) at 3 kW; 8 mm (0.31 in) at 6 kW; 15 mm (0.59 in) at 12 kW

Specifications sourced from lvdgroup.com — verified 2026-10-05

Strengths & Limitations

Strengths

Available as a single-table machine with local covers or a shuttle-table machine with full covers, so the loading method can match the workload
Three source options, 3 kW, 6 kW or 12 kW, with mild steel capacity of 15 mm, 25 mm and 30 mm respectively
Local-cover version occupies 5,000 x 2,900 mm (196.9 x 114.2 in) before light guards, filter and chiller
NC auto-focus cutting head with a 200 mm focusing lens, capacitive height sensing and crash protection
110 m/min X-Y positioning speed and a 35 sec. table changeover

Limitations

Z-axis travel is 80 mm (3.1 in), so the machine is limited to flat sheet
Positioning accuracy of +/- 0.10 mm and repeatability of +/- 0.05 mm are looser than the +/- 0.050 mm and +/- 0.025 mm LVD lists for the Puma 3015
Top source is 12 kW; the 20 kW option LVD offers on the Puma 3015 is not listed here
Published dimensions and the 6,000 kg weight cover the local-cover version only and exclude light guards, filter and chiller

Best For

Bringing laser cutting in-house on sheets up to 3,050 x 1,525 mm Mild steel to 15 mm with the 3 kW source or 30 mm with 12 kW Shops with limited floor space choosing the single-table, local-cover version Higher volumes on the shuttle-table version with LA load automation

Frequently Asked Questions

01 What sheet size does the LaserTWO 3015 take?

The maximum sheet is 3,050 x 1,525 mm (120.1 x 60.0 in), with 3,100 mm of X travel and 1,560 mm of Y travel. The table is rated for 900 kg (1,984 lb). For larger sheets LVD lists the LaserTWO 4020 at 4,050 x 2,035 mm (159.4 x 80.1 in).

02 What is the difference between local covers and full covers?

LVD offers two versions. The local-cover machine has a single table and is the simpler of the two. The full-cover machine has integrated shuttle tables, which shorten loading and unloading, and it can be combined with LA load automation. The published dimensions (5,000 x 2,900 x 1,780 mm) are for the local-cover version.

03 How thick can it cut?

It depends on the source. LVD's table gives mild steel at 15 mm with 3 kW, 25 mm with 6 kW and 30 mm with 12 kW. Stainless steel and aluminium are 12 mm, 25 mm and 30 mm at the same three powers. Copper is 6 mm, 8 mm and 15 mm; brass is 5 mm, 8 mm and 15 mm.

04 How accurate is it?

LVD lists positioning accuracy of +/- 0.10 mm and repetitive accuracy of +/- 0.05 mm. The maker notes that achievable workpiece accuracy depends on the type of workpiece, its pre-treatment and the sheet size, and quotes the figures according to VDI/DGQ 3441.

05 Can it cut with compressed air?

Yes, as an option. LVD lists compressed air cutting for the LaserTWO and describes it as an economical route to low-oxidation cutting. The other listed option is MOVit Load-Assist automation, which transfers unprocessed sheets to a LaserTWO with a shuttle bed.
