LVD Strippit P-1212

Q: How much does the LVD Strippit P-1212 cost?

The price estimate for the LVD Strippit P-1212 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/lvd-strippit-p-1212#price; the request is passed to LVD or an authorised dealer.

Specs verified 2026-10-05 · lvdgroup.com Updated 2026-10-05

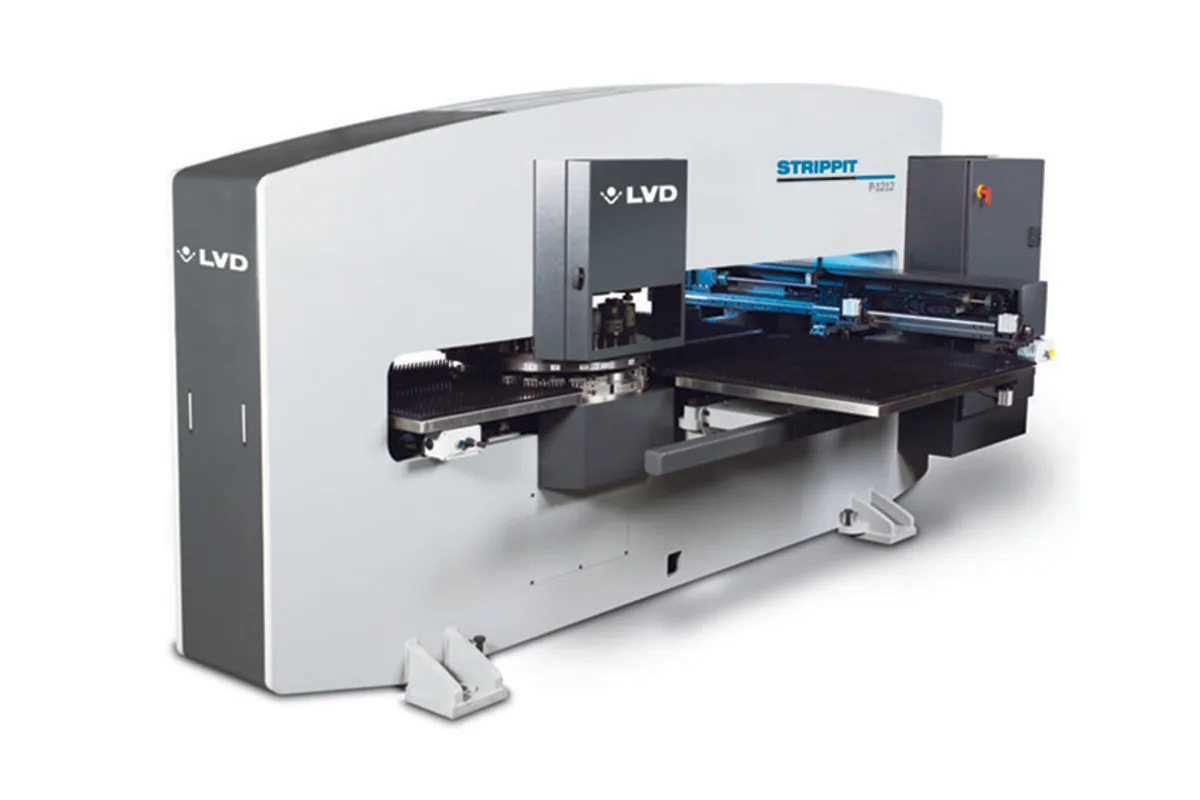

Image: lvdgroup.com, LVD

Key Specifications

Repeatability

± 0.05 mm

punching force

200 kN

max sheet thickness

6.35 mm (0.25 in)

punching accuracy

± 0.1 mm

max hit rate 1mm

650 HPM at 1 mm pitch

max hit rate 25mm

300 HPM at 25.4 mm pitch

How much does the LVD Strippit P-1212 cost?

Price estimate

Uncertain

We do not have a price for the LVD Strippit P-1212 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The LVD Strippit P-1212 is the smallest format in LVD's Strippit P line: a 200 kN turret punch press with a 33-station turret and a nominal worksheet of 1,250 x 1,250 mm (49.2 x 49.2 in). LVD positions the P line for prototyping, short runs and cell manufacturing, and the square-format table fits that brief. It is sized for blanks and cut-down sheet, not full-length stock; the Strippit P-1225 doubles the length to 2,500 mm for that.

The turret has two 88.9 mm stations and three 50.8 mm stations among its 33, and every station accepts shaped or round punches and dies. The three 50.8 mm stations are the auto-index stations. Die holders are quick-change, with LVD quoting 15 seconds for a die change, which counts for more than hit rate when batches are small.

Hit rates are 650 HPM at 1 mm pitch and 300 HPM at 25.4 mm pitch. Combined X-Y positioning speed is 82 m/min and a tool change takes 1 sec. Material up to 6.35 mm (0.25 in) can be punched, and the 25 mm (1.0 in) feed clearance leaves room for formed features. Stated punching accuracy is ± 0.1 mm, repeatability ± 0.05 mm.

The control is a Fanuc unit, listed as OiPD in the specification table, with a self-prompting colour display. There are two work clamps and, unlike the longer P models, no optional third clamp is listed. The brush table takes up to 79 kg (174 lb) at reduced speed.

No MOVit automation is marked for this machine; the only entry in that list is the tool lubrication system. Standby consumption is 3.0 kW, against an average of 6.6 kW in operation.

Full Specifications

Parameter	Value
Punching Force	200 kN
Max Sheet Thickness	6.35 mm (0.25 in)
Punching Accuracy	± 0.1 mm
Repeatability	± 0.05 mm
Max Hit Rate 1mm	650 HPM at 1 mm pitch
Max Hit Rate 25mm	300 HPM at 25.4 mm pitch
Feed Clearance	25 mm (1.0 in)
Max Sheet Size	1,250 x 1,250 mm (49.2 x 49.2 in)
Max Sheet Weight	up to 79 kg (174 lb) on the brush table, at reduced speed
Work Clamps	2
Turret Stations	33 stations
Auto Index Stations	3C - Ø 50.8 mm
Angular Positioning Accuracy	± 0.05 degrees
CNC Control	Fanuc OiPD
Max Positioning Speed	82 m/min.
Tool Change Time	1 sec.
Power Consumption	6.6 kW
Standby Power	3.0 kW
Automation Options	Tool lubrication system

Specifications sourced from lvdgroup.com — verified 2026-10-05

Strengths & Limitations

Strengths

Compact 1,250 x 1,250 mm (49.2 x 49.2 in) format for blanks, prototypes and short runs
33-station turret with two 88.9 mm and three 50.8 mm stations, all accepting shaped tooling
Quick-change die holders with a 15 seconds die change
Fanuc control with a self-prompting colour display
Punches material up to 6.35 mm (0.25 in) with 200 kN

Limitations

Worksheet length is 1,250 mm; the Strippit P-1225 takes 2,500 mm
650 HPM at 1 mm pitch and 82 m/min are below the 850 HPM and 96 m/min of the Strippit M-1225
No MOVit automation option is marked for the P line
Standby power is 3.0 kW, more than three times the 0.9 kW of the Strippit M-1225
Only two work clamps, with no third clamp option on this size

Best For

Prototyping and short-run punching Blanks and cut sheet up to 1,250 x 1,250 mm Cell manufacturing, the use LVD names for the P line Work with frequent die changes

Frequently Asked Questions

01 What is the sheet capacity of the Strippit P-1212?

The nominal worksheet size is 1,250 x 1,250 mm (49.2 x 49.2 in) and the maximum material thickness is 6.35 mm (0.25 in). The brush table carries up to 79 kg (174 lb) at reduced speed. For longer sheet LVD lists the Strippit P-1225 at 1,250 x 2,500 mm.

02 Which stations auto-index?

LVD's table gives the auto-index stations as 3C - Ø 50.8 mm, that is the three 50.8 mm stations. The turret also has two 88.9 mm stations, and all 33 stations take shaped or round punches and dies. Angular positioning accuracy is ± 0.05 degrees.

03 What control does it use?

A Fanuc CNC. The specification table lists it as Fanuc OiPD, while the feature text on the same page calls it the Fanuc 0iP control; both describe a control with a self-prompting colour display. Programs are prepared in CADMAN-P, which handles punch sequencing, tool selection and clamp positioning.

04 How fast is it?

650 HPM at 1 mm pitch and 300 HPM at 25.4 mm pitch, with 82 m/min combined X-Y positioning and a 1 sec. tool change. LVD lists no marking rate for the P line. Die changes are quoted at 15 seconds with the quick-change die holders.

05 Is the Strippit P-1212 suitable for automation?

LVD does not mark any MOVit automation system for it: load/unload, Compact Tower, bin sort and robot pick/sort are all shown as not available in the table. The one listed item is the ABS automatic tool lubrication system, which is an option.
