LVD Strippit M-1525

Q: How much does the LVD Strippit M-1525 cost?

The price estimate for the LVD Strippit M-1525 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/lvd-strippit-m-1525#price; the request is passed to LVD or an authorised dealer.

Specs verified 2026-10-05 · lvdgroup.com Updated 2026-10-05

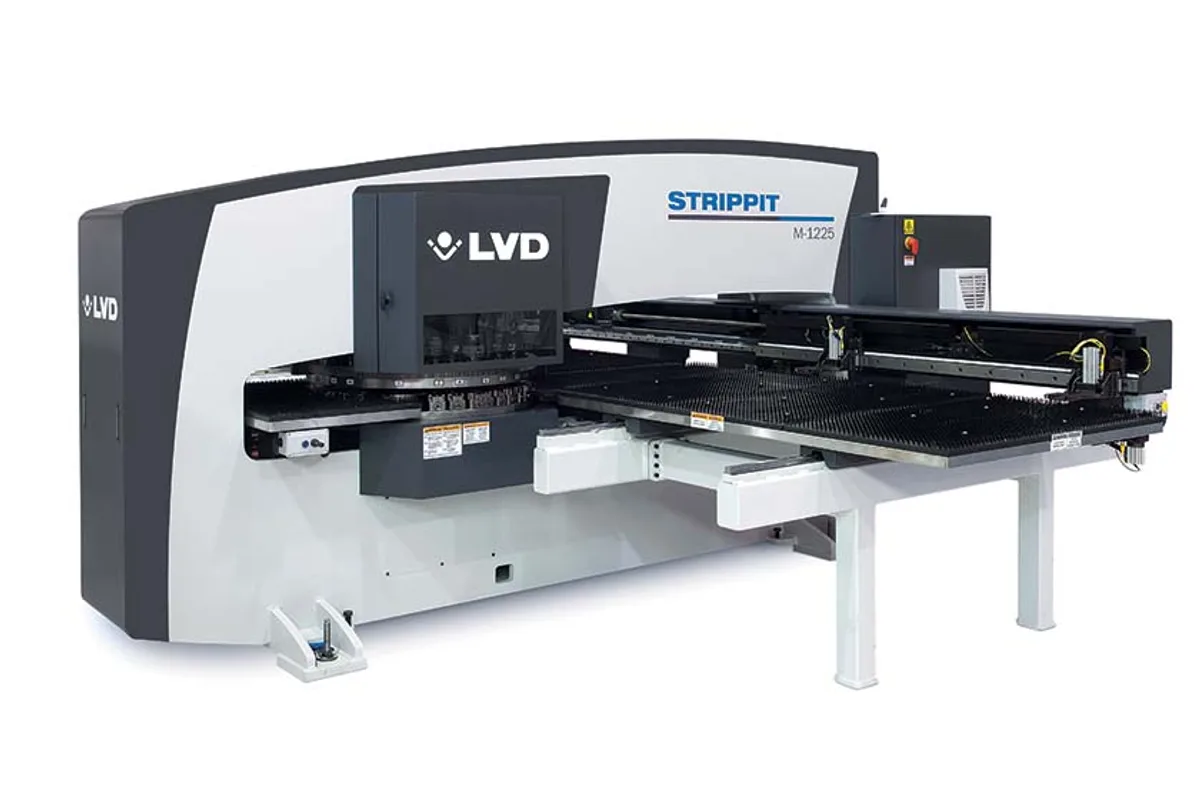

LVD Strippit M series turret punch press

Image: lvdgroup.com, LVD

Key Specifications

Repeatability

± 0.05 mm

punching force

200 kN

max sheet thickness

6.35 mm (0.25 in)

punching accuracy

± 0.1 mm

max hit rate 1mm

850 HPM at 1 mm pitch

max hit rate 25mm

400 HPM at 25.4 mm pitch

How much does the LVD Strippit M-1525 cost?

Price estimate

Uncertain

We do not have a price for the LVD Strippit M-1525 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Sheet 1,524 mm (60.0 in) wide is the case for the LVD Strippit M-1525. Its nominal worksheet is 1,524 x 2,500 mm (60.0 x 98.4 in), wider than the 1,250 mm of the Strippit M-1225 and otherwise the same machine: 200 kN of punching force, a 47-station turret and material up to 6.35 mm (0.25 in).

Where it sits in LVD's turret range is easiest to see against the simpler P line. The Strippit P-1225 has 33 stations, 650 HPM at 1 mm pitch and 82 m/min positioning. This machine offers 47 stations, 850 HPM at the same pitch and 96 m/min, and it adds a marking rate of 1700 HPM. It also draws 0.9 kW on standby, where the Strippit P-1225 draws 3.0 kW. LVD attributes the low draw to its Energy reduction system and puts the saving at up to 15% against comparable machines.

Three of the 47 stations are 88.9 mm auto-index stations, and these take indexable multitools; with them the tool count can reach 68. Feed clearance is 25 mm (1.0 in). On a wide sheet the practical limit is often the clamps, not the turret: two work clamps are standard, and the optional third, programmable clamp lets the machine relocate the work automatically so more of the sheet can be reached. Smart Clamp locates the clamps itself and keeps the no-punch zones as small as the tooling allows.

The brush table is rated for up to 110 kg (243 lb) at reduced speed, the same as on the narrower model, so a full-width sheet in heavy gauge may exceed it. That is where the optional steel ball and brush combination table comes in. Accuracy is stated as ± 0.1 mm, with ± 0.05 mm repeatability.

Full Specifications

Parameter	Value
Punching Force	200 kN
Max Sheet Thickness	6.35 mm (0.25 in)
Punching Accuracy	± 0.1 mm
Repeatability	± 0.05 mm
Max Hit Rate 1mm	850 HPM at 1 mm pitch
Max Hit Rate 25mm	400 HPM at 25.4 mm pitch
Marking Rate	1700 HPM
Feed Clearance	25 mm (1.0 in)
Max Sheet Size	1,524 x 2,500 mm (60.0 x 98.4 in)
Max Sheet Weight	up to 110 kg (243 lb) on the brush table, at reduced speed
Work Clamps	2 (optional 3rd clamp)
Turret Stations	47 stations
Auto Index Stations	3D - Ø 88.9 mm
Max Tool Capacity	68 with Multi-Tool
Angular Positioning Accuracy	± 0.05 degrees
CNC Control	Touch-P
Max Positioning Speed	96 m/min.
Tool Change Time	0.8 sec.
Power Consumption	6.7 kW
Standby Power	0.9 kW
Automation Options	Automatic load/unload (PA), Compact Tower (CT-P), Robot pick/sort, Lubrication system

Specifications sourced from lvdgroup.com — verified 2026-10-05

Strengths & Limitations

Strengths

Takes 1,524 x 2,500 mm (60.0 x 98.4 in) sheet with the same 47-station turret as the Strippit M-1225
Up to 68 tools with multitools in the three 88.9 mm auto-index stations
850 HPM at 1 mm pitch and 1700 HPM marking, with a 0.8 sec. tool change
Standby consumption of 0.9 kW; LVD claims up to 15% less electrical power than comparable machines
Smart Stroke and Smart Clamp set hover height and clamp positions without program codes

Limitations

Brush table rating stays at 110 kg (243 lb) on the wider sheet
Third work clamp, combination table and ABS tool lubrication are options
Positioning speed of 96 m/min is well short of the 161 m/min of the Strippit VX-1225
LVD's table lists no work chute for parts removal

Best For

1,524 mm wide sheet up to 6.35 mm thick Jobs with large tool inventories kept in a 47-station turret Louvers, lances and other forms within 25 mm feed clearance Operation with a Compact Tower or automatic load/unload

Frequently Asked Questions

01 What sheet does the Strippit M-1525 take?

A nominal worksheet of 1,524 x 2,500 mm (60.0 x 98.4 in), in material up to 6.35 mm (0.25 in) thick. The brush table carries up to 110 kg (243 lb) at reduced speed; LVD offers a steel ball and brush combination table for heavier sheets.

02 Why would I add the third work clamp?

Two clamps are standard. LVD offers a third programmable clamp on this model, and with it the work can be relocated automatically for better sheet utilization. Together with Smart Clamp, which detects clamp locations and minimises the no-punch zones, it reduces the material lost around the clamps.

03 How does it compare with the Strippit P-1225?

The Strippit M-1525 has 47 turret stations, 850 HPM at 1 mm pitch and 96 m/min positioning. The Strippit P-1225 has 33 stations, 650 HPM and 82 m/min, on a narrower 1,250 x 2,500 mm sheet. Both are 200 kN machines for material up to 6.35 mm.

04 How much power does it use?

LVD lists an average consumption of 6.7 kW and 0.9 kW in standby. The maker states that its Energy reduction system lets Strippit M punch presses use up to 15% less electrical power than comparable machines.

05 Can it be automated?

Yes, within limits. The specification marks automatic load/unload (PA), the Compact Tower (CT-P) and robot pick/sort as available for the Strippit M-1525. Flexible Automation, bin sort and the tower and warehouse systems are not marked for this model.
