LVD Strippit V-30 1250

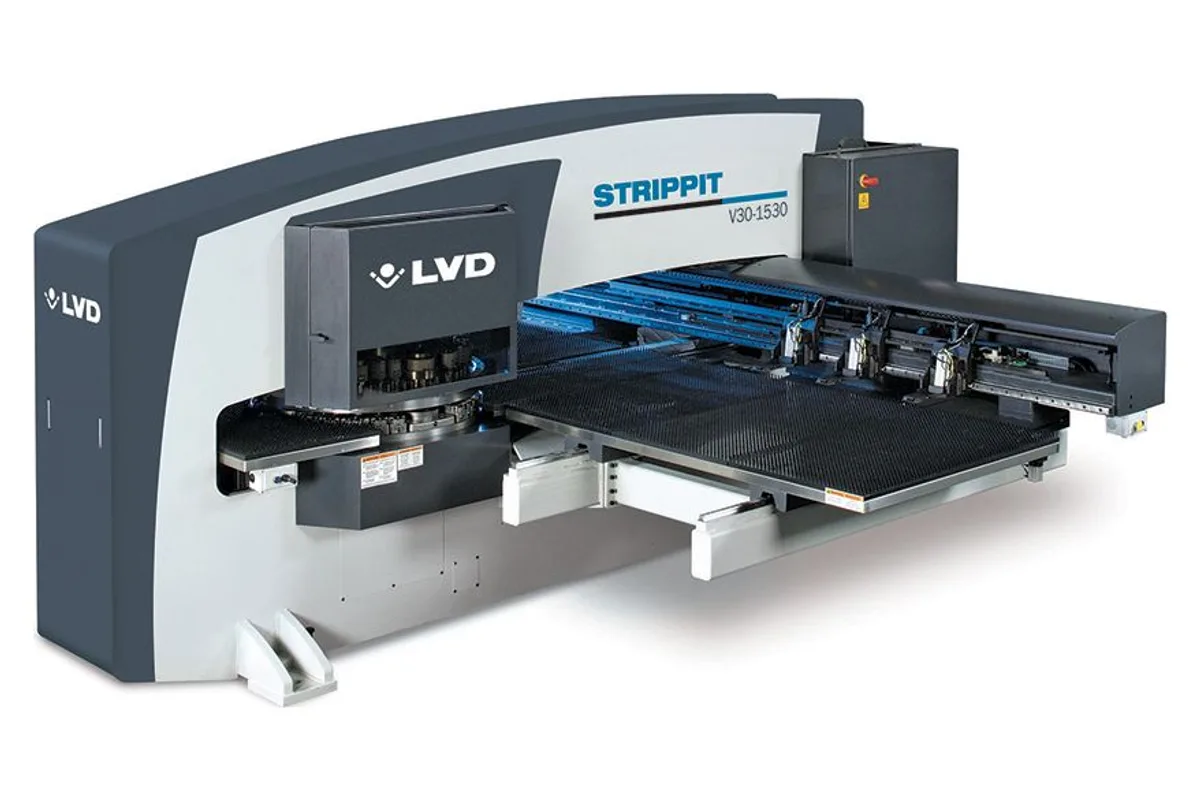

Image: lvdgroup.com, LVD
Key Specifications
Accuracy
Repeatability
turret stations
max sheet size
max sheet thickness mild steel
max sheet thickness stainless
How much does the LVD Strippit V-30 1250 cost?
Estimated price range
Our best estimate for a cnc punch presse in this class — not a quote from LVD. Configuration moves it a long way.
Overview
With 48 turret stations and the Touch-P control, the LVD Strippit V-30 1250 is a turret punch press for 1,250 × 2,500 mm (49.2 × 98.4 in) sheet. LVD lists 900 HPM at one-millimetre pitch and 440 HPM at 25-millimetre pitch, a marking rate of 1,750 HPM and positioning at up to 128 m/min.
Thickness capacity is 6.35 mm (0.25 in) in mild steel and 4 mm (0.16 in) in stainless. The lower stainless figure follows from the material's strength: the same punch needs more force, so the limit arrives at a thinner gauge. Maximum sheet weight is up to 150 kg. A full-size mild steel sheet at the thickness limit sits right around that weight, so weigh up the heaviest blank before assuming it can be loaded.
Four of the 48 stations are auto-index stations in D size, Ø 88.9 mm. That lets large shaped punches be turned to any programmed angle. Tool change time is 0.8 sec., which counts on parts that cycle through many tools.
The Strippit P4-1525 is the slower and smaller-turret alternative, listed with 33 stations, 650 HPM at one-millimetre pitch and 82 m/min positioning. The Strippit VX 1530 shares the 48-station turret and Touch-P control and takes a larger sheet, 1,524 × 3,048 mm (60.0 × 120 in), with positioning at up to 161 m/min. On the V-30, accuracy is ± 0.1 mm with ± 0.05 mm repeatability and power consumption is 6.7 kW.
Full Specifications
| Parameter | Value |
|---|---|
| Turret Stations | 48 stations |
| Max Sheet Size | 1,250 × 2,500 mm (49.2 × 98.4 in) |
| Max Sheet Thickness Mild Steel | 6.35 mm (0.25 in) |
| Max Sheet Thickness Stainless | 4 mm (0.16 in) |
| Positioning Accuracy | ± 0.1 mm |
| CNC Control | Touch-P |
| Maximum Thickness | 6.35 mm |
| Max Sheet Thickness | 6.35 mm (0.25 in) |
| Repeatability | ± 0.05 mm |
| Max Hit Rate 1mm | 900 HPM |
| Max Hit Rate 25mm | 440 HPM |
| Marking Rate | 1,750 HPM |
| Max Sheet Weight | up to 150 kg |
| Auto Index Stations | 4D - Ø 88.9 mm |
| Max Positioning Speed | 128 m/min. |
| Tool Change Time | 0.8 sec. |
| Power Consumption | 6.7 kW |
Specifications sourced from lvdgroup.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 48-station turret with four D-size auto-index stations at Ø 88.9 mm
- 900 HPM at one-millimetre pitch, 440 HPM at 25-millimetre pitch and 1,750 HPM marking
- 128 m/min maximum positioning speed and a 0.8 sec. tool change
- Sheet weight up to 150 kg, against up to 79 kg on the Strippit P4-1525
- Touch-P control, shared with the Strippit VX 1530
Limitations
- Stainless capacity is 4 mm (0.16 in), well under the 6.35 mm (0.25 in) mild steel limit
- Sheet size stops at 1,250 × 2,500 mm (49.2 × 98.4 in), where the Strippit VX 1530 takes 1,524 × 3,048 mm (60.0 × 120 in)
- Only four of the 48 stations auto-index, so rotating tools have to be planned around them
Best For
Frequently Asked Questions
01
LVD lists 6.35 mm (0.25 in) in mild steel and 4 mm (0.16 in) in stainless. Maximum sheet weight is up to 150 kg. Force demand rises with material strength and punch perimeter, so large punches in stainless reach the limit before the thickness figure does.
02
900 HPM at one-millimetre pitch and 440 HPM at 25-millimetre pitch, with a marking rate of 1,750 HPM. Maximum positioning speed is 128 m/min and tool change time is 0.8 sec.
03
Four. The auto-index stations are listed as 4D, Ø 88.9 mm, meaning four D-size stations that rotate the tool to a programmed angle. The remaining stations hold tools at a fixed orientation, so shaped punches needed at several angles should be assigned to the D stations.
04
Both have 48 stations, the Touch-P control, 6.35 mm (0.25 in) maximum thickness and a 0.8 sec. tool change. The Strippit VX 1530 takes a 1,524 × 3,048 mm (60.0 × 120 in) sheet and positions at up to 161 m/min, with hit rates of 920 HPM and 530 HPM. The Strippit V-30 1250 takes 1,250 × 2,500 mm (49.2 × 98.4 in), positions at 128 m/min and is listed at 900 HPM and 440 HPM.
