LVD Strippit V30-1530

Q: How much does the LVD Strippit V30-1530 cost?

The price estimate for the LVD Strippit V30-1530 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/lvd-strippit-v30-1530#price; the request is passed to LVD or an authorised dealer.

Specs verified 2026-10-05 · lvdgroup.com Updated 2026-10-05

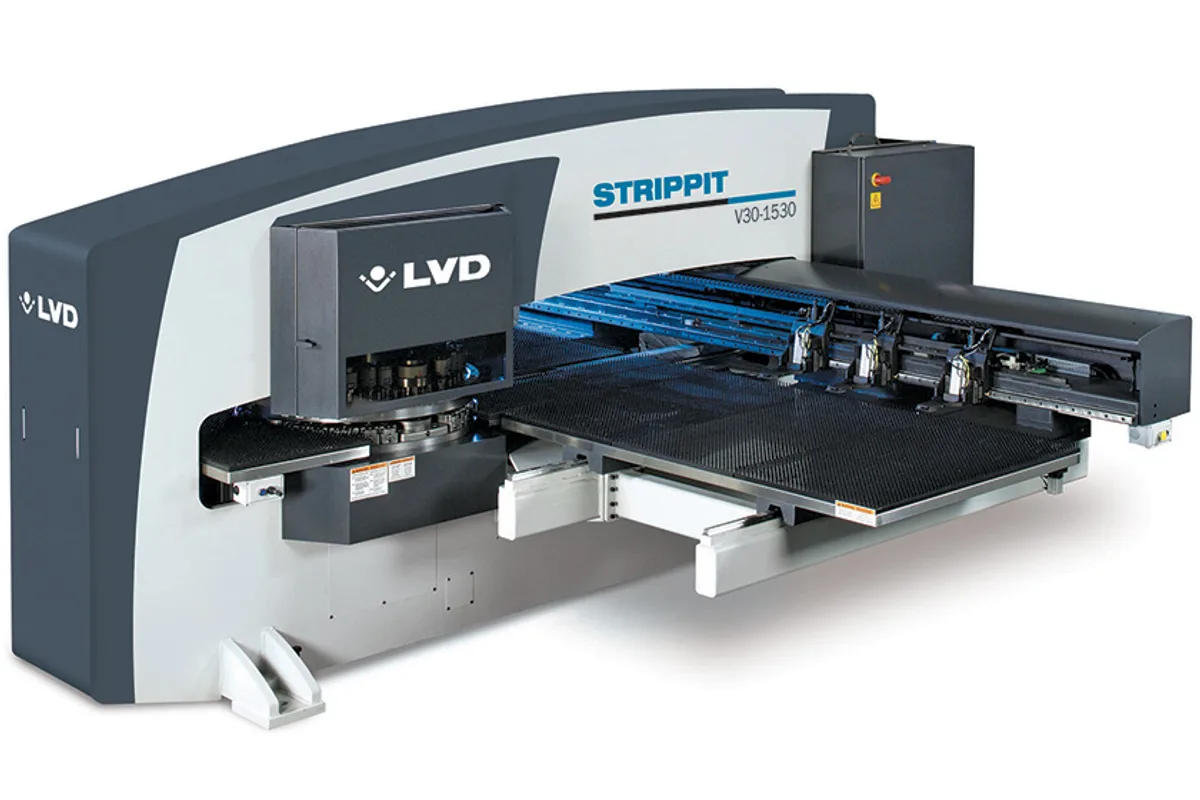

LVD Strippit V30-1530 turret punch press

Image: lvdgroup.com, LVD

Key Specifications

Repeatability

± 0.05 mm

punching force

300 kN

max sheet thickness

6.35 mm (0.25 in)

punching accuracy

± 0.1 mm

max hit rate 1mm

900 HPM at 1 mm pitch

max hit rate 25mm

440 HPM at 25.4 mm pitch

How much does the LVD Strippit V30-1530 cost?

Price estimate

Uncertain

We do not have a price for the LVD Strippit V30-1530 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The LVD Strippit V30-1530 is the high-tonnage machine in LVD's turret range: 300 kN, which LVD rounds to 30 tons, on a 48-station turret and a 1,524 x 3,048 mm (60.0 x 120.0 in) worksheet. The Strippit VX-1225 and Strippit M-1225, by comparison, are rated at 200 kN.

Tonnage is what is being bought here, and it is worth being exact about what it changes. The maximum material thickness is 6.35 mm (0.25 in), the same as on the 200 kN Strippit VX-1225. The extra force is headroom for larger punches, tougher materials and forming tools within that thickness, not permission to punch thicker plate.

The frame is a bridge type machined as one piece and stress-relieved. Four of the 48 stations are 88.9 mm auto-index stations, and with multitools the tool capacity reaches 76. Hit rates are 900 HPM at 1 mm pitch, 440 HPM at 25.4 mm pitch and 1750 HPM in marking, with 128 m/min combined positioning speed and a 0.8 sec. tool change. The Strippit VX-1225 is quicker in hit rate and positioning, so the V30 trades some speed for force.

Handling suits the full-size sheet. Three CNC work clamps relocate themselves during the cycle so the whole sheet can be reached, and a programmable chute removes parts up to 450 x 500 mm (17.7 x 19.7 in) under the table or to an optional bin-sort system. The brush table carries up to 150 kg (331 lb) at reduced speed. Automatic load/unload, the Compact Tower, bin sort and robot pick/sort are marked as available.

Full Specifications

Parameter	Value
Punching Force	300 kN
Max Sheet Thickness	6.35 mm (0.25 in)
Punching Accuracy	± 0.1 mm
Repeatability	± 0.05 mm
Max Hit Rate 1mm	900 HPM at 1 mm pitch
Max Hit Rate 25mm	440 HPM at 25.4 mm pitch
Marking Rate	1750 HPM
Feed Clearance	25 mm (1.0 in)
Max Sheet Size	1,524 x 3,048 mm (60.0 x 120.0 in)
Max Sheet Weight	up to 150 kg (331 lb) on the brush table, at reduced speed
Work Chute	450 x 500 mm (17.7 x 19.7 in)
Work Clamps	3 CNC relocatable part pull out sensor
Turret Stations	48 stations
Auto Index Stations	4D - Ø 88.9 mm
Max Tool Capacity	76 with Multi-Tool
Angular Positioning Accuracy	± 0.05 degrees
CNC Control	Touch-P
Max Positioning Speed	128 m/min.
Tool Change Time	0.8 sec.
Power Consumption	6.7 kW
Standby Power	0.9 kW
Automation Options	Automatic load/unload (PA), Compact Tower (CT-P), Bin sort, Robot pick/sort, Lubrication system

Specifications sourced from lvdgroup.com — verified 2026-10-05

Strengths & Limitations

Strengths

300 kN punching force, described by LVD as 30 tons, for heavy-duty punching
48-station turret with four 88.9 mm auto-index stations and up to 76 tools with multitools
Full 1,524 x 3,048 mm (60.0 x 120.0 in) sheet with three CNC relocatable work clamps
Programmable parts chute for parts up to 450 x 500 mm (17.7 x 19.7 in)
One-piece, stress-relieved bridge frame

Limitations

Material thickness limit is 6.35 mm (0.25 in), no more than the 200 kN Strippit VX-1225
128 m/min positioning and 440 HPM at 25.4 mm pitch trail the 161 m/min and 530 HPM of the Strippit VX-1225
Brush table load of 150 kg (331 lb) applies at reduced speed
Flexible Automation, tower and warehouse systems are not marked as available in the table

Best For

Heavy-duty punching that needs 300 kN Full sheets up to 1,524 x 3,048 mm Complex parts needing a large tool inventory in the turret Cells with bin sort or robot pick/sort

Frequently Asked Questions

01 What does the higher punching force of the Strippit V30-1530 give me?

Force, not thickness. The machine is rated at 300 kN, which LVD calls 30 tons, while the Strippit VX-1225 and Strippit M-1225 are rated at 200 kN. All three share the same 6.35 mm (0.25 in) maximum material thickness. The additional force is useful for large punches and forming tools and for stronger materials within that limit.

02 How large a sheet and part can it handle?

The nominal worksheet is 1,524 x 3,048 mm (60.0 x 120.0 in). The brush table takes up to 150 kg (331 lb) at reduced speed. Finished parts up to 450 x 500 mm (17.7 x 19.7 in) leave through the programmable chute, either into a bin under the table or to an optional bin-sort system.

03 How is the turret configured?

48 stations, of which four are 88.9 mm auto-index stations (4D - Ø 88.9 mm in LVD's table). Multitools raise the maximum tool capacity to 76. Angular positioning accuracy of the indexing stations is ± 0.05 degrees, and a tool change takes 0.8 sec.

04 How fast is it?

900 HPM at 1 mm pitch, 440 HPM at 25.4 mm pitch and 1750 HPM in marking. Combined X-Y positioning speed is 128 m/min. Smart Stroke sets the tool hover height automatically to keep the rate as high as the tooling and material allow.

05 What automation does LVD list for it?

Automatic load/unload (PA), the Compact Tower (CT-P), bin sort and robot pick/sort are marked as available, along with a lubrication system. A parts conveyor and a rotary bin sort appear among the options. The control is LVD's Touch-P touch screen.
