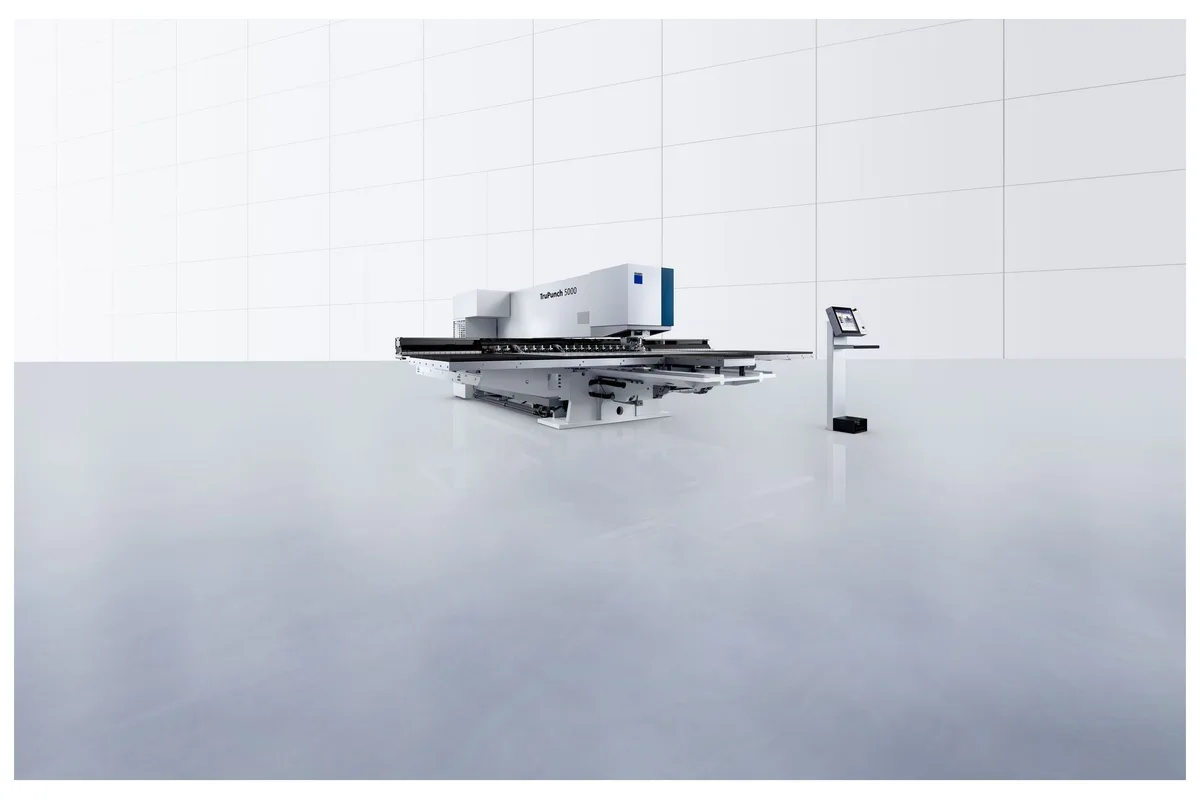

TRUMPF TruPunch 5000 CNC Punch Press

The TRUMPF TruPunch 5000 is the flagship servo-electric turret punch press in TRUMPF's TruPunch line, engineered for high-productivity sheet metal fabrication in enclosure manufacturing, appliance production, electrical panel fabrication, and precision component industries requiring maximum throughput with full automation capability. The machine delivers 20 tons of punch force across a 1500×3000 mm work area that handles full 4×10-foot sheet sizes without repositioning, making it equally effective as a standalone workcell or as the punching station in a fully automated FMC line.

The TruPunch 5000's defining feature is TRUMPF's MultiTool system, where a single 2-inch turret station houses a cartridge containing up to 12 different punch-and-die pairs. With 40 turret stations and MultiTool installed throughout, the effective tool inventory reaches 480 unique tools — accessible without manual changeovers during the program. This architecture is transformative for complex parts with many different hole forms, notches, and embosses: what would require multiple setups on a conventional turret press runs in a single uninterrupted program on the TruPunch 5000. The High Performance (HP) punch head option raises the maximum stroke rate to 1,000 hits per minute for nibbling and contour cutting applications.

Automation is central to the TruPunch 5000's value proposition. The optional SheetMaster automated loader/unloader integrates directly with the machine control to enable lights-out production: sheets are automatically loaded from a tower magazine, and punched parts are sorted and stacked by the handling system without operator intervention. TRUMPF's TruTops Punch offline programming software with full 3D sheet simulation allows complete program development and validation away from the machine, eliminating prove-out time and reducing scrap. Programs transfer directly via network connection for immediate production start.

The TruPunch 5000 is designed as a node in TRUMPF's broader FMC ecosystem. It integrates with TruLaser fiber laser cutters, TruBend press brakes, and TruStore material handling towers through a shared software and automation framework. For sheet metal job shops and OEM fabricators who run TRUMPF laser and bending equipment, the TruPunch 5000 extends the automation capability to the punching operation, enabling complete sheet-to-finished-part production with minimal manual intervention. TRUMPF's global service network and the TruConnect remote monitoring platform provide production support across the machine's lifecycle.
