LVD Strippit P-1225

Q: How much does the LVD Strippit P-1225 cost?

The price estimate for the LVD Strippit P-1225 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/lvd-strippit-p-1225#price; the request is passed to LVD or an authorised dealer.

Specs verified 2026-10-05 · lvdgroup.com Updated 2026-10-05

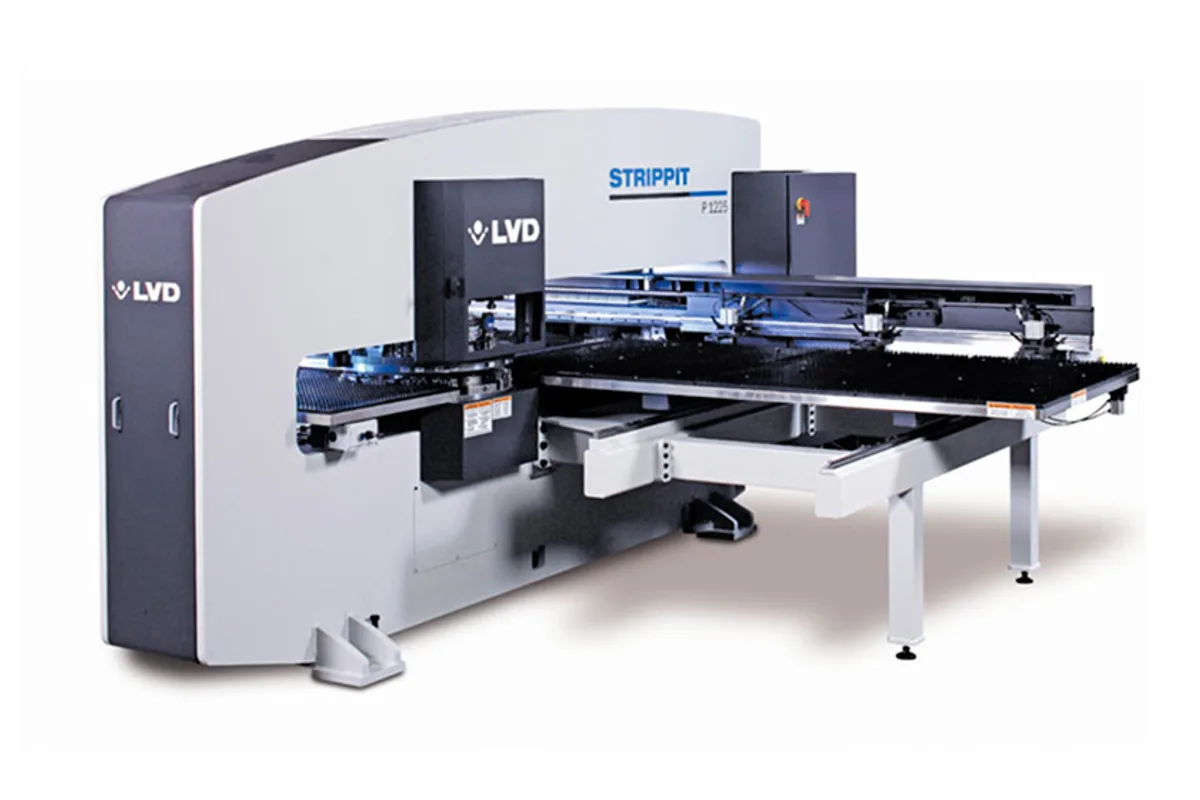

Image: lvdgroup.com, LVD

Key Specifications

Repeatability

± 0.05 mm

punching force

200 kN

max sheet thickness

6.35 mm (0.25 in)

punching accuracy

± 0.1 mm

max hit rate 1mm

650 HPM at 1 mm pitch

max hit rate 25mm

300 HPM at 25.4 mm pitch

How much does the LVD Strippit P-1225 cost?

Price estimate

Uncertain

We do not have a price for the LVD Strippit P-1225 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

For 1,250 x 2,500 mm (49.2 x 98.4 in) sheet LVD offers two turret machines of the same 200 kN force, and the LVD Strippit P-1225 is the simpler of them. It has a 33-station turret and a Fanuc control, and LVD describes the line as cost-effective punching for prototyping, short runs and cell manufacturing.

The alternative on this sheet size is the Strippit M-1225, with 47 stations, 850 HPM at 1 mm pitch and 96 m/min positioning. The P-1225 is listed at 650 HPM at 1 mm pitch, 300 HPM at 25.4 mm pitch and 82 m/min. No marking rate is given for it, and its tool change is 1 sec. Whether the difference matters depends on batch size: on short runs, setup dominates, and here the quick-change die holders, with a die change quoted at 15 seconds, do more for output than hit rate.

Turret layout is two 88.9 mm stations and three 50.8 mm stations, the latter auto-indexing, within the 33. Shaped or round tooling fits every station. A 25 mm (1.0 in) feed clearance between upper and lower turret allows forming, and thickness capacity is 6.35 mm (0.25 in).

Compared with the Strippit P-1212, this model doubles the sheet length and adds the option of a third work clamp to the two supplied. Table load is unchanged at up to 79 kg (174 lb) on the brush table at reduced speed, which a full sheet of thicker material can exceed. LVD marks no MOVit loading or storage system as available for the P line, so plan on manual loading.

Full Specifications

Parameter	Value
Punching Force	200 kN
Max Sheet Thickness	6.35 mm (0.25 in)
Punching Accuracy	± 0.1 mm
Repeatability	± 0.05 mm
Max Hit Rate 1mm	650 HPM at 1 mm pitch
Max Hit Rate 25mm	300 HPM at 25.4 mm pitch
Feed Clearance	25 mm (1.0 in)
Max Sheet Size	1,250 x 2,500 mm (49.2 x 98.4 in)
Max Sheet Weight	up to 79 kg (174 lb) on the brush table, at reduced speed
Work Clamps	2 (optional 3rd clamp)
Turret Stations	33 stations
Auto Index Stations	3C - Ø 50.8 mm
Angular Positioning Accuracy	± 0.05 degrees
CNC Control	Fanuc OiPD
Max Positioning Speed	82 m/min.
Tool Change Time	1 sec.
Power Consumption	6.6 kW
Standby Power	3.0 kW
Automation Options	Tool lubrication system

Specifications sourced from lvdgroup.com — verified 2026-10-05

Strengths & Limitations

Strengths

Full 1,250 x 2,500 mm (49.2 x 98.4 in) worksheet on LVD's simplest turret line
Quick-change die holders: die changes of 15 seconds
Optional third work clamp, which the Strippit P-1212 does not offer
25 mm (1.0 in) feed clearance for forming
All 33 stations accept shaped or round punches and dies

Limitations

33 stations against the 47 of the Strippit M-1225 on the same sheet size
No marking rate listed, and 650 HPM at 1 mm pitch is below the 850 HPM of the Strippit M-1225
Brush table limited to 79 kg (174 lb) at reduced speed
No MOVit load/unload, tower or sorting option is marked as available
3.0 kW standby consumption

Best For

Short runs and prototypes on 1,250 x 2,500 mm sheet Shops that change dies often and value 15 seconds changeovers Manually loaded punching cells Simple punched and formed parts up to 6.35 mm thick

Frequently Asked Questions

01 Strippit P-1225 or Strippit M-1225: which fits my work?

Both punch 1,250 x 2,500 mm sheet up to 6.35 mm with 200 kN. The Strippit M-1225 has 47 stations, 850 HPM at 1 mm pitch, 96 m/min positioning and automation options. The Strippit P-1225 has 33 stations, 650 HPM and 82 m/min, and no MOVit options. LVD aims the P line at prototyping and short runs, and the M line at long production runs.

02 How many work clamps does it have?

Two as standard, with an optional third clamp on this size. LVD's Smart Clamp function determines the clamp locations from the tool size, which keeps the no-punch zones around the clamps as small as possible and helps sheet usage.

03 What tooling stations does the turret offer?

33 stations in all, among them two 88.9 mm stations and three 50.8 mm stations. The three 50.8 mm stations are the auto-index stations, listed by LVD as 3C - Ø 50.8 mm, with ± 0.05 degrees angular positioning accuracy.

04 How heavy a sheet can the table carry?

Up to 79 kg (174 lb) on the brush table, and LVD notes that this is at reduced speed. The figure is the same for all three P sizes, so on this longer table it is worth checking the weight of full sheets in thicker gauges before committing a job.

05 What accuracy and power figures does LVD give?

Punching accuracy is ± 0.1 mm and repetitive accuracy ± 0.05 mm. Average power consumption is 6.6 kW, with 3.0 kW in standby operation. The control is listed as Fanuc OiPD and the combined X-Y positioning speed as 82 m/min.
