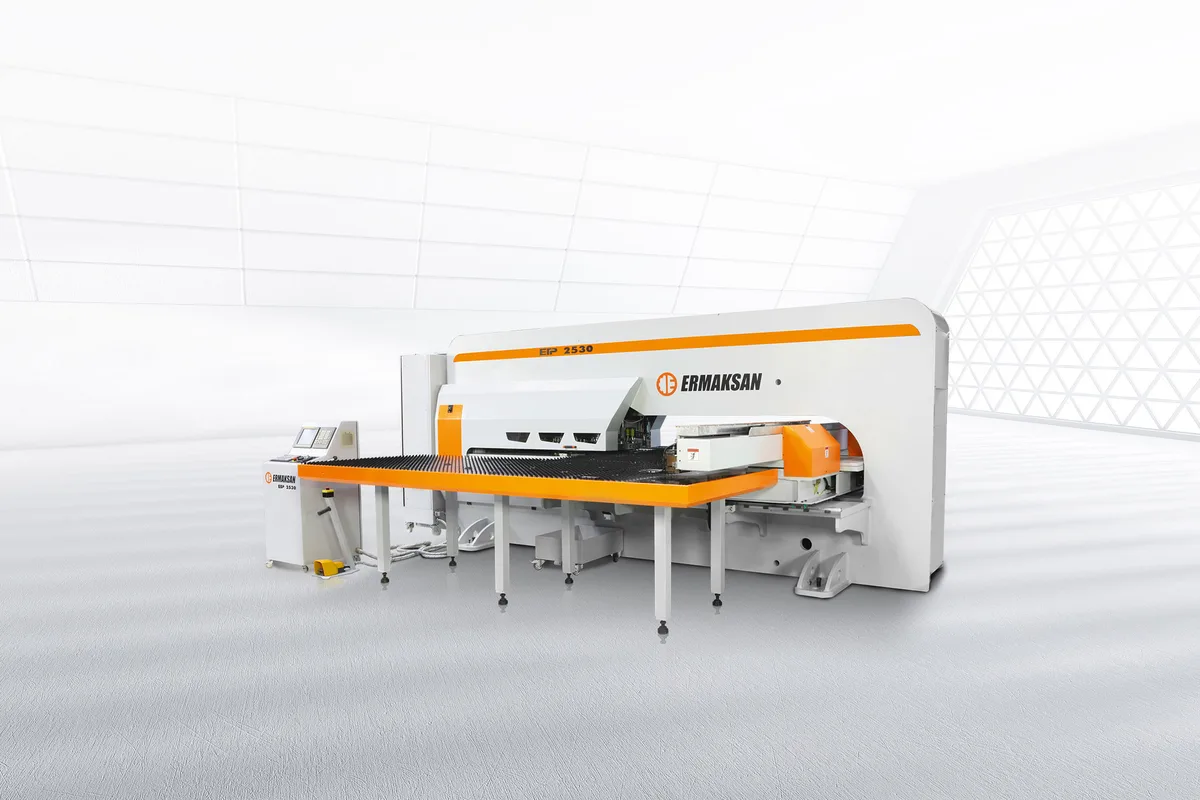

Ermak ETP 1250x2000
Image: ermaksan.com.tr, Ermak
Key Specifications
Accuracy
Repeatability
punching force
max sheet size
turret stations
max punch diameter
How much does the Ermak ETP 1250x2000 cost?
Price estimate
We do not have a price for the Ermak ETP 1250x2000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Smallest in the hydraulic ETP range, the Ermak ETP 1250x2000 is a 20 Ton CNC turret punch press with a sheet capacity of 2,000 x 1,250 mm (78.7 x 49.2 in) and a 27-station turret.
It weighs 14,000 kg (30,864 lb) and occupies 5,140 x 4,290 mm, which makes it the easiest ETP to place. The table is rated for 125 kg (276 lb).
Mechanically it follows the ETP 1250x2500 closely. The axes run at 120 m/min, the turret at 27 rpm, the motor is 7.5 kW (10.1 hp) and the oil capacity 180 lt. Marking is listed at 1,500 strokes/min.
A two-metre X axis does not rule out longer sheets. Ermak's RE-POSITION function moves the clamps so that sheet longer than the X axis is processed without interruption, at the cost of some time per sheet. For a shop whose blanks are mostly small, the short axis is rarely a handicap and the floor space saved is permanent.
Accuracy figures are the same as for the larger machines: ±0.1 mm positioning, ±0.05 mm repeatability and 0.01° on the index stations. Fixed stations punch mild steel to 6.35 mm, auto-index stations to 4 mm.
Full Specifications
| Parameter | Value |
|---|---|
| Punching Force | 20 Ton (22 US tons) |
| Max Sheet Size | 2,000 x 1,250 mm (78.7 x 49.2 in) |
| Turret Stations | 27 |
| Max Punch Diameter | 88.9 mm (3.5 in), single tool in 1 mm sheet |
| X Axis Travel | 2,000 mm (78.7 in) + R |
| X Axis Speed | 120 m/min |
| Y Axis Travel | 1,250 mm (49.2 in) |
| Y Axis Speed | 120 m/min |
| Xy Combined Speed | 170 m/min |
| Turret Rotation Speed | 27 rpm |
| Auto Index Rotation Speed | 65 rpm |
| Punch Rate Marking | 1,500 strokes/min (1 mm stroke) |
| Punch Rate 1 Mm Step | 900 strokes/min (1 mm step in X and Y) |
| Punch Rate 25 Mm Step | 350 strokes/min (25 mm step in X and Y) |
| Max Thickness Fixed Station Mild Steel | 6.35 mm (0.25 in) |
| Max Thickness Fixed Station Stainless Steel | 3 mm (0.12 in) |
| Max Thickness Auto Index Station Mild Steel | 4 mm (0.16 in) |
| Max Thickness Auto Index Station Stainless Steel | 2.5 mm (0.10 in) |
| Repeatability | ±0.05 mm |
| Positioning Accuracy | ±0.1 mm |
| Index Positioning Accuracy | 0.01° |
| Multi Tool Change Time | 3 s |
| Max Sheet Weight | 125 kg (276 lb) |
| Main Motor Power | 7.5 kW (10.1 hp) |
| Oil Capacity | 180 lt |
| Air Pressure | 6 - 7 bar |
| Ram Stroke | 40 mm (1.57 in) |
| Sheet Clamps | 3 |
| Sheet Clamping Force | 1,200 kg (2,646 lb) |
| Power Supply | 25 kW (33.5 hp) |
| Air Supply | 2.5 L/min |
| CNC Control | GE Fanuc 31i-PB with Ermaksan HMI software |
| Press Drive | Voith Turbo H + L Hydraulic |
| Working Height | 950 mm (37.4 in) |
| Table Type | Brush, ball or brush + ball |
| Machine Length | 5,140 mm (202.4 in) |
| Machine Width | 4,290 mm (168.9 in) |
| Machine Height | 2,220 mm (87.4 in) |
| Machine Weight | 14,000 kg (30,864 lb) |
| CAD CAM Software | Metalix |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- Smallest ETP: 5,140 x 4,290 mm and 14,000 kg (30,864 lb)
- 120 m/min axis speed with a 27 rpm turret
- 7.5 kW (10.1 hp) hydraulic motor and 180 lt of oil
- Same ±0.05 mm repeatability as the large models
Limitations
- Sheets over 2,000 mm long need the reposition function
- Maximum sheet weight of 125 kg (276 lb)
- Limited to 20 Ton and 27 stations
- 350 strokes/min at a 25 mm step
Best For
Frequently Asked Questions
01
Machine length is 5,140 mm, width 4,290 mm and height 2,220 mm. It weighs 14,000 kg (30,864 lb), the lowest figure in the ETP table.
02
Up to 2,000 x 1,250 mm (78.7 x 49.2 in) and 125 kg (276 lb) in one clamping. Longer sheets are handled with the reposition function, since X travel is 2,000 mm + R.
03
20 Ton of punching force. Fixed stations take 6.35 mm mild steel or 3 mm stainless steel; auto-index stations take 4 mm mild steel or 2.5 mm stainless steel.
04
Metalix CAD/CAM software is listed in the table, on a GE Fanuc 31i-PB control with Ermaksan HMI software. Auto nesting on the CNC is an option.
