Boschert MultiPunch

Specs verified 2026-10-05 · boschert.de Updated 2026-10-05

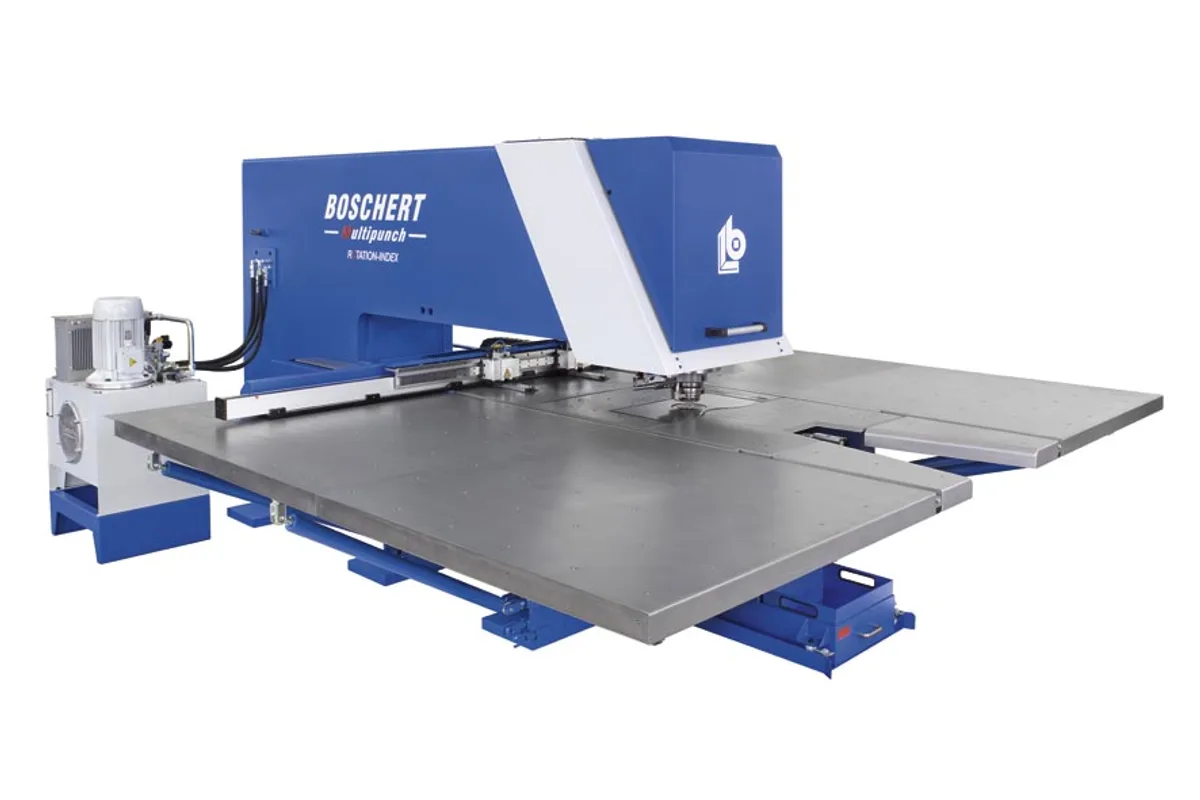

Image: boschert.de, Boschert

Key Specifications

Repeatability

+/- 0.03 mm

working area

Multipunch 1000 x 2000 mm: 1,060 x 2,080 mm (41.7 x 81.9 in); Multipunch 1250 x 2500 mm: 1,310 x 2,580 mm (51.6 x 101.6 in); Multipunch 1500 x 3000 mm: 1,560 x 3,080 mm (61.4 x 121.3 in)

max sheet thickness

7 mm (¼”) or 12.7 mm (½”), by choice of material clamps

max sheet length

9,999 mm (393.7 in) by repositioning

max hydraulic punching power

280 kN

max workpiece weight

200 kg (441 lb)

How much does the Boschert MultiPunch cost?

Price estimate

Uncertain

We do not have a price for the Boschert MultiPunch that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Volume production is the brief for the Boschert MultiPunch. It is a CNC punching machine offered for three sheet formats, with working areas of 1,060 x 2,080 mm, 1,310 x 2,580 mm and 1,560 x 3,080 mm, and it punches with 280 kN.

Its Y axis is the difference you notice in the table. Both axes position at 60 m/min and reach 85 m/min together, whereas the TWIN / TRI lists 30 m/min in Y and 67 m/min combined. On nested sheets with hits spread across the width, the faster Y axis shortens the travel between them.

Boschert builds the machine around multi-tool technology, which it says allows multiple punching operations in a single cycle. Stroke rate is 250 strokes/min with standard hydraulics and 800 strokes/min with the fast unit. Sheet thickness is decided when the material clamps are chosen: either 7 mm or 12.7 mm.

Sheets up to 9,999 mm long are handled by repositioning, and a workpiece may weigh up to 200 kg. Accuracy during punching is given as a positioning difference of +/- 0.10 mm with +/- 0.03 mm repeatability. Depending on size the machine occupies between 6,100 x 5,338 mm and 8,060 x 6,588 mm and weighs 12,500 kg to 15,800 kg. One gap to close with the maker: the table for this model states neither the number of tool stations nor a maximum punch diameter.

Full Specifications

Parameter	Value
Working Area	Multipunch 1000 x 2000 mm: 1,060 x 2,080 mm (41.7 x 81.9 in); Multipunch 1250 x 2500 mm: 1,310 x 2,580 mm (51.6 x 101.6 in); Multipunch 1500 x 3000 mm: 1,560 x 3,080 mm (61.4 x 121.3 in)
Max Sheet Thickness	7 mm (¼”) or 12.7 mm (½”), by choice of material clamps
Max Sheet Length	9,999 mm (393.7 in) by repositioning
Max Hydraulic Punching Power	280 kN
Max Workpiece Weight	200 kg (441 lb)
Max Positioning Speed X	60 m/min
Max Positioning Speed Y	60 m/min
Max Positioning Speed Simultaneous X Y	85 m/min
Max Strokes Standard Hydraulic	250 strokes/min
Max Strokes Fast Hydraulic	800 strokes/min
Positioning Difference Punching	+/- 0.10 mm
Repeatability	+/- 0.03 mm
Machine Dimensions	Multipunch 1000 x 2000: 6,100 x 5,338 x 2,100 mm (240.2 x 210.2 x 82.7 in); 1250 x 2500: 7,000 x 5,963 x 2,100 mm (275.6 x 234.8 x 82.7 in); 1500 x 3000: 8,060 x 6,588 x 2,100 mm (317.3 x 259.4 x 82.7 in)
Machine Weight	Multipunch 1000 x 2000: 12,500 kg (27,557 lb); 1250 x 2500: 14,000 kg (30,864 lb); 1500 x 3000: 15,800 kg (34,832 lb)
Electrical Connecting Value	20 / 25 kVA (standard hydr. / fast hydr.)
Hydraulic Motor	4.8 / 11 kW (6.4 / 14.8 hp)
Electrical Consumption 2 Mm Sheet	4.9 / 7.7 kW/h continuous operation
Electrical Consumption 4 Mm Sheet	5.4 / 8.75 kW/h continuous operation
Required Fuse	3 x 25 A / 3 x 35 A

Specifications sourced from boschert.de — verified 2026-10-05

Strengths & Limitations

Strengths

X and Y both position at 60 m/min, 85 m/min simultaneously
Multi-tool technology for multiple punching operations in a single cycle
Three working areas from 1,060 x 2,080 mm to 1,560 x 3,080 mm
Up to 800 strokes/min with the fast hydraulics
Material clamps for either 7 mm or 12.7 mm sheet

Limitations

No tool-station count or punch diameter is published in the table
Workpiece weight is limited to 200 kg
The smallest version already needs 6,100 x 5,338 mm of floor and weighs 12,500 kg
Positioning difference of +/- 0.10 mm, against +/- 0.05 mm on the TWIN / TRI

Best For

High-volume sheet metal parts with many hits per sheet Electrical enclosure manufacturing Formats up to 1,560 x 3,080 mm, or longer by repositioning

Frequently Asked Questions

01 What sizes of Boschert MultiPunch are there?

Three: working areas of 1,060 x 2,080 mm, 1,310 x 2,580 mm and 1,560 x 3,080 mm. The machines weigh 12,500 kg, 14,000 kg and 15,800 kg. Sheet lengths up to 9,999 mm are possible on each by repositioning.

02 How does the MultiPunch differ from the TWIN / TRI?

Mainly in Y-axis speed and concept. The MultiPunch positions at 60 m/min in both axes and 85 m/min simultaneously, and is built around multi-tool technology. The TWIN / TRI lists 30 m/min in Y and 67 m/min simultaneously. Both punch with 280 kN at up to 800 strokes/min with fast hydraulics.

03 What sheet thickness can the MultiPunch handle?

It depends on the material clamps selected: Boschert lists a choice of clamps for either 7 mm or 12.7 mm. Punching power is 280 kN and the maximum workpiece weight is 200 kg.

04 What electrical supply does the MultiPunch need?

The connecting value is 20 kVA with standard hydraulics and 25 kVA with fast hydraulics, with fuses of 3 x 25 A or 3 x 35 A. The hydraulic motor is 4.8 kW or 11 kW. Consumption in continuous operation is listed at up to 5.4 / 8.75 kW/h.
