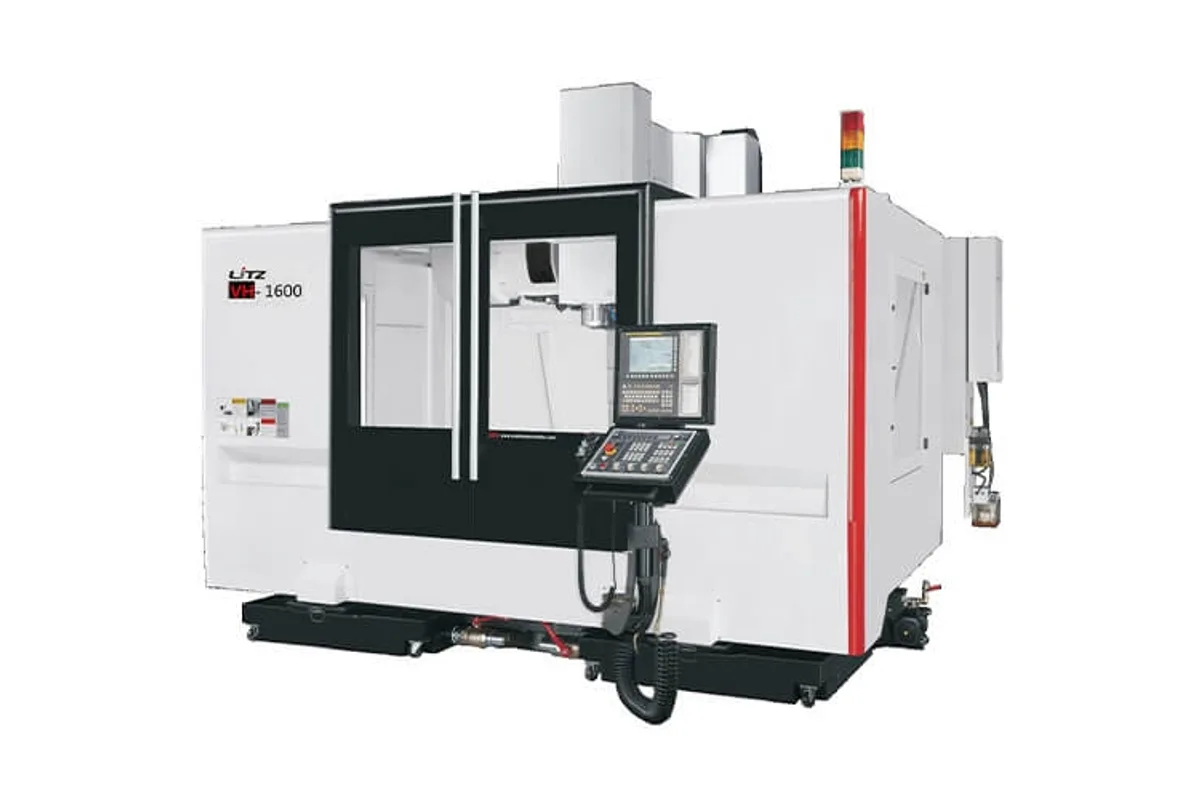

Litz VH-1600B
Image: litzhitech.com, Litz
Key Specifications
Max Spindle
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Litz VH-1600B cost?
Price estimate
We do not have a price for the Litz VH-1600B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Litz VH-1600B is the 50-taper version of the VH-1600: a vertical machining center with 1,600 mm (63.0 in) of X travel, 900 mm (35.4 in) of Y, 800 mm (31.5 in) of Z and a BBT-50 direct-drive spindle at 8,000 rpm.
Eight thousand rpm is high for a 50-taper spindle. Many machines of this taper stop lower, and the extra range lets the VH-1600B run carbide tooling in steel at proper surface speed and still finish with mid-sized cutters. Litz gives the motor as 15 / 18.5 kW (20.1 / 24.8 hp), continuous and 30 min, the same rating as the BBT-40 VH-1600A. What changes is what the spindle can hold: tools up to 15 kg (33 lb) and 350 mm (13.8 in) long, with diameter listed as 125 / 250 mm (4.9 / 9.8 in).
The heavier head adds mass. This model weighs 21,000 kg (46,296 lb) against 19,000 kg for the VH-1600A, and carries a 550 L coolant tank. Rapids are unchanged at 36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm), which keeps non-cutting time short on parts with widely spaced features.
The standard magazine holds 24 tools; a 32T arm type magazine is optional. The table measures 1,700 x 850 mm (66.9 x 33.5 in) and takes 1,500 kg (3,307 lb). Coolant through the ballscrews, linear roller guideways and linear scales are options on the three axes.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,600 mm (63.0 in) |
| Y Axis Travel | 900 mm (35.4 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| Distance Spindle Nose to Table | 100 to 900 mm (3.9 to 35.4 in) |
| Max Spindle Speed | 8,000 rpm |
| Tool Capacity | 24 |
| Max Tool Diameter (full magazine) | 125 / 250 mm (4.9 / 9.8 in) |
| Max Tool Length | 350 mm (13.8 in) |
| Max Tool Weight | 15 kg (33 lb) |
| Tool Change Method | ARM |
| Tool Shank | BBT-50 |
| Spindle Motor Power | 15 / 18.5 kW (20.1 / 24.8 hp) (continuous / 30 min rated) |
| Axis Motors Xyz | 4 / 4 / 4 kW |
| Table Size | 1,700 x 850 mm (66.9 x 33.5 in) |
| Max Table Load | 1,500 kg (3,307 lb) |
| T-Slots | 7 x 18 mm x 100 mm (number x width x distance from the center) |
| CNC Control | FANUC 0i-MF PLUS 3 |
| Machine Weight | 21,000 kg (46,296 lb) |
| Coolant Tank Capacity | 550 L |
| Power Requirement | 42 kVA |
| Compressed Air | 6 kg/cm² |
| Rapid Traverse Xyz | 36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm) |
Specifications sourced from litzhitech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- BBT-50 direct-drive spindle at 8,000 rpm with a 15 / 18.5 kW (20.1 / 24.8 hp) motor
- Tools up to 15 kg (33 lb) and 350 mm (13.8 in) long
- 1,600 x 900 x 800 mm travels with 36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm) rapids
- 550 L coolant tank, against 500 L on the VH-1600A
- 21,000 kg (46,296 lb) of machine mass behind the cut
Limitations
- 24 tools as standard, fewer than the 30 of the VH-1600A
- Motor rating is no higher than on the BBT-40 VH-1600A
- Table load of 1,500 kg (3,307 lb) limits very heavy die blocks
- 42 kVA supply and a heavy foundation load
Best For
Frequently Asked Questions
01
A direct-drive BBT-50 spindle at 8,000 rpm, with a motor rated 15 / 18.5 kW (20.1 / 24.8 hp), continuous and 30 min. A spindle dust-proof air-sealing system is standard.
02
The 24-tool arm changer takes tools up to 350 mm (13.8 in) long and 15 kg (33 lb). Maximum tool diameter is listed as 125 / 250 mm (4.9 / 9.8 in). A 32T arm type magazine is available as an option.
03
The machine weighs 21,000 kg (46,296 lb). It requires a 42 kVA supply and 6 kg/cm² compressed air, and holds 550 L of coolant. The VH-1600A on the same frame weighs 19,000 kg (41,887 lb).
04
The table is 1,700 x 850 mm (66.9 x 33.5 in) with seven 18 mm T-slots and a 1,500 kg (3,307 lb) rating. Travels are 1,600 x 900 x 800 mm and spindle nose to table distance is 100 to 900 mm (3.9 to 35.4 in).
