Litz VH-1600A

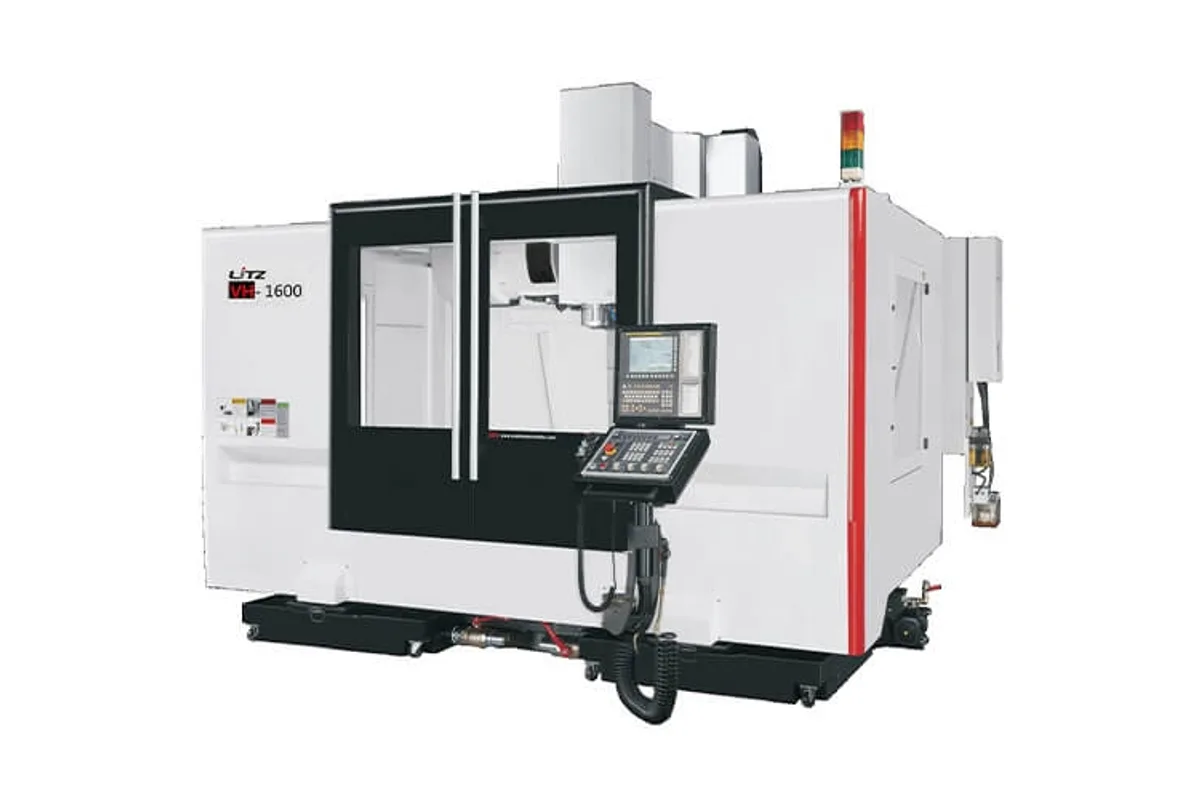

Image: litzhitech.com, Litz
Key Specifications
Max Spindle
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Litz VH-1600A cost?
Price estimate
We do not have a price for the Litz VH-1600A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Litz VH-1600A is a large-format vertical machining center with a 40-taper spindle: 1,600 mm (63.0 in) of X, 900 mm (35.4 in) of Y and 800 mm (31.5 in) of Z over a 1,700 x 850 mm (66.9 x 33.5 in) table. The spindle is direct-drive at 12,000 rpm on BBT-40 tooling.
A machine of 19,000 kg (41,887 lb) with a 12,000 rpm spindle is built for a specific kind of part. Large aluminium plates, vacuum chamber components, big mould cavities in the finishing stage: work where the envelope is large but the cutters stay small to medium. The 15 / 18.5 kW (20.1 / 24.8 hp) motor, continuous and 30 min rated, supports that. For buyers who want to push further in that direction, built-in spindles of 15,000 rpm and 20,000 rpm are optional.
Y travel of 900 mm is the standout dimension. It exceeds the 850 mm table width, so the full table surface is reachable. The table is rated for 1,500 kg (3,307 lb) and has seven T-slots.
The magazine holds 30 tools as standard and Litz lists a 40T arm type magazine as an option, the largest tool count offered in the VH range. Tools may be 300 mm (11.8 in) long and 7 kg (15 lb). Rapids are 36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm). The VH-1600B is the same frame with a BBT-50 spindle at 8,000 rpm. Supply is 42 kVA and the coolant tank holds 500 L.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,600 mm (63.0 in) |
| Y Axis Travel | 900 mm (35.4 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| Distance Spindle Nose to Table | 100 to 900 mm (3.9 to 35.4 in) |
| Max Spindle Speed | 12,000 rpm |
| Tool Capacity | 30 |
| Max Tool Diameter (full magazine) | 80 / 150 mm (3.1 / 5.9 in) |
| Max Tool Length | 300 mm (11.8 in) |
| Max Tool Weight | 7 kg (15 lb) |
| Tool Change Method | ARM |
| Tool Shank | BBT-40 |
| Spindle Motor Power | 15 / 18.5 kW (20.1 / 24.8 hp) (continuous / 30 min rated) |
| Axis Motors Xyz | 4 / 4 / 4 kW |
| Table Size | 1,700 x 850 mm (66.9 x 33.5 in) |
| Max Table Load | 1,500 kg (3,307 lb) |
| T-Slots | 7 x 18 mm x 100 mm (number x width x distance from the center) |
| CNC Control | FANUC 0i-MF PLUS 3 |
| Machine Weight | 19,000 kg (41,887 lb) |
| Coolant Tank Capacity | 500 L |
| Power Requirement | 42 kVA |
| Compressed Air | 6 kg/cm² |
| Rapid Traverse Xyz | 36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm) |
Specifications sourced from litzhitech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,600 x 900 x 800 mm travels over a 1,700 x 850 mm (66.9 x 33.5 in) table
- 12,000 rpm direct-drive BBT-40 spindle, with built-in 15,000 rpm and 20,000 rpm options
- 30-tool magazine as standard and a 40T magazine as an option
- 36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm) rapids on a 19,000 kg (41,887 lb) machine
- Up to 900 mm (35.4 in) between spindle nose and table
Limitations
- Tool weight limit of 7 kg (15 lb); the VH-1600B takes 15 kg (33 lb)
- 1,500 kg (3,307 lb) table load is modest for a table of this area
- Needs a 42 kVA supply and a foundation for 19,000 kg (41,887 lb)
- Chip conveyor is optional
Best For
Frequently Asked Questions
01
1,600 mm (63.0 in) in X, 900 mm (35.4 in) in Y and 800 mm (31.5 in) in Z. The table is 1,700 x 850 mm (66.9 x 33.5 in), rated for 1,500 kg (3,307 lb), with 100 to 900 mm (3.9 to 35.4 in) between spindle nose and table.
02
The VH-1600A has a BBT-40 spindle at 12,000 rpm, 30 tools and a 7 kg (15 lb) tool limit. The VH-1600B has a BBT-50 spindle at 8,000 rpm, 24 tools and a 15 kg (33 lb) tool limit, and weighs 21,000 kg (46,296 lb). Travels, table and motor rating are shared.
03
Thirty in the standard arm type magazine. A 40T arm type magazine is listed as an option. Maximum tool diameter is given as 80 / 150 mm (3.1 / 5.9 in), maximum length 300 mm (11.8 in) and maximum weight 7 kg (15 lb).
04
The machine weighs 19,000 kg (41,887 lb). It needs a 42 kVA supply and compressed air at 6 kg/cm², and the coolant tank holds 500 L. The control is the FANUC 0i-MF PLUS 3, with the Mitsubishi M80 as an option.
