Haas Automation Vertical Machining Centers

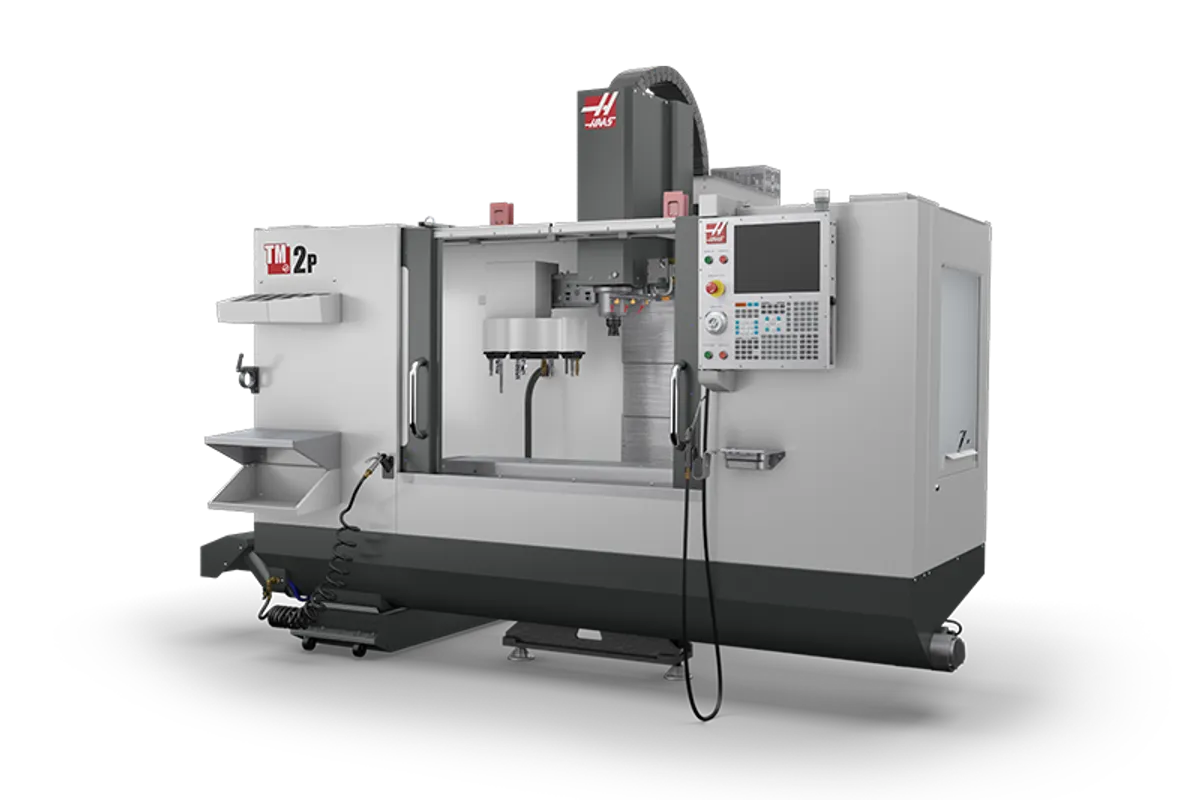

Haas TM-2P

$57,000 - $70,000 Updated 2026-03-12

Key Specifications

X Travel

1,016 mm (40 in)

Y Travel

406 mm (16 in)

Z Travel

406 mm (16 in)

Max Spindle

6,000 RPM

Spindle Taper

CT or BT 40

Tool Capacity

10-pocket carousel

Overview

The Haas TM-2P stretches the toolroom mill concept to 1,016 mm (40 in) of X-axis travel, making it the longest-reaching machine in the TM series. If you need to machine long parts, jig plates, or fixtures on a single-phase-capable machine, the TM-2P is one of very few options at any price.

The spindle is a belt-drive CT/BT 40 taper unit running at 6,000 RPM with 5.6 kW (7.5 hp) and 45 Nm (33 ft-lbf) of torque at 1,200 RPM. Identical to the TM-1P, grease-packed bearings and air cooling keep the maintenance simple. Travel is 1,016 x 406 x 406 mm (40 x 16 x 16 in), with the same Y and Z as the TM-1P.

The table measures 1,466 x 267 mm (57.8 x 10.5 in) with three T-slots on 102 mm centers. That's nearly five feet of table length, which is unusual for a machine in this class. Table load is 159 kg (350 lb), consistent with the TM-1P. The 10-pocket carousel tool changer posts 5.7-second tool-to-tool and 6.5-second chip-to-chip averages.

Rapids and max cutting feedrate are both 10.2 m/min (400 ipm) on all axes. Axis thrust is 8,896 N (2,000 lbf) across all axes. The machine weighs 2,295 kg (5,060 lb) and runs on the Haas NGC control.

Like the TM-1P, the TM-2P accepts single-phase 220 VAC at 40 amps. That single-phase capability combined with 40 inches of X travel makes it attractive for maintenance departments, toolrooms, and small shops working on long parts. At a base price around $57K, it's one of the most affordable 40-inch-travel CNC mills available. Specs sourced from Haas Automation published data.

Full Specifications

Parameter	Value
X-Axis Travel	1,016 mm (40 in)
Y-Axis Travel	406 mm (16 in)
Z-Axis Travel	406 mm (16 in)
Spindle Nose To Table Max	508 mm (20 in)
Spindle Nose To Table Min	102 mm (4 in)
Max Spindle Speed	6,000 RPM
Spindle Taper	CT or BT 40
Spindle Motor Power	7.5 hp
Spindle Torque Max	45 Nm (33 ft-lbf) @ 1,200 RPM
Spindle Drive	Direct Speed, Belt Drive
Spindle Cooling	Air Cooled
Spindle Bearings	Grease Packed
Tool Capacity	10-pocket carousel
Tool To Tool	5.70 s
Chip To Chip	6.50 s
Max Tool Diameter	3.5 in
Max Tool Weight	12.0 lb
Table Size	1,466 x 267 mm (57.8 x 10.5 in)
Table Load Max	159 kg (350 lb)
T Slots	3 slots, 102 mm (4.0 in) center distance
Max Cutting Feedrate	10.2 m/min (400 ipm)
Rapid Traverse X	10.2 m/min (400 ipm)
Rapid Traverse Y	10.2 m/min (400 ipm)
Rapid Traverse Z	10.2 m/min (400 ipm)
Max Thrust X	2000 lbf
Max Thrust Y	2000 lbf
Max Thrust Z	2000 lbf
Machine Weight	2,295 kg (5,060 lb)
CNC Control	Haas Next Generation Control (NGC)
Air Required	4 scfm @ 100 psi
Electrical Single Phase	220 VAC 1-phase, 40 A
Electrical Low	220 VAC 3-phase, 25 A
Electrical High	440 VAC 3-phase, 13 A
Travels	S.A.E
X Axis	40.00 in
Y Axis	16.00 in
Z Axis	16.00 in
Spindle Nose To Table	4.0 in
Spindle	S.A.E
Max Rating	7.5 hp
Max Speed	6000 rpm
Max Torque	33.0 ft-lbf @ 1200 rpm
Drive System	Direct Speed, Belt Drive
Taper	CT or BT 40
Bearing Lubrication	Grease Packed
Cooling	Air Cooled
Table	S.A.E
Length	57.8 in
Width	10.5 in
T Slot Width	0.626 in to 0.630 in
T Slot Center Distance	4.00 in
Number Of Std T Slots	3
Max Weight On Table	350 lb
Feedrates	S.A.E
Max Cutting	400 ipm
Rapids On X	400 ipm
Rapids On Y	400 ipm
Rapids On Z	400 ipm
Axis Motors	S.A.E
Tool Changer	S.A.E
Type	Carousel
Capacity	10
Air Requirements	S.A.E
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage	220 VAC
Full Load Amps	40 A
Input Ac Voltage Low	220 VAC
Full Load Amps Low	25 A
Input Ac Voltage High	440 VAC
Full Load Amps High	13 A
Dimensions Shipping	S.A.E
Domestic Pallet	127.0 in x 78.0 in x 100.0 in
Export Pallet	127.0 in x 78.0 in x 100.0 in
Machine Weight	5060 lb
Haas Rotary	HAAS MACHINE
Ha2ts	TM-2P
Ha5c	TM-2P
Ha5c T	TM-2P
Ha5cs	TM-2P
Hqda5	TM-2P
Hrc160	TM-2P
Hrc210	TM-2P
Hrt100	TM-2P
Hrt160	TM-2P
Hrt160 2	TM-2P
Hrt160sp	TM-2P
Hrt160ss	TM-2P
Hrt200hs	TM-2P
Hrt210	TM-2P
Hrt210ht	TM-2P
Hrt210sp	TM-2P
Hrt210ss	TM-2P
Hrta5	TM-2P
Hrta6	TM-2P
Lt260	TM-2P
Th240	TM-2P
Trt100	TM-2P
Trt160	TM-2P
Trt210	TM-2P
Trt70	TM-2P

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

1,016 mm (40 in) X travel is exceptional for a toolroom-class machine and handles long parts other TMs can't reach
Runs on single-phase 220 VAC at 40 amps, making it accessible to shops without 3-phase power
1,466 mm (57.8 in) table length accommodates long fixtures, jig plates, and rail-type parts
Base price around $57K makes it one of the most affordable 40-inch-travel CNC mills on the market
40-taper spindle accepts standard tooling shared with production Haas machines
NGC control provides full production-grade programming on a toolroom-budget machine

Limitations

6,000 RPM and 7.5 hp severely limit material removal rates for anything beyond light cutting
400 ipm rapids and 6.5-second chip-to-chip rule it out for production work
267 mm (10.5 in) table width is very narrow, limiting fixture options and workpiece clamping
159 kg (350 lb) table load is low even for toolroom work with heavier fixtures
10-pocket carousel tool changer limits tool capacity for complex jobs
Belt-drive spindle with grease-packed bearings is less rigid and precise than direct-drive designs

Best For

Toolrooms machining long fixture plates, jig rails, and maintenance parts up to 40 inches Small shops with single-phase power that need to machine long workpieces Trade schools and technical programs with long-part machining curriculum Prototype shops working on long extrusion-like parts in aluminum and mild steel Secondary operations on long parts that don't justify a production VMC Maintenance departments making one-off replacement parts and fixtures

Frequently Asked Questions

01 What's the difference between the TM-2P and TM-1P?

The TM-2P adds 254 mm (10 in) of X travel over the TM-1P, going from 762 mm to 1,016 mm, with a proportionally longer table. Everything else is identical: same spindle, rapids, tool changer, and power requirements. The TM-2P costs about $5K more.

02 What does a Haas TM-2P cost?

Base price is approximately $57,000. With probing and basic options, expect $60,000-$70,000. Used TM-2P machines are less common than TM-1Ps but trade in the $18,000-$35,000 range.

03 Can the TM-2P run on single-phase?

Yes. It accepts 220 VAC single-phase at 40 amps, 220 VAC 3-phase at 25 amps, or 440 VAC 3-phase at 13 amps. The single-phase capability is a key selling point for shops without industrial power.

04 Is the TM-2P suitable for production?

Not really. The 400 ipm rapids, 6.5-second chip-to-chip, and 7.5 hp spindle are toolroom specs. For production work with similar travel, look at the Haas VF-3 or VF-4. The TM-2P is purpose-built for low-volume toolroom and training applications.

05 How does the narrow table affect workholding?

The 267 mm (10.5 in) table width limits you to single-row vise setups and narrow fixtures. Most operators use a Kurt 6-inch vise centered on the table. For wider workpieces, you'll need sub-plates that overhang the table edges, but watch the 159 kg load limit.
