AWEA HTP-5033

Q: How much does the AWEA HTP-5033 cost?

The price estimate for the AWEA HTP-5033 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/awea-htp-5033#price; the request is passed to AWEA or an authorised dealer.

Specs verified 2026-10-04 · awea.com Updated 2026-10-04

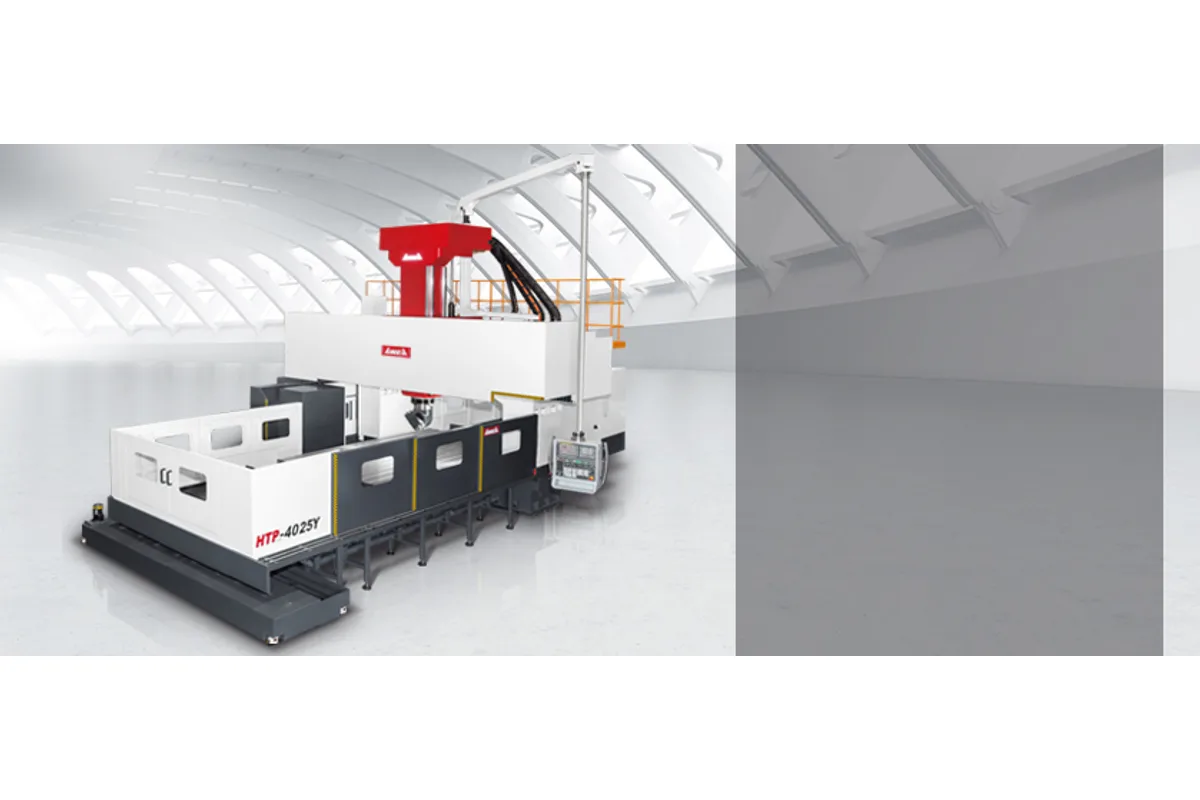

AWEA HTP series bridge type machining center (HTP-4025 shown)

Image: awea.com, AWEA

Key Specifications

Max Spindle

Gear Spindle 4,000 rpm

Spindle Taper

BBT50 (ISO 50)

Tool Capacity

32 T (Opt. 40 / 60 / 90 / 120)

Table Size

5,020 x 3,000 mm (197.6 x 118.1 in)

Spindle Power

22 / 26 kW (29.5 / 34.9 hp) (Opt. 30 / 37)

x axis travel

5,000 mm (196.9 in)

How much does the AWEA HTP-5033 cost?

Price estimate

Uncertain

We do not have a price for the AWEA HTP-5033 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The AWEA HTP-5033 is a bridge type machining center with 5,000 mm (196.9 in) of X travel, 3,300 mm (129.9 in) of Y and a 5,020 x 3,000 mm (197.6 x 118.1 in) table rated for 18,000 kg (39,683 lb). The columns stand 3,500 mm (137.8 in) apart.

Most of what defines an HTP sits in the head, and this page is a good place to go through it. Z travel is 1,000 mm (39.4 in), with 200 ~ 1,200 mm (7.9 ~ 47.2 in) from spindle nose to table. The headstock is carried in a U-shaped saddle cast in one piece, guided by two roller type linear guideways on each side, and balanced by a closed loop hydraulic counterbalance. AWEA states that accuracy is maintained even with the Z-axis fully extended.

Inside is a gear head spindle: 4,000 rpm, 22 / 26 kW (29.5 / 34.9 hp), BBT50 (ISO 50). The BBT interface holds the tool holder on both taper and face. Tools of up to 20 kg (44 lb) and 350 mm (13.8 in) are accepted.

One row deserves a second look before ordering. Cutting feed on the HTP-5033 is printed as 1 ~ 5 m/min (39 ~ 197 ipm), while the HTP-5025, which has the same X stroke, shows 1 ~ 10 m/min (39 ~ 394 ipm). X rapid is 10 m/min (394 ipm) on both. Weight is 47,000 kg (103,616 lb).

Full Specifications

Parameter	Value
X Axis Travel	5,000 mm (196.9 in)
Y Axis Travel	3,300 mm (129.9 in) (Opt. 4,000)
Z Axis Travel	1,000 mm (39.4 in) (Opt. 1,200 / 1,400)
Table Size	5,020 x 3,000 mm (197.6 x 118.1 in)
Max Table Load	18,000 kg (39,683 lb)
Distance Between Columns	3,500 mm (137.8 in)
Distance Spindle Nose to Table	200 ~ 1,200 mm (7.9 ~ 47.2 in) (Opt. 200 ~ 1,400 / 200 ~ 1,600)
Spindle Taper	BBT50 (ISO 50)
Spindle Motor Power	22 / 26 kW (29.5 / 34.9 hp) (Opt. 30 / 37)
Max Spindle Speed	Gear Spindle 4,000 rpm
Rapid Traverse X	10 m/min (394 ipm)
Rapid Traverse Yz	12 m/min (472 ipm)
Cutting Feed Rate	1 ~ 5 m/min (39 ~ 197 ipm)
Tool Capacity	32 T (Opt. 40 / 60 / 90 / 120)
Max Tool Length	350 mm (13.8 in) (Opt. 400)
Max Tool Weight	20 kg (44 lb)
Max Tool Diameter (full magazine)	Ø127 / Ø215 mm (Ø5.0 / Ø8.5 in)
Positioning Accuracy Jis B 6338	± 0.015 mm / Full Travel
Positioning Accuracy VDI 3441	P ≤ 0.040 mm / Full Travel
Repeatability Jis B 6338	± 0.003 mm
Repeatability VDI 3441	Ps ≤ 0.030 mm
Coolant Tank Capacity	1,050 liter
Lubrication Tank Capacity	6 liter
Hydraulic Tank Capacity	100 liter
Air Pressure Requirement	5 ~ 8 kg/cm²
Machine Weight	47,000 kg (103,616 lb)

Specifications sourced from awea.com — verified 2026-10-04

Strengths & Limitations

Strengths

One-piece U-shaped saddle with four linear guideways and ten sliding blocks supporting the Z-axis
18,000 kg (39,683 lb) on a 5,020 x 3,000 mm (197.6 x 118.1 in) table
BBT50 (ISO 50) dual contact gear spindle with 22 / 26 kW (29.5 / 34.9 hp)
3,300 mm (129.9 in) of Y travel under a 3,500 mm (137.8 in) column spacing
Closed loop hydraulic counterbalance on the head

Limitations

Cutting feed is listed at 1 ~ 5 m/min (39 ~ 197 ipm), half the upper figure of the HTP-5025
X rapid traverse of 10 m/min (394 ipm), down from 15 m/min (591 ipm) on the HTP-4033
VDI repeatability of Ps ≤ 0.030 mm, against Ps ≤ 0.025 mm on the HTP-4033
Tool length is 350 mm (13.8 in) unless the 400 option is taken

Best For

Press frames, large mould bases and fabricated housings near 5,000 x 3,000 mm Deep cavities and tall parts that use the full 1,000 mm (39.4 in) of Z Face milling and boring in steel with 50-taper dual contact tooling Workpieces up to 18,000 kg (39,683 lb)

Frequently Asked Questions

01 How much Z travel and daylight does the HTP-5033 have?

Z travel is 1,000 mm (39.4 in) and the spindle nose sits 200 ~ 1,200 mm (7.9 ~ 47.2 in) above the table. The table prints "Opt. 1,200 / 1,400" beside the Z travel and "Opt. 200 ~ 1,400 / 200 ~ 1,600" beside the nose distance.

02 What keeps the head of the HTP-5033 stiff at full Z extension?

AWEA names several parts: a U-shaped saddle cast in one piece with strong ribbing, a saddle fixture that gives additional support during heavy cutting, and two roller type linear guideways on each side of the headstock. Together that makes four guideways and ten sliding blocks on the Z-axis.

03 Does the HTP-5033 offer other spindle power?

The standard motor is 22 / 26 kW (29.5 / 34.9 hp). The table prints "Opt. 30 / 37" after it without repeating the unit. Spindle speed is listed as Gear Spindle 4,000 rpm and the taper as BBT50 (ISO 50).

04 Which is the next size up from the HTP-5033?

In length, the HTP-6033: 6,000 mm (236.2 in) of X, a 20,000 kg (44,092 lb) table and 51,000 kg (112,434 lb). In width, the HTP-5041, with 4,300 mm (169.3 in) between the columns and the same 18,000 kg (39,683 lb) rating.
