Litz MV-1400B

Q: How much does the Litz MV-1400B cost?

The price estimate for the Litz MV-1400B is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/litz-mv-1400b#price; the request is passed to Litz or an authorised dealer.

Specs verified 2026-10-04 · litzhitech.com Updated 2026-10-04

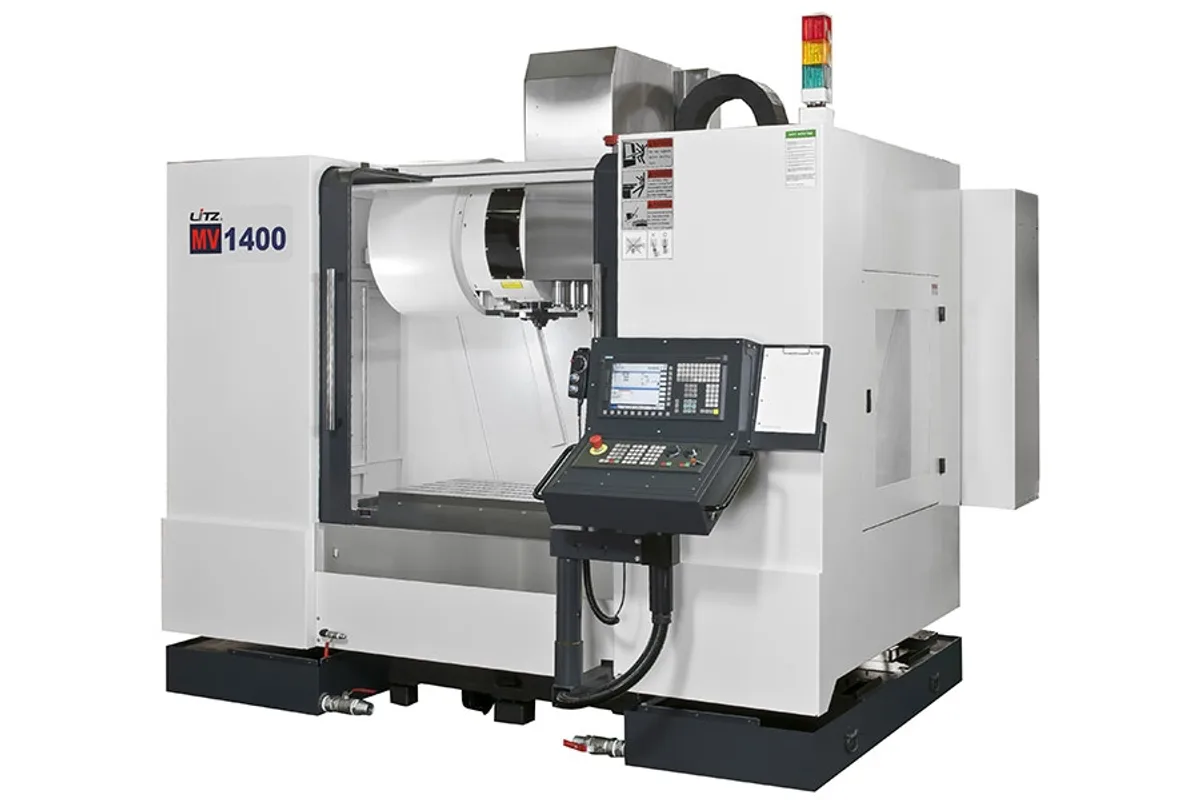

Litz MV series vertical machining center (MV-1400B)

Image: litzhitech.com, Litz

Key Specifications

Max Spindle

6,000 rpm

Tool Capacity

Table Size

1,400 x 620 mm (55.1 x 24.4 in)

Spindle Power

15 / 18.5 kW (20 / 25 HP) (continuous / 30 min rated)

x axis travel

1,400 mm (55.1 in)

y axis travel

650 mm (25.6 in)

How much does the Litz MV-1400B cost?

Price estimate

Uncertain

We do not have a price for the Litz MV-1400B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Litz MV-1400B puts a BT-50 spindle over a 1,400 x 620 mm (55.1 x 24.4 in) table. Spindle speed is 6,000 rpm, the motor is rated 15 / 18.5 kW (20 / 25 HP), and travels are 1,400 mm (55.1 in), 650 mm (25.6 in) and 675 mm (26.6 in) in X, Y and Z.

This is the heavy-cutting half of the MV-1400 pair. Tool limits show it: 125 mm (4.9 in) in diameter with adjacent tools, 225 mm (8.9 in) without, 350 mm (13.8 in) long and 15 kg (33 lb). A cutter of that size on a 15 kW continuous spindle removes steel at a rate the BT-40 MV-1400A, with its 11 / 15 kW motor, is not built for.

A small line in the table deserves attention. The Y axis motor is 3.5 kW here; the listing reads 2.0 / 3.5 / 3.5 kW where the MV-1400A has 2.0 / 2.0 / 3.5 kW. The saddle drive is sized up to push the table against larger cutting forces.

Travel speeds are moderate: 24 / 24 / 20 m/min (945 / 945 / 787 ipm) rapids and cutting feed to 10,000 mm/min. The table takes 1,000 kg (2,205 lb). The enclosure differs from the A as well: a hood for the top of the machine is standard and the full enclosure is an option. Weight is 11,000 kg (24,250 lb), supply 35 kVA, coolant tank 360 L.

Full Specifications

Parameter	Value
X Axis Travel	1,400 mm (55.1 in)
Y Axis Travel	650 mm (25.6 in)
Z Axis Travel	675 mm (26.6 in)
Distance Spindle Nose to Table	85 to 760 mm (3.3 to 29.9 in)
Max Spindle Speed	6,000 rpm
Tool Capacity	24
Max Tool Diameter (full magazine)	125 mm (4.9 in) with adjacent tool / 225 mm (8.9 in) without adjacent tool
Max Tool Length	350 mm (13.8 in)
Max Tool Weight	15 kg (33 lb)
Tool Change Method	Arm
Tool Shank	BT-50
Spindle Motor Power	15 / 18.5 kW (20 / 25 HP) (continuous / 30 min rated)
Axis Motors Xyz	2.0 / 3.5 / 3.5 kW
Table Size	1,400 x 620 mm (55.1 x 24.4 in)
Max Table Load	1,000 kg (2,205 lb)
T-Slots	5 x 18 mm x 100 mm (number x width x distance from the center)
Cutting Feed Rate	1-10,000 mm/min (up to 394 ipm)
CNC Control	Mitsubishi M80
Machine Weight	11,000 kg (24,250 lb)
Power Requirement	35 kVA
Coolant Tank Capacity	360 L
Compressed Air	6 kg/cm²
Rapid Traverse Xyz	24 / 24 / 20 m/min (945 / 945 / 787 ipm)

Specifications sourced from litzhitech.com — verified 2026-10-04

Strengths & Limitations

Strengths

BT-50 spindle with a 15 / 18.5 kW (20 / 25 HP) motor
Tools up to 225 mm (8.9 in) in diameter without adjacent tools, 350 mm (13.8 in) long and 15 kg (33 lb)
1,400 x 650 x 675 mm travels and a 1,000 kg (2,205 lb) table load
3.5 kW Y axis motor, larger than the 2.0 kW of the MV-1400A
8,000 rpm and 10,000 rpm spindles and a ZF gearbox are options

Limitations

6,000 rpm standard spindle speed
Full enclosure is an option on this model
Rapids are 24 / 24 / 20 m/min (945 / 945 / 787 ipm)
Needs 35 kVA and a floor for 11,000 kg (24,250 lb)

Best For

Heavy roughing of steel plates and die blocks Large face mills and boring tools on BT-50 holders Parts up to 1,000 kg (2,205 lb) and 1,400 mm (55.1 in) long

Frequently Asked Questions

01 What spindle does the Litz MV-1400B use?

A BT-50 spindle at 6,000 rpm with a 15 / 18.5 kW (20 / 25 HP) motor, continuous and 30 min rated. The spindle air seal and spindle head coolant cooling system are standard. 8,000 rpm and 10,000 rpm spindles, a spindle oil cooler and coolant through the spindle are options.

02 What are the tool limits on the MV-1400B?

The 24-tool arm changer accepts tools 125 mm (4.9 in) in diameter with adjacent tools and 225 mm (8.9 in) without, up to 350 mm (13.8 in) long and 15 kg (33 lb). A 32T arm type magazine is optional.

03 Is the MV-1400B fully enclosed?

Not as standard. The accessory list shows a hood for the top of the machine as standard and the full enclosure as an option, together with the chip conveyor and wash down device. A chip auger, chip cart, water gun and air gun are included.

04 What does the MV-1400B weigh and what supply does it need?

The machine weighs 11,000 kg (24,250 lb) and needs a 35 kVA supply with compressed air at 6 kg/cm². The coolant tank holds 360 L. The standard control is the Mitsubishi M80; FANUC and Siemens 828D are options.
