Litz DV-700

Q: How much does the Litz DV-700 cost?

The price estimate for the Litz DV-700 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/litz-dv-700#price; the request is passed to Litz or an authorised dealer.

Specs verified 2026-10-04 · litzhitech.com Updated 2026-10-04

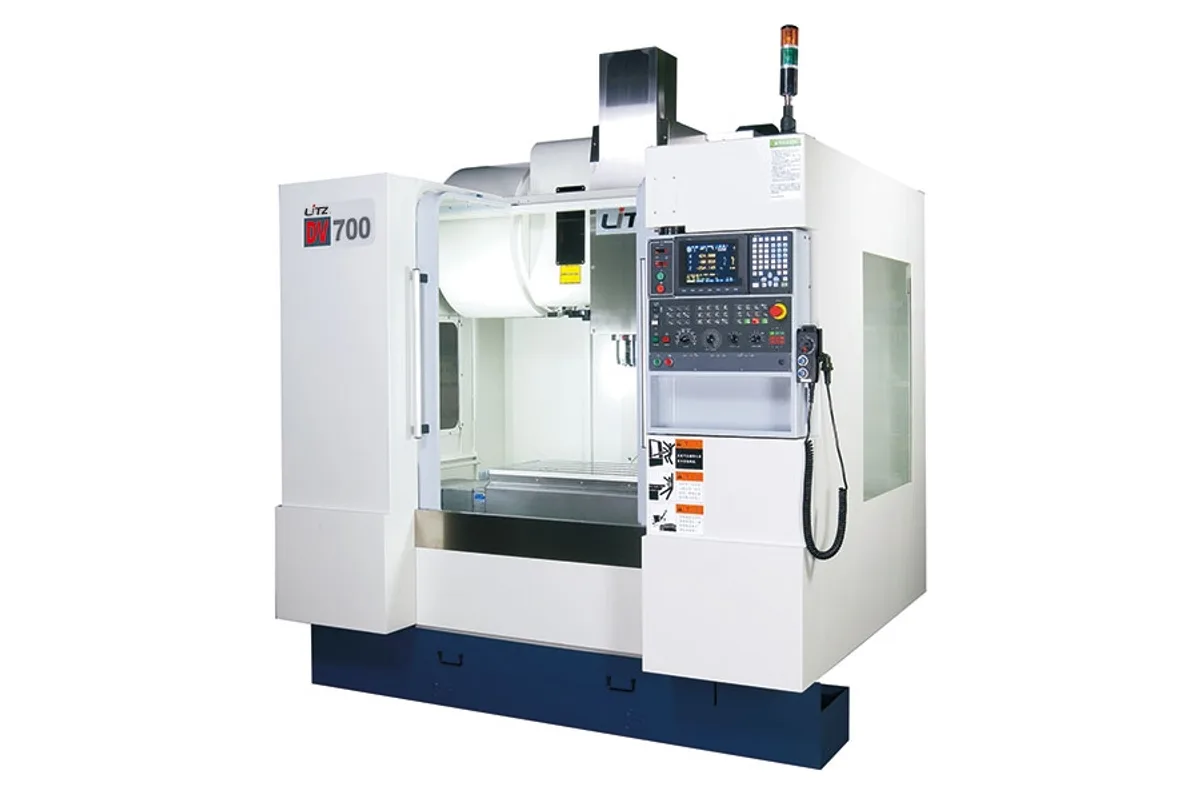

Image: litzhitech.com, Litz

Key Specifications

Max Spindle

10,000 rpm

Tool Capacity

Table Size

850 x 450 mm (33.5 x 17.7 in)

Spindle Power

5.5 / 7.5 kW (7.5 / 10 HP) (continuous / 30 min rated)

x axis travel

700 mm (27.6 in)

y axis travel

450 mm (17.7 in)

How much does the Litz DV-700 cost?

Price estimate

Uncertain

We do not have a price for the Litz DV-700 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Litz DV-700 is a light-duty vertical machining center with 700 mm (27.6 in) of X travel and 450 mm (17.7 in) of Y, and it is the one DV model that Litz offers with two Z strokes. The table lists 540 mm (21.3 in) of Z as the base figure and 410 mm (16.1 in) as the optional one, with spindle nose to table distance changing from 80 to 620 mm (3.1 to 24.4 in) to 80 to 490 mm (3.1 to 19.3 in).

Why would anyone order less Z? On flat plate work and shallow pockets the full column height is never used, so the shorter stroke is the natural pick for that kind of part. For vise work with long drills, keep the 540 mm version.

The table is 850 x 450 mm (33.5 x 17.7 in) but carries only 250 kg (551 lb). That is the lowest table load in the DV series, below even the smaller DV-600 at 350 kg (772 lb), and it rules out heavy fixtures or a loaded rotary table. Tooling is BT-40, and the changer limits tools to 250 mm (9.8 in) and 6 kg (13 lb). Tool diameter is 80 mm (3.1 in) with adjacent tools and 120 mm (4.7 in) without.

Spindle speed is 10,000 rpm from a 5.5 / 7.5 kW (7.5 / 10 HP) motor. The coolant tank is small at 130 L, so long unattended runs with flood coolant need watching. Control is the Mitsubishi M80; FANUC 0i-MD and Siemens 828D are options.

Full Specifications

Parameter	Value
X Axis Travel	700 mm (27.6 in)
Y Axis Travel	450 mm (17.7 in)
Z Axis Travel	540 mm (21.3 in); optional 410 mm (16.1 in)
Distance Spindle Nose to Table	80 to 620 mm (3.1 to 24.4 in); optional 80 to 490 mm (3.1 to 19.3 in)
Max Spindle Speed	10,000 rpm
Tool Capacity	24
Max Tool Diameter (full magazine)	80 mm (3.1 in) with adjacent tool / 120 mm (4.7 in) without adjacent tool
Max Tool Length	250 mm (9.8 in)
Max Tool Weight	6 kg (13 lb)
Tool Change Method	Arm
Tool Shank	BT-40
Spindle Motor Power	5.5 / 7.5 kW (7.5 / 10 HP) (continuous / 30 min rated)
Axis Motors Xyz	1.5 / 1.5 / 2.0 kW
Table Size	850 x 450 mm (33.5 x 17.7 in)
Max Table Load	250 kg (551 lb)
T-Slots	5 x 18 mm x 80 mm (number x width x distance from the center)
Cutting Feed Rate	1-20,000 mm/min (up to 787 ipm)
CNC Control	Mitsubishi M80
Machine Weight	4,200 kg (9,259 lb)
Power Requirement	15 kVA
Coolant Tank Capacity	130 L
Compressed Air	6 kg/cm²
Rapid Traverse Xyz	36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm)

Specifications sourced from litzhitech.com — verified 2026-10-04

Strengths & Limitations

Strengths

Z stroke can be chosen: 540 mm (21.3 in) or an optional 410 mm (16.1 in)
850 x 450 mm (33.5 x 17.7 in) table on a machine that weighs 4,200 kg (9,259 lb)
Spindle nose comes down to 80 mm (3.1 in) above the table, useful for short tools on thin parts
36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm) rapids on a 15 kVA supply

Limitations

250 kg (551 lb) table load is the lowest in the DV series
Coolant tank holds only 130 L
Tools are limited to 6 kg (13 lb) and 250 mm (9.8 in) in length
BT-40 shank, where the DV-800 is listed with BBT-40

Best For

Light plate and cover parts up to 700 x 450 mm Aluminium housings and small fixtures under 250 kg (551 lb) Shallow work where the optional 410 mm Z stroke is enough

Frequently Asked Questions

01 What Z travel does the Litz DV-700 have?

Litz lists 540 mm (21.3 in) of Z travel with 410 mm (16.1 in) as an optional stroke. With the 540 mm stroke the spindle nose sits 80 to 620 mm (3.1 to 24.4 in) above the table; with the optional stroke the range is 80 to 490 mm (3.1 to 19.3 in).

02 How much weight can the DV-700 table carry?

The 850 x 450 mm (33.5 x 17.7 in) table is rated for 250 kg (551 lb). Add up the vise, fixture plate and part before quoting a job, because this limit is reached much sooner than on the DV-800, whose table takes 500 kg (1,102 lb).

03 What tooling does the DV-700 use?

The spindle takes BT-40 tooling and the arm-type changer holds 24 tools. Maximum tool diameter is 80 mm (3.1 in) with adjacent tools and 120 mm (4.7 in) without, maximum length 250 mm (9.8 in) and maximum weight 6 kg (13 lb).

04 Which controls can the DV-700 be ordered with?

The Mitsubishi M80 is the control named in the specification table and marked standard in the accessory list. FANUC 0i-MD and Siemens 828D appear there as options, together with linear scales and roller type linear guideways on the three axes.
